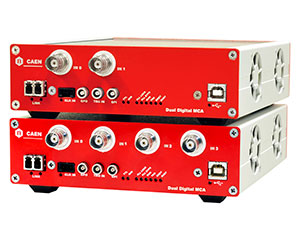

DT5781

New

Dual/Quad Digital Multi Channel Analyzer - Desktop

Features

  • Dual or Quad Independent 16k Digital MCA
  • Suited for high resolution digital nuclear Spectroscopy
  • Fully controlled by the new MC2 Analyzer software
  • Selectable Input Dynamic Range and adjustable Digital Fine Gain
  • Features DPP-PHA firmware for energy and time stamp calculation
  • Digital oscilloscope function for an easy setup and signal monitoring
  • Counting Rate up to 1 Mcps
  • USB and Optical Link communication interfaces
  • Drivers, libraries and API for Windows and Linux 32/64-bit

Overview

The DT5781 is a compact desktop system integrating 4 Independent 16k Digital MCA for digital nuclear Spectroscopy. A version with 2 independent 16k MCA is also available (DT5781A). It is ideally suited for high energy resolution semiconductor detectors, like HPGe and Silicon, connected to a Charge Sensitive Preamplifier (CSP) but it can also properly work directly connected to a PMT with inorganic scintillators (Nal, Csl) and other types of crystal, provided that the pulse shape is exponential and the decay time is long enough (typ. > 200 ns).

The module houses:

  • 4x (or 2x) 100 MS/s 14-bit waveform digitizer (based on 724 series) on single-ended inputs with BNC connectors, featuring 4-step software configurable input range and adjustable DC offset via a 16-bit DAC on each input in the full range.
The DT5781 is equipped with a FPGA featuring the real-time Digital Pulse Processing for Pulse Height Analysis (DPP-PHA firmware) making the module a spectroscopy acquisition system providing energy (i.e. pulse height) and timing information as well as waveforms and internal signals for debugging, monitoring and pulse shape analysis.

Thanks to its two independent inputs of simultaneous acquisition, the DT5781 is able to manage coincidences and anticoincidences between a pair of detectors, allowing the user, for example, to easily take advantage of background rejection or anti-Compton techniques.
The module has been designed to operate as a scalable multi-input, multi-board acquisition system, offering synchronization capabilities.

The DT5781 houses USB 2.0 and Optical Link interfaces. USB 2.0 allows data transfers up to 30 MB/s. The Optical Link supports transfer rate of 80 MB/s and offers Daisy-chain capability. Therefore, it is possible to connect up to 8/32 MCA modules to a single Optical Link Controller (Mod. A2818/A3818).

Operating modes:

  • “Pulse Height Analysis (PHA)”: pulse height histogram (1k-2k-4k-8k-16k) built at software level
  • “List mode”: pulse height and time stamp for each event
  • “Oscilloscope” mode: input and internal filters waveforms

Software available (Windows and Linux):

CAEN provides drivers for all the different types of physical communication channels, a set of C and LabView libraries (CAENComm, CAENDigitizer, CAENDPP (NEW!)), demo applications and utilities:

  • CAENUpgrader: tool that allows the user to update the firmware of the digitizers, change the PLL settings, load, when requested, the license for the pay firmware and other utilities.
  • MC² Analyzer (NEW!): Digital MCA Data Acquisition and Analysis Software designed for CAEN Digital Multi Channel Analyzers and Digitizers running Pulse Height Analysis. (Windows only)

Technical Specifications

Mechanical
Dimensions
154 W x 50 H x 164 L mm³ (without connectors)
154 W x 50 H x 183 L mm³ (including connectors)
Weight
800 g (DT5781 version)
Analog Input

Input Features

BNC connector
Single-ended, DC coupled
Impedance: 1 kΩ
Positive and negative signals accepted
Programmable 4-step analog coarse gain corresponding to
0.3Vpp-1Vpp-3Vpp-10Vpp ranges
Bandwidth: DC to 5 MHz
Programmable DC offset adjustment on each input in the full scale range
Number of Inputs
4 inputs: DT5781
2 inputs: DT5781A
ADC
Resolution: 14 bits
Sampling rate: 100 MS/s simultaneously on each channel
Digital Signal Processing
Trapezoidal filter for the energy calculation with adjustable rise time in the range 0 – 10µs and flat top in the range 0 – 5µs
Manual and automated trigger threshold adjustment
Manual and automated Pole-Zero cancellation; decay time up to 6.5 ms
Digital decimation in steps of 2-4-8 allows to extend the time parameters range
Digital fine gain
Pile-up rejection and Live Time correction
Baseline restorer with programmable averaging
Trigger and Timing filter based on integrative-derivative component
Time Stamp: 10 ns resolution, 31 bit and rollover tracking event
Adjustable moving average low pass filter to reduce the high frequency noise
Operating Modes
Pulse Height Analysis (PHA): pulse height histogram (1k-2k-4k-8k-16k) built at software level
List mode: pulse height and time stamp for each event
Oscilloscope mode: input and internal filters waveforms
Trigger Modes
Uncorrelated: each channel operates independently (based on channel self-trigger)
Correlated: coincidence/anticoincidence among channels and/or an external trigger (TRG-IN)
External: channels are triggered by external trigger only (TRG-IN)

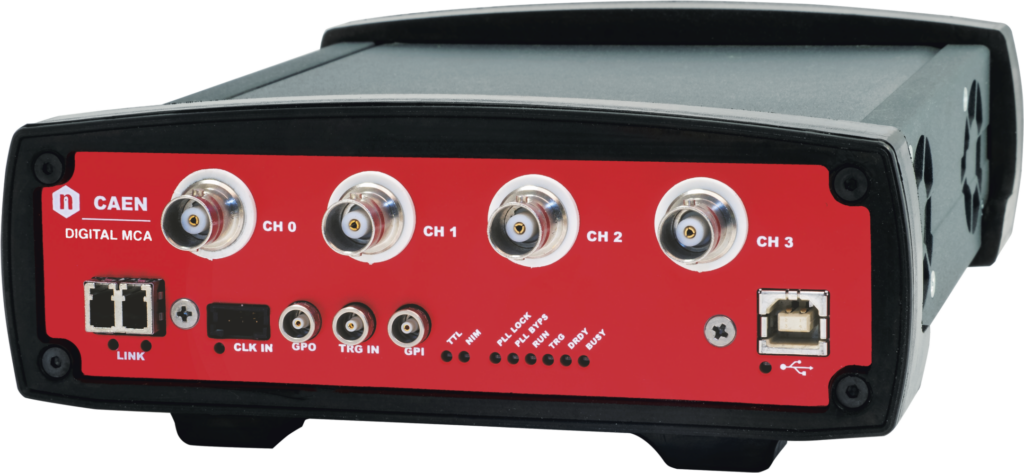

Front Panel Digital I/O
CLK-IN (AMP Modu II)
AC coupled differential Input Clock: LVDS, ECL, PECL, LVPECL, CML (single ended NIM/TTL available by orderable cable); Jitter<100ppm requested; can be used as external clock reference for single board or to synchronize the clocks of multiple boards, provided through a Fan In
GPO (LEMO)
General Purpose Output: NIM/ TTL, Zin = 50 Ω
Can be used to propagate the global trigger in multi-board synchronization (in combination with TRG-IN), as output register or Run ON/OFF status



TRG-IN (LEMO)
External Trigger Input: NIM/TTL, Zin = 50 Ω
Can be used to force the event acquisition from all the channels of the board, to gate/veto the individual channel triggers, or to propagate the common trigger in multi-board synchronization (in combination with GPO)
GPI (LEMO)
General Purpose Input: NIM/TTL, Zin = 50 Ω
Can be used as SYNC/START in multi-board synchronization or Run ON/OFF Control
Communication interface
Optical Link
CAEN CONET proprietary protocol Up to 80 MB/s transfer rate Daisy chain capability: it is possible to connect up to 8 or 32 ADC modules to a single Optical Link Controller (A2818 or A3818 respectively)
USB
USB 2.0 compliant
Up to 30 MB/s transfer rate
Firmware

Firmware can be upgraded via USB/Optical Link

Software

Fully controlled by DPP-PHA Control Software and the MC² Analyzer spectroscopy Software
For developers: general purpose C libraries with demo samples available

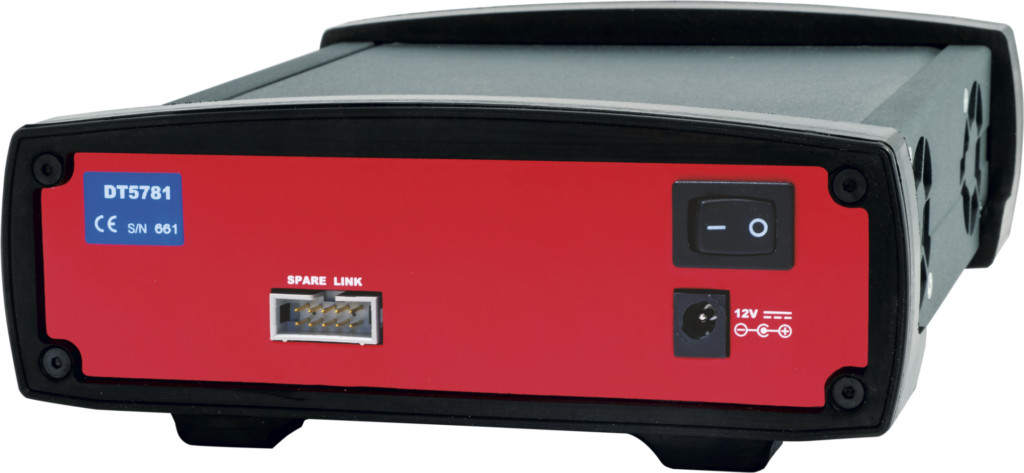

Power Requirements
Operating Supply Voltage
+12 VDC ± 10%
Consumptions(@ +12 VDC)
1.75 A (Typ.) for DT5781 ( ± 10% tolerance)
1.15 A (Typ.) for DT5781A ( ± 10% tolerance)

The module is powered by external AC/DC stabilized power supply included in the kit (12 VDC, 45 W)

Environmental

Operational Conditions
0 – 50°C Temperature Range – EMC compliant
