SP5605

Ultra Violet LED Driver

Features

  • Pulse width: 4 ns
  • LED color: UV (255 nm), 0-27000 photons
  • Pulse generator: internal/external

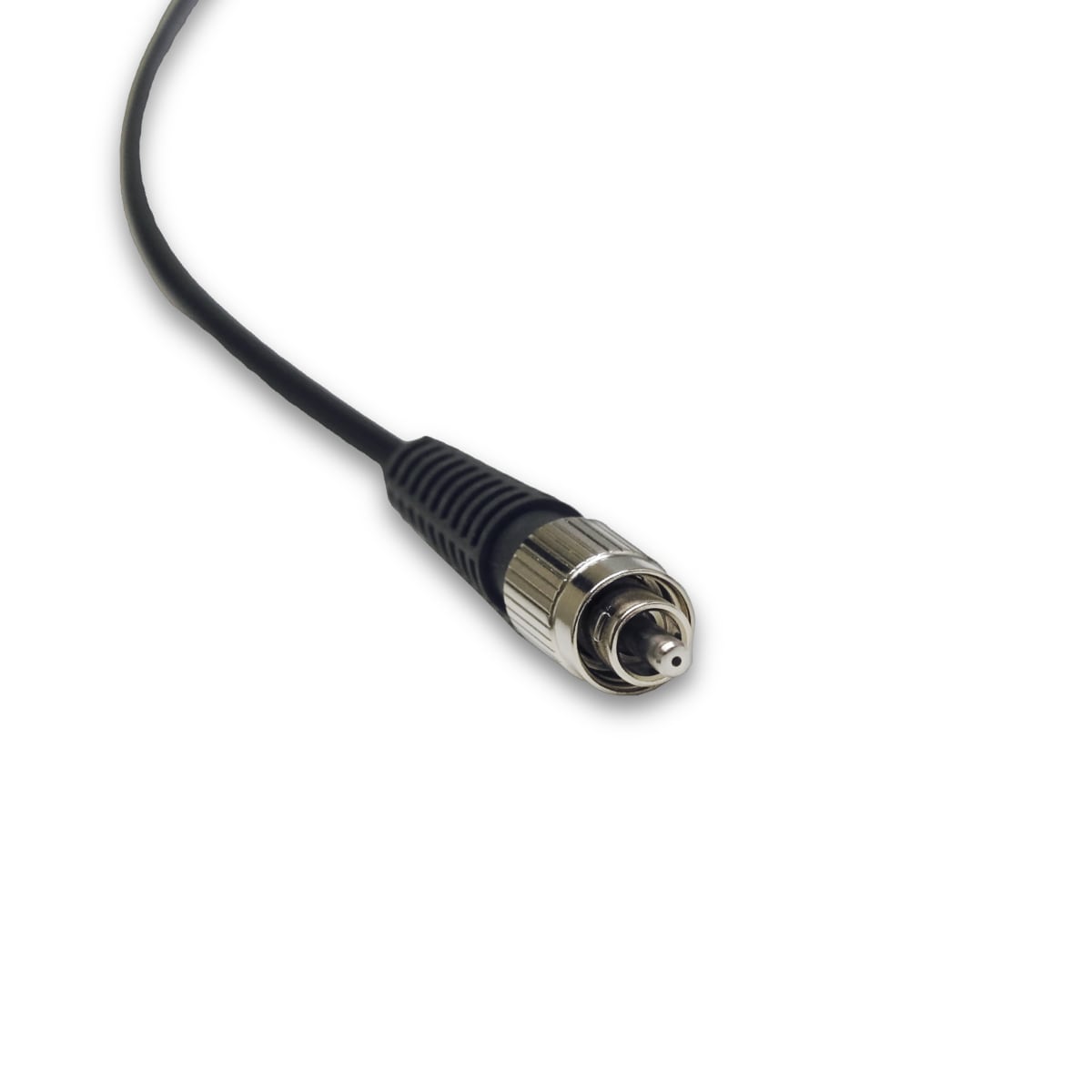

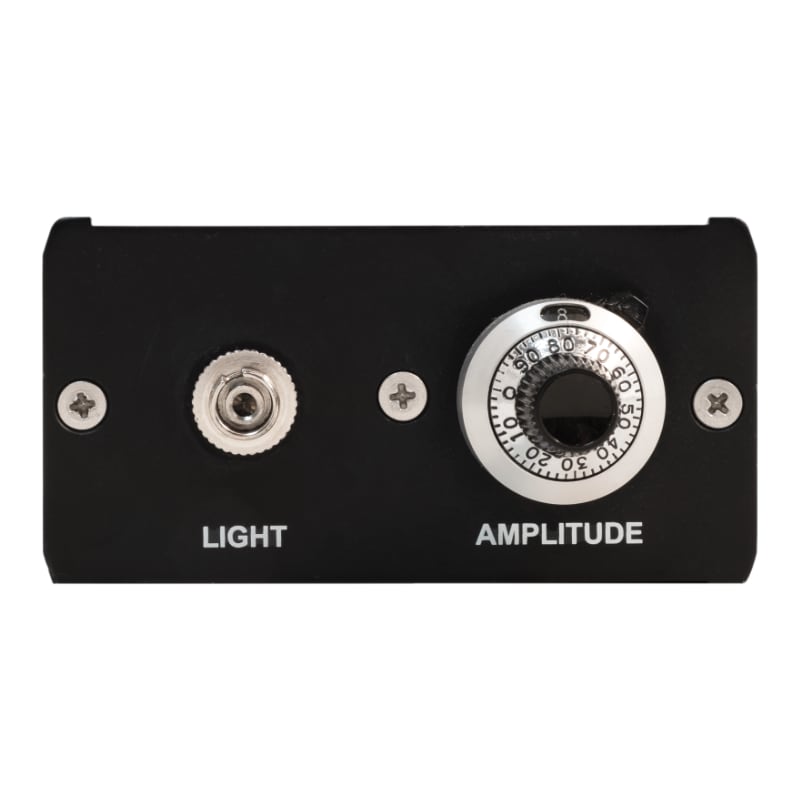

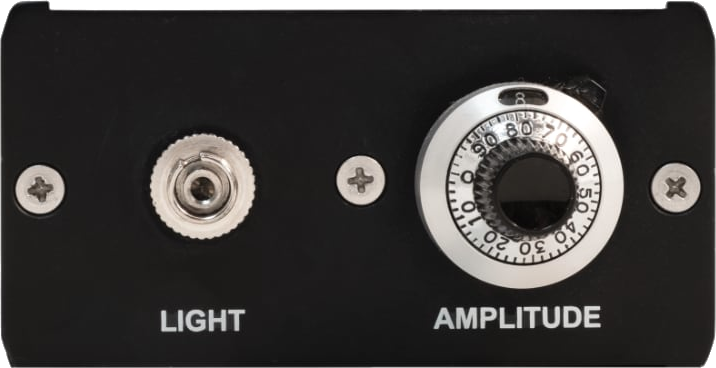

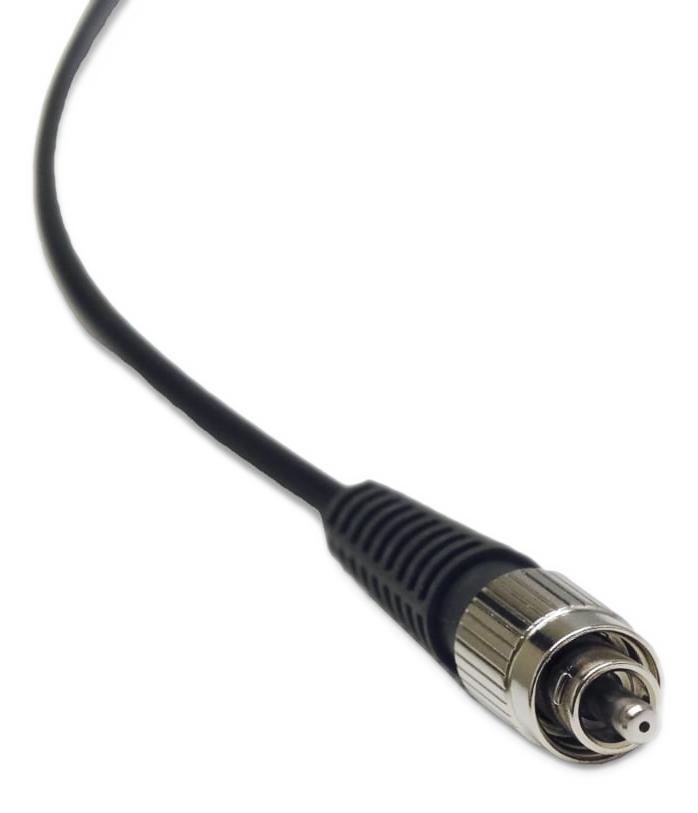

  • Optical output connectors: FC

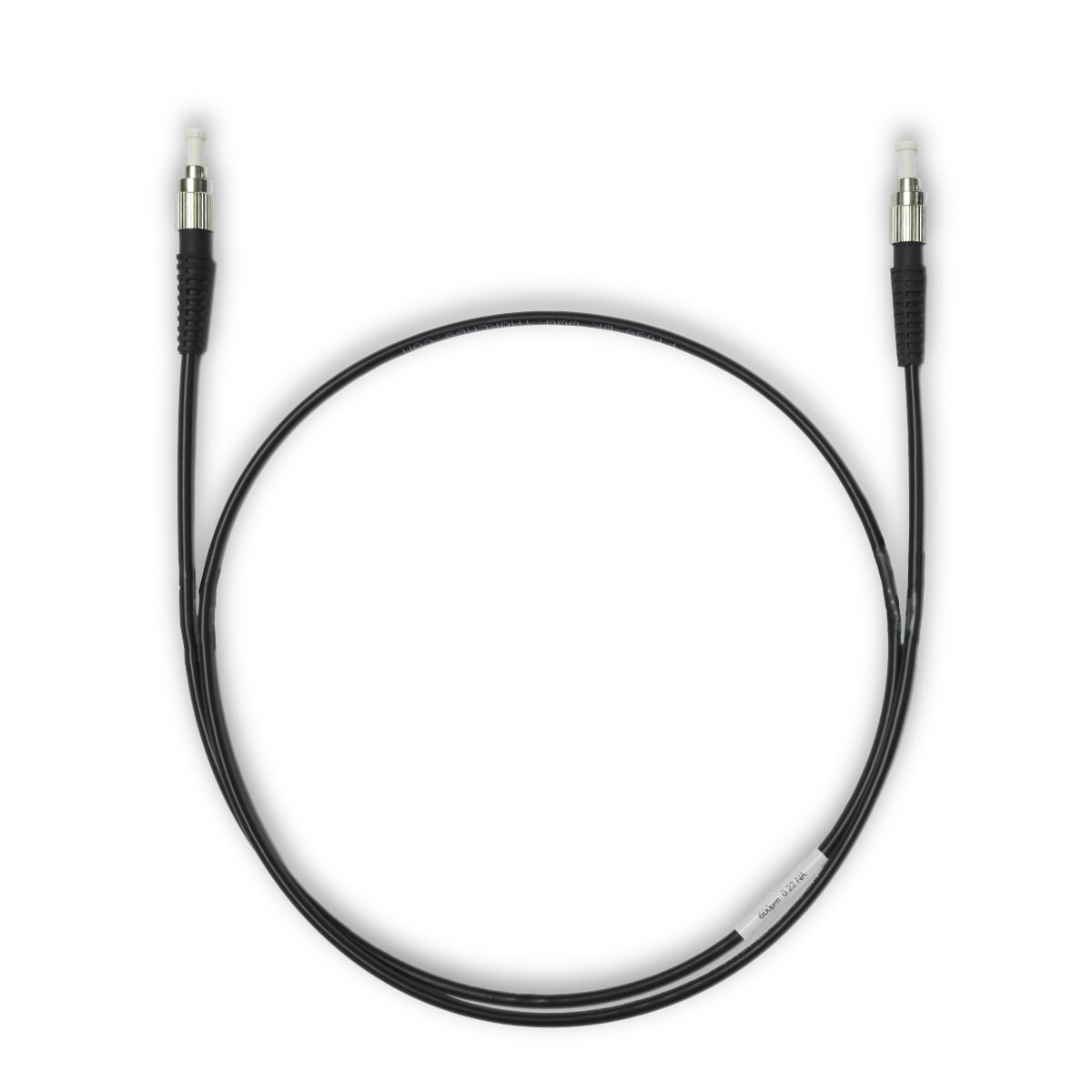

  • Optical fiber included
  • Dimension: 79 x 42 x 102 mm3 (WxHxD)

Overview

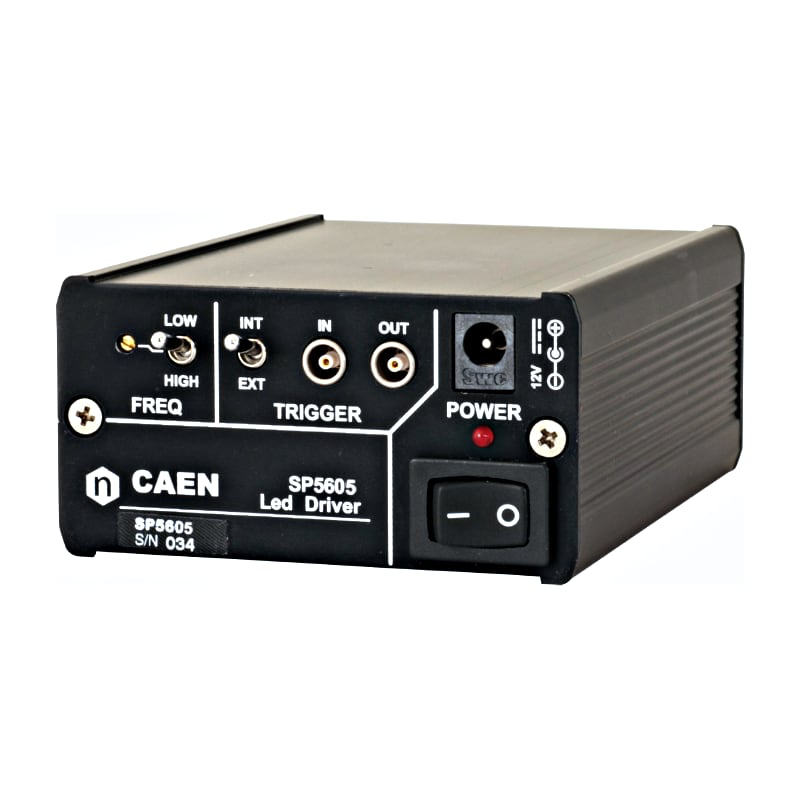

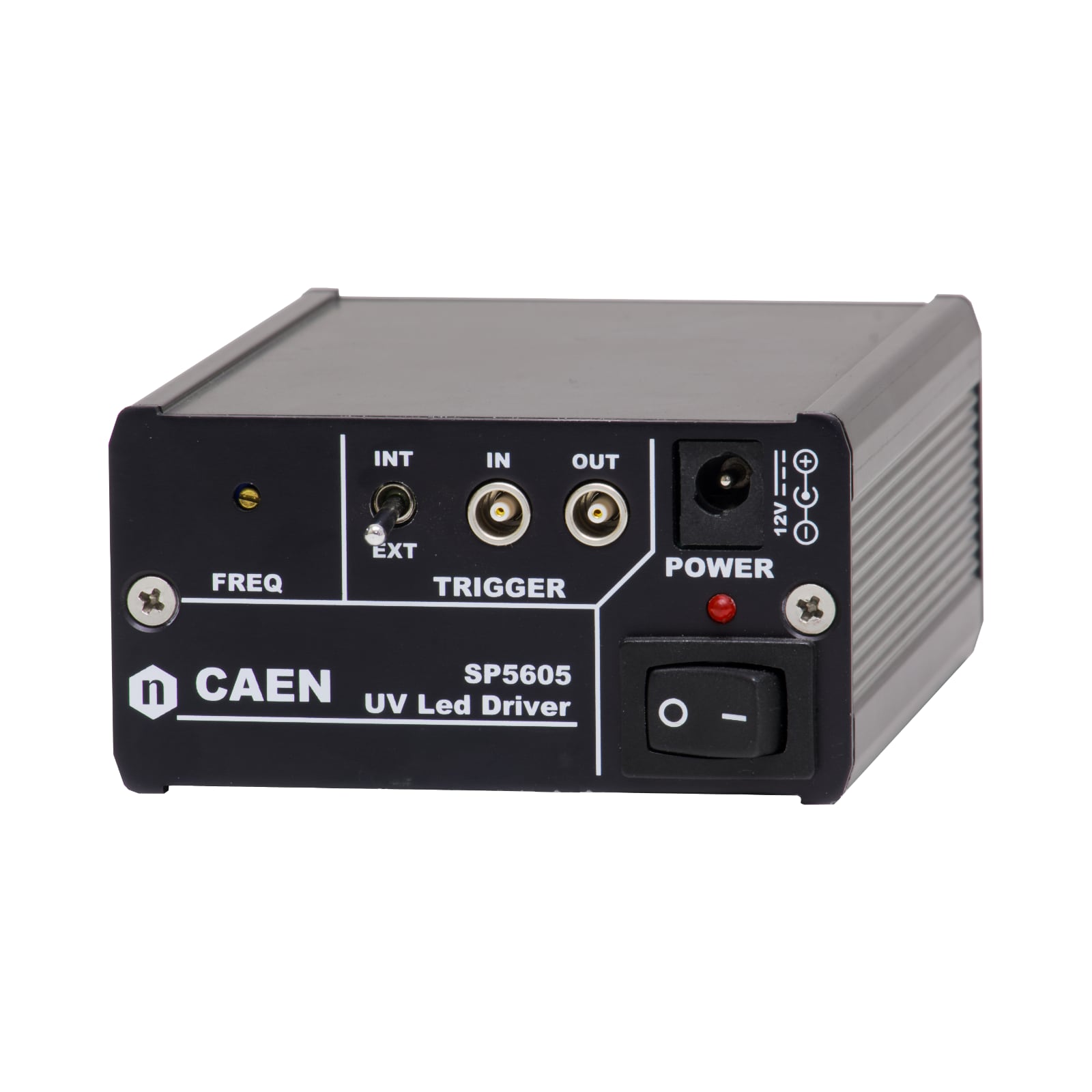

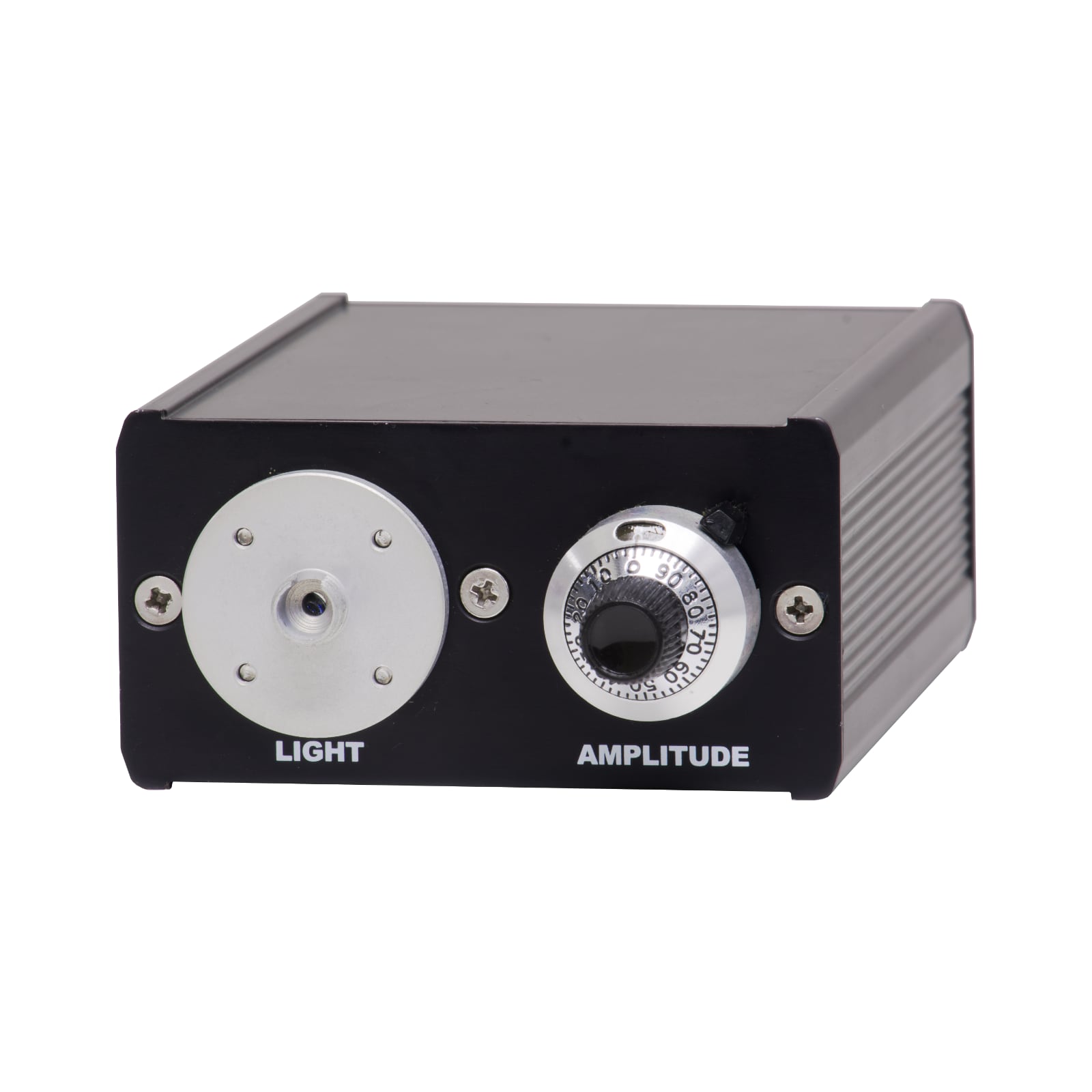

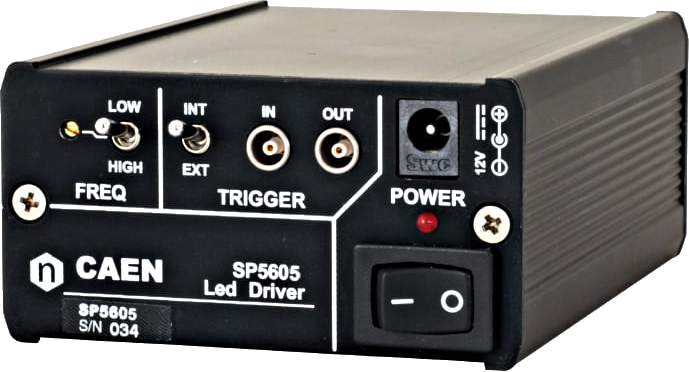

The CAEN Mod.SP5605 is a fast UV (ultra-violet) LED driver and this is the first available UV LED tool for Photodetectors tests and characterization. The SP5605 provides a triggered light burst of intensity from few photons to about 27000 photons. The SP5605 features tunable intensity and repetition rate. Indeed the UV LED driver can be triggered either via the internal pulse generator, or via an external source. The sensor guarantees constant wavelength signal from 100 Hz to 1.5 kHz. The optical signal is routed to the sensor through a fibre, FC interfaced.

Technical Specifications

Dimensions
Width 80mm, height 42mm, depth 80mm
Power requirements

140mA@+12V (12V DC External Power Supply)

Width of pulse

4ns typical @ full amplitude

Trigger Input

TTL, High input impedance; 500 Hz ÷ 5 MHz input frequency

Trigger Output

TTL, drives 50 Ohm; width: ~110ns; rise/fall time: <2ns

Output frequency (intrinsic mode)

From 100 Hz to 1500 Hz

Output light wavelength

248 ± 8 nm (measured)

Output light intensity

0 – ~27000 photons

Ordering Options

Code Description
WSP5605XAAAA SP5605 - UV Led Driver   RoHS
