N8315

NIM Linear Power Supply 150W

Features

  • Slot linear power supply (150W)
  • 2.5 NIM slot width
  • Short circuit protection
  • Over / Under voltage protection

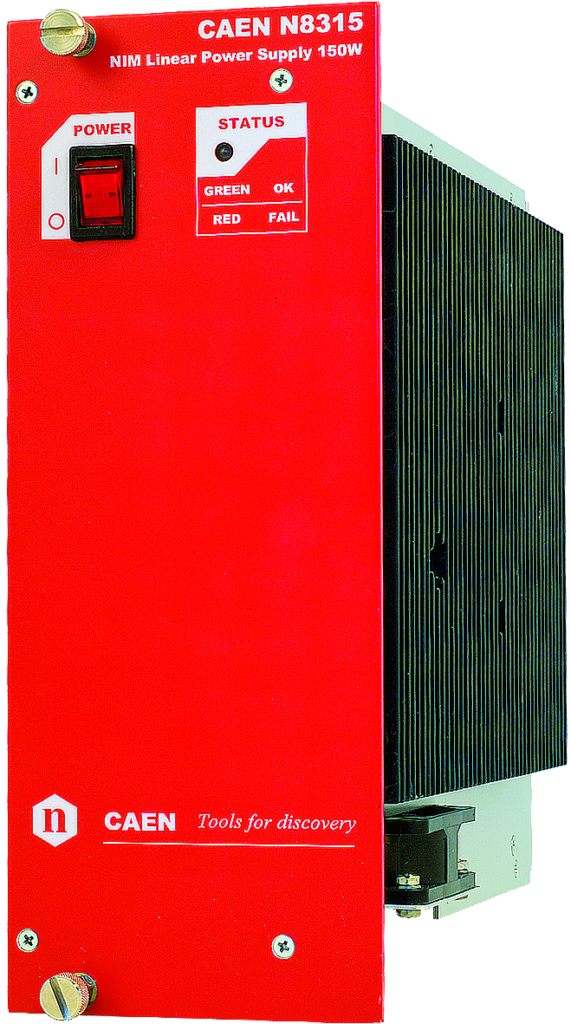

  • Front panel with status LED and mains switch

Overview

The Mod. N8315 is a 150W NIM Linear Power Supply, suitable to power any NIM crate; the module is two NIM units wide.

Safety features include: short circuit protection, over/undervoltage protection, over temperature protection. The Unit is powered by 115 or 230 Vac, 50 ÷ 60 Hz. On the front panel the status of the Power Supply is indicated by green/red LED.

Technical Specifications

Mechanics

Double width NIM mechanics

Mains input

230 VAC or 115 VAC, 50-60 Hz

Maximum Total Output Power

150 W

Power requirements

280W at full load

Fuse External

External 2 A, class T (230 VAC)

Output power

5 A @ ±6V ; 3 A @ ±12 V ; 1.5 A @ ±24 V

Load Regulation
  • < 0.5 % for 10-100% load change, < 0.02 % for ±10% line change
  • ±6V: <30 mV for 10-100% load change, <1mV for ±10% line change
  • ±12 V: <60 mV for 10-100% load change, <2mV for ±10% line change
  • ±24V: <120 mV for 10-100% load change, <5mV for ±10% line change
Isolation

CE acc. to EN 61010

Ripple
  • ±6V < 5 mVpp
  • ±12 V < 8 mVpp
  • ±24 V < 10 mVpp
Transient response recovey

0.15 ms for recovery to ±1% of voltage for 10-100% load change

Output Impedance

0.6 mΩ static

Output Voltage Characteristic

Dual tracking for all ±DC outputs; Soft start; DC output calibration (manually)

Output Current Characteristic

OVC protection / Trip Off

Over Voltage Protection

Trip Off when the output voltage > 130% of nominal voltage

Under Voltage Protection

Trip Off when the output voltage < 70% of nominal voltage

Over Current Protection

Trip Off when current: > 6A@+24V, > 2A@-24V, > 6A@+12V, > 3.75A@ 12V, > 10A@±6V

Over Temperature Protection

Trip Off when temperature > 75° C

Temperature sensors

nr.1

Status control

Status control Fail/Status LED signal: RED: Fail, GREEN: System is on and power supplies are functioning properly

Switches

Power 1 (On) / 0 (Off)

Operation

0÷45°C without derating

Ordering Options

Code Description
WN8315WAAAAA N8315 - NIM Linear Power supply 150W (±6V 5A,±12V 3A, ±24V 1.5A)  RoHS
WPERS0831501 N8315 Customization - 110VAC Input Adapting   RoHS
