CAEN SyncTest x742
Demo Software for x742 Digitizers Synchronization
- Console application to demonstrate the synchronization of two V/VX1742 CAEN digitizers
- Digitizers configuration by configuration text file with parameters and instructions
- Multi-board acquisition management by key commands
- Multi-channel waveform plot
- Individual settings for threshold and DC offset adjustment
- ASCII data saving
- Source files and Visual Studio project open source for developers
SyncTest x742 software is a C-based console application for the specific support of the x742 CAEN digitizers basing on the CAENDigitizer library.
The software has the specific goal of demonstrating the synchronization of two V/VX1742.
SyncTest x742 can perform the following operations:
- Connect two digitizers through a physical communication interface (USB, Optical Link or VME).
- Program the digitizers for the synchronization according to parameters written in a configuration file (text file).
- Check the clock alignment.
- Start and stop the acquisition (run on/off).
- Acquire waveforms from the digitizers and check the alignment of the signal in comparison to a reference channel.
- Save the waveform samples to timestamped ASCII files.
SyncTest x742 is provided with C source files to let the users customize the code for personalized solutions.
The program core is a C application that configures the digitizer, starts/stops the acquisition, and checks the alignment of a signal in comparison to a reference channel, according to a set of parameters as reported in the configuration text file. Data passing the alignment check (waveforms or time histograms) can be plotted using the third-party Gnuplot tool, or saved to output text files.
|Supported Operating Systems:||Windows, Linux|

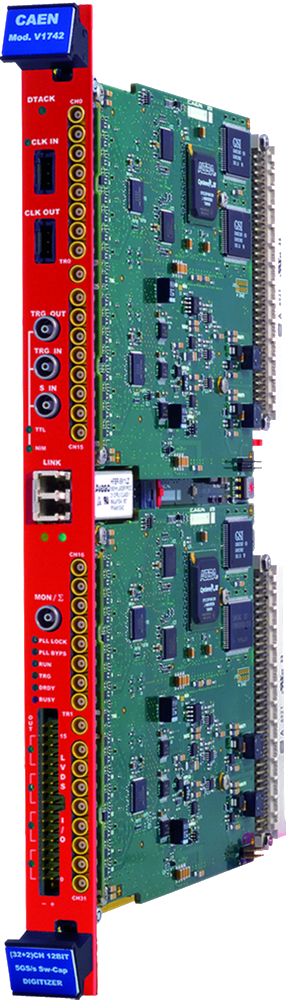

|Supported Products:||VME x742 Digitizers|
|Supported Comm. Interface:||USB, Optical Link, VME|
|Additional Software Required:||CAENDigitizer, CAENComm, CAENVMELib, Gnuplot (Linux only)|
- Signal inspection and waveform recording
- Sensors readout and detectors’ performances
CAEN SyncTest x742
Demo Software for x742 Digitizers SynchronizationProduct page
|Name||File extension||File size||Revision||Last update|
|Synctest x742 User Manual||987.07 kB||0||May 4th, 2023|
Compare with Configuration Tool.
