3 Years Warranty
A5534C
SY5527 5.7" LCD Touchscreen colour Display Unit
Features
- Optional LCD Touchscreen colour Display Unit for SY5527
- Excellent brightness (350 nits)
- Ultra high contrast ratio (1200:1)
- High colour saturation NTSC 57%
- XGA (1024 x 768 pixels) resolution
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signalling) interface
- 180-degree rotation display option
Overview

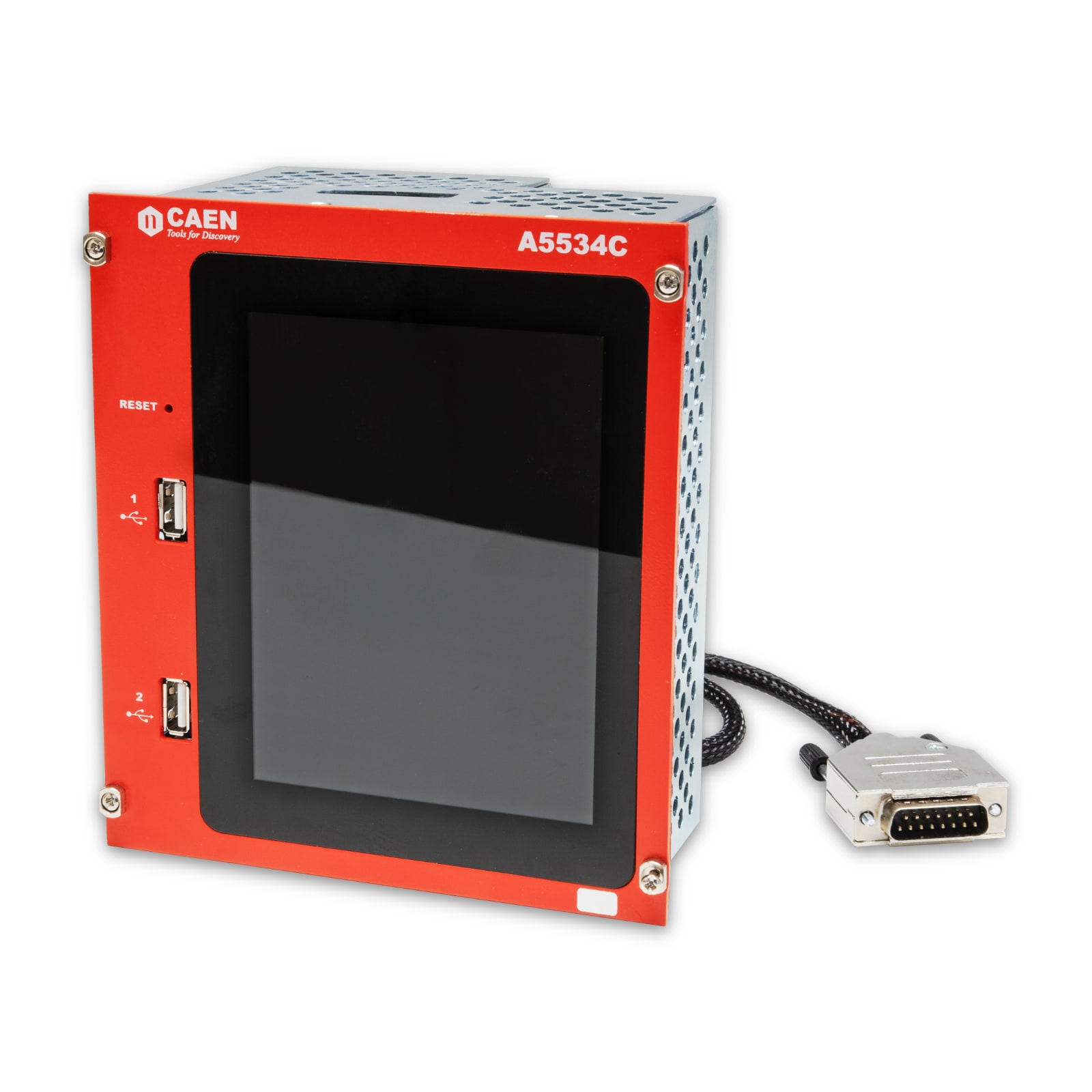

The CAEN Mod.A5534C is a 5.7” TFT Liquid Crystal Display module with LED backlight unit and LVDS interface. This product supports 1024 x 768 XGA format and can display true 16.2M colors (6-bits colors with FRC). SY5527 touch screens allow local service and diagnostics of the System on spot.
Ordering Options
| Code | Description |
|---|---|
| WA5534CXAAAA | A5534C - SY5527 5.7" Capacitive LCD Touchscreen color Display Unit RoHS |
