A3050B

2 Channel 8 V / 50 A / 300 W Power Supply Board

Features

  • EASY Subsystem Power Supply Module
  • Magnetic field and radiation tolerant
  • 2 floating 2 ÷ 8 V / 50 A channels
  • 300 W maximum output power per channel
  • VMax and IMax set by trimmer for each channel
  • On/Off for each channel
  • Channels individually controlled and protected
  • Line Drop Regulation on board panel
  • Interlock capability
  • 48 V Service local and remote on/off
  • Screw Lock output connectors
3 Years Warranty
placeholder
placeholder

Overview

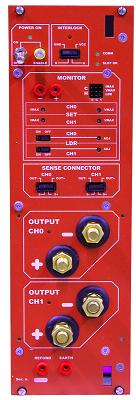

The CAEN Mod.A3050B 8 V / 50 A / 300 W Power Supply Board is developed for operation in magnetic field and moderate radioactive environment. One A3050B houses 2 floating (reversible polarity) 8 V / 50 A channels (300 W maximum output power per channel).
The connector output voltage range is 2 ÷ 8 V with 5 mV monitor resolution; channel control includes various alarms and protections.
The board is provided with Remote Sensing Lines to compensate for the voltage drop over the connection cables.

APP PC5933T 5 Brass hexagon head bolt connector

Brass hexagon head set screw, M6x30mm for Mod. A3050B

Consult our connectors reference page for technical information.

Safety features allows the module to perform as a current generator and includes:

Channels
can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value by more than 3% of voltage full scale range.
Overcurrent detection When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX and IMAX
Maximum output voltage and maximum current value can be fixed via software with 5 mV resolution and the output voltage can not be programmed beyond this value.

Technical Specifications

No. of Channels

2

Polarity

Reversible

Output Voltage

2 ÷ 8 V (connector output)

Max. Output Current

50 A

Voltage Set/Monitor Resolution

10 mV

Current Set/Monitor Resolution

100 mA

VMAX hardware

2 ÷ 8 V

VMAX software

2 ÷ 8 V

VMAX software resolution

10 mV

Voltage Ripple

< 10 mV pp (@ full load)

Voltage Monitor vs. Output Voltage Accuracy

max. ±50 mV ±0.3% of reading

Voltage Set vs. Output Voltage Accuracy

max. ±50 mV ±0.3% of reading

Current Monitor vs. Output Current Accuracy

± 1A ± 2% of reading

Current Set vs. Output Current Accuracy

± 1A ± 2% of reading

Load Regulation
  • ± 0.3 % (with sense wires)
  • ± 2 % (without sense wires)
Output Power (per Channel)

300 W

Test set up
  • Cable: length = 30m; diam.= 8mm (for both output and return) with sense wires connected
  • Test load: > 600W
  • Load capacitance: 10µF electrolytic // 100 nF ceramic (// to the load)
Weight

6.5 kg

Compare

Compare with EASY3000 LV Floating Power Supply Boards.

Loading...

Ordering Options

Code Description
WE3050BXAAAA A3050B - EASY3000 L.V. channels 8 V/50 A/300 W floating - Bolt Conn. (2 ch)
