Up to 6 kV – DT803x

8 Channel up to 6 kV Family with USB, Ethernet & Touchscreen

Features

  • 8 independently controllable HV channels
  • Very low ripple
  • Four versions from 100 V up to 6kV, and from 1 mA to 10 mA
  • BNC (for 100 V version) or SHV coaxial connectors
  • Local control with a 2.8” touch screen display
  • Remote control via Ethernet or USB 2.0
  • Common ground
  • Available with positive, negative or mixed polarity
  • Interlock logic for board enable and individual channel kill
  • LabVIEW Driver available
  • Software Tools for remote control
  • The 100 V version has:
    • Temperature probe input for SiPM gain stabilization (single/multi slope corrections)
    • Fast recovery output

Overview

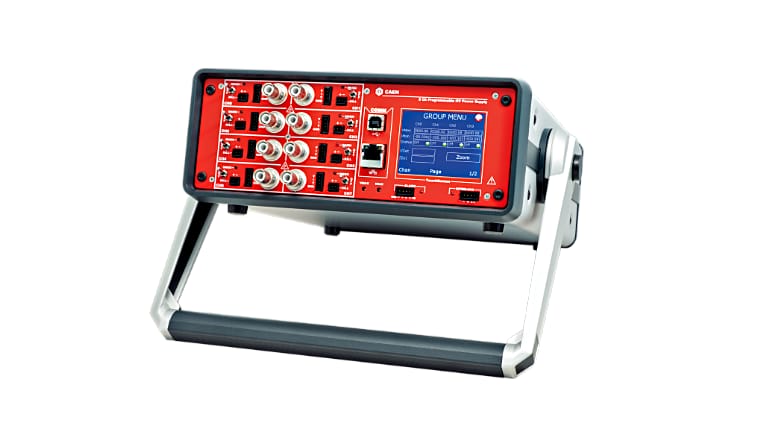

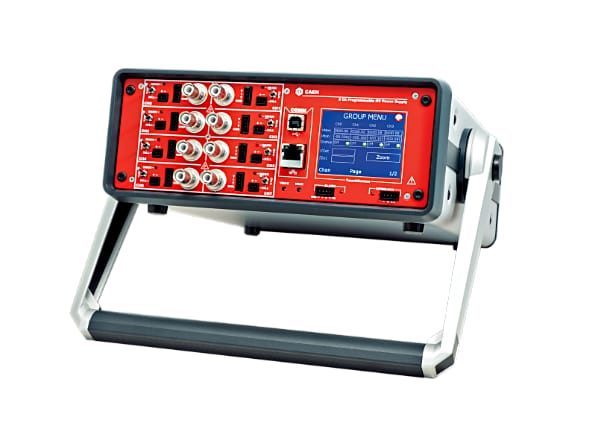

The DT803x is a CAEN Power Supply Family providing 8 Independent High Voltage channels in a Desktop form factor. The channels share a Common Ground and four output ranges are available: 100 V/10 mA, 500 V/10 mA, 4 kV/3 mA (6W max), 6 kV/ 1 mA.

The module is available with either positive or negative output polarity. Mixed versions with 4 positive and 4 negative channels are also available.

DT803x units can be controlled either locally, thanks to a 2.8” touchscreen color LCD display with a complete user interface, or remotely, via USB or Ethernet, taking advantage of GECO2020 Control Software.

100 V channels are delivered through BNC connectors, other versions feature SHV’s. The three high current models feature high Imon resolution of 50 nA, while the 6 kV/ 1mA has a resolution of 5 nA. Each unit is provided with Imon Zoom which increases Imon resolution by a factor 10. The HV output Ramp-up and Ramp-down rates may be selected independently for each channel.

Software

Software Tools available (free download) to control the Up to 6 kV Family – DT803x:

blankCAEN LabVIEW It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules.
blankCAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
blankGECO2020 CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.

Models

Model Image No. of Channels Max Output V Max Output I Iset/Imon Resolution Ripple Typ. (>1kHz) Connectors Max Power per Channel Actions
DT8031 DT8031 8 100 V 10 mA Iset: 50 nA
Imon: 50 / 5 nA
<1 mVpp BNC 1 W QUOTE
DT8032 DT8032 8 500 V 10 mA Iset: 50 nA
Imon: 50 / 5 nA
<2 mVpp SHV 5 W QUOTE
DT8032B DT8032B 8 500 V 1 mA Iset: 5 nA
Imon: 5 / 0.5 nA
<2 mVpp SHV 0.5 W QUOTE
DT8033 DT8033 8 4000 V 3 mA Iset: 10 nA
Imon: 10 / 1 nA
<2 mVpp SHV 6 W QUOTE
DT8034 DT8034 8 6000 V 1 mA Iset: 5 nA
Imon: 5 / 0.5 nA
<2 mVpp SHV 6 W QUOTE
DT8034H DT8034H 8 6000 V 20 µA Iset: 100 pA
Imon: 100 / 10 pA
<2 mVpp SHV 120 mW QUOTE
