3 Years Warranty
R649

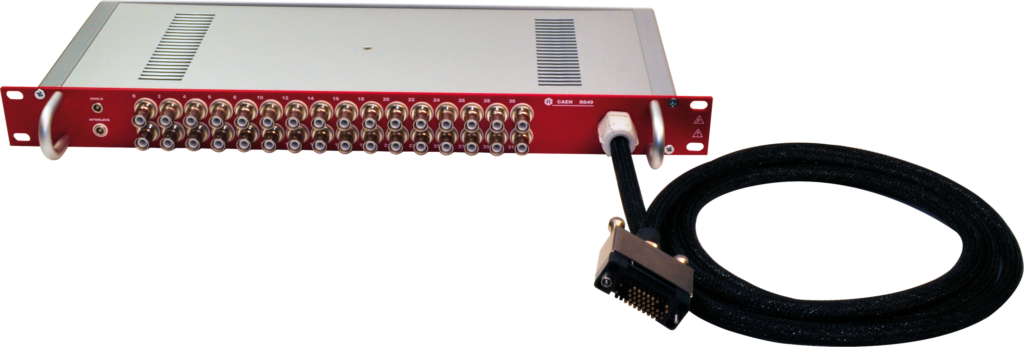

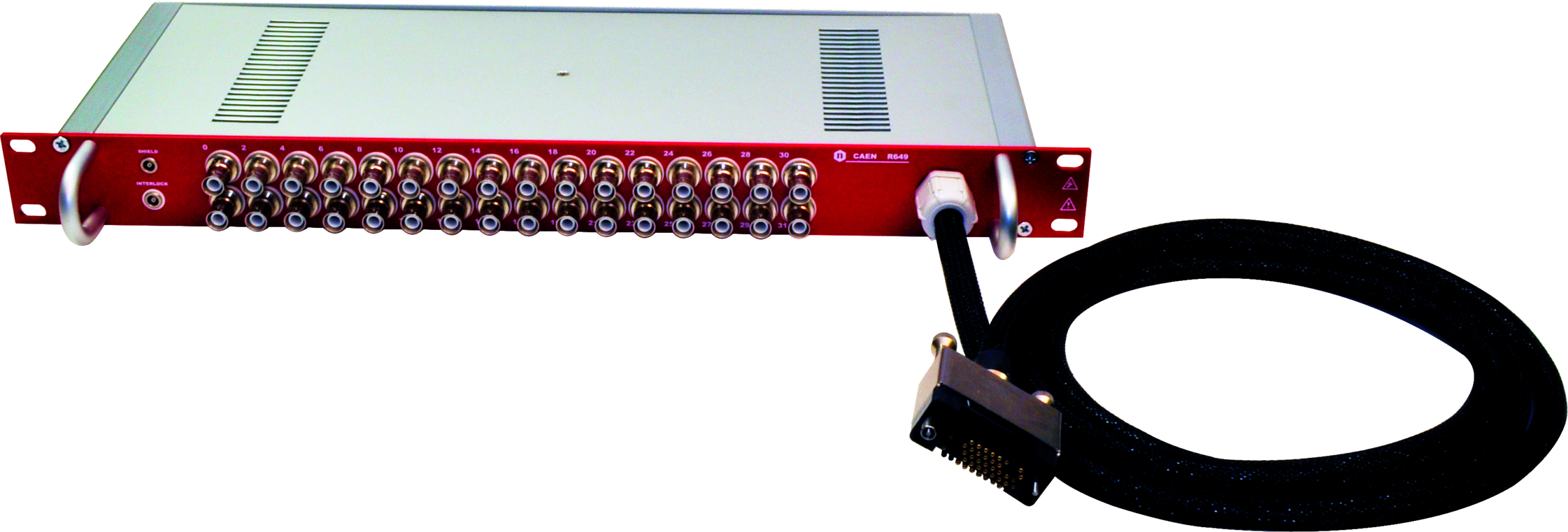

32 Channel Radiall to SHV connector Adapter (Max: 3 kV - 19' Rack)
Features
- 19” rack, Aluminium case
- 490 x 160 x 44 mm3
- weight ~2.0 kg
- 52-pin Radiall input connector
- Radiall SHV output connectors (HV coaxial)
- Up to 3 kV
Overview
The R649 Multipin to SHV Rack Mountable Adapter features:
- Fits one Radiall 691803004-type Multipin connector into 36 Radiall R317580-type SHV connectors
- INTERLOCK and SHIELD connections are provided through LEMO connectors
- Maximum input voltage: 3 kV
- Unit housed in a 19″ rack module
- Boards Supported:
- A1536 12/24/32 Channel 3 kV/1 mA Common Floating Return Boards
- AG536 12/24/32 Channel 3 kV/1 mA Common Ground Boards Boards
- A1536H 12/24/32 Channel 3 kV, 1 mA/100 µA Common Floating Return Dual Range Boards
- A7236 12/24/32 Channel 3.5 kV, 1.5/0.15 mA (4W) Common Floating Return Dual Range Boards
.
Technical Specifications
- Mechanics
19” rack; aluminium case; 490x160x44mm3; weight ~2.0kg
- Input connectors
52-pin Radiall 691802002 [SCEM 09.41.34.700.2]
- Output connectors
Radiall SHVR317580-type HV coaxial
- INTERLOCK
00-type LEMO connector; insert 50Ohm termination (provided with the kit) to refer INT_A to INT_B pin of the 52-pin Radiall 691802002 (see also board manual)
- SHIELD
00-type LEMO connector; insert 0Ohm termination to short SHV Rtn with Shield Pin of the the 52-pin Radiall 691802002 (see also board manual)
- Cable
HV type, shielded, ~200cm length
- Maximum ratings
3kV
Compare

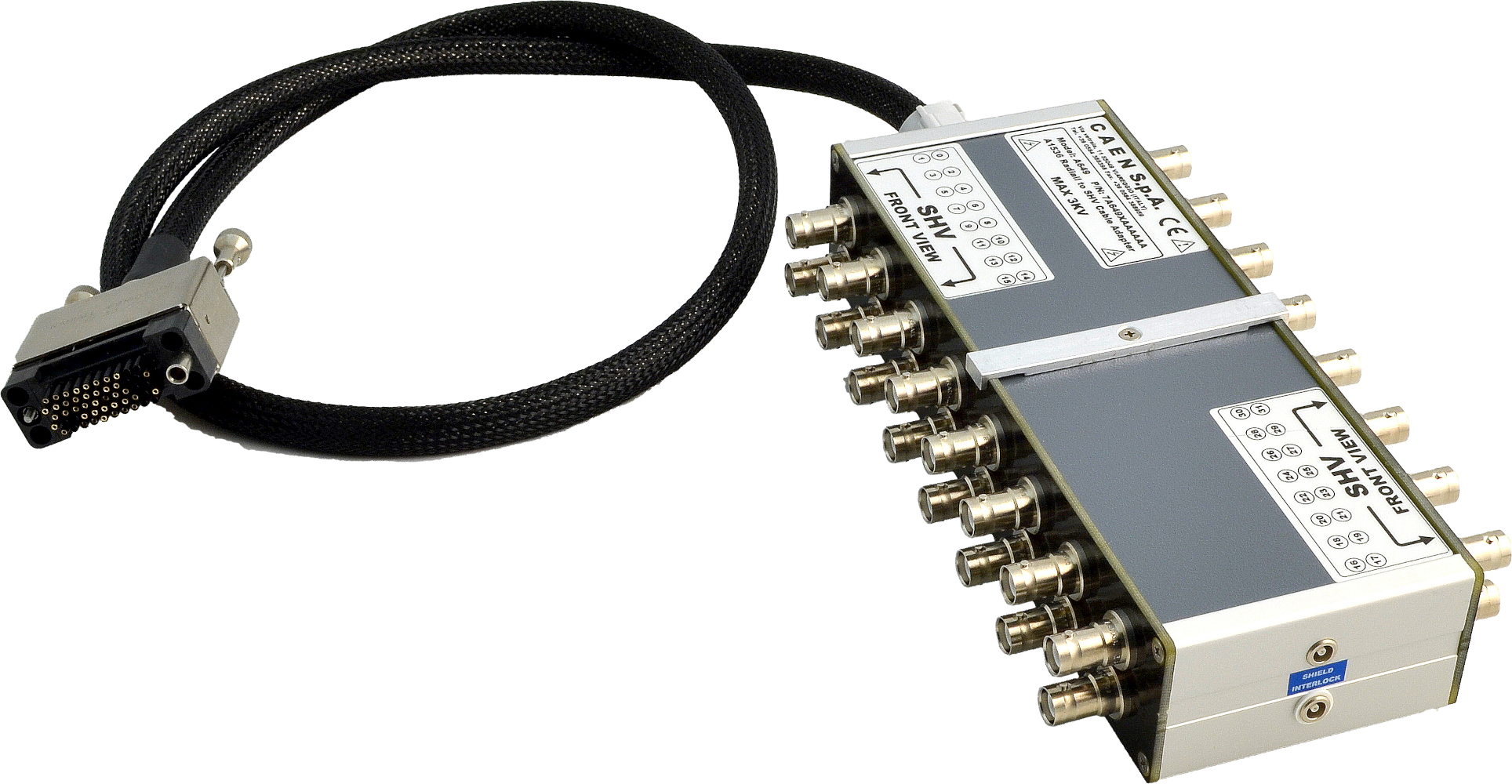

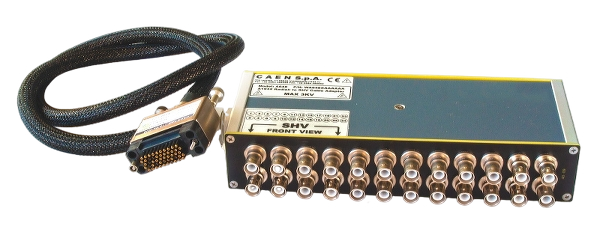

Compare with High Voltage Adapters.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WR649XAAAAAA | R649 - Multipin to SHV Adapter for 32 channel HV Boards (Max: 3kV - 19'' Rack) RoHS |
