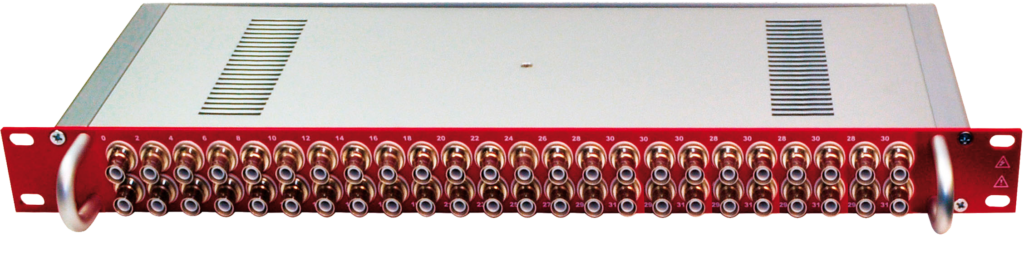

R648

48 Channel Radiall to SHV connector Adapter (Max: 3 kV - 19' Rack)

Features

  • 19” rack, Aluminium case
  • 490 x 160 x 44 mm3
  • weight ~2.3kg
  • 52-pin Radiall input connector
  • Radiall SHV output connectors (HV coaxial)
  • Up to 3 kV

Overview

The R648 Multipin to SHV Rack Mountable Adapter features:

  • Fits one Radiall 691803004-type Multipin connector into 48 Radiall R317580-type SHV connectors; it is suitable for both 36 and 48 channels boards
  • INTERLOCK and SHIELD connections are provided through LEMO connectors
  • Maximum input voltage: 3 kV
  • Unit housed in a 19″ rack module
  • Boards Supported:
    • A7030 12/24/36/48 Channel 3 kV/1 mA (1.5W) Common Floating Return Boards
    • AG7030 12/24/36/48 Channel 3 kV/1 mA (1.5W) Common Ground Boards

Compare

Compare with High Voltage Adapters.

Loading...

Ordering Options

Code Description
WR648XAAAAAA R648 - Multipin to SHV Adapter for 48 channel HV Boards (Max: 3kV - 19'' Rack)   RoHS
WR648BX3MAAA R648B - Multipin to SHV Adapter for 48 channel HV Boards (Max: 3kV - 19'' Rack - 3m)   RoHS
