4 Channel ±8 kV / 3 mA HV Power Supply with Software-Selectable Polarity
Features
- 4 independent High Voltage channels in 1U NIM module
- Output range: up to ±8 kV / 3 mA, 12 W max per channel
- Software-selectable positive or negative polarity for each channel
- Common floating return and SHV coaxial output connectors
- Low ripple and high output stability
- Comprehensive protection system: overcurrent, under/over-voltage, and maximum voltage limits
- Interlock logic for board enable and individual channel kill
- Current monitor resolution: 5 nA (500 pA with ×10 Imon Zoom)
- Remote control via USB-C 2.0 or Ethernet, with daisy-chain capability
- Complete software tools for configuration, monitoring, and channel management
Overview

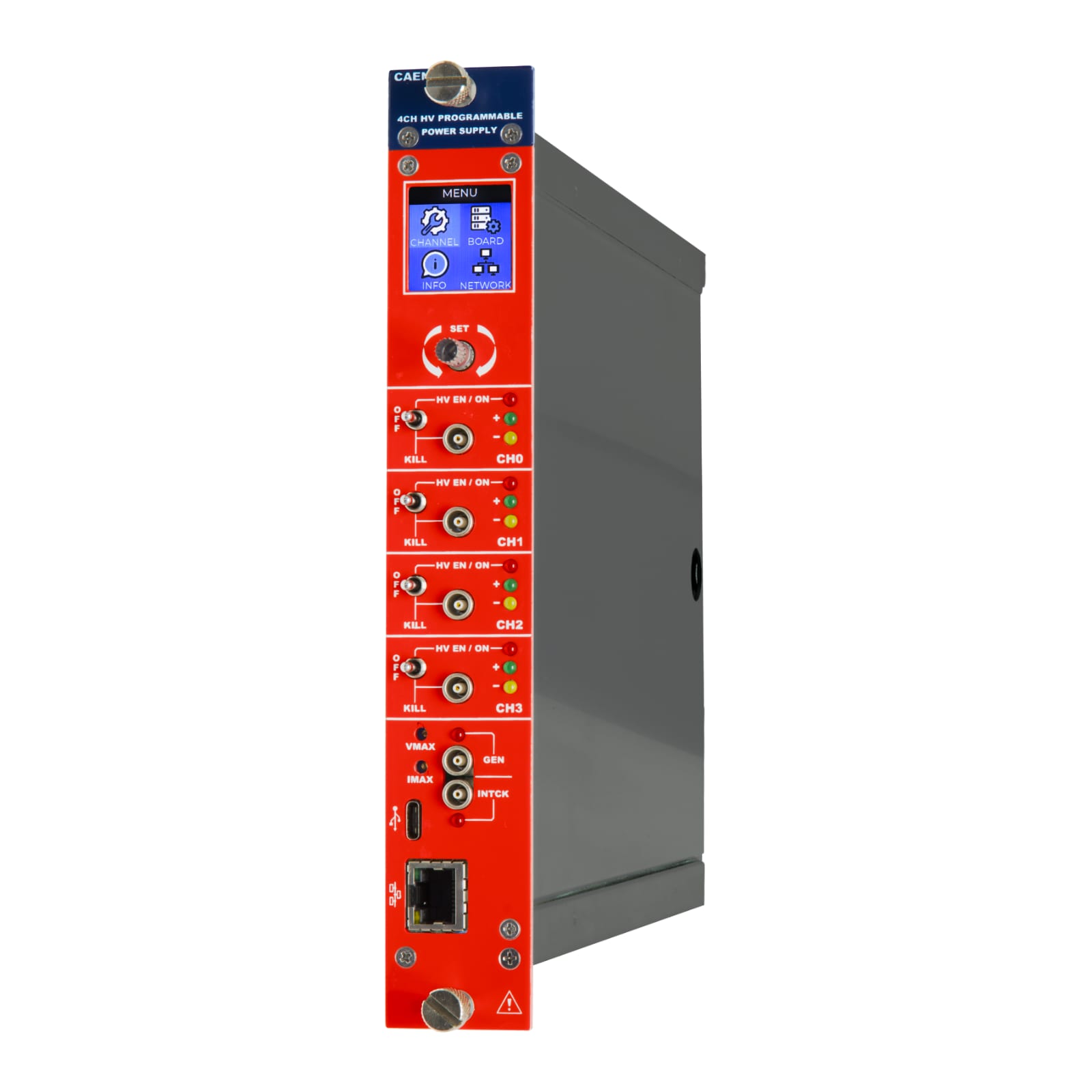

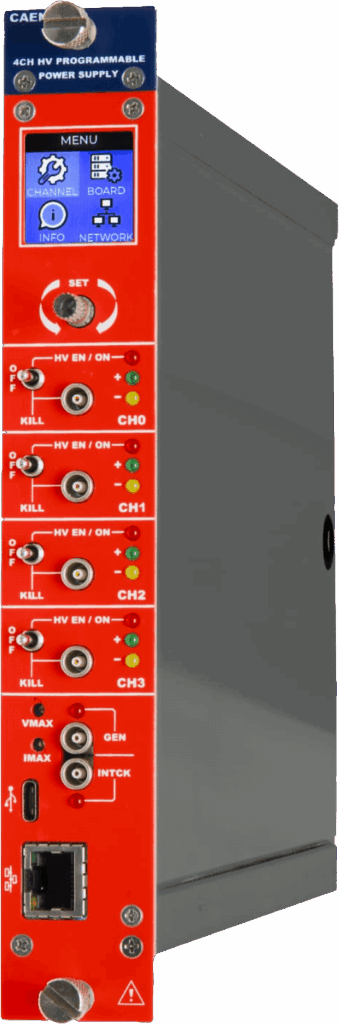

The CAEN Mod. N2470 is a single-width NIM module providing four independent high-voltage channels. Each channel delivers up to ±8 kV output voltage, with a maximum current of 3 mA and maximum power of 12 W.
Thanks to its ARM-based architecture, the module offers advanced channel management features, including software-controlled polarity reversal. All channels share a common floating return, fully insulated from the crate ground, while high-voltage outputs are available via SHV connectors.
Ramp-up and ramp-down rates are independently programmable for each channel from 1 to 500 V/s, with 1 V/s resolution. The module provides 5 nA Iset/Imon resolution and includes a ×10 Imon zoom function, enabling current monitoring down to 500 pA precision.

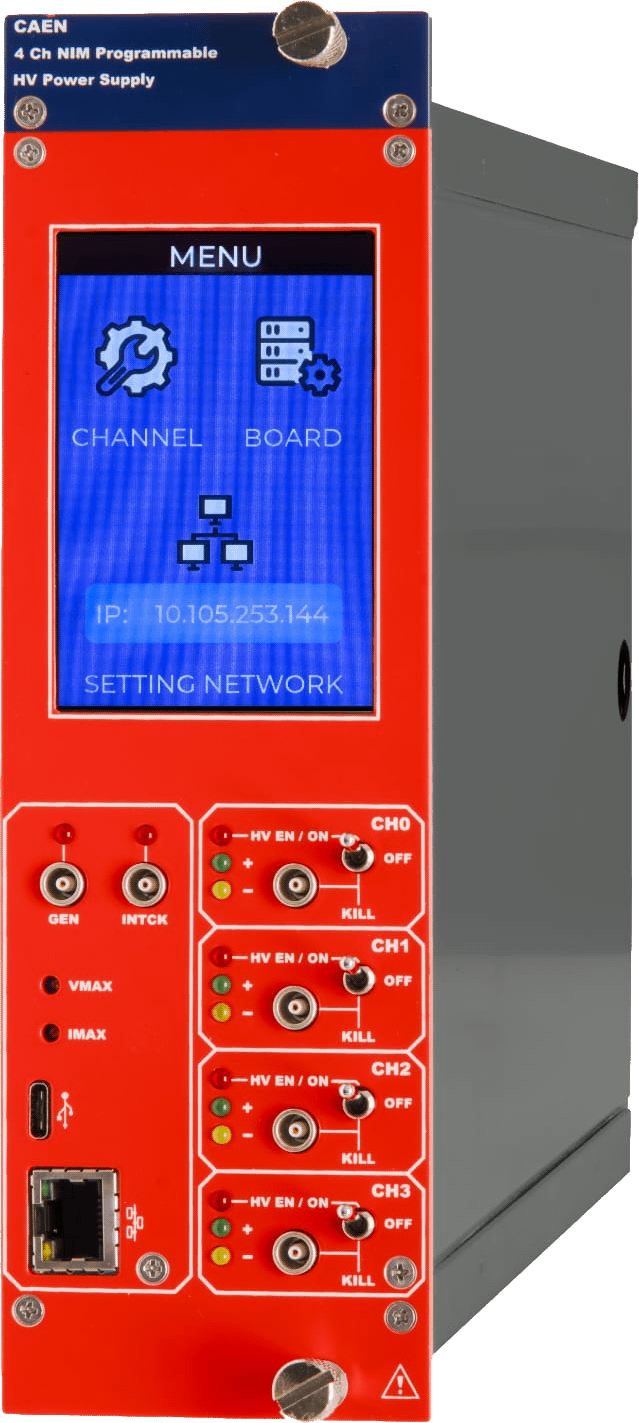

Local control is available through a LCD display featuring a redesigned, intuitive user interface, while remote operation is supported via USB 2.0 (Type-C) and Ethernet.
Ordering Options
| Code | Description |
|---|---|
| WN2470X08AAC | N2470 - 4 Ch NIM Reversible HV Power Supply (±8kV, 3mA, 5nA res.) RoHS |
