GAMON-RadLite
Coming Soon
Gamma Radiation Spectroscopy Indoor Area Monitor
Features
- Gamma radiation spectroscopy system based on scintillation detector
- High detection efficiency for detecting small variations in background radioactivity during survey
- Different crystal options available depending on the desired resolution or efficiency
- Easy integration into the CAEN Gamon Monitoring Center (GMC) Software
- Onboard web interface for easy configuration of isotope-based alarms
- Internal database for summary reports and plots, easily generated by the embedded web interface
- Robust spectrum stabilization algorithms
- Large onboard data storage for long autonomous data taking
- Designed for easy wall and pole mounting
- Wired and wireless communication interfaces, with configurable primary and backup options
- Quick and easy installation and commissioning via onboard web graphical interface
Overview

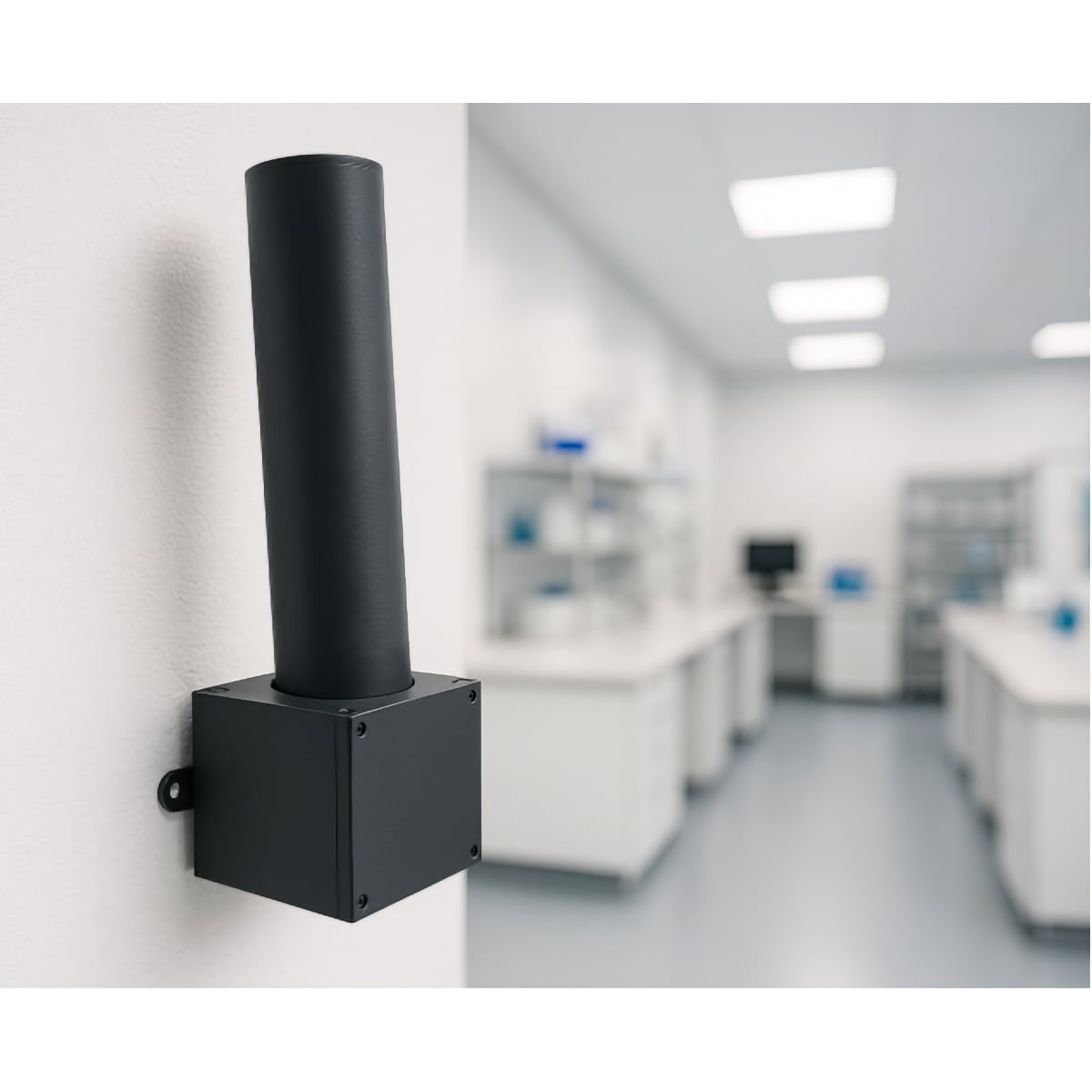

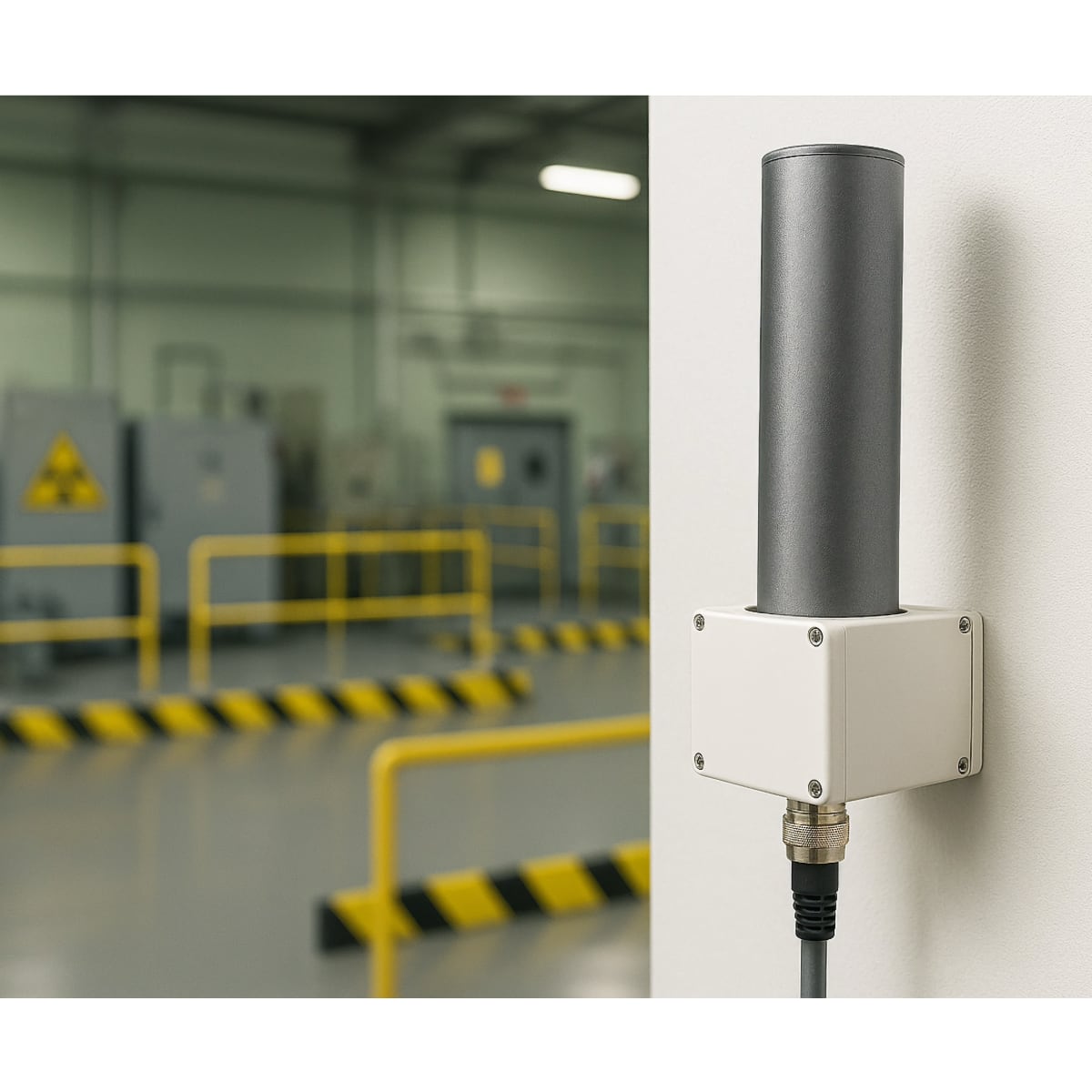

GAMON-RadLite is a lightweight and compact gamma monitoring probe designed for reliable indoor radiation surveillance in low and mid-background environments. It provides continuous measurement of gamma radiation levels in controlled environments such as laboratories, hospitals, nuclear facilities, and industrial buildings.
The probe combines high sensitivity gamma detector with low power consumption, ensuring accurate real-time monitoring while maintaining long-term operational stability. Its slim and lightweight construction allows for flexible mounting options and minimal impact on existing infrastructure.
The web interface provides real-time display of the scintillator count rate and the ambient dose equivalent rate and supports integration with centralized monitoring systems for data logging, alarms, and remote supervision.
Technical Specifications
- Scintillation Detector
- Available scintillation crystals:
- NaI(Tl) 2” x 2”, 3” x 3”
- CeBr3 1.5” x 1.5”
- Other crystals/dimensions on request
- Energy range: 30 keV ÷ 3 MeV
- Dose rate accuracy: < 10%
- Available scintillation crystals:
- Sensors
- Temperature internal sensor
- Communication interfaces
- Ethernet RJ45
- USB 2.0 port
- Communication protocol TCP/IP
- Connector protection level IP68
- Options (available on request)
- Wi-Fi
- 3G/4G LTE
- Standing support (configurable)
- Battery-powered cabinet for stand-alone use
- Transport rugged case
- Software
- Integrated web interface
- Local database and data repository
- Periodic, hourly and daily report generation
- Periodic integration time: 1, 5, 10, 15, 30 min
- Spectrum stabilization with temperature and natural background isotopes
- Configurable isotope library
- Three adjustable levels of isotope-related alarms
- Storage: 1 year with 15 min reports
- Power supply
- Power consumption: < 4 W
- Voltage: 5 ÷ 12 VDC
- Power connector protection IP68
- Physical dimensions and weight
- Length: 44 cm
- Diameter: 10 cm
- Weight: 2.8 kg
- Environmental
- Temperature range -20 ÷ 50 °C
- Humidity 0 ÷ 95 %
- Protection rating: IP65
