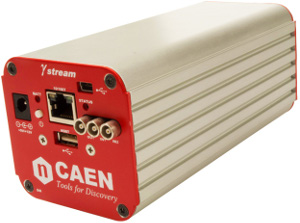

Digital MCA Tube Base for Gamma-Ray Spectroscopy
Features
- Compact, stand-alone, tube base MCA including high voltage power supply (0 ÷ +1500V / 500 µA) and charge sensitive preamplifier
- On-board battery and data storage capability for active on-field measurements
- Embedded ARM based CPU for unattended operations
- Software libraries for customized applications – COMING SOON
- Wired and wireless connectivity through USB, Ethernet, Wi-Fi and Bluetooth interfaces
- Compatible with scintillation detectors as Nal(TI), LaBr3(Ce) and CeBr3, using standard 14-pin and 10/8-stage PMTs
- Embedded GPS for data geo-localization
- Acquisition modes:
- PHA
- PHA with time stamp
- Signal inspector
- MCS – COMING SOON
- SCA – COMING SOON
- Gain stabilizer based on natural or calibration radioactivity
- Front panel digital I/O connectors for synchronization, external trigger, coincidence/anticoincidence modes and veto
- Software selectable coarse and fine gain
- Supported by MC2 Analyzer software GUI for Windows OS and GammaTOUCH mobile application for smartphones and tablets with Android OS
Overview
CAEN Gamma stream is a compact and portable system for gamma ray spectroscopy with scintillation detectors, which provides an active Multi-Channel Analyzer (MCA) integrated in a 14-pin photo-multiplier tube (PMT) base. Gamma stream fully integrates in a stand-alone device the high voltage to bias the PMT, the preamplifier to shape the signal from detector, and the MCA for a complete Pulse Height Analysis online.

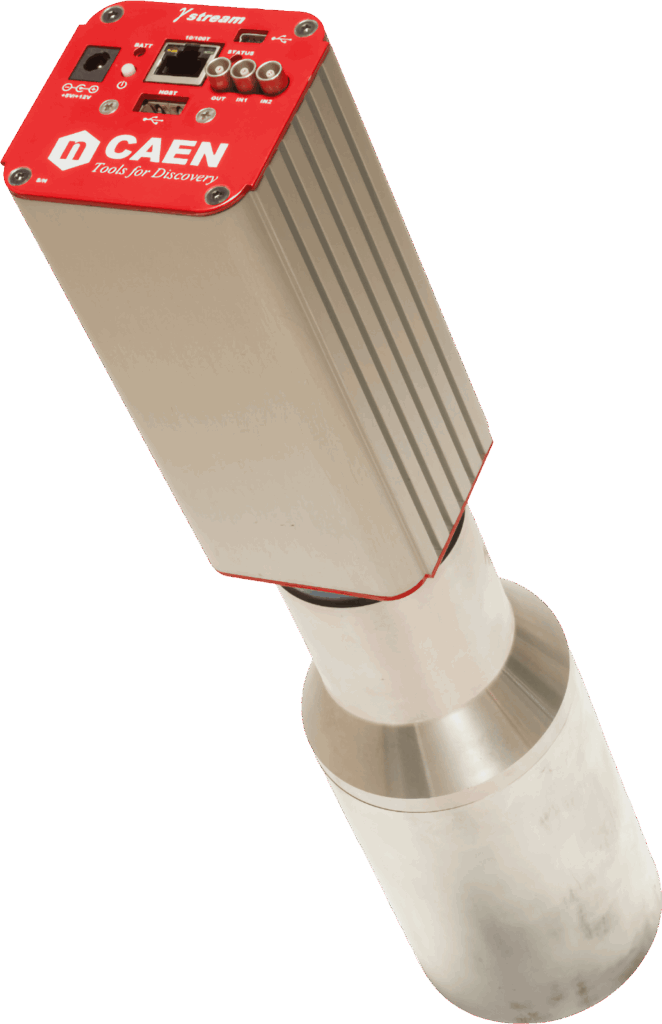

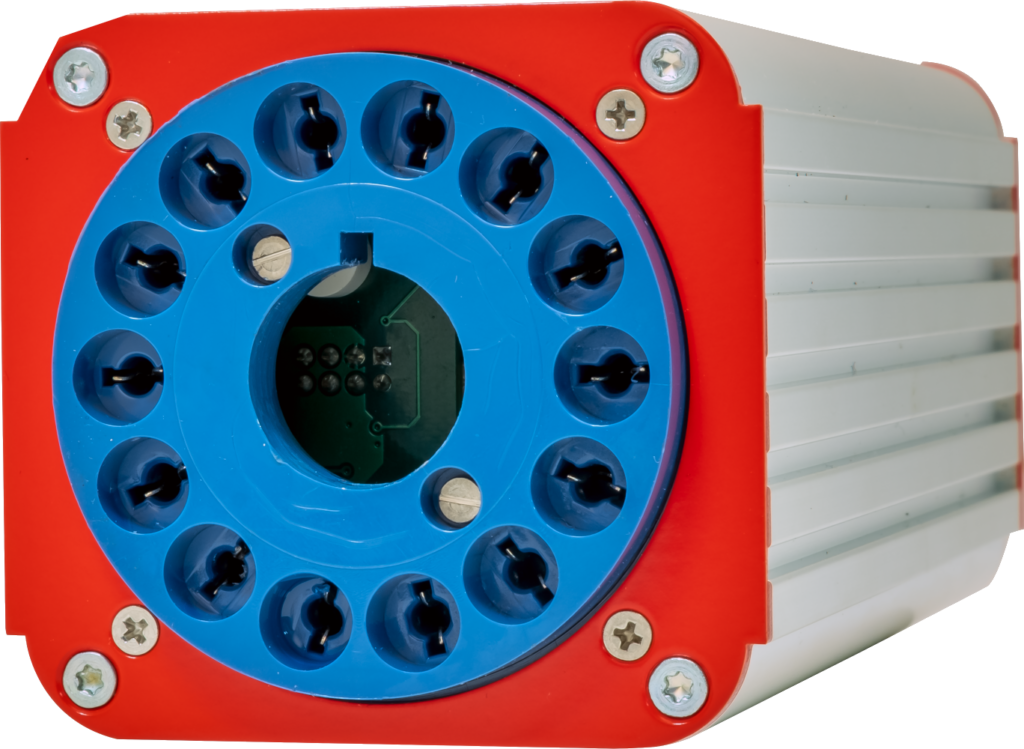

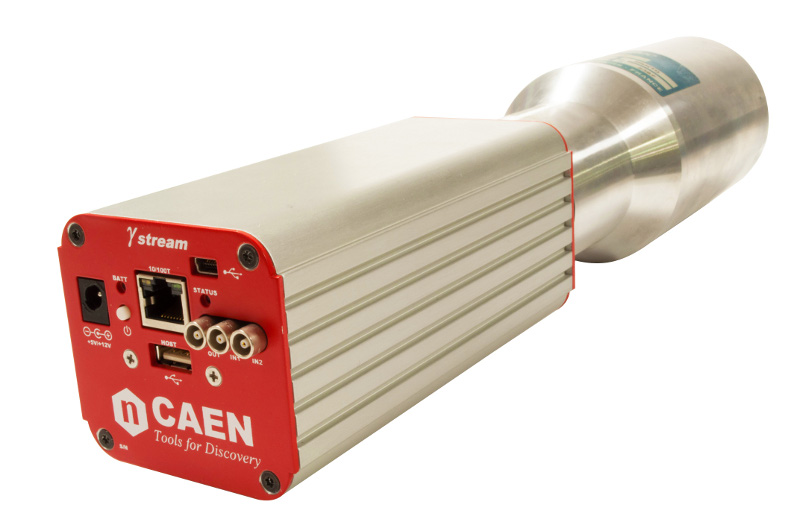

Gamma stream makes easy the measurements with scintillation detectors, such as Nal(Tl), LaBr3(Ce) and CeBr3, with no need of additional cables. Its socket and voltage divider can supply standard 14-pin and 10-stage (S2580 and S2580G models) or 8-stage (S2580LB and S2580LBG models) PMTs.
Gamma stream has been designed to work stand-alone, with no need of additional devices, cables, nor human assistance. Gamma stream features internal rechargeable Li-Ion battery providing long-term duration for unattended on-field acquisitions. Once Gamma stream is programmed via computer or mobile phone, it then acquires and logs data in an internal SSD memory. An embedded CPU, running Linux® OS, controls the acquisition and data recording, as well as the supported communication interfaces.
Multi-interface communication capability by Ethernet, USB 2.0, Bluetooth® or Wi-Fi, makes possible the remote control via computer or smartphone.
Gamma stream can be fully controlled by the MC2 Analyzer software running on Windows ® OS PC. Besides the standard board and spectra configuration, the software features basic mathematical analysis on collected spectra (peak search, background subtraction, peak fitting, etc.).
The dedicated GammaTOUCH mobile application is provided for Android™ based devices to control Gamma stream not only for all the relevant settings for the device, but even for the GPS application (mobile GPS), and the list mode. Dedicated S2580G and S2580LBG versions feature an embedded GPS component.
Considering that scintillation detectors are usually sensitive to temperature changes, and advanced algorithm for gain stabilization is available. The user can select a specific range where the algorithm recognizes a peak and adjust its position according to the temperature variations.
Technical Specifications
- Mechanical
Dimensions: 71.2 W x 66.4 H x 163.8 L mm³ (including connectors)
Weight: 700 g
- Detector & PMT
- Scintillation detectors
- 14-pin 10-stage PMTs (S2580)
- 14-pin 8-stage (S2580LB)
- Digital Signal Processing
- 12-bit and 62.5 MHz ADC
- Software selectable coarse gain: x1, x2, x4, x8
- Trapezoidal filter for the energy calculation with software adjustable rise time in the range 0÷16 µs and flat top in the range 0÷16 µs
- Trigger threshold software adjustment
- Software fine tuning of the Pole-Zero cancellation
- Digital fine gain
- Automatic gain stabilization
- Pile-up rejection and Live Time correction
- Baseline restorer with programmable averaging
- Time stamp: 16 ns resolution
- High frequency noise filter
- Data Storage
Internal SSD memory can guarantee data logging for the whole battery autonomy
- High Voltage Power Supply
- Output Bias Voltage: 0 ÷ +1500 V
- Output Bias Current: 500 µA max.
- Output ripple (full load): Typical < 5 mVpp; Maximum < 10 mVpp
- Setting resolution: steps of 1 V
- Operating Modes
- PHA (Pulse Height Analysis): pulse height histogram over 1k-2k channels
- List mode: pulse height and time stamp for each event
- Signal Inspector: input and internal filters waveforms
- MCS (COMING SOON)
- SCA (COMING SOON)
- Trigger Modes
- Stand-alone: triggering based on the channel self-trigger
- Correlated: Veto with other GammaStream; Coincidence/Anticoincidence or Veto with an external trigger (COMING SOON)
- External: triggering based on an external trigger
- Front Panel Digital I/O
OUT (LEMO LVTTL 3.3V, Rt = 50 Ohm) General Purpose Output: OUT option: Fast Trigger Discrimination signal Other options (COMING SOON) Synchronization, Start/Stop Acquisition
N1 & IN2 (LEMO LVTTL 3.3V, Zin = 1 kOhm) General Purpose Input: IN1 option: Veto signal IN2 option: Synchronization signal (trigger time stamp reset) Other options (COMING SOON) Coincidence/Anticoincidence, Start/Stop Acquisition
- Indicators
Status and battery LEDs
- Communication Interface
Ethernet
10/100 Mbit interface RJ45 connectorBluetooth
USB host port (USB2.0) compliant to BT dongle included in the kitUSB
MiniUSB client port, USB 2.0 compliant, Up to 30 MB/s transfer rateWi-Fi
USB host port (USB2.0), compliant to Wi-Fi Micro, Adapter included in the kitGPS (S2580G and S2580LBG only)Front panel SMA female jack to interface with GPS active antenna included in the kit
- Firmware
Firmware can be upgraded via USB/Ethernet
- Software
- Fully controlled by the MC² Analyzer spectroscopy software for Windows PC
- GammaTOUCH mobile application for smartphones or tablets equipped with Android OS

- Documentation
- Software
- Firmware
Free
Manuals
Application SW
Driver
Guides
Brochures, Flyers
Related Software Products
Compare
Compare with Multi Channel Analyzers.
Loading...
Ordering Options
Code | Description |
---|---|
WS2580LBXAAA | S2580LB - GAMMASTREAM - Digital MCA Tube Base for LaBr3 (Ce) Gamma-Ray Spectroscopy RoHS |
WS2580XAAAAA | S2580 - GAMMASTREAM - Digital MCA Tube Base for Gamma-Ray Spectroscopy RoHS |
WS2580GXAAAA | S2580G - GAMMASTREAM - Digital MCA Tube Base with GPS for Gamma-Ray Spectroscopy RoHS |
WS2580LBGXAA | S2580LBG - GAMMASTREAM - Digital MCA Tube Base with GPS for LaBr3 (Ce) Gamma-Ray Spectroscopy RoHS |
WS2580HEXXXA | S2580HE - HawkEye Digital MCA Tube Base for Gamma-Ray Spectroscopy RoHS |
