A83xx

New

General Purpose 1U Fan Unit

  • 19″/1U rack module
  • 3 ventilation fans
  • 450m3/h air flow
  • Powered by 110 or 230 VAC 50/60Hz (50W)
  • 47dB noise level

Overview

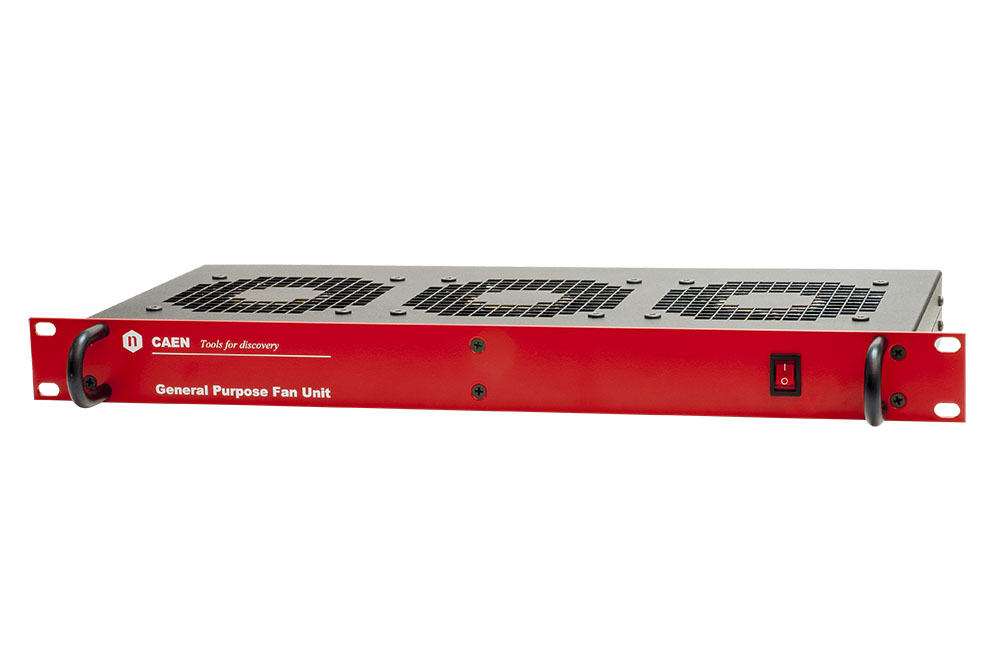

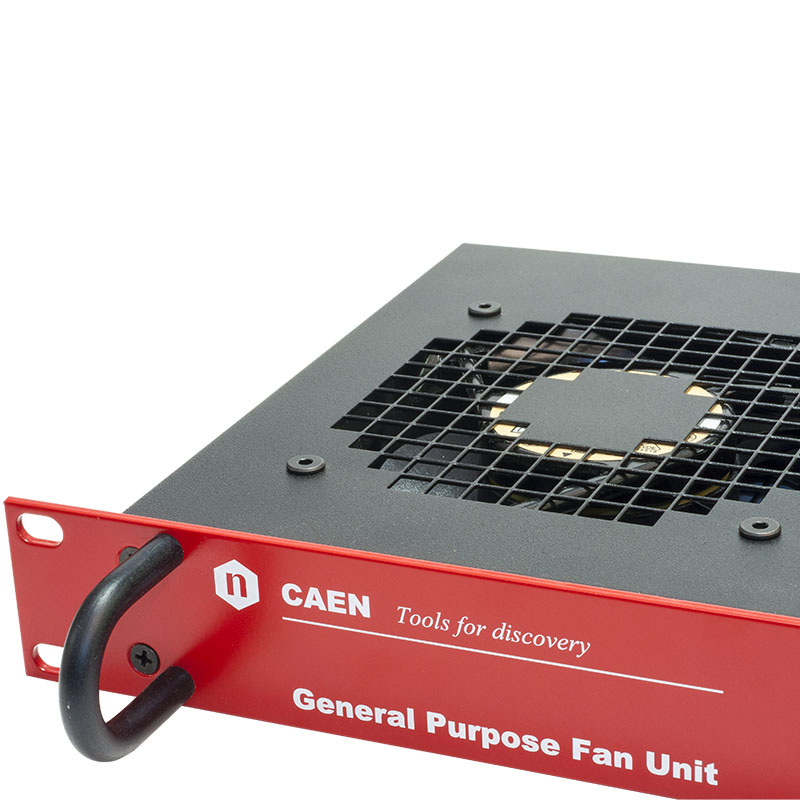

The Mod. A83xx is a 19″ Rack mount 1U fan unit. Thanks to three ventilation fans able to provide a 450 m3/h air flow, it is a suitable yet cost effective solution to properly ventilate NIM modules operating in those NIM bins that are not provided with a fan tray. The unit is powered by 110 or 230 V 50 ÷ 60 Hz AC (50 W).

Technical Specifications

Packaging

19″ / 1U rack unit; depth: 195 mm; weight 3.5 kg

AC Input

110 or 230 VAC 50/60 Hz (50W)

Number of fans

3

Cooling Air Flow

450m3/h

Maximum Temperature environment

60°C

Life expectancy

20000 hours

Noise level

47 dB

Ordering Options

Code Description
WA83XXFANXAA A83XXA - General Purpose 1U Fan Unit 220Vac
WA83XXFANXAB A83XXB - General Purpose 1U Fan Unit 110Vac
