A325
DC/DC converter for A1421
Features
- Power supply for up to 8 A1421 units in a daisy chain configuration
- Designed for A1421 CAEN Preamplifier and Discriminator
Overview

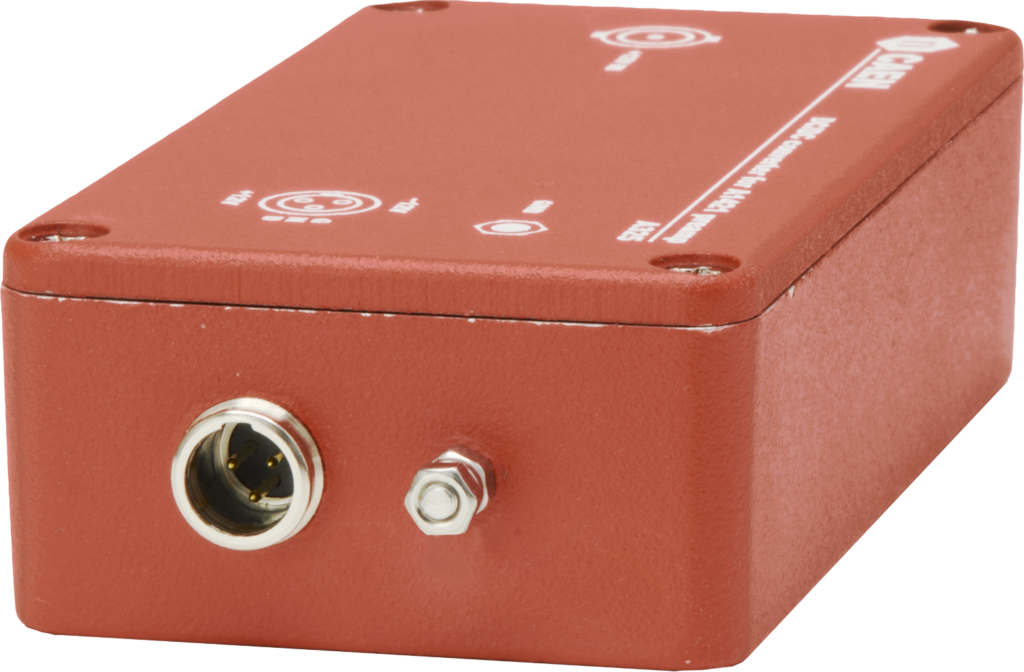

The A325 is a DC/DC converter for the CAEN Preamplifier and Discriminator A1421. It can supply power to up to 8 A1421 units in a daisy chain configuration.
Technical Specifications
- Mechanical Packaging
Enclosure Aluminum box. Size:
- 112 x 60 x 31 mm3 (without connectors)
- 132 x 60 x 31 mm3 (including connectors)
- A1421 Supply
+/-12 V / 600 mA
- Input
+12 V +/-5%
- Connectors
- BNC (In)
- 3 pole male tiny XLR (Out)
Accessories
- A32x
- A1421 power cords
Ordering Options
| Code | Description |
|---|---|
| WA325XAAAAAA | A325 - DC/DC converter for A1421 preamp RoHS |
