A1481

Kill Signal Adapter for N14XX series

Overview

The A1481 Kill Signal Adapter is a pluggable adapter that allows external DC level to enable the HV channel of the N14XX NIM HV Power Supply series.

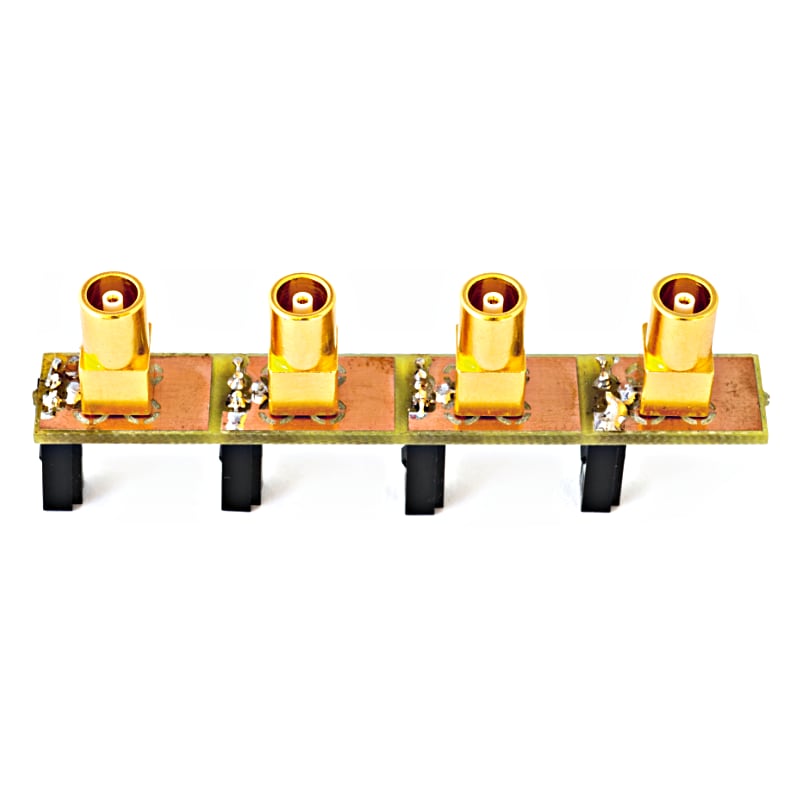

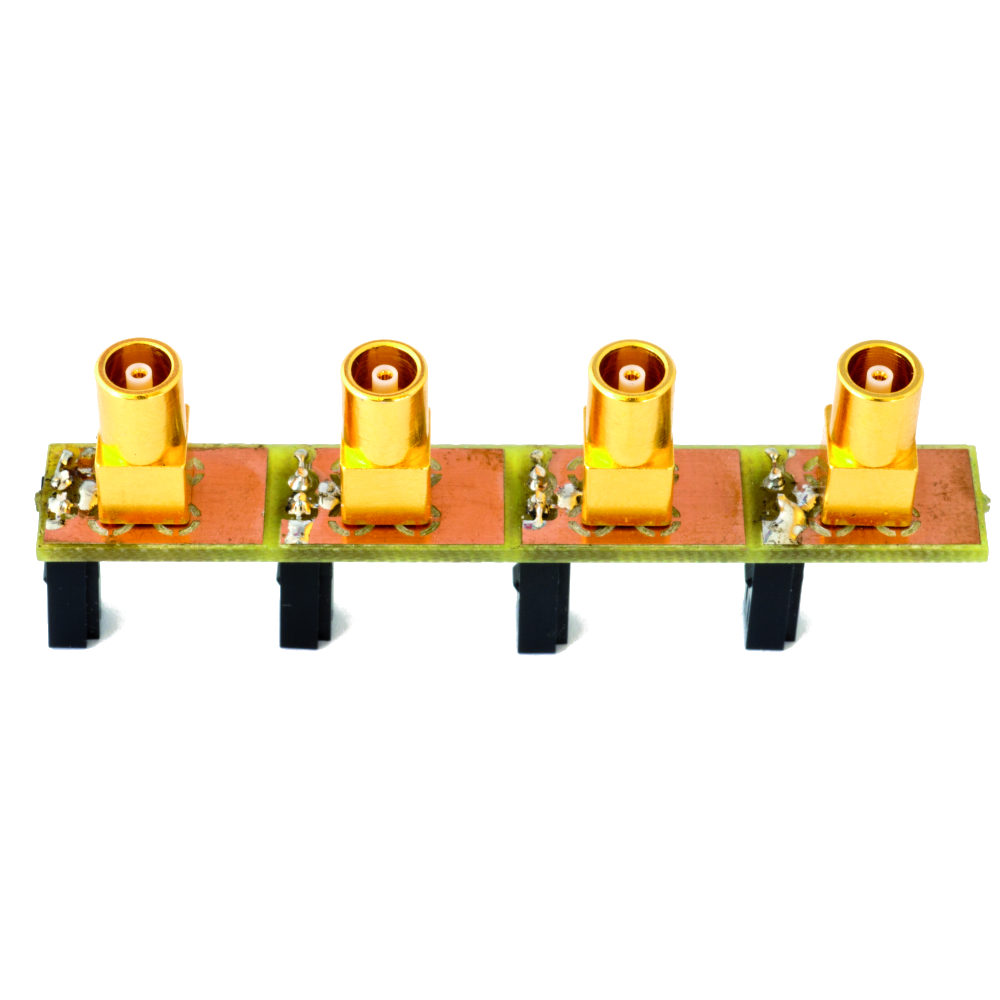

The A1481 has on its rear side AMP 2 pin plugs to be inserted into the KILL inputs of the module’s “Channel control section”; the front side has LEMO connectors.
This is necessary in order to use the modules with some detectors. Kill input is provided through LEMO connectors.
Two version are available, with a slightly different operation logic

Ordering Options

Code Description
WA1481XAAAAA A1481 - N14xx Kill Signal Adapter
