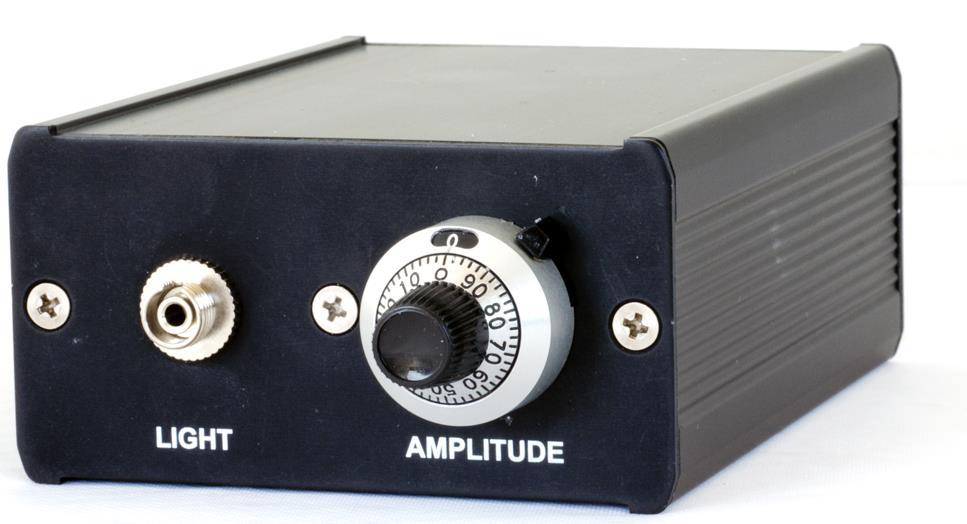

SP5601
LED Driver
Features
- Pulse width: 8 ns
- LED color: violet (400 nm) 1500 mcd
- Pulse generator: internal/external
- Optical output connectors: FC

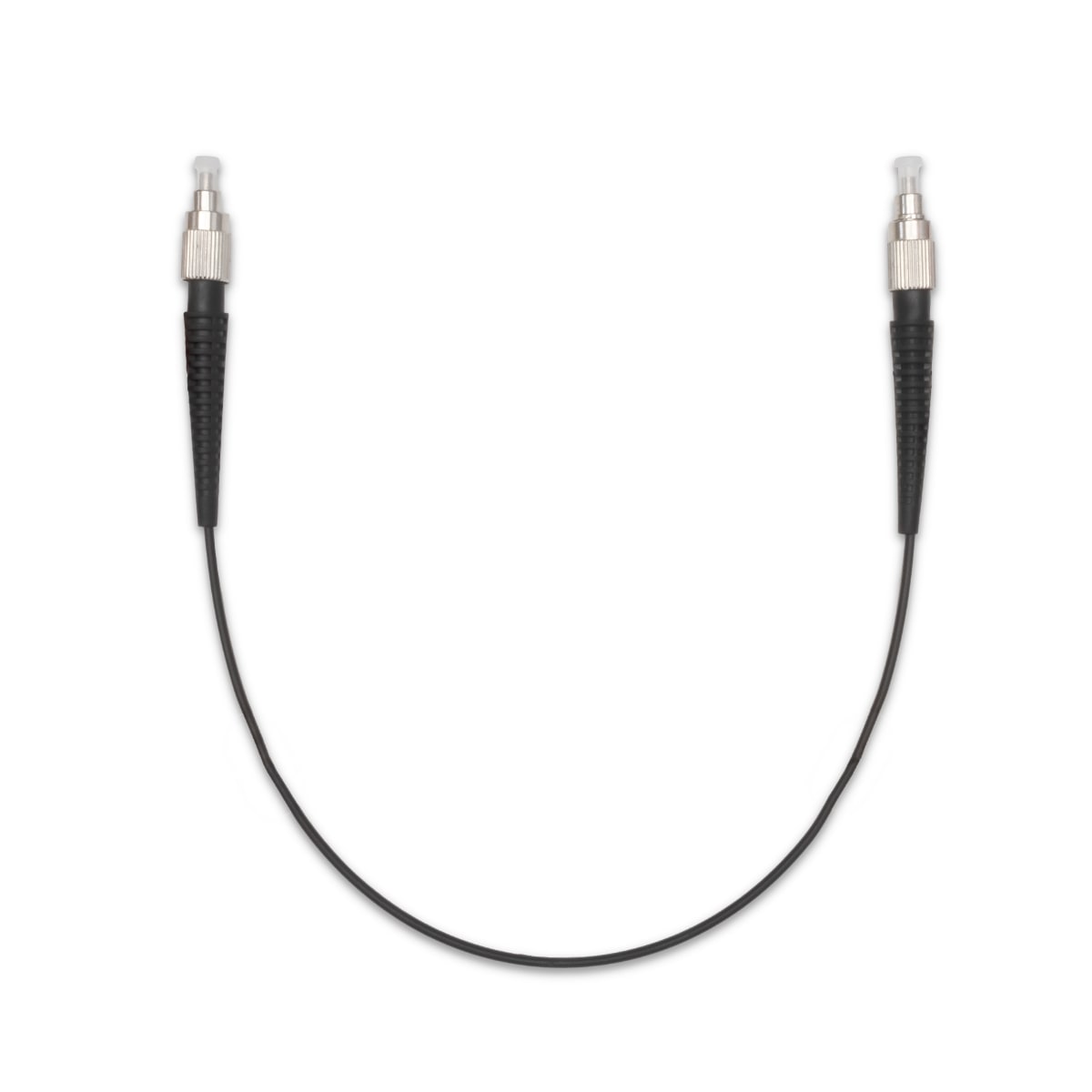

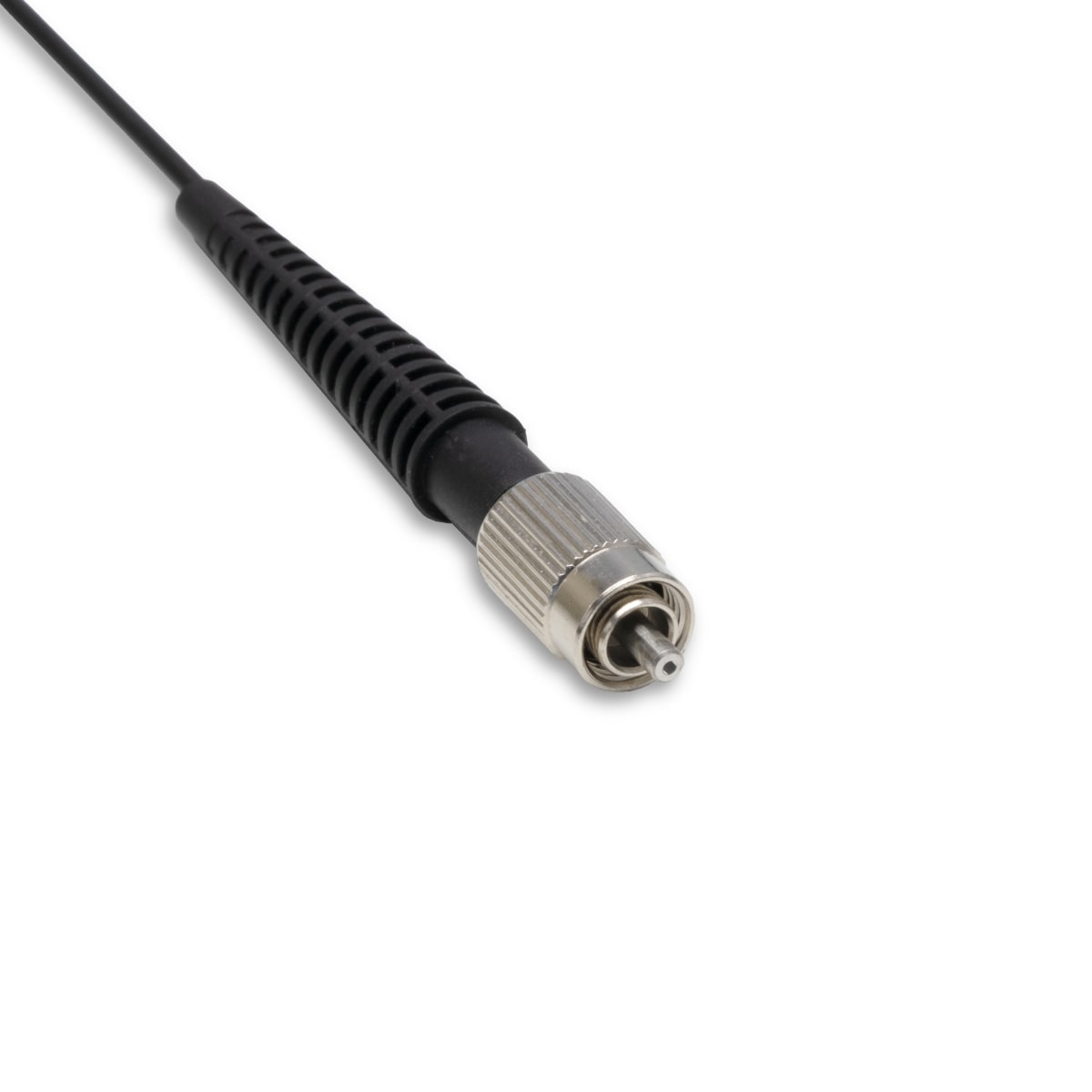

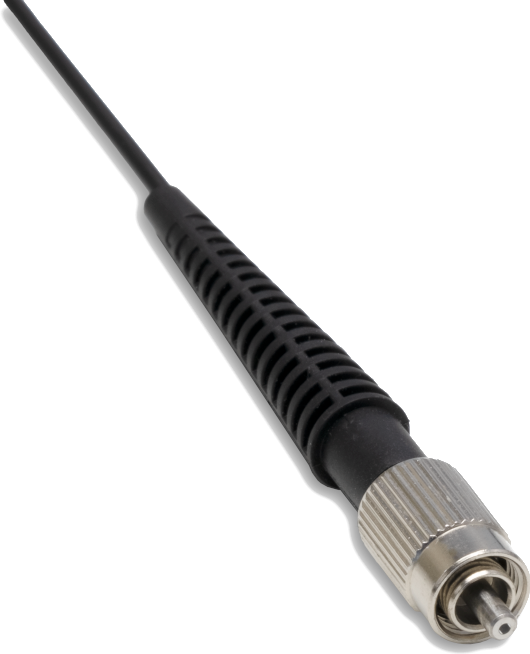

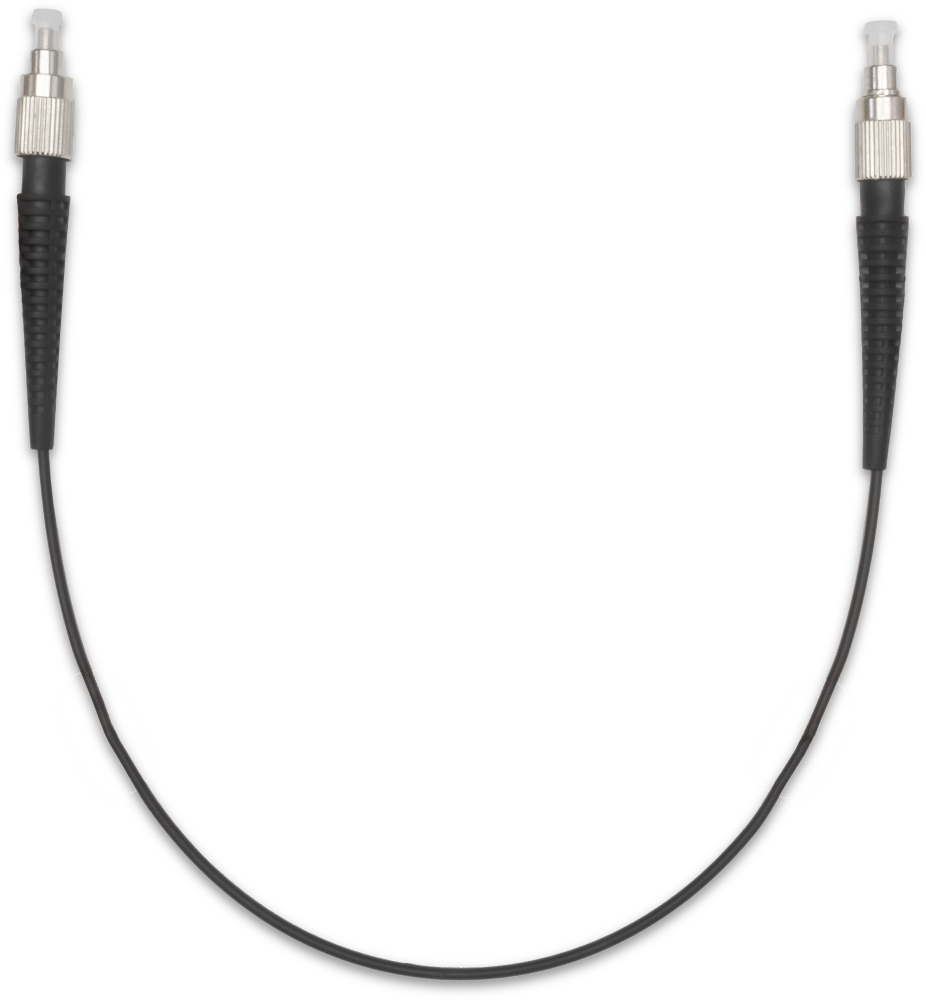

- Optical fiber included
- Dimension: 79 x 42 x 102 mm3 (WxHxD)
Overview

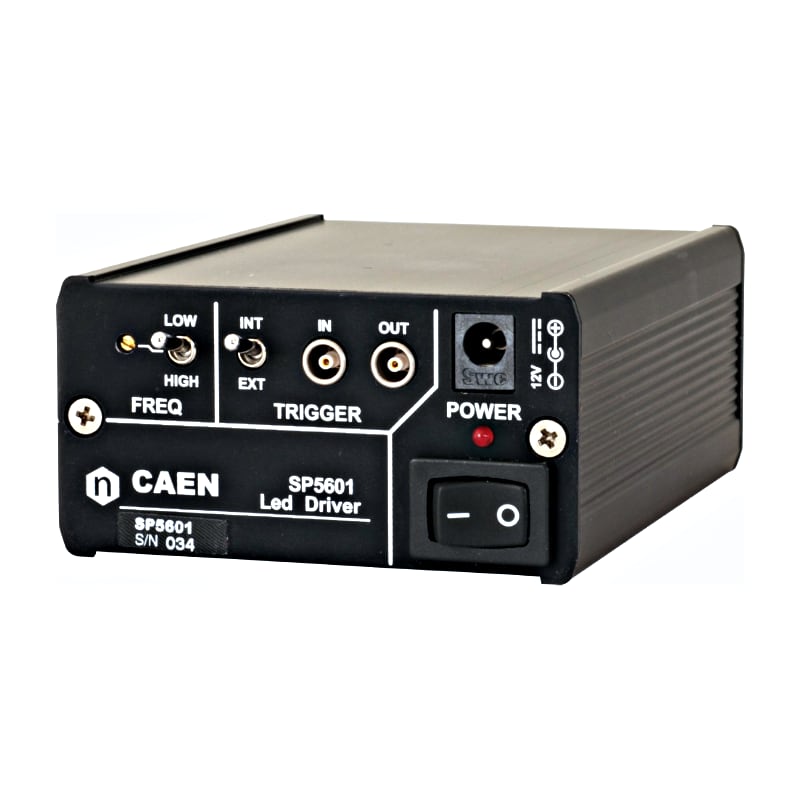

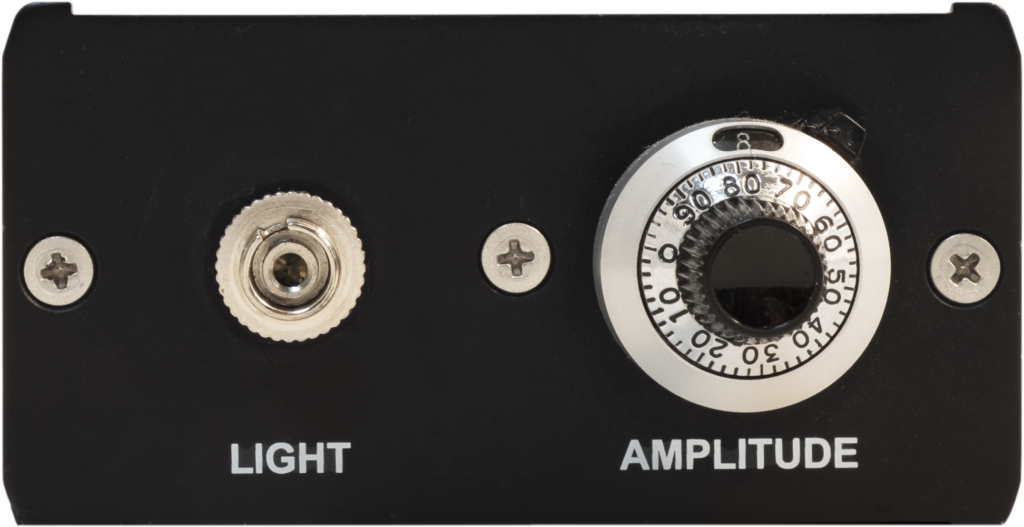

The CAEN Mod.SP5601 is an ultra-fast LED Driver with pulse width at ns level, tunable intensity and frequency, that provides a low-cost tool for the detector characterization.
It represents the ideal tool for SiPM tests and characterization, through a triggered light burst of intensity down to a few photons and up to a number saturating the sensors.
The SP5601 features tuneable intensity and repetition rate: the LED driver can be triggered either via the internal pulse generator, or via an external source; the optical signal is routed to the sensor through a fibre, FC interfaced.
Technical Specifications
- Dimensions
- Width 79mm, height 42mm, depth 102mm
- Weight
450 g
- Power requirements
140 mA@+12V (12V DC External Power Supply)
- Width of pulse
8 ns typical @ full amplitude
- Trigger Input
TTL, High input impedance; 500 Hz ÷ 5 MHz input frequency
- Trigger Output
TTL, drives 50 Ω; width: ~110ns; rise/fall time: <2ns
- Output frequency
From 500 Hz to 5 MHz
Ordering Options
| Code | Description |
|---|---|
| WSP5601XAAAA | SP5601 - Led Driver for SIPM development kit RoHS |
