CAEN offers the perfect power supply for any detector, a wide range of HV & LV products selection is presented below for your small laboratory or large experiment
For smaller set-ups Standalone or modular (NIM / VME) products or are the ideal fit, from 1ch in a single PCB board to 768ch in a rack system.
EASYEmbedded Assembly SYstem |
Stand Alone
|

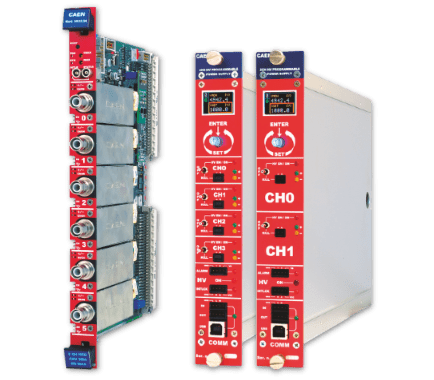

VME – NIM Power SuppliesFor your VME & NIM Crates |

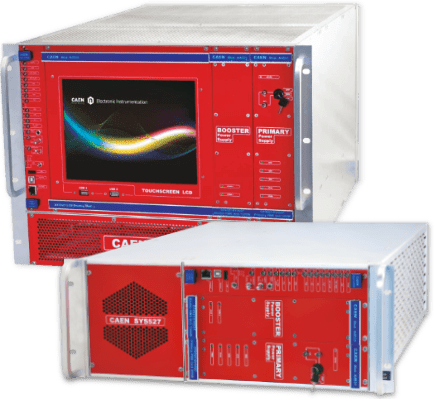

Universal Multichannel SystemSYx527 and SYx457 |
|
|---|---|---|---|---|
| Form Factor | EASYx000 Remote Crates | Rack, Desktop, PCB | NIM, VME | CAEN SYx527 and SYx527LC Mainframe Systems |
| Fitting | 19" racks and custom infrastructures | 19" racks, Desktop, Custom PCB | VME, NIM Crates | 19" racks |
| Max Output V | 2 - 4000 | 5 - 15000 | 500 - 15000 | 5 - 15000 |
| Max Output I | 1 mA - 100 A | 20 µA - 220 A | 20 µA - 10 mA | 20 µA - 15 A |
| Control | Wi-Fi, Gigabit Ethernet, RS-485 | Gigabit Ethernet, Touchscreen, USB, RS-232 | Gigabit Ethernet, Touchscreen, USB, RS-485, RS-232, VME | Wi-Fi, Gigabit Ethernet |
| Radiation and Magnetic Field tolerances | Magnetic field: up to 2 kGauss, Radiation: up to 15 kRad Total Integrated Dose | - | - | - |
| Applications | High Energy Physics (HEP) detectors in hostile areas:
|
Photomultiplier Tubes, Germanium Detectors, Silicon Photomultipliers (SiPM), GEM Detectors, Wire Chambers, Resistive Plate Chambers, Front-End electronics | Photomultiplier Tubes, Germanium Detectors, Silicon Photomultipliers (SiPM), Wire Chambers, Resistive Plate Chambers | Photomultiplier Tubes, Germanium Detectors, Silicon Photomultipliers (SiPM), GEM Detectors, Wire Chambers, Resistive Plate Chambers, Front-End electronics |
| Learn More | Learn More | Learn More | Learn More |
Two separated lines for power and service so that in case of emergency a small battery can bring the detectors to safety
Capable of working inside magnetic fields up to 0.1 T with good efficiency and reliability
either to power the front-end electronics or the bias voltage, CAEN is the only company to offer a broad range of solutions for all needs
Each High/Low Voltage channel has selectable polarity, Ramp-Up Ramp-Down rates and Imon Zoom for better current monitoring
Each unit is 110/220V AC Powered with autonomous cooling, even the double width NIM mechanics, you just need to plug the power cord
Power supplies for small labs or large infrastructure thanks to they 19" rack structure and the CAEN control software, that make possible to configure any device in the same way.
Each High/Low Voltage channel has selectable polarity, Ramp-Up Ramp-Down rates and Imon Zoom for better current monitoring
V65xx boards allow to integrate HV channels into a VME-based DAQ system, side by side with front end electronics
Takes advantage of the proven NIM and VME infrastructure to deliver state of the art performance to power and bias any detector
Each High/Low Voltage channel has selectable polarity, Ramp-Up Ramp-Down rates and Imon Zoom for better current monitoring
Modular design makes upgrade and maintenance simple and straightforward for a very wide range of experimental situation
The denser system available on the market for detectors with very large number of channels, up to 768 for crate
Every CAEN new product is the result of research and innovation working across different branches of physics in laboratories and industries.
Up to 12 kV Power Supply Boxes
A7512DB
1 Ch 12 kV/20 µA Digital Controlled Power Supply Module for MRPC
EASY6000 DC/DCs Converters

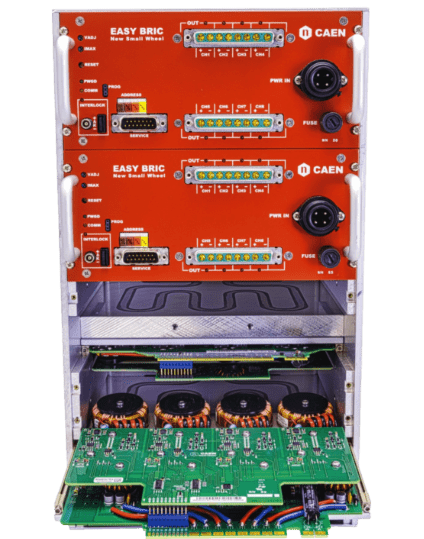

EASY BRIC
8 Channel 12 V/16 A - B and Rad tolerant Intermediate Converter
Up to 500 V - Multichannel System
A1619
16 Channel 250 V/1 mA - 100µA Full Floating Channel Dual Range Board
Up to 500 V - Multichannel System
A1612
16 Channel 500 V/1 mA - 100µA Full Floating Channel Dual Range Board
Up to 1.5 kV - Multichannel System
A1625
8 Channel 1kV/20 - 2mA Individual Floating Channel Board
Up to 1.5 kV - Multichannel System
A1626
16 Channel 1kV/10 - 1mA Individual Floating Channel Board
Up to 8 kV - Multichannel System
A1632
8 Channel 6kV/100-20µA Individual Floating Channel Dual Range Board
LV Boards - Multichannel System
A255x
8 Channel 8/64V - 1.5/12A (60W max) Full Floating Channel Board
Up to 6 kV – Desktop Standalone
DT8034H
8 Channel up to 6 kV Family with USB, Ethernet & Touchscreen
CAEN SpA provides a complete range of High/Low Voltage Power Supply systems and Front-End/Data Acquisition modules which meet IEEE Standards for Nuclear and Particle Physics. CAEN activities have always been at the forefront of technology, thanks to years of intensive collaborations with the most important Research Centres of the world.
