Highlights

  • EASY6000 DC/DC Power Supply

  • Magnetic field and radiation tolerant

    • Ionizing Radiation (Total Dose) 200 Gy

    • Displacement Damage 5.8·1012 1-MeV Eq. n/cm2

    • Single Event Fluence 1.0·1012 p/cm2 (E > 20 MeV)

    • Magnetic Field 0.5 T

  • 8 positive 10 ÷ 12 V / 16 A channels

  • 300 V DC Input Voltage

  • Vset by trimmer

  • On/Off for each channel

  • Channels individually monitored and protected

  • Interlock capability

  • 48 V Service local and remote on/off

  • Individual floating return

  • Liquid Cooling

Overview

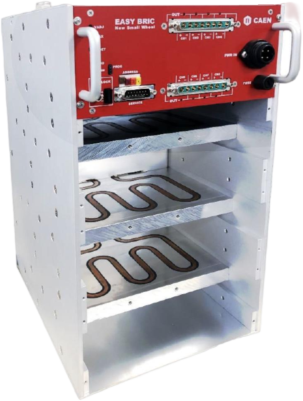

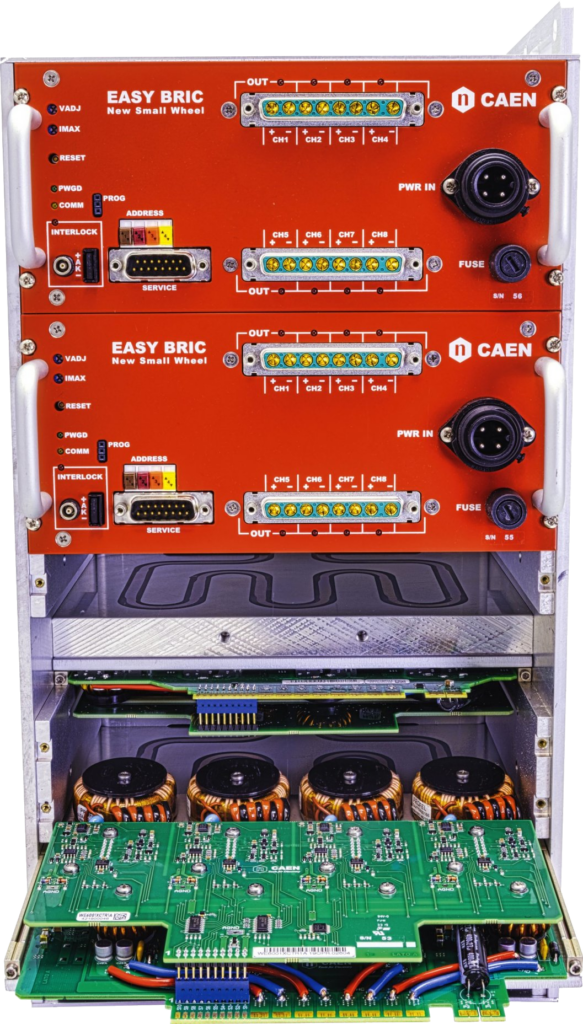

The EASY BRIC (B- and Radiation-tolerant Intermediate Converter) system is a CAEN low-voltage power supply system conceived to power DC-DC converter stages in hostile environments. It is based on a water-cooled crate that can host up to four EASY BRIC modules.

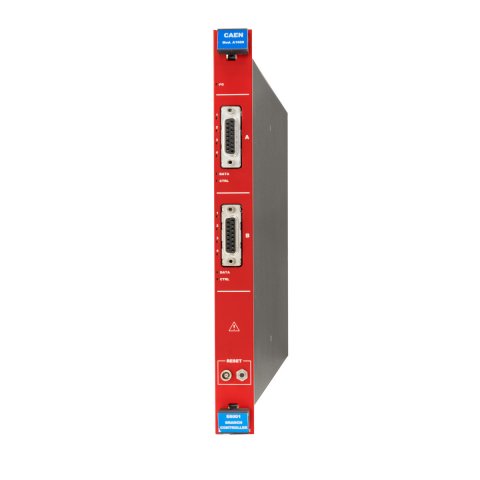

Each EASY BRIC module provides eight positive 10 ÷ 12 V / 16 A channels. Output voltages are set locally via trimmer, while all channels are monitored remotely through the A1660 Branch Controller. The A1660 operates in the safe area, inserted in a CAEN SYx527 mainframe, and can manage up to two EASY BRIC crates, for a total of 64 power supply channels.

Remote control relies on the robust RS-485 communication bus and a simple command-based protocol, which allows the monitoring of output voltages and currents as well as the remote ON/OFF of each channel. An INTERLOCK port is also available to shut down the system whenever a safety issue occurs in the experimental area.

The system accepts a 270 ÷ 300 VDC input, supplied through a D-SUB 8W8 power connector. Such a high input voltage reduces voltage drop and allows smaller cable diameters over long input power lines, when the AC/DC sources are placed in the safe area.

The EASY BRIC system has been extensively tested for operation in radiation and magnetic field environments, up to a total ionizing dose of 200 Gy, a displacement damage of 5.8 × 10¹² 1-MeV eq. n/cm², a single event fluence of 1.0 × 10¹² p/cm² (E > 20 MeV) and a magnetic field of 0.5 T.

Thanks to its integration in the SYx527 environment, the EASY BRIC can be controlled with all SYx527 software and libraries: GECO2020, HiVoCS, OPC Server, EPICS and CAEN HV Wrapper.


Ordering Options

Code Description
WE6001XNSWAA

EASY BRIC – 300Vdc to 12Vdc (8ch x 200W) Converter – No internal cooling

WEASY6000NSW

EASY BRIC – Water Cooled Box for EASY BRIC Power Supply System – NSW version

RoHS

Request a Quote

    Submit

    Technical Specifications

    Close

    N. of channels

    8

    Input Voltage

    270 ÷ 300 VDC

    Output Voltage

    10 ÷ 12 VDC, programmable with trimmer

    Output Voltage accuracy

    1% FS

    Maximum Output Current

    16 A DC

    Abs. Max. Output Current

    17 A DC

    Vmon Resolution

    10 mV

    Imon resolution

    10 mA

    Output Voltage hardware limit (Vmax)

     12.1 VDC

    Trip time

    ~1 s for overcurrent, <0.1 s for overvoltage

    Ripple (Differential and Common mode)

    < 20 mVpp (0 ÷ 30 MHz)

    Redundancy

    Parallel connection of channels possible

    Controls

    Remote ON/OFF for each channel

    Conversion efficiency

    ≥ 80% above 50% full load

    Maximum output power

    190 W per channel (1.5 kW total)
