AG542

12/24/32 Channel 500 V/1 mA Common Ground Boards

Features

  • 12/24/32 independently controllable High Voltage channels
  • 500 V / 1 mA output range
  • Available with either positive, negative or mixed polarity (only with SHV connectors)
  • DB25 Multipin or SHV coaxial connectors
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

The power supplies of the AG542 family house 32, 24 or 12 independent high voltage channels. The AG542 is available in different versions equipped with SHV or with DB25 connector:

blank DB25 connector

Single width (5 TE wide), 24 channel for Mod.AG542LN

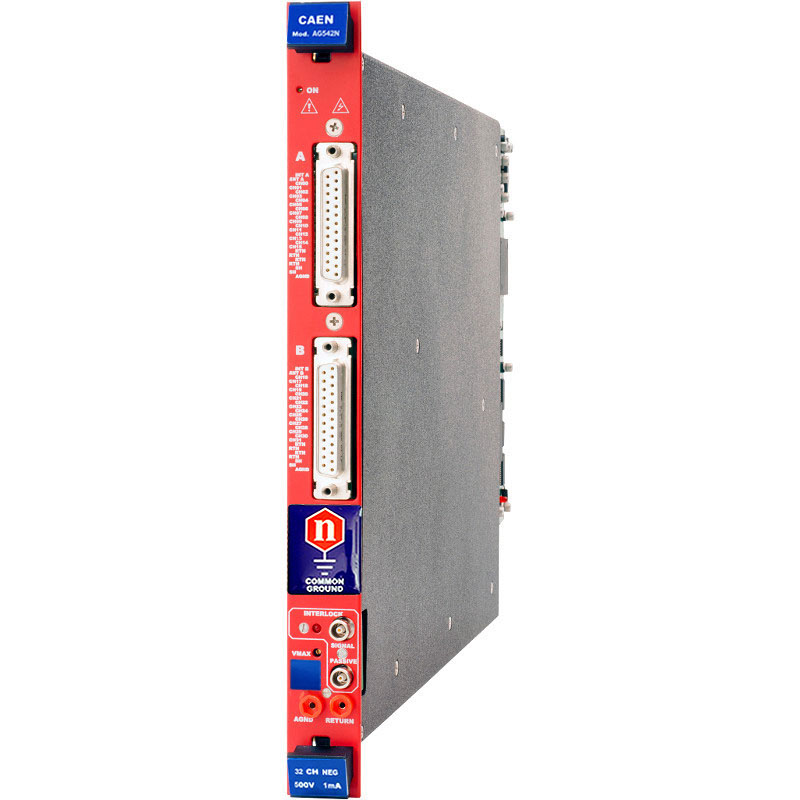

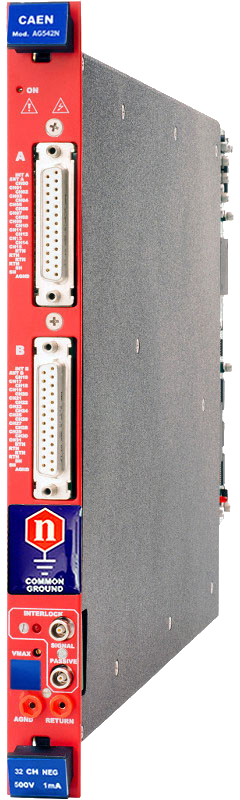

Single width (5 TE wide), 32 channel for Mod.AG542N, AG542P

blank SHV connector

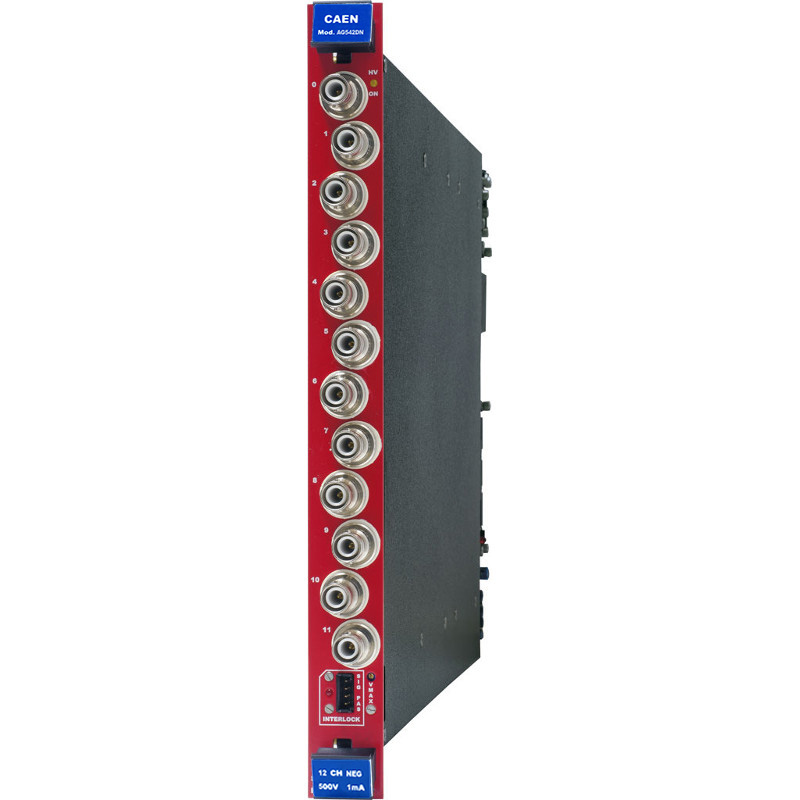

Single width (5 TE wide), 12 channels for Mod.AG542DN, AG542DP, AG542SM

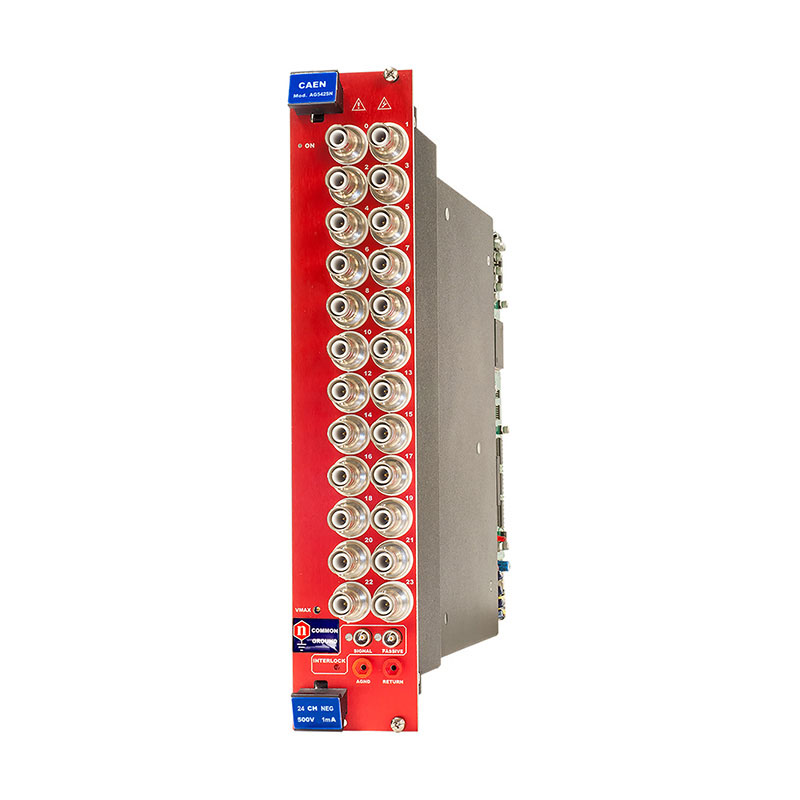

Double width (10 TE wide), 24 channels for Mod. AG542LP, AG542SN, AG542SP

Consult our connectors reference page for technical information.

The channels share a Common Ground and the output voltage range is 0 ÷500 V, (10 mV step) with 1 mV monitor resolution. The maximum output current is 1 mA, (20 nA step) with 1 nA monitor resolution.

The board is available with either positive or negative output polarity. Mixed version with 6/12 positive and 6/12 negative channels are also available (only with SHV connectors). The HV RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 100 V/s range (1 V/s step).

Safety features allows the module to perform as a current generator and includes:

Channels
can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX
Maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software.
Safety Board Interlock This protection allows to disable the primary HV generation when the HV outputs are not connected to their loads.

Technical Specifications

No. of Channels

12 / 24 / 32 (Common Ground)

Output Voltage

0÷500 V

Polarity

Positive / Negative / Mixed depending on purchased version

Max. Output Current

1 mA

Voltage Set Resolution

10 mV

Voltage Monitor Resolution

1 mV

Current Set Resolution

20 nA

Current Monitor Resolution

1 nA

VMAX hardware

0÷500 V common for all the board channels

VMAX hardware accuracy

1 V

VMAX software

0÷500 V settable for each channel

VMAX software resolution

1 V

Ramp Up/Down

1÷100 Volt/sec, 1 Volt/sec step

Voltage Ripple
  • < 5mVpp (Max)
  • < 3mVpp (Typ)
Vmon vs. Vout accuracy

±0.02 % ± 50 mV

Vset Vs. Vout accuracy

±0.02% ±50 mV

Imon vs. Iout accuracy

±2 % ±1 µA

Iset vs. Iout accuracy

±2 % ± 1 µA

Maximum output power

0.5 W per channel

TRIP parameter

TRIP range: 0 ÷ 999 s; 1000 s = Infinite, current generator mode. Step = 1 s

Power consumption
  • AG542: 32 W @ full power
  • AG542L, AG542S: 24 W @ full power
  • AG542D: 12 W @ full power

Compare

Compare with High Voltage Power Supply.

Loading...

Accessories

HV Cables
High Voltage Cable Assemblies

Ordering Options

Code Description
WAG542DXAAAA AG542DN - SYx527 H.V. channel -500 V 1 mA - SHV Conn. common ground (12 ch)   RoHS
WAG542DXMAAA AG542DM - SYx527 H.V. channel (6ch +500V 1mA, 6ch -500V 1mA) - SHV common ground   RoHS
WAG542DXPAAA AG542DP - SYx527 H.V. channel +500 V 1 mA - SHV Conn. common ground (12 ch)   RoHS
WAG542LXAAAA AG542LN - SYx527 H.V. channel -500 V 1 mA - Multipin Conn. common ground (24 ch)   RoHS
WAG542LXPAAA AG542LP - SYx527 H.V. channel +500 V 1 mA - Multipin Conn. common ground (24 ch)   RoHS
WAG542SXAAAA AG542SN - SYx527 H.V. channel -500 V 1 mA - SHV Conn. common ground (24 ch 10TE wide)   RoHS
WAG542SXMAAA AG542SM - SYx527 H.V. channel (12ch +500V 1mA, 12ch -500V 1mA) - SHV common ground (10TE wide)   RoHS
WAG542SXPAAA AG542SP - SYx527 H.V. channel +500 V 1 mA - SHV Conn. common ground (24 ch 10TE wide)   RoHS
WAG542XAAAAA AG542N - SYx527 H.V. channel -500 V 1 mA - Multipin Conn. common ground (32 ch)   RoHS
WAG542XPAAAA AG542P - SYx527 H.V. channel +500 V 1 mA - Multipin Conn. common ground (32 ch)   RoHS
