AG540

12/24/32 Channel 100 V/1 mA Common Ground Boards

Features

  • 12/24/32 independently controllable High Voltage channels
  • 100 V / 1 mA output range
  • Available with either positive, negative or mixed polarity (only with SHV connectors)
  • DB25 Multipin or SHV coaxial connectors
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

The power supplies of the AG540 family house 32, 24 or 12 independent high voltage channels. The AG540 is available in different versions equipped with SHV or with DB25 connector:

blank DB25 connector

Single width (5 TE wide), 24 channels for Mod.AG540LN

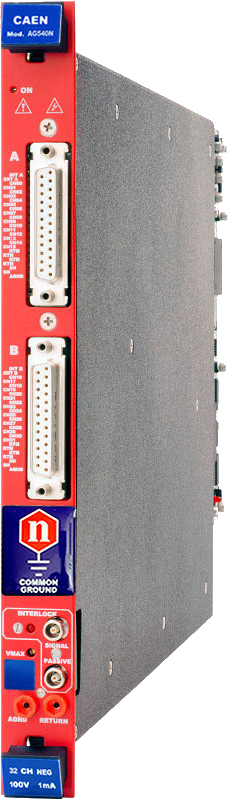

Double width (10 TE wide), 32 channels for Mod.AG540N, AG540P

blank SHV connector

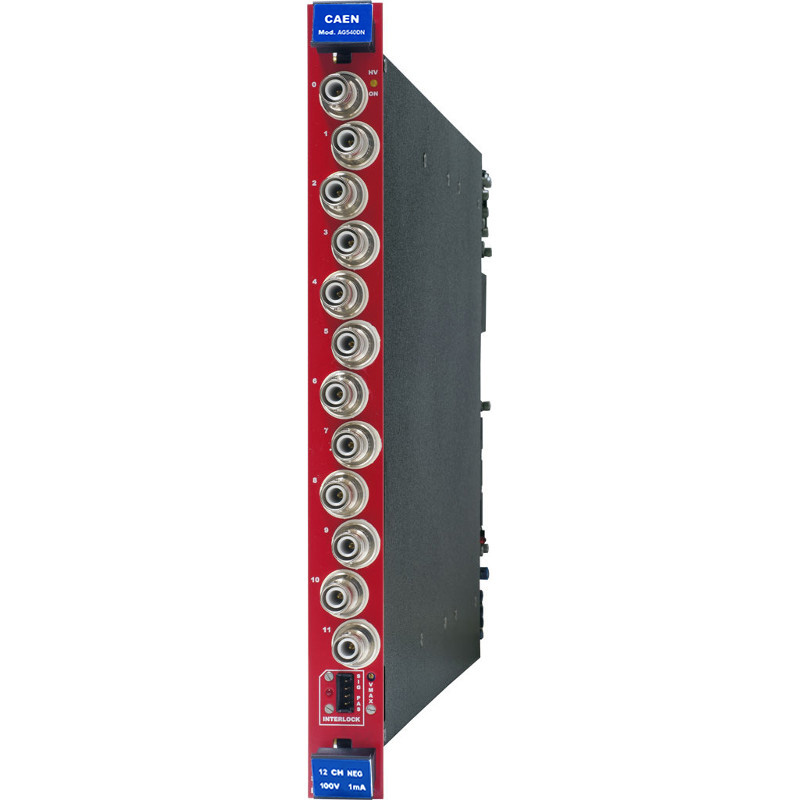

Single width (5 TE wide),12 channels for Mod. AG540DN,  AG540DP, AG540SM

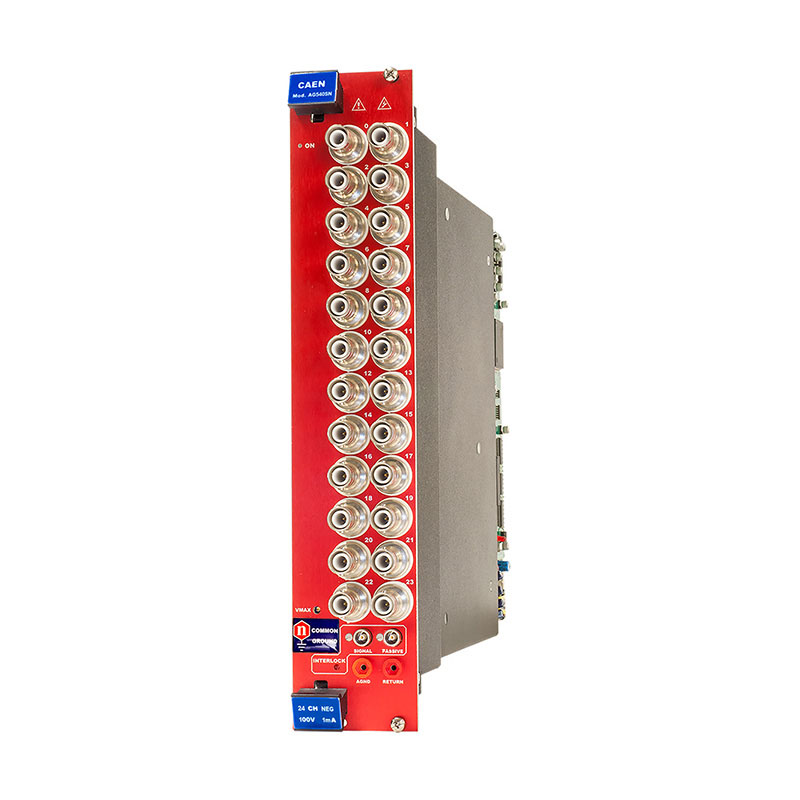

Double width (10 TE wide), 24 channels for Mod. AG540LP, AG540SN, AG540SP

Consult our connectors reference page for technical information.

The channels share a Common Ground and the output voltage range is 0 ÷100 V, (10 mV step) with 1 mV monitor resolution. The maximum output current is 1 mA, (20 nA step) with 1 nA monitor resolution.

The board is available with either positive or negative output polarity. Mixed version with 6/12 positive and 6/12 negative channels are also available (only with SHV connectors). The HV RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 50 V/s range (1 V/s step).

Safety features allows the module to perform as a current generator and includes:

Channels
can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX
Maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software.
Safety Board Interlock This protection allows to disable the primary HV generation when the HV outputs are not connected to their loads.

Technical Specifications

No. of Channels

12 / 24 / 32 (Common Ground)

Output Voltage

0÷100 V

Polarity

Positive / Negative / Mixed depending on purchased version

Max. Output Current

1 mA

Voltage Set Resolution

10 mV

Voltage Monitor Resolution

1 mV

Current Set Resolution

20 nA

Current Monitor Resolution

1 nA

VMAX hardware

0÷100 V common for all the board channels

VMAX hardware accuracy

1 V

VMAX software

0÷100 V settable for each channel

VMAX software resolution

1 V

Ramp Up/Down

1÷50 Volt/sec, 1 Volt/sec step

Voltage Ripple

< 3 mVpp (Typical)
< 5 mVpp (Max)

Vmon vs. Vout accuracy

±0.02% ± 50 mV

Vset Vs. Vout accuracy

±0.02% ± 50 mV

Imon vs. Iout accuracy

±2% ± 1 µA

Iset vs. Iout accuracy

±2% ± 1 µA

Maximum output power

0.1 W per channel

Power consumption

AG540: 6.4 W @ full power
AG540L, AG540S: 4.8 W @ full power
AG540D: 2.4 W @ full power

Compare

Compare with High Voltage Power Supply.

Loading...

Accessories

HV Cables
High Voltage Cable Assemblies

Ordering Options

Code Description
WAG540DXAAAA AG540DN - SYx527 H.V. channel -100 V 1 mA - SHV Conn. common ground (12 ch)   RoHS
WAG540DXMAAA AG540DM - SYx527 H.V. channel (6ch +100V 1mA, 6ch -100V 1mA) - SHV Conn. common ground   RoHS
WAG540DXPAAA AG540DP - SYx527 H.V. channel +100 V 1 mA - SHV Conn. common ground (12 ch)   RoHS
WAG540LXAAAA AG540LN - SYx527 H.V. channel -100 V 1 mA - Multipin Conn. common ground (24 ch)   RoHS
WAG540LXPAAA AG540LP - SYx527 H.V. channel +100 V 1 mA - Multipin Conn. common ground (24 ch)   RoHS
WAG540SXAAAA AG540SN - SYx527 H.V. channel -100 V 1 mA - SHV Conn. common ground (24 ch 10TE wide)   RoHS
WAG540SXMAAA AG540SM - SYx527 H.V. channel (12ch +100V 1mA, 12ch -100V 1mA) - SHV Conn. common ground   RoHS
WAG540SXPAAA AG540SP - SYx527 H.V. channel +100 V 1 mA - SHV Conn. common ground (24 ch 10TE wide)   RoHS
WAG540XAAAAA AG540N - SYx527 H.V. channel -100 V 1 mA - Multipin Conn. common ground (32 ch)   RoHS
WAG540XPAAAA AG540P - SYx527 H.V. channel +100 V 1 mA - Multipin Conn. common ground (32 ch)   RoHS
