AG539

12/24/32 Channel 100 V/10 mA Common Ground Boards

Features

  • 12/24/32 independently controllable High Voltage channels
  • 100 V / 10 mA output range
  • Available with either positive, negative or mixed polarity (only with SHV connectors)
  • DB25 Multipin or SHV coaxial connectors
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

The power supplies of the AG539 family house 32, 24 or 12 independent high voltage channels. The AG539 is available in different versions equipped with SHV or with DB25 connector:

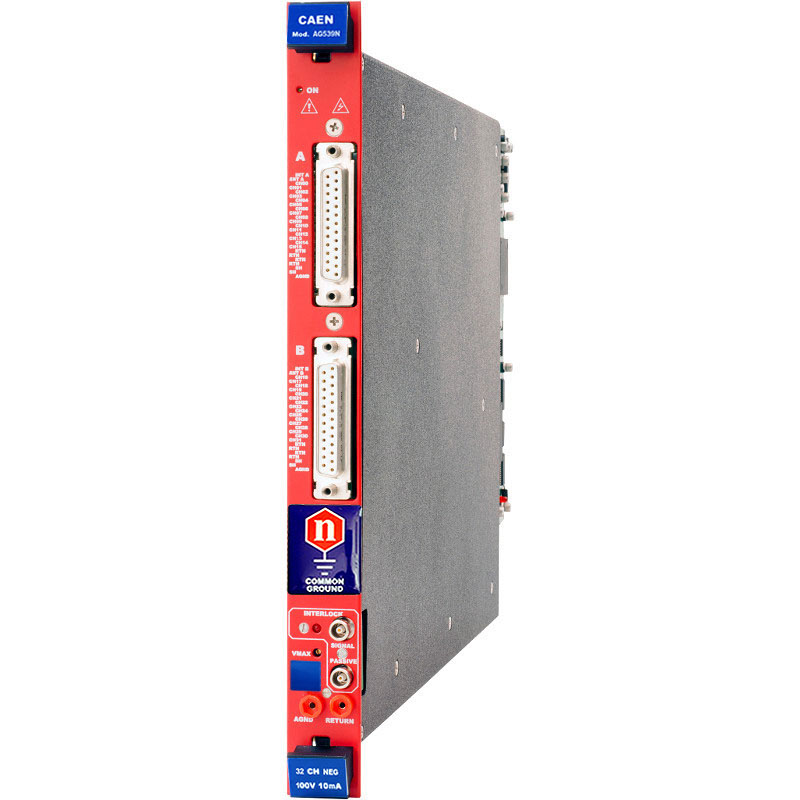

blank DB25 connector

Single width (5 TE wide), 24 channels for Mod.AG539LP, AG539LN

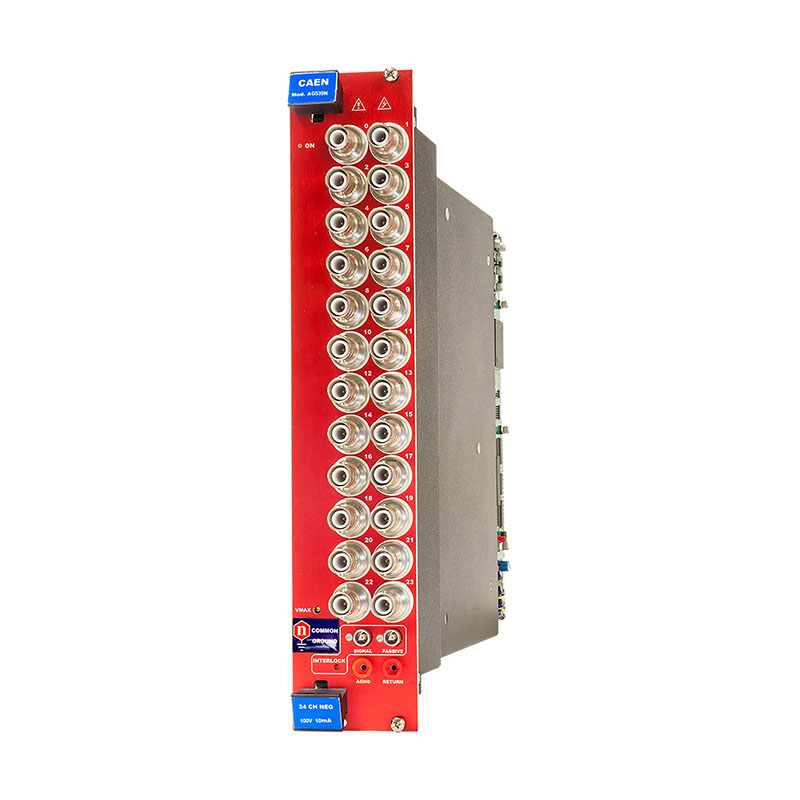

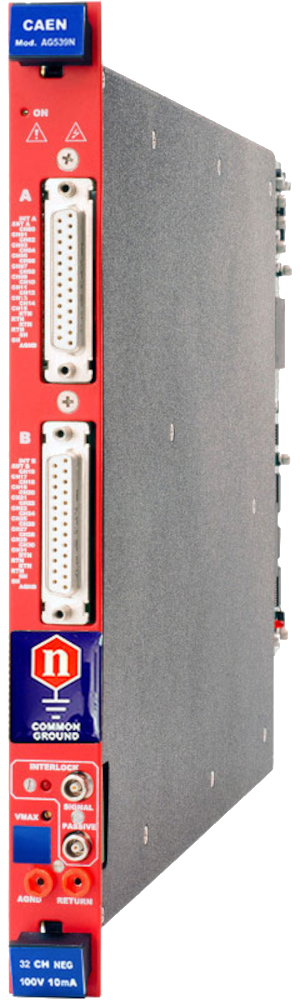

Double width (10 TE wide), 32 channels for Mod.AG539N, AG539P

blank SHV connector

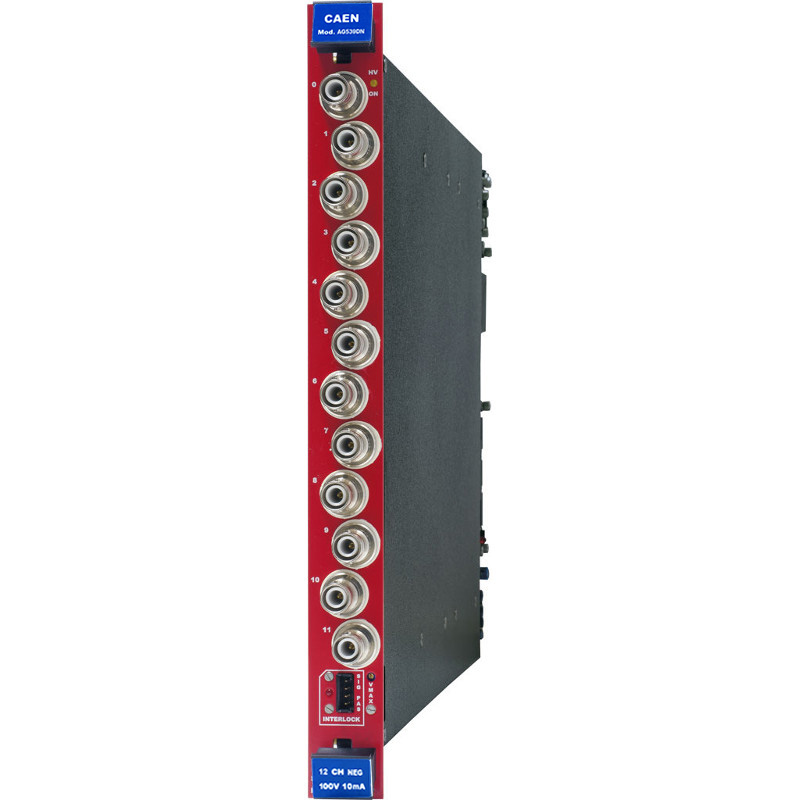

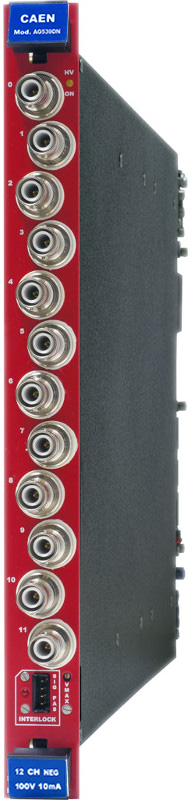

Single width (5 TE wide), 12 channels for Mod.AG539DN, AG539DP, AG539SM

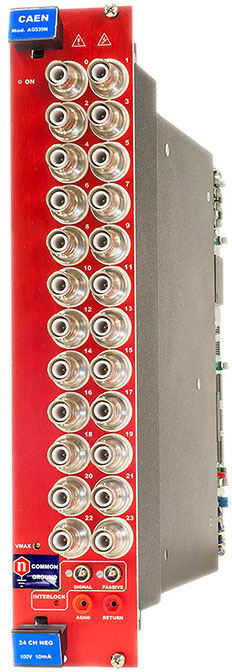

Double width (10 TE wide), 24 channels for Mod. AG539SN, AG539SP

Consult our connectors reference page for technical information.

The channels share a Common Ground and the output voltage range is 0 ÷ 100 V, (10 mV step) with 1 mV monitor resolution. The maximum output current is 10 mA, (200 nA step) with 10 nA monitor resolution.

The board is available with either positive or negative output polarity. Mixed version with 6/12 positive and 6/12 negative channels are also available (only with SHV connectors). The HV RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 50 V/s range (1 V/s step).

Safety features allows the module to perform as a current generator and includes:

Channels
can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection when a channel attempts to exceed the programmed current limit, it signaled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software.

Technical Specifications

No. of Channels

12 / 24 / 32 (Common Ground)

Output Voltage

0÷100 V

Polarity

Positive / Negative / Mixed depending on purchased version

Max. Output Current

10 mA

Voltage Set Resolution

10 mV

Voltage Monitor Resolution

1 mV

Current Set Resolution

200 nA

Current Monitor Resolution

10 nA

VMAX hardware

0÷100 V common for all the board channels

VMAX hardware Accuracy

1 V

VMAX Software

0÷100 V settable for each channel

VMAX software resolution

1 V

Ramp Up/Down

1÷50 Volt/sec, 1 Volt/sec step

Voltage Ripple
  • < 5 mVpp (Max)
  • < 3 mVpp (Typ)
Vmon vs. Vout accuracy

±0.02 % ±50 mV

Vset Vs. Vout accuracy

±0.02 % ±50 mV

Imon vs. Iout Accuracy

±2 % ±10 µA

Iset vs. Iout accuracy

±2 % ±10 µA

Maximum output power

1 W per channel

Power consumption
  • AG539: 64 W @ full power
  • AG539L, AG539S: 48 W @ full power
  • AG539D: 24 W @ full power

Compare

Compare with High Voltage Power Supply.

Loading...

Accessories

HV Cables
High Voltage Cable Assemblies

Ordering Options

Code Description
WAG539DXAAAA AG539DN - SYx527 H.V. channel -100 V 10 mA - SHV Conn. common ground (12 ch)   RoHS
WAG539DXMAAA AG539DM - SYx527 H.V. channel (6ch +100V 10mA, 6ch -100V 10mA) - SHV Conn. common ground   RoHS
WAG539DXPAAA AG539DP - SYx527 H.V. channel +100 V 10 mA - SHV Conn. common ground (12 ch)   RoHS
WAG539LXAAAA AG539LN - SYx527 H.V. channel -100 V 10 mA - Multipin Conn. common ground (24 ch)   RoHS
WAG539LXPAAA AG539LP - SYx527 H.V. channel +100 V 10 mA - Multipin Conn. common ground (24 ch)   RoHS
WAG539SXAAAA AG539SN - SYx527 H.V. channel -100 V 10 mA - SHV Conn. common ground (24 ch 10TE wide)   RoHS
WAG539SXMAAA AG539SM - SYx527 H.V. channel (12ch +100V 10mA, 12ch -100V 10mA) - SHV Conn. common ground (10TE)   RoHS
WAG539SXPAAA AG539SP - SYx527 H.V. channel +100 V 10 mA - SHV Conn. common ground (24 ch 10TE wide)   RoHS
WAG539XAAAAA AG539N - SYx527 H.V. channel -100 V 10 mA - Multipin Conn. common ground (32 ch)   RoHS
WAG539XPAAAA AG539P - SYx527 H.V. channel +100 V 10 mA - Multipin Conn. common ground (32 ch)   RoHS
