A967

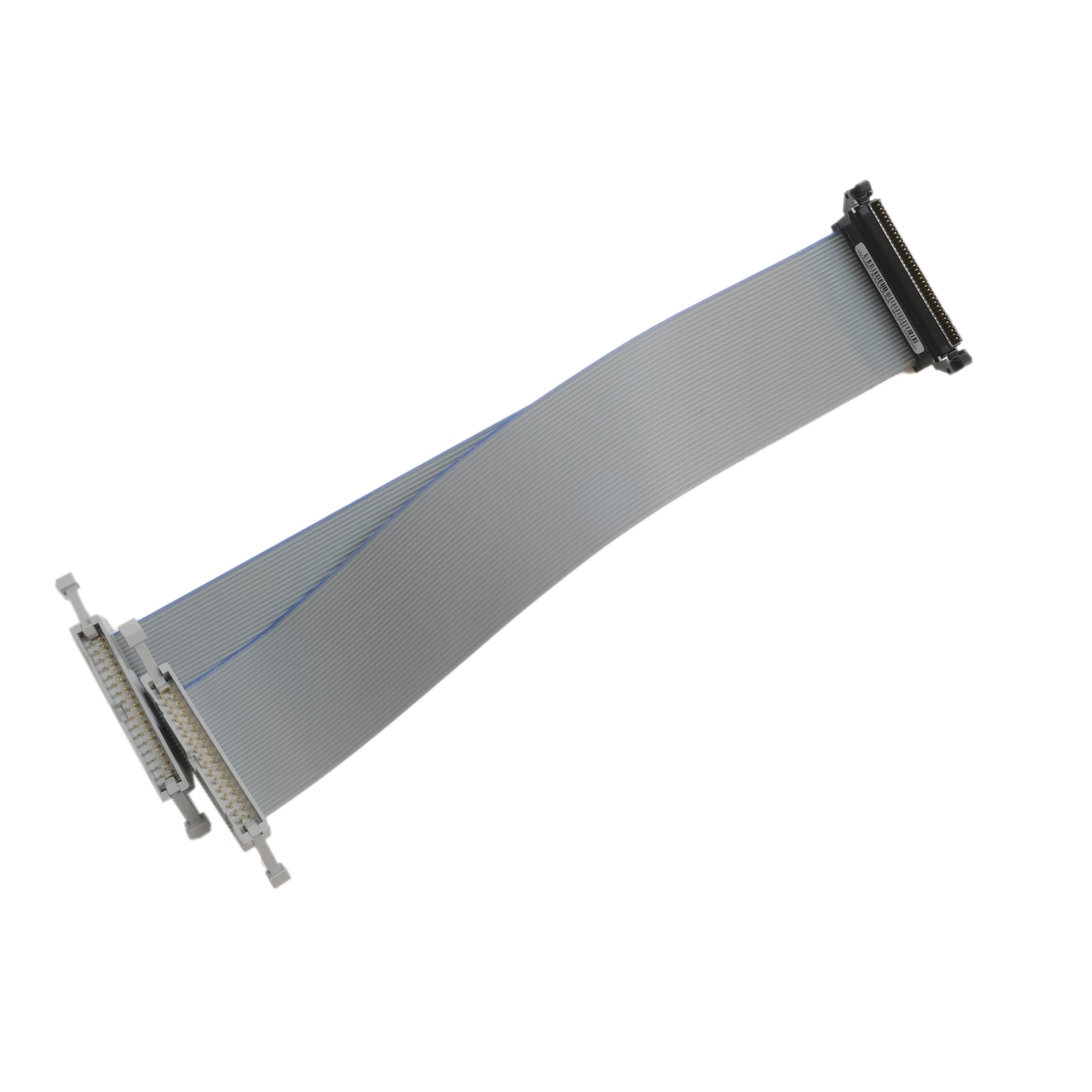

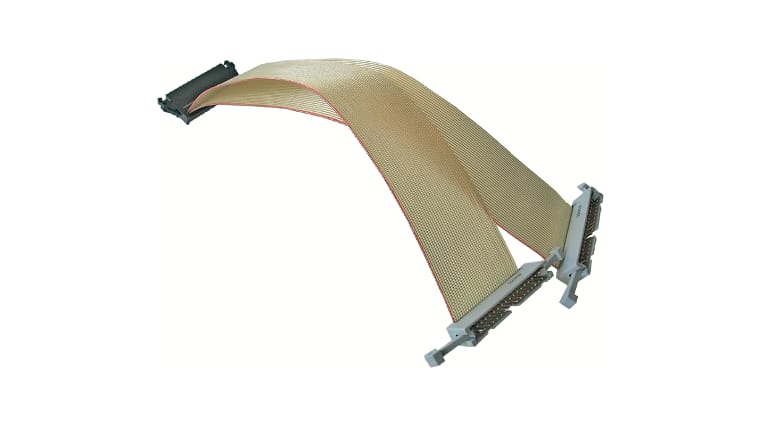

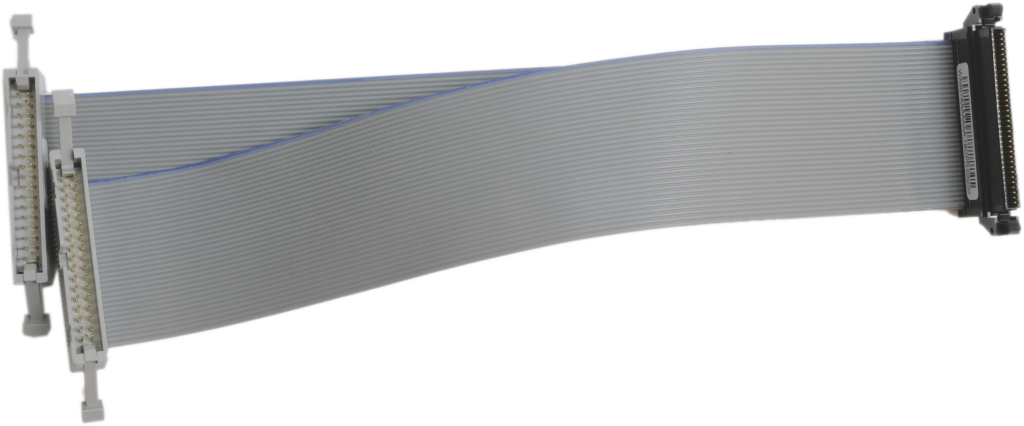

Cable assembly 68 pin P50 to two 2.54mm 34 pin male - 25 cm
Overview
The Mod. A967 allows to adapt one 3M – P50E – 068S (Robinson Nugent 68-pin type) high density flat connector (such as those used on V862, V767A, V767, V1190A/B, VX1190A/B, V1495 and others) into two 17+17-pin Header-type male connectors with locks through two 25 cm long flat cables.
Examples of use:
- with the Input/Gate of V862;
- with the ECL inputs of CAEN TDC boards;
- with the ECL ports of V1495, V2495, DT5495.
Compare
Compare with General Adapters.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WA967XAAAAAA | A967 - Cable assembly 68 pin P50 to two 2.54mm 34 pin male - 25 cm RoHS |
| WA967FXAAAAA | A967F - OBSOLETO (Obsolete) RoHS |
Related Products
VX1290N-2eSST
16 Channel Multihit TDC (25 ps)
VX1290A-2eSST
32 Channel Multihit TDC (25 ps)
VX1190B-2eSST
64 Channel Multihit TDC (100/200/800 ps)
VX1190A-2eSST
128 Channel Multihit TDC (100/200/800 ps)

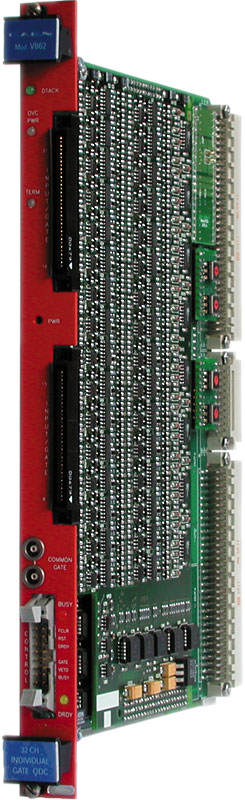

V862
32 Channel Multievent Individual Gate QDC
V2495
Programmable Logic Unit PLUS
V1290N-2eSST
16 Channel Multihit TDC (25 ps)
V1290A-2eSST
32 Channel Multihit TDC (25 ps)

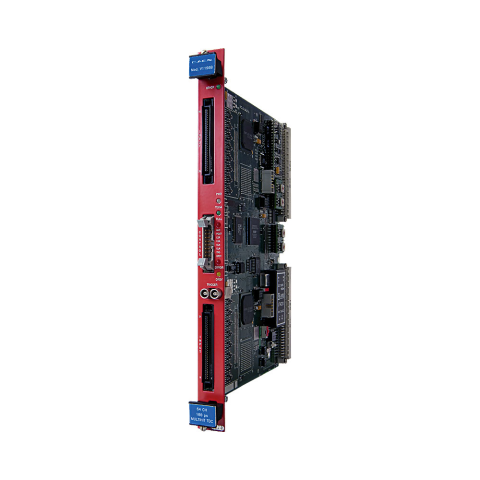

V1190B-2eSST
64 Channel Multihit TDC (100/200/800 ps)

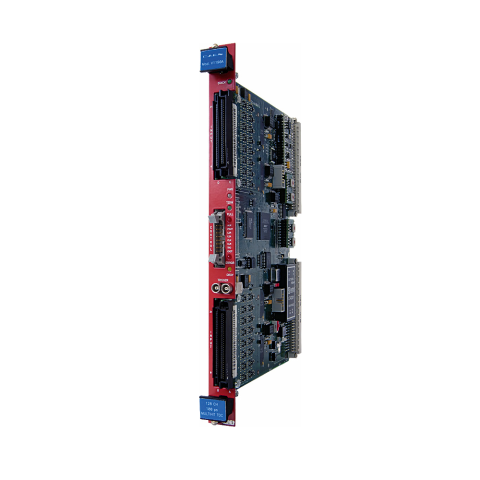

V1190A-2eSST
