A7038
32/48 Channel 1 kV/100 µA Common Floating Return Boards
Features
- 32/48 independently controllable High Voltage channels
- 1 kV / 100 µA output range
- Available with either positive or negative polarity
- DB37 Multipin (48 channels, single width) or SHV coaxial connectors (32 channels, triple width)
- Common floating return shared by all channels
- Low ripple
- Under/over-voltage alert, overcurrent and max. voltage protection
- Interlock logic for unit enable
- Software Tool for easy channel management
Overview
A7038 family is a 32 or 48 independent high voltage channels board available in different versions equipped with SHV or with DB37 connectors. The output voltage range is 0 ÷ 1 kV (20 mV set and 2 mV monitor resolution), with 100 µA maximum output current (2 nA set and 500 pA monitor resolution).
The channels share a Common Floating Return, which allows on-detector grounding, reducing the noise level. The board is available with either positive or negative output polarity.
|
DB37 connector
Single width (5 TE wide), 48 channels for Mod. A7038AN, A7038AP |
|
SHV connector

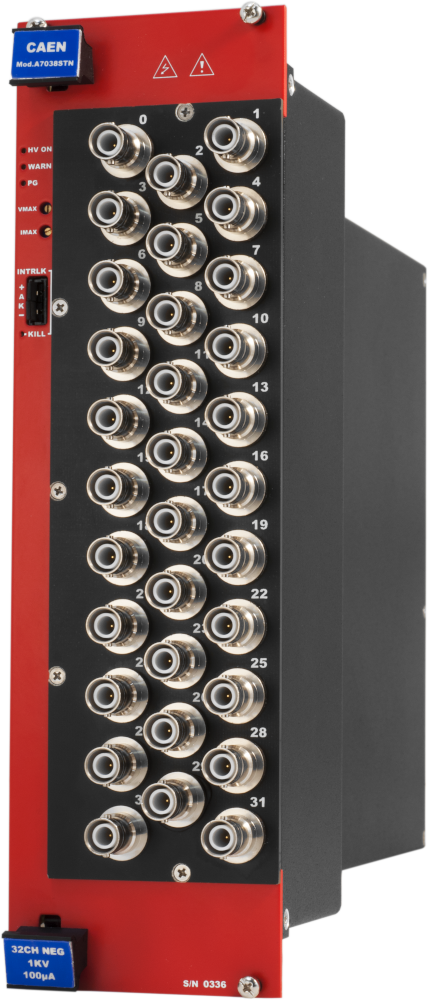

Triple width (15 TE wide), 32 channels for Mod.A7038STN, A7038STP |
Consult our connectors reference page for technical information.
The output voltage range is 0 ÷ 1 kV, with 2 mV monitor resolution. The maximum output current is 100 µA, with 500 pA monitor resolution.
Independently programmable for each channel:
| Output voltage: | 0 ÷ 1 kV | step: | 20 mV |
| Current limit (Iset): | 0 ÷ 100 µA | step: | 2 nA |
| V Ramp up/down: | 1 ÷ 500 V/sec | step: | 1 V/sec |
| TRIP parameter | 0 ÷ 999.9 s; 1000 s = Infinite | step: | 0.1 s |
Safety features allows the module to perform as a current generator and includes:
| Channels | can be enabled or disabled through the Global Interlock logic. |
| Overvoltage and Undervoltage warning | when the output voltage differs from the programmed value. |
| Overcurrent detection | when a channel attempts to exceed the programmed current limit (Iset), it signaled to be in “overcurrent” and enter in a TRIP status: the channel is switched off after a programmable TRIP time. The output current is permitted to exceed Iset value, the channel behaves like a current generator only if the IMAX current value is reached. |
| Hardware VMAX and IMAX | maximum output voltage and maximum current value can be fixed, via front panel potentiometer, at the same common value for all the board channels. IMAX and VMAX values can be read out via software. |
| Safety Board Interlock | this protection disables the HV generation when the HV outputs are not connected to their loads (only for Multipin Connector versions). |
Technical Specifications
- No. of Channels
32 / 48 (Common Floating Return)
- Output Voltage
0÷1 kV
- Polarity
Positive / Negative depending on purchased version
- Max. Output Current
100 µA
- Voltage Set Resolution
20 mV
- Voltage Monitor Resolution
2 mV
- Current Set Resolution
2 nA
- Current Monitor Resolution
500 pA
- VMAX hardware
0÷1 kV common for all the board channels
- VMAX hardware accuracy
± 1% of FSR
- VMAX software
0÷1 kV settable for each channel
- VMAX software resolution
1 V
- IMAX hardware
0÷100 µA common for all the board channels
- IMAX hardware accuracy
± 1% of FSR
- Ramp Up/Down
1÷500 Volt/sec, 1 Volt/sec step settable for each channel
- Voltage Ripple
10 – 1000Hz: <10 mVpp typical, 15mVpp max;
1 – 20000kHz: <3 mVpp typical, 5mVpp max
- Voltage Monitor vs. Output Voltage Accuracy
typical: ± 0.3% ± 50 mV; max: ± 0.3% ± 200 mV
- Voltage Set vs. Voltage Monitor Accuracy
typical: ± 0.3% ± 50 mV; max: ± 0.3% ± 200 mV
- Current Monitor vs. Output Current Accuracy
typical:± 1% ± 10 nA; max: ± 1% ± 100 nA
- Output Current vs. Current Set Accuracy
typical: ± 2% ± 100 nA; max: ± 2% ± 1 µA
- Power consumption
48 channels 73 W @ full power
32 channels: 60 W @ full power
