A1542

12/24/32 Channel 500 V/1 mA Common Floating Return Boards

Features

  • 12/24/32 independently controllable High Voltage channels
  • 500 V / 1 mA output range
  • Available with either positive, negative or mixed polarity (only with SHV connectors)
  • DB25 Multipin or SHV coaxial connectors
  • Common floating return shared by all channels
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

The power supplies of the A1542 family house 32, 24 or 12 independent high voltage channels. The A1542 is available in different versions equipped with SHV or with DB25 connector:

blank DB25 connector

Single width (5 TE wide), 24 channels for Mod. A1542LP, A1542LN

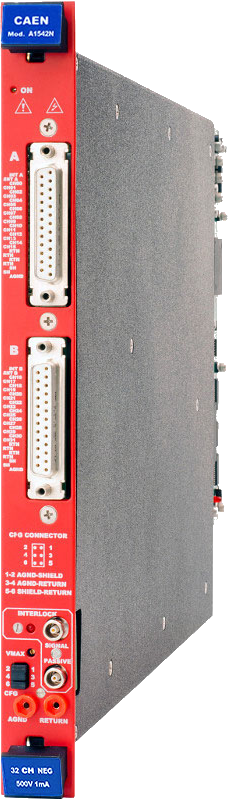

Double width (10 TE wide), 32 channels for Mod. A1542N, A1542P

blank SHV connector

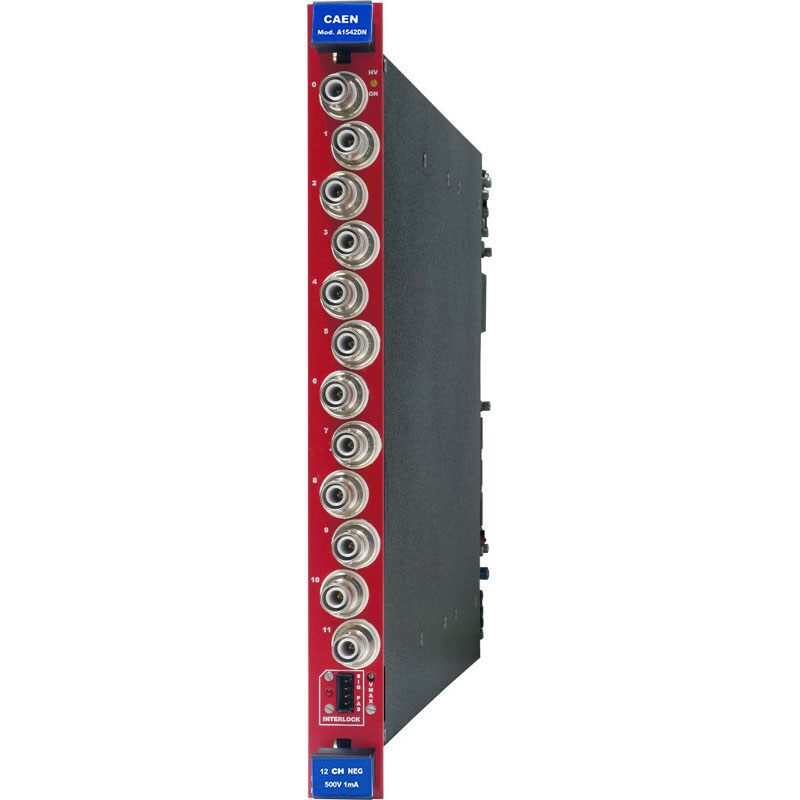

Single width (5 TE wide), 12 channels for Mod. A1542DN, A1542DP, A1542SM

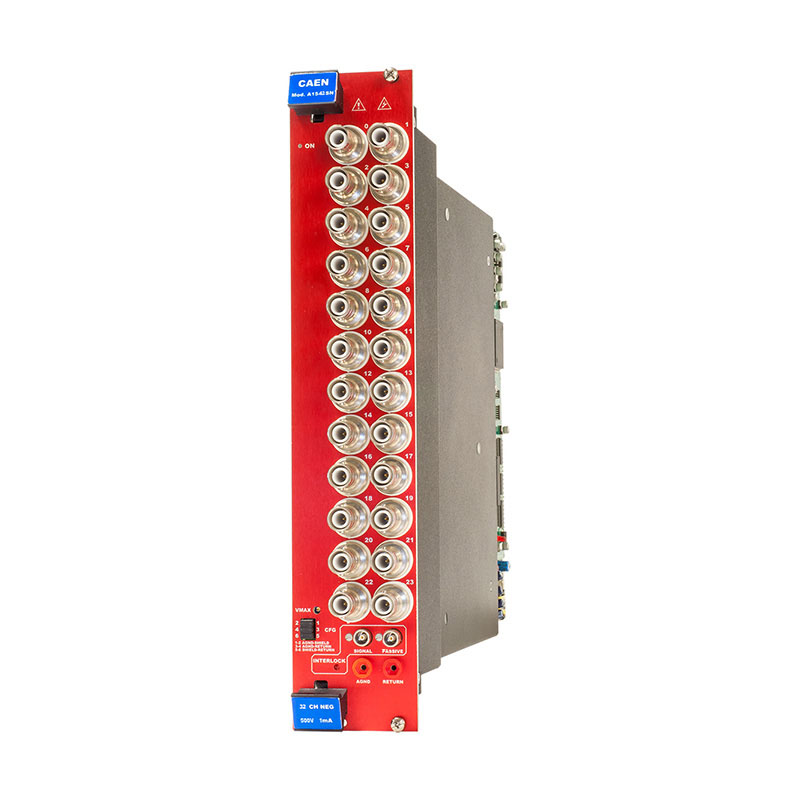

Double width (10 TE wide), 24 channels for Mod. A1542SP, A1542SN

Consult our connectors reference page for technical information.

The channels share a Common Floating Return, which allows on-detector grounding, reducing the noise level. The output voltage range is 0 ÷500 V, (10 mV step) with 1 mV monitor resolution. The maximum output current is 1 mA, (20 nA step) with 1 nA monitor resolution. The board is available with either positive or negative output polarity. Mixed version with 6/12 positive and 6/12 negative channels are also available (only with SHV connectors). The boards are provided with both current and voltage protections. The HV RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 100 V/s range (1 V/s step).

Safety features allows the module to perform as a current generator and includes:

Channels
can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX
maximum output voltage can be set via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software.

Technical Specifications

No. of Channels

12 / 24 / 32 (Common Floating Return)

Output Voltage

0÷500 V

Polarity

Positive / Negative / Mixed depending on purchased version
(Mixed boards have half of the channels with positive polarity and half with negative)

Max. Output Current

1 mA

Voltage Set Resolution

10 mV

Voltage Monitor Resolution

1 mV

Current Set Resolution

20 nA

Current Monitor Resolution

1 nA

VMAX hardware

0÷500 V common for all the board channels

VMAX hardware accuracy

1 V

VMAX software

0÷500 V settable for each channel

VMAX software resolution

1 V

Ramp Up/Down

1÷100 Volt/sec, 1 Volt/sec step

Voltage Ripple

< 5 mVpp (Max)
< 3 mVpp (Typ)

Vmon vs. Vout accuracy

±0.02 % ±50 mV

Vset Vs. Vout accuracy

±0.02 % ±50 mV

Imon vs. Iout accuracy

±2 % ±1 µA

Iset vs. Iout accuracy

±2 % ±1 µA

Maximum output power

0.5 W per channel

Power consumption @ full power
  • 32 channels (A1542): 32 W
  • 24 channels (A1542L, A1542S): 24 W
  • 12 channels (A1542D): 12 W

Compare

Compare with High Voltage Power Supply.

Loading...

Accessories

HV Cables
High Voltage Cable Assemblies

Ordering Options

Code Description
WA1542DXAAAA A1542DN - SYx527 H.V. channel -500 V 1 mA - SHV Conn. common floating (12 ch)   RoHS
WA1542DXMAAA A1542DM - SYx527 H.V. channel (6ch +500V 1mA, 6ch -500V 1mA) - SHV common floating   RoHS
WA1542DXPAAA A1542DP - SYx527 H.V. channel +500 V 1 mA - SHV Conn. common floating (12 ch)   RoHS
WA1542LXAAAA A1542LN - SYx527 H.V. channel -500 V 1 mA - Multipin Conn. common floating (24 ch)   RoHS
WA1542LXPAAA A1542LP - SYx527 H.V. channel +500 V 1 mA - Multipin Conn. common floating (24 ch)   RoHS
WA1542SXAAAA A1542SN - SYx527 H.V. channel -500 V 1 mA - SHV Conn. common floating (24 ch 10TE wide)   RoHS
WA1542SXMAAA A1542SM - SYx527 H.V. channel (12ch +500V 1mA, 12ch -500V 1mA) - SHV common floating (10TE wide)   RoHS
WA1542SXPAAA A1542SP - SYx527 H.V. channel +500 V 1 mA - SHV Conn. common floating (24 ch 10TE wide)   RoHS
WA1542XAAAAA A1542N - SYx527 H.V. channel -500 V 1 mA - Multipin Conn. common floating (32 ch)   RoHS
WA1542XPAAAA A1542P - SYx527 H.V. channel +500 V 1 mA - Multipin Conn. common floating (32 ch)   RoHS
