A1541

12/24/32 Channel 500 V/10 mA Common Floating Return Boards

Features

  • 12/24/32 independently controllable High Voltage channels
  • 500 V / 10 mA output range
  • Available with either positive, negative or mixed polarity (only with SHV connectors)
  • DB25 Multipin or SHV coaxial connectors
  • Common floating return shared by all channels
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

The power supplies of the A1541 family house 32, 24 or 12 independent high voltage channels. The A1541 is available in different versions equipped with SHV or with DB25 connector:

blank DB25 connector

Single width (5 TE wide), 24 channels for Mod.A1541LN, A1541LP

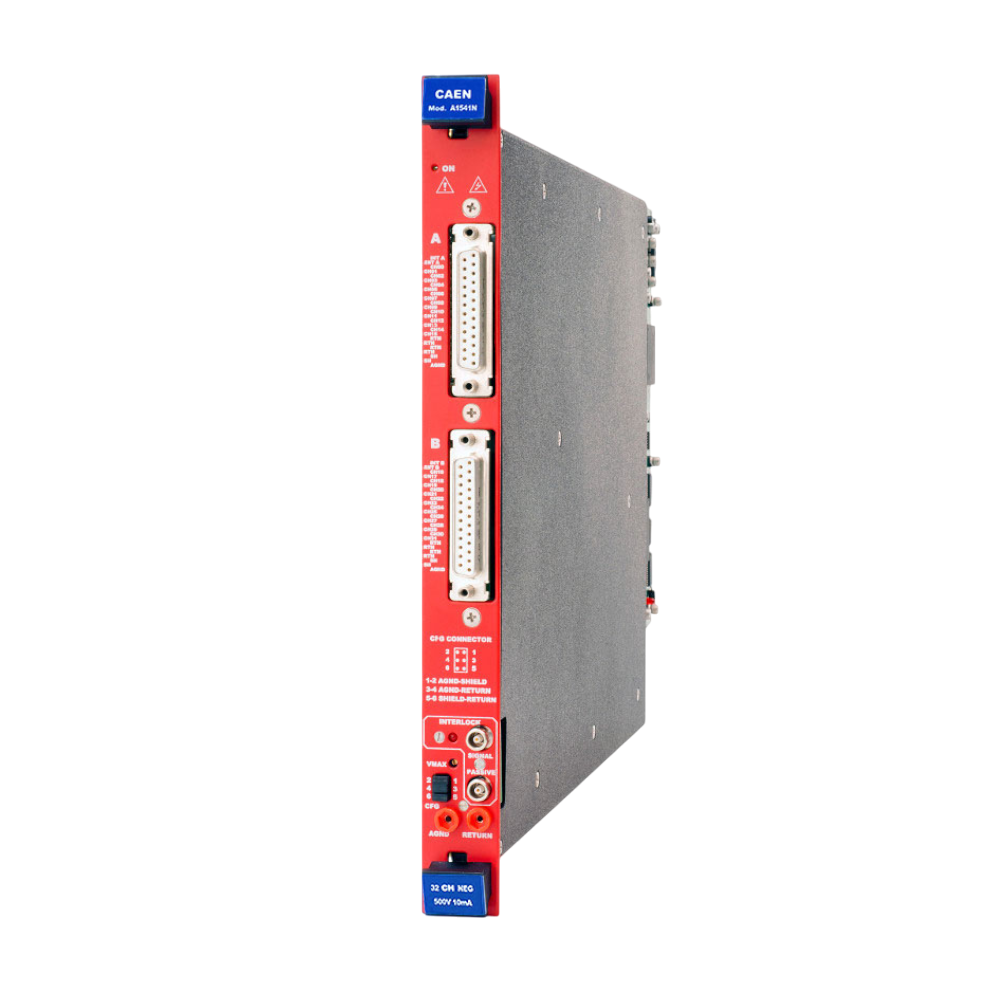

Double width (10 TE wide), 32 channels for Mod. A1541P, A1541N

blank SHV connector

Single width (5 TE wide), 12 channels for Mod. A1541DP, A1541DN, A1541SM

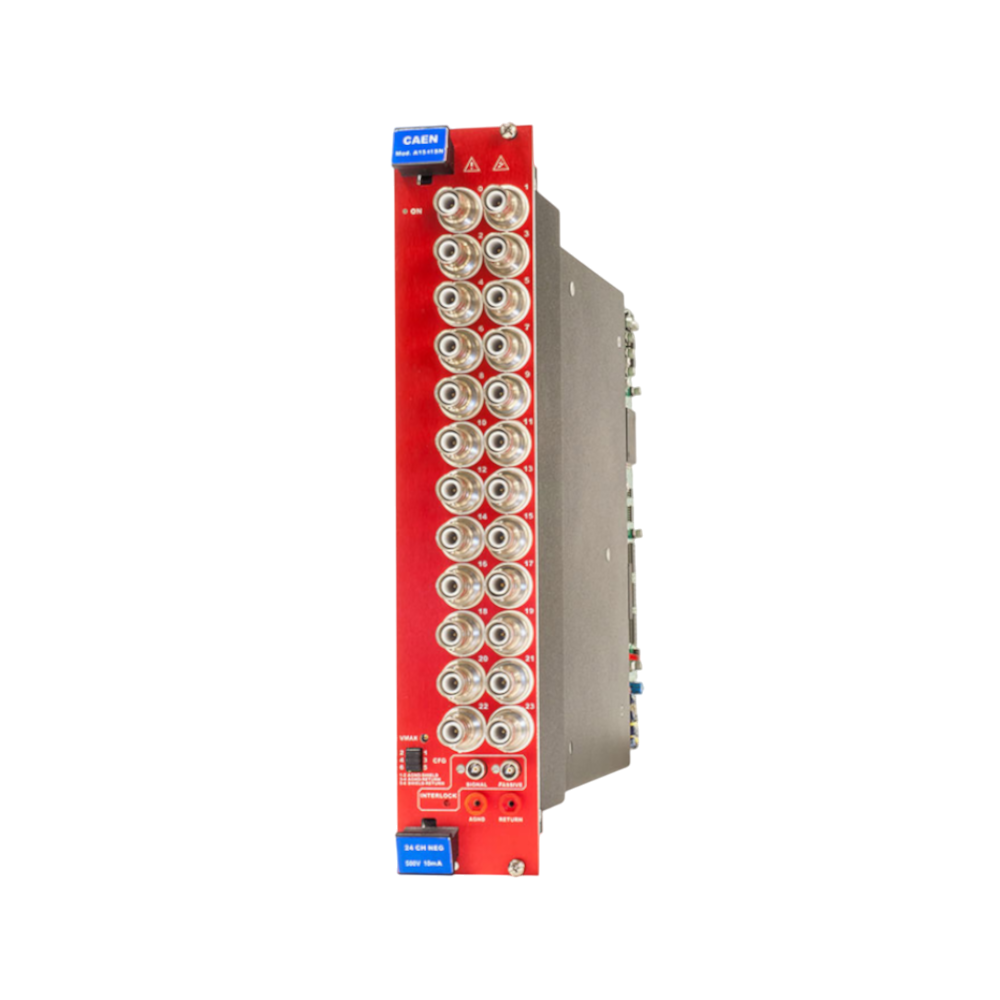

Double width (10 TE wide), 24 channels for Mod. A1541SP, A1541SN

Consult our connectors reference page for technical information.

The channels share a Common Floating Return, which allows on-detector grounding, reducing the noise level. The output voltage range is 0 ÷500 V, (10 mV step) with 1 mV monitor resolution. The maximum output current is 10 mA, (200 nA step) with 10 nA monitor resolution.

The boards are provided with both current and voltage protections, available with either positive or negative output polarity. Mixed version with 6/12 positive and 6/12 negative channels are also available (only with SHV connectors).

The HV RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 100 V/s range (1 V/s step).

Safety features allows the module to perform as a current generator and includes:

Channels
can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX
maximum output voltage can be set via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software.

Technical Specifications

No. of Channels

12 / 24 / 32 (Common Floating Return)

Output Voltage

0÷500 V

Polarity

Positive / Negative / Mixed depending on purchased version
(Mixed boards have half of the channels with positive polarity and half with negative)

Max. Output Current

10 mA

Voltage Set Resolution

10 mV

Voltage Monitor Resolution

1 mV

Current Set Resolution

200 nA

Current Monitor Resolution

10 nA

VMAX hardware

0÷500 V common for all the board channels

VMAX hardware accuracy

1 V

VMAX software

0÷500 V settable for each channel

VMAX software resolution

1 V

Ramp Up/Down

1÷100 Volt/sec, 1 Volt/sec step

Voltage Ripple

< 5 mVpp (Max)
< 3 mVpp (Typ)

Vmon vs. Vout accuracy

±0.02%±50mV

Vset Vs. Vout accuracy

±0.02%±50mV

Imon vs. Iout accuracy

±2% ±10 μA

Iset vs. Iout accuracy

±2% ±10 μA

Maximum output power

5 W per channel

Power consumption @ full power

32 channels (A1541): 320 W
24 channels (A1541L, A1541S): 240 W
12 channels (A1541D): 120 W

Compare

Compare with High Voltage Power Supply.

Loading...

Accessories

HV Cables
High Voltage Cable Assemblies

Ordering Options

Code Description
WA1541DXAAAA A1541DN - SYx527 H.V. channel -500 V 10 mA - SHV Conn. common floating (12 ch)   RoHS
WA1541DXMAAA A1541DM - SYx527 H.V. channel (6ch +500V 10mA, 6ch -500V 10mA) - SHV Conn. common floating   RoHS
WA1541DXPAAA A1541DP - SYx527 H.V. channel +500 V 10 mA - SHV Conn. common floating (12 ch)   RoHS
WA1541LXAAAA A1541LN - SYx527 H.V. channel -500 V 10 mA - Multipin Conn. common floating (24 ch)   RoHS
WA1541LXPAAA A1541LP - SYx527 H.V. channel +500 V 10 mA - Multipin Conn. common floating (24 ch)   RoHS
WA1541SXAAAA A1541SN - SYx527 H.V. channel -500 V 10 mA - SHV Conn. common floating (24 ch 10TE wide)   RoHS
WA1541SXMAAA A1541SM - SYx527 H.V. channel (12ch +500V 10mA, 12ch -500V 10mA) - SHV Conn. common floating (10TE)   RoHS
WA1541SXPAAA A1541SP - SYx527 H.V. channel +500 V 10 mA - SHV Conn. common floating (24 ch 10TE wide)   RoHS
WA1541XAAAAA A1541N - SYx527 H.V. channel -500 V 10 mA - Multipin Conn. common floating (32 ch)   RoHS
WA1541XPAAAA A1541P - SYx527 H.V. channel +500 V 10 mA - Multipin Conn. common floating (32 ch)   RoHS
