A1526

6 Ch 15 kV Common Floating Return HV Board

Features

  • 6 independently controllable High Voltage channels
  • 15 kV output; 1/0.1 mA dual current range
  • Available with either positive or negative polarity
  • CPE HV coaxial connectors
  • Common floating return shared by all channels
  • Low ripple
  • Under/Overvoltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

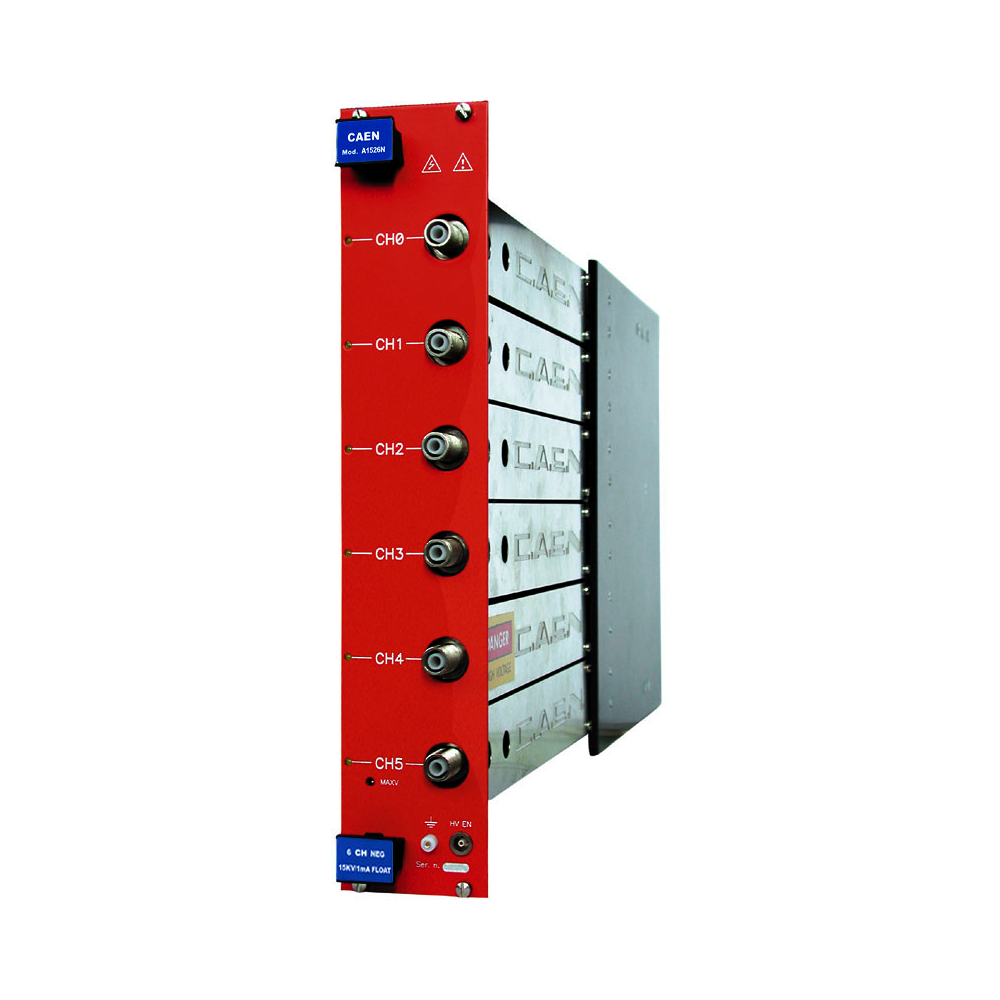

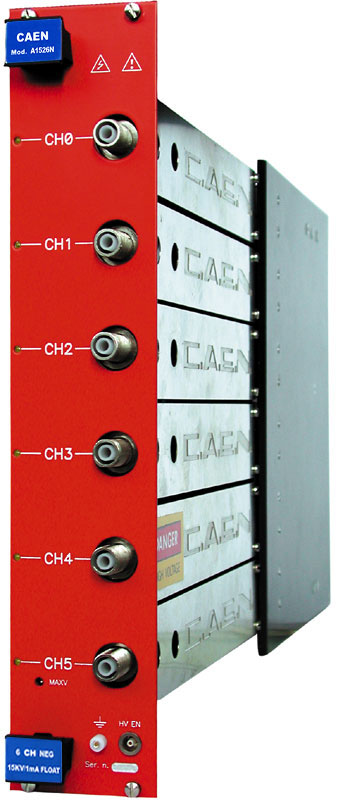

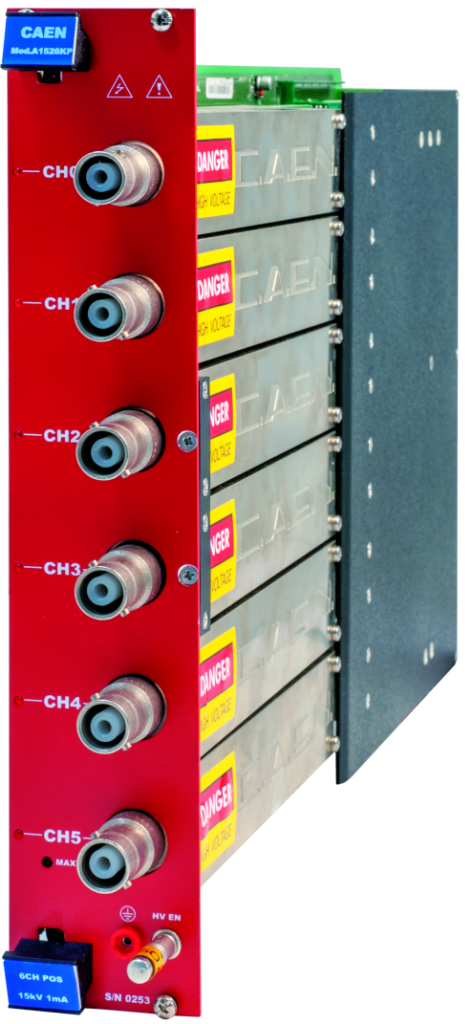

The CAEN Mod.A1526 is a double width board (10 TE wide) specifically designed for the single gap RPC detector. Available for positive and negative polarity, it features 6 independently controllable HV channel equipped with CPE or Kings connectors. The channels share a Common Floating Return, which allows on-detector grounding reducing the noise level.

blank CPE HV coaxial connector

Double width (10 TE wide), 6 channel for Mod.A1526

Consult our connectors reference page for technical information.

The output voltage can be programmed and monitored in the 0 ÷ 15 kV range with 1 V resolution.

The maximum current full scale can be fixed via internal jumpers either at 100 µA or at 1 mA.

The boards are provided with both current and voltage protections. If overcurrent occurs, the relevant channel can be programmed either to turn off after a programmable trip time or to keep on providing the maximum allowed current. This last particular feature allows the module to work as current generator. The maximum output voltage can be fixed, through a potentiometer located on the front panel, to a value which is common to all channels and can be read out via software.

A global enable/disable connector allows to disable the channels when it is not terminated on 50 Ω. The HV Ramp-Up and Ramp-Down rates may be selected independently for each channel in the 1 ÷ 500 V/s range (1 V/s step).

Safety features allows the module to perform as a current generator and includes:

Channels
can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX
maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software.

The board features the CPE HV output connectors and the relevant coaxial cable connectors (Mod. A997) are also available.

Technical Specifications

No. of Channels

6 (Common Floating Return)

Output Voltage

0÷15 kV

Polarity

Positive / Negative depending on purchased version

Max. Output Current

low range 100 µA; high range 1mA

Voltage Set Resolution

1 V

Voltage Monitor Resolution

1 V

Current Set Resolution

10 nA /100 nA depending on current range

Current Monitor Resolution

10 nA /100 nA depending on current range

VMAX hardware

0÷15 kV common for all the board channels

VMAX hardware accuracy

± 2% of FSR

VMAX software

0÷15 kV settable for each channel

VMAX software resolution

1 V

Ramp Up/Down

1÷500 Volt/sec, 1 Volt/sec step

Voltage Ripple

< 30 mVpp

Voltage Monitor vs. Output Voltage Accuracy

± 0.3% ± 2 V

Voltage Set vs. Voltage Monitor Accuracy

± 0.3% ± 1 V

Current Monitor vs. Output Current Accuracy

± 2% ± 1 µA (1 mA range) ± 2% ± 0.1 µA (100 uA range)

Current Set vs. Current Monitor Accuracy

± 2% ± 0.1 µA (1 mA range) ± 2% ± 0.01 µA (100 uA range)

Compare

Compare with High Voltage Power Supply.

Loading...

Accessories

A997
HV coaxial cable connector for A1526
HV Cables
High Voltage Cable Assemblies

Ordering Options

Code Description
WA1526XAAAAA A1526P - SYx527 H.V. channels +15 KV 1/0.1 mA - CPE Conn. common floating (6 ch 10TE wide)   RoHS
WA1526XNAAAA A1526N - SYx527 H.V. channels -15 KV 1/0.1 mA - CPE Conn. common floating (6 ch 10TE wide)   RoHS
WA1526SXAAAA A1526SP - SYx527 H.V. channels +15 KV 0.1 mA - CPE Conn. common floating (6 ch 10TE wide)  (Obsolete) RoHS
WA1526SXNAAA A1526SN - SYx527 H.V. channels -15 KV 0.1 mA - CPE Conn. common floating (6 ch 10TE wide)  (Obsolete) RoHS
