Improved mechanics, modularity and compatibility at your service.

Features SYx527

  • Modular design makes upgrade and maintenance simple and straightforward
  • The modular CPU is available in three versions (BASIC, ADVANCED, FULL), allowing the user to customize the interface to experimental specifications
  • Control options include REMOTE (Gigabit Ethernet – SNMP compatible – or optional Wi-Fi) and LOCAL (optional LCD Color Touchscreen)
  • Backward compatible with all boards (power supplies, distributors, branch controllers) developed for the previous SY1527/SY2527 Mainframe Systems
  • Available in a PREMIUM edition which includes features such as LCD Touchscreen, Wi-Fi Connectivity and Advanced Software suite
  • Includes flexible, powerful, GUI-based Control Software (GECO2020)
  • Advanced Trip Handling
    Hardware Current and Voltage Protection
  • Reset and Interlock Control
  • Modular Power Supply supports easy expansion and upgrade
  • Simple, User-Friendly process to upgrade firmware
  • Responsive and accurate set & monitoring of channel parameters
  • Multi-Mainframe System control capability via GECO2020 control software
  • Intranet supported access for enhanced security
  • Connectivity via Gigabit Ethernet or Wi-Fi
  • Integrated EPICS IOC
  • OPC Server for simple integration into Detector Control System (DCS)
  • Java-based Web-browser control option for uncomplicated connectivity and control

Features SYx527LC

  • SY4527LC: Houses up to 10 boards and includes a 600W power supply
  • SY5527LC: Houses up to 4 boards and includes a 400W power supply
  • Supports Ad-hoc boards for peripheral systems
  • Fully compatible with SYx527 HV/LV boards
  • ~20cm shorter (depth) than the standard SYx527 versions

Overview

SYx527 and SYx527LC

Reliability, Modularity, Compatibility, Connectivity, and User-Friendly: These are the concepts upon which the CAEN SYx527 and SYx527LC Mainframe Systems were developed. Our mainframe systems are specifically designed to provide ideal V/I output and monitoring for any detector technology employed in Modern Physics. Whether you are using SiPM or RCP, Wire Chambers or PMT, HPGe or GEM, our mainframes systems have you covered.

The flexible and modular nature of the SYx527 and SY527LC has resulted in a Mainframe System which can be customized for a very wide range of experimental situations, from the smallest test-bench to the largest international experiment.

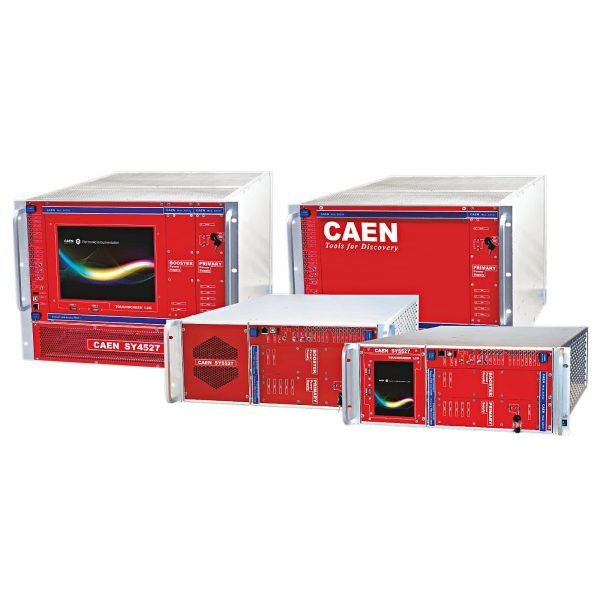

The line consists of four different mainframe versions:

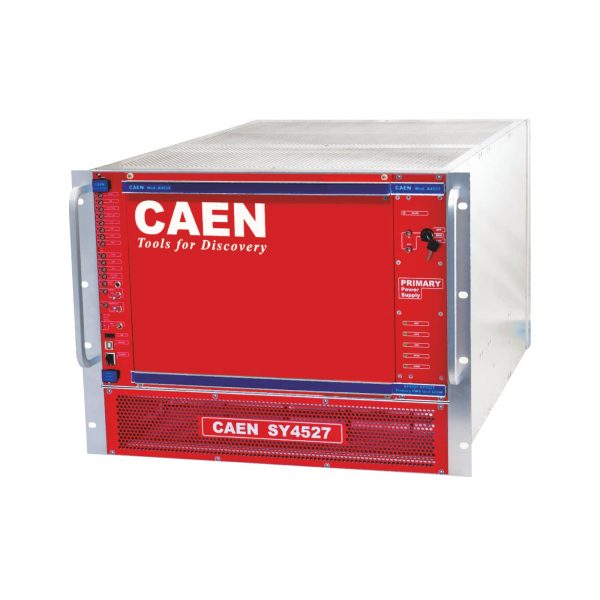

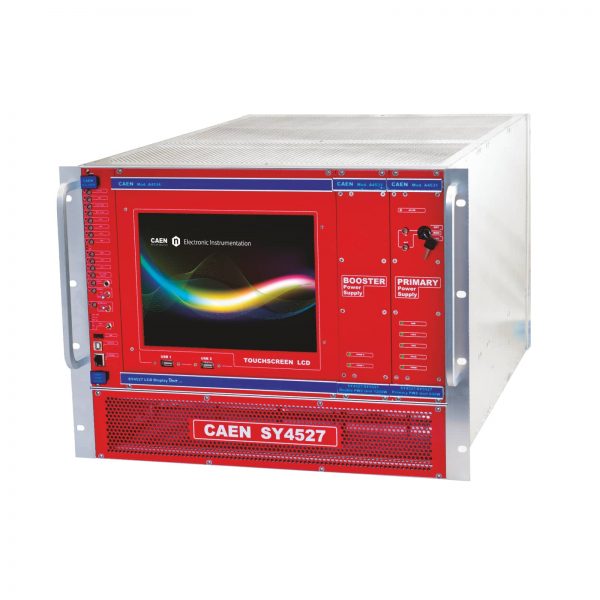

  • The SY4527 is a 19” wide/8U high mainframe which can house up to 16 HV/LV boards and provide up to 4200W power output.

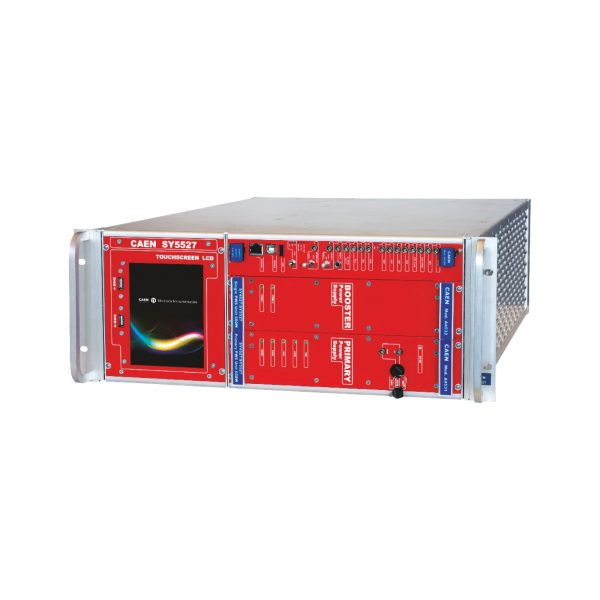

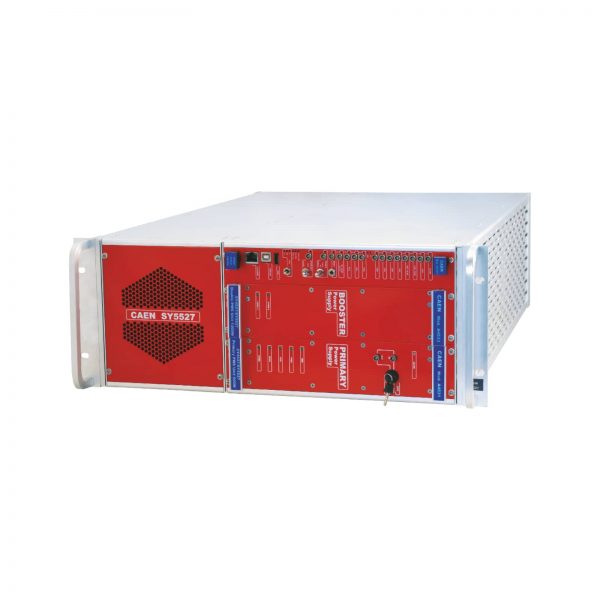

  • The SY5527 is a 19” wide/4U high mainframe which can house up to 6 boards and provide up to 1800W power output.
  • The SY4527LC is a 19” wide/8U high mainframe which can house up to 10 boards and provide up to 600W power output. (~20 cm shorter than the standard version).
  • The SY5527LC is a 19” wide/4U high mainframe which can house up to 4 boards and provide up to 400W power output. (~20 cm shorter than the standard version).

Software

A complete set of Software Tools is available (free download) to control CAEN Universal Multichannel Power Supply Systems, from low level libraries to graphical application software:

CAEN, in collaboration with CERN, has developed an OPC server which allows control of its power supply systems by any OPC compliant client application.
HiVoCS HiVoCS is a Web Interface available on any SY4527-SY5527 CPU. This Interface can be accessed directly via browser without installing any additional software.
EPICS IOC Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.
CAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
GECO2020 CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.

Models

Model Image Max power (W) Power requirements Height Depth Max # boards Local control Actions

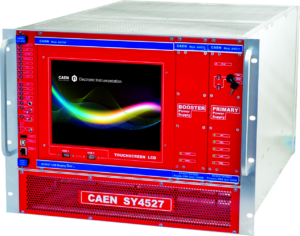

SY4527 SY4527 4200 @ 220 Vac 1990 @ 110 Vac 100 ÷ 240 Vac / 50 ÷ 60 Hz Max Power: 5500 W @ 220 Vac 2750 W @ 110 Vac 8U 75 cm (with handles) 16 10.4” or 5.7” touchscreen color LCD (opt.) QUOTE

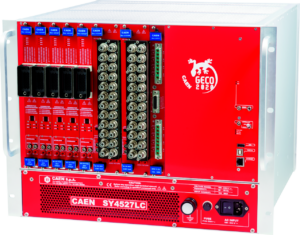

SY4527LC SY4527LC 600 @ 220 Vac550 @ 110 Vac 100 ÷ 240 Vac / 50 ÷ 60 Hz Max Power: 1050 W @ 220 Vac 1020 W @ 110 Vac 8U 56 cm (with handles) 10 No QUOTE

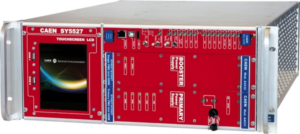

SY5527 SY5527 1800 @ 220 Vac 1850 @ 110 Vac 100 ÷ 240 Vac / 50 ÷ 60 Hz Max Power: 2500 W @ 220 Vac 2340 W @ 110 Vac 4U 75 cm (with handles) 6 5.7” touchscreen color LCD (opt.) QUOTE

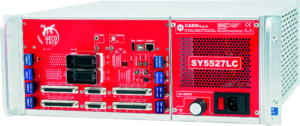

SY5527LC SY5527LC 400 @ 220 Vac 350 @ 110 Vac 100 ÷ 240 Vac / 50 ÷ 60 Hz Max Power: 700 W @ 220 Vac 660 W @ 110 Vac 4U 49 cm (with handles) 4 No QUOTE
