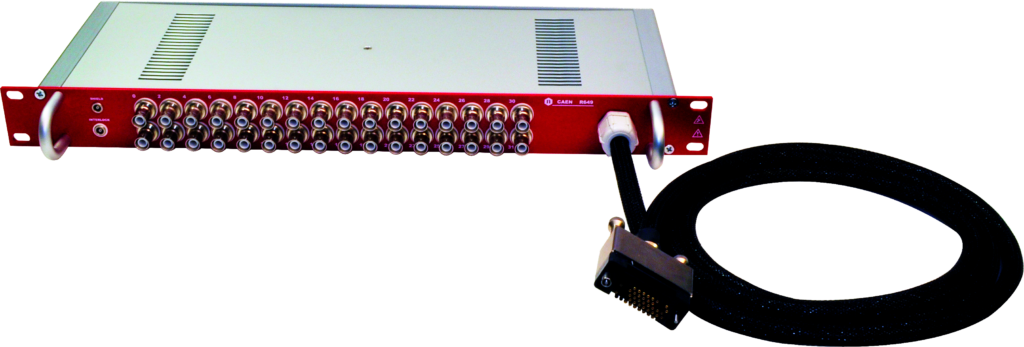

R647
24 Channel Multipin Radiall to SHV connector Adapter (Max: 8 kV - 19'' Rack)
Features
- 19” rack, Aluminium case
- 490 x 160 x 44 mm3
- weight ~1.4 kg
- 52-pin Radiall input connector
- Radiall SHV output connectors (HV coaxial)
- Up to 8 kV
Overview
The R647 Multipin to SHV Rack Mountable Adapter features:
- Fits one Radiall 691803004-type Multipin connector into 24 Radiall R317580-type SHV connectors
- INTERLOCK and SHIELD connections are provided through LEMO connectors
- Maximum input voltage: 8 kV
- Unit housed in a 19″ rack module
- Boards Supported (24-16 channel multipin versions):
- A1535 12/24 Channel 3.5 kV/3 mA (8 W) Common Floating Return Boards
- A1550 12/24/32 Channel 5 kV/1 mA Common Floating Return Boards
- A1560H 8/16 Channel 6 kV/20 µA Common Floating Return Boards
- A1580H 8/16 Channel 8 kV/20 µA Common Floating Return Boards
- A1590 16 Channel 9 kV / 50 µA Common Floating Return Board
- A1536 12/24/32 Channel 3 kV/1 mA Common Floating Return Boards
- A1536H 12/24/32 Channel 3 kV, 1 mA/100 µA Common Floating Return Dual Range Boards
- A7030 12/24/36/48 Channel 3 kV/1 mA (1.5W) Common Floating Return Boards
- AG7030 12/24/36/48 Channel 3 kV/1 mA (1.5W) Common Ground Boards
- AG535 12/24 Channel 3.5 kV/3 mA (6 W) Common Ground Boards
- AG536 32/24/12 Channel 3 kV/1 mA Common Ground Boards
- AG550 12/24/32 Channel 5 kV/1 mA Common Ground Boards
- AG590 16 Channel 9 kV / 50 µA High Voltage Boards
Compare
Compare with High Voltage Adapters.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WR647XAAAAAA | R647 - Multipin to SHV Adapter for 24 channel HV Boards (Max: 8kV - 19'' Rack) RoHS |
