12/24 independently controllable High Voltage channels
-
5 kV / 1 mA output range
-
Available with either positive or negative polarity
-
Radiall 52 pin or SHV coaxial connectors
-
Low ripple
-
Under/over-voltage alert, overcurrent and max. voltage protection
-
Interlock logic for unit enable
-
Software Tool for easy channel management

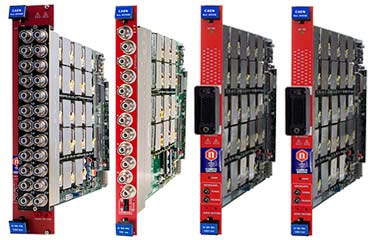

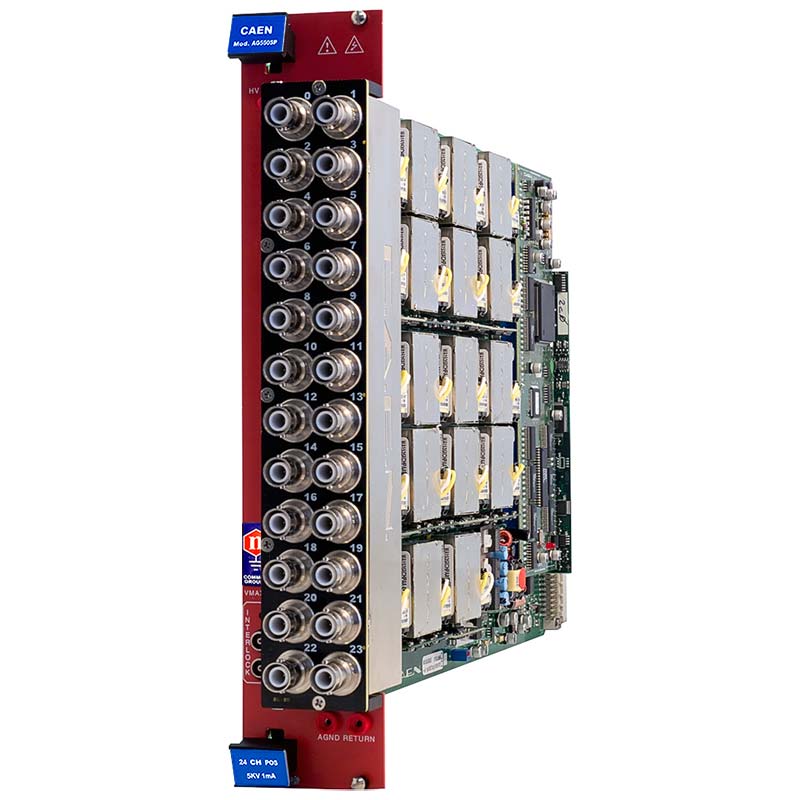

The CAEN Mod.AG550 houses 12 or 24 high voltage channels and is available in different versions equipped with SHV or with Radiall Multipin connector.
|

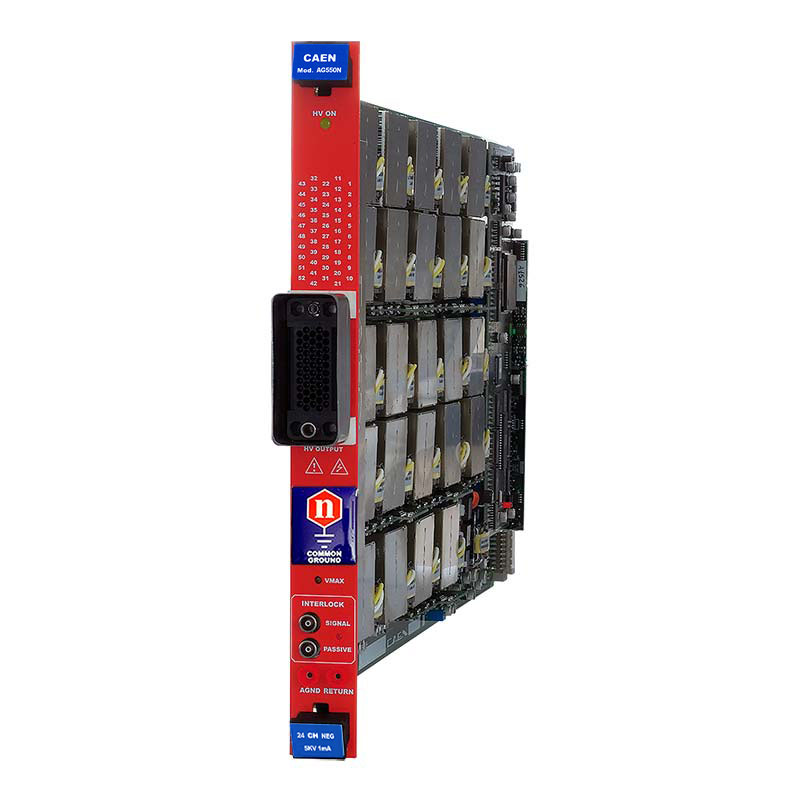

Radiall multipin connector Single width (5 TE wide), 24 channel for Mod. AG550 |

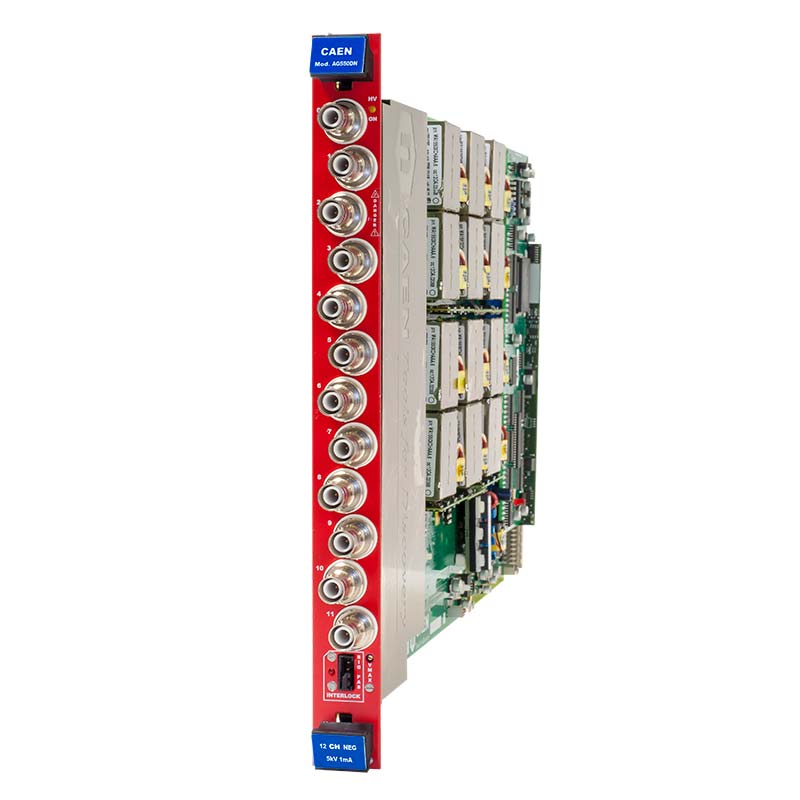

SHV connector Single width (5 TE wide), 12 channels for Mod. AG550DP, AG550DN |
Consult our connectors reference page for technical information.
The channels share a common ground and the output voltage range is 0 ÷ 5 kV, with 500 mV set and monitor resolution. The maximum output current is 1 mA, with 100 nA current set and monitor resolution. The board is available with either positive or negative output polarity. The boards are provided with both current and voltage protections. If overcurrent occurs, the relevant channel can be programmed either to turn off after a programmable trip time or to keep on providing the maximum allowed current: this particular feature allows the modules to work as current generator.
The maximum output voltage can be set through a potentiometer to a value which is common to all channels and can be read out via software. Channel can be enabled or disabled through the Interlock logic. The HV RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 500 V/s range (1 V/s step).
Safety features allows the module to perform as a current generator and includes:
|
Channels |
can be enabled or disabled through the Global Interlock logic. |
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value. |
|
Overcurrent detection |
when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
|
Hardware VMAX |
maximum output voltage can be set via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software. |
|
Safety Board Interlock |
this protection disables the HV generation when the HV outputs are not connected to their loads (only for Multipin Connector versions). |
For boards with Radiall 52 pin connector are available the following accessories:
Accessories
A995
A996
A647
R647
HV CABLES
R649B
You also may be interested in…
SY4527
SY4527LC
SY5527
SY5527LC
Request a Quote
Technical Specifications
|
No. of Channels |
12 / 24 (Common Ground) |
|
Polarity |
Positive / Negative |
|
Output Voltage |
0÷5 kV |
|
Max. Output Current |
1 mA |
|
Voltage Set Resolution |
500 mV |
|
Voltage Monitor Resolution |
0.5V |
|
Current Set Resolution |
100 nA |
|
Current Monitor Resolution |
100 nA |
|
VMAX hardware |
0÷5 kV common for all the board channels |
|
VMAX hardware accuracy |
± 2.5% of FSR |
|
VMAX software |
0÷5 kV settable for each channel |
|
VMAX software resolution |
1 V |
|
Ramp Up/Down |
1÷500 Volt/sec, 1 Volt/sec step |
|
Voltage Ripple |
< 25 mV typical; max 40mV |
|
Voltage Monitor vs. Output Voltage Accuracy |
typical: ± 0.3% ± 0.5 V |
|
Voltage Set vs. Voltage Monitor Accuracy |
|
|
Current Monitor vs. Output Current Accuracy |
|
|
Current Set vs. Current Monitor Accuracy |
|
|
Maximum output power |
5 W per channel (software limit) |
|
Power consumption |
200 W @ full power (24 channels) |
