N1470ET

4 Ch Reversible 8 kV/3 mA (8 W) NIM HV Power Supply Module (USB/Ethernet/T.screen)

Request a Quote Add to WishlistView Wishlist

Home Power SupplyVME - NIM Power SuppliesNIM / Up to 15 kV Reversible Polarity N1470ET

Photo of N1470ET
Photo of N1470ET
Photo of N1470ET
DatasheetDownloadCompareTech. Spec.

Highlights

  • 4 independent channels in 2U NIM module

  • 8 kV / 3mA output range

  • Max output power:

    • 9 W (<3 kV output)

    • 8 W (>3 kV output)

  • Channels with individually selectable positive or negative polarity

  • SHV coaxial output connectors

  • Common floating return

  • Low Ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for board enable and Individual channel kill

  • 50 nA Current monitor resolution (with x10 Imon-Zoom: 5 nA)

  • 2.8″ color touch screen display

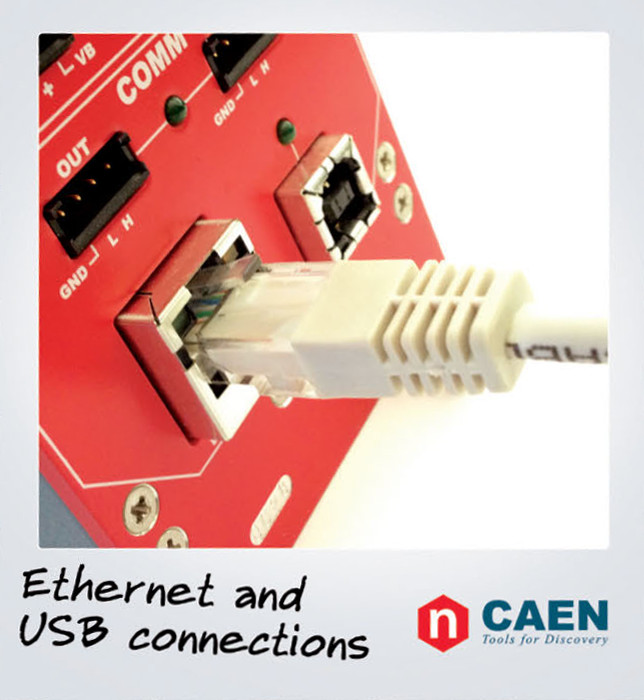

  • Local and Remote control (USB2.0/Ethernet)

  • Daisy-chain capability

  • Software Tools for easy channel management

Overview

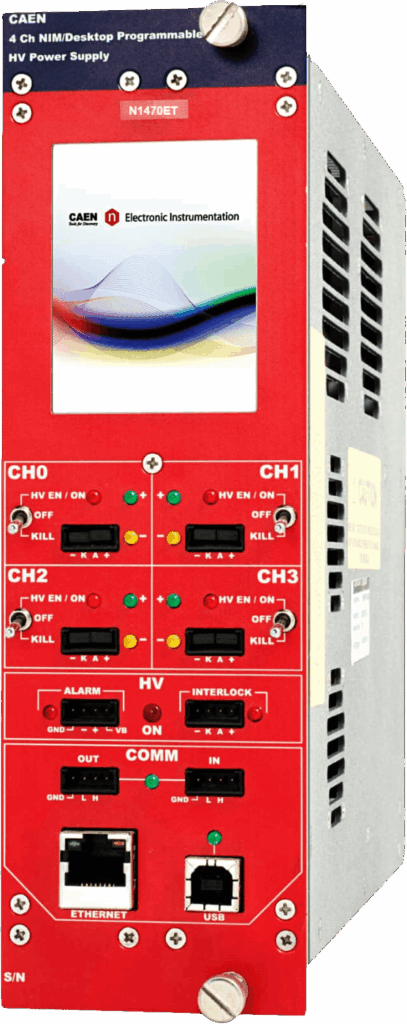

The CAEN Mod. N1470ET provides 4 independent high voltage channels in a double-width NIM module. Each channel delivers up to ±8 kV and 3 mA, with a maximum output power of 9 W, reduced to 8 W when the output voltage exceeds ±3 kV. The output polarity of each channel can be selected independently.

The channels share a common floating return, insulated from the crate ground. The Mod. N1470ET is housed in a double-width NIM module and delivers its 4 HV outputs through SHV connectors; for further technical information, consult our connectors reference page. Ramp-up and ramp-down rates can be set independently for each channel from 1 to 500 V/s in 1 V/s steps. The module offers 50 nA Iset/Imon resolution, and the x10 Imon Zoom increases the current monitor resolution to 5 nA.

The module can be controlled locally, through a 2.8″ color touchscreen LCD display with a completely redesigned user interface, or remotely via USB 2.0 or Ethernet. It can also be controlled via RS485 and via TCP/IP through the Smart Fan Unit of the CAEN NIM8301 crate. A complete set of software tools is available to control the unit, and users can freely download low-level libraries, the LabVIEW driver and graphical application software.

The module also includes dedicated safety features that allow it to operate as a current generator. An overvoltage and undervoltage warning is issued when the output voltage differs from the programmed value by more than 2% of the set value (minimum 10 V). When a channel attempts to exceed its programmed current limit, it is flagged as being in “overcurrent” and enters TRIP status: the output voltage is adjusted to keep the current below the programmed limit for a programmable TRIP time, after which the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves as a current generator. A programmable VMAX protection limit is also available. Finally, a common safety board interlock logic enables or disables the channels, while individual input signals provide a kill function for each channel.

The A1480 DC Input Power Equalizer is available as an option.

Supported Software

  • CAEN HV Wrapper Library — Library for CAEN Power Supply Control
  • GECO2020 — GEneral COntrol Software for CAEN HV Power Supplies
  • EPICS IOC (PSM Power Supply Modules) — EPICS IOC for Power Supply Modules
  • LabVIEW Driver (PSM – Power Supply Modules) — LabVIEW Instrument Driver for Power Supply Modules
  • SW1470 — Control Software for NIM Power Supply Modules

Accessories

A1480

A1480

DC Power Input Equalizer for N14XX Family
HV CABLES

HV CABLES

High Voltage Cable Assemblies

Ordering Options

Code Description
WN1470ETXAAA

N1470ET – 4 Channel 8kV/3mA (9W) NIM HV Power Supply Module with Ethernet & 2.8″ Touchscreen

RoHS

You also may be interested in…

NIM8302

NIM8302

5U 10 slot 150 W Compact Crate
NIM8305

NIM8305

2 Slot Switching 450 W Mini Crate
NV8020A

NV8020A

7U CRATE VME/NIM 8 slot VME64 365W, 5 slot NIM 150W
NIM8303

NIM8303

5U 12 slot 300/600 W Crate
NIM8306

NIM8306

2 Slot Switching 750 W Mini Crate
NIM8304

NIM8304

7U 12 slot smart fan unit Switching 2000 W Crate
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    No. of Channels
    Max Output V
    Max Output I
    Vset/Vmon Resolution
    Iset/Imon Resolution
    Max. Ramp Up/Down Rate
    Ripple Typ (>1kHz)
    Connectors
    Max Power per Channel
    Features
    N1471ET

    N1471ET

    4

    ±5500 V

    300 μA

    0.1 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    500 V/s

    < 3 mVpp

    SHV

    1.65 W

    Common Floating Return

    N1419

    N1419

    4 /2 / 1

    ±500 V

    200 μA

    0.01 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    100 V/s

    < 3 mVpp

    SHV

    0.1 W

    Common Floating Return

    N1471

    N1471

    4 /2 / 1

    ±5500 V

    300 μA

    0.1 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    500 V/s

    < 3 mVpp

    SHV

    1.65 W

    Common Floating Return

    N1470

    N1470

    4 /2 / 1

    ±8000 V

    3 mA

    0.2 V

    Iset: 50 nA <br>Imon: 50 / 5 nA

    500 V/s

    < 5-10 mVpp

    SHV

    9 W (< 3 kV) <br>8 W (> 3 kV)

    Common Floating Return<br>N1470AL: local control only<br>N1470AR: remote control only

    N1471HET

    N1471HET

    4

    ±5500 V

    20 μA

    0.1 V

    Iset: 1 nA <br>Imon: 1 / 0.05 nA

    500 V/s

    < 2 mVpp

    SHV

    110 mW

    Common Floating Return

    NDT1471

    NDT1471

    4

    ±5500 V

    300 μA

    0.1 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    500 V/s

    < 3 mVpp

    SHV

    1.65 W

    Common Floating Return <br>NIM/Desktop

    N1570

    N1570

    2

    ±15000 V

    1 mA

    0.5 V

    Iset: 20 nA <br>Imon: 20 / 2 nA

    500 V/s

    < 4-20 mVpp

    HV LEMO

    10 W

    Common Floating Return

    NDT1419

    NDT1419

    4

    ±500 V

    200 μA

    0.01 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    100 V/s

    < 3 mVpp

    SHV

    0.1 W

    Common Floating Return <br>NIM/Desktop

    NDT1471H

    NDT1471H

    4

    ±5500 V

    20 μA

    0.1 V

    Iset: 1 nA <br>Imon: 1 / 0.05 nA

    500 V/s

    < 2 mVpp

    SHV

    110 mW

    Common Floating Return <br>NIM/Desktop

    N1471H

    N1471H

    4 /2 / 1

    ±5500 V

    20 μA

    0.1 V

    Iset: 1 nA <br>Imon: 1 / 0.05 nA

    500 V/s

    < 2 mVpp

    SHV

    110 mW

    Common Floating Return

    N1470ET

    N1470ET

    4

    ±8000 V

    3 mA

    0.2 V

    Iset: 50 nA <br>Imon: 50 / 5 nA

    500 V/s

    < 5-10 mVpp

    SHV

    9 W (< 3 kV) <br>8 W (> 3 kV)

    Common Floating Return

    NDT1470

    NDT1470

    4

    ±8000 V

    3 mA

    0.2 V

    Iset: 50 nA <br>Imon: 50 / 5 nA

    500 V/s

    < 5-10 mVpp

    SHV

    9 W (< 3 kV) <br>8 W (> 3 kV)

    Common Floating Return NIM/Desktop

    N1419ET

    N1419ET

    4

    ±500 V

    200 μA

    0.01 V

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    100 V/s

    < 3 mVpp

    SHV

    0.1 W

    Common Floating Return

    N1410

    N1410

    4

    ±1000 V

    200 μA

    20 mV

    Iset: 5 nA <br>Imon: 5 / 0.5 nA

    100 V/s

    < 3 mVpp

    SHV

    200 mW

    Common Floating Return

    Technical Specifications

    Close

    Packaging

    Double width NIM mechanics. Weight: ~2.6 kg

    Output channels

    4 channels, Common Floating Return, SHV connector Positive or Negative Polarity (requires internal setting)

    Output ranges

    8 kV / 3 mA (IMonRange = High)
    8 kV / 300 µA (IMonRange = Low) – Imon Zoom Active

    Max. Ch. Output Power

    9 W ( Vset < 3 kV)
    8 W ( Vset > 3 kV)

    Vset Resolution

    200 mV

    Vmon Resolution

    200 mV

    Iset Resolution

    50 nA

    Iset / Imon Resolution

    50 nA (IMonRange = High)
    5 nA (IMonRange = Low) – Imon Zoom Active

    Vmax

    0 ÷ 8100 V Absolute maximum HV level that the channel is allowed to reach, independently from the preset value Vset. Output voltage cannot exceed the preset value Vmax. The accuracy is 1 % ± 5 V

    Vmax resolution

    ± 1 V

    Alarm output

    Open collector, 100 mA maximum sink current

    Interlock input

    LOW: < 1 V; current~5mA; HIGH: 4÷6 V

    Ramp Up/Down

    1÷500 Volt/s, 1 Volt/s step

    Trip

    • Max. time an “overcurrent” can last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies in order to keep the output current lower than the programmed value.
    • “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”.
    • Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the OFF state.
    • Trip range: 0 ÷ 999.9 s; 1000 s = INFINITE. Step = 0.1 s (If trip= INFINITE, “overcurrent” lasts indefinitely)

    Voltage Ripple

    20 ÷ 1000 Hz:

    3kV/200 µA. Maximum: 25 mVpp
    3kV/3 mA. Typical: 20 mVpp / Maximum: 30 mVpp
    8kV/800 µA. Typical: 25 mVpp / Maximum: 30 mVpp

    1 ÷ 20000 kHz:

    3kV/200 µA. Maximum: 10 mVpp
    3kV/3 mA. Typical: 5 mVpp / Maximum: 10 mVpp
    8kV/800 µA. Typical: 10 mVpp / Maximum: 15 mVpp

    Vmon vs. Vout Accuracy

    :±0.02% of read value ±2V

    Vset vs. Vout Accuracy

    ±0.02% of read value ±2V

    Imon vs. Iout Accuracy

    ±2% of read value ±2 µA (IMonRange = High)
    ±2% of read value ±200 nA (IMonRange = Low) – Imon Zoom Active

    Iset vs. Iout Accuracy

    ±2% of read value ±2 µA (IMonRange = High)
    ±2% of read value ±200 nA (IMonRange = Low) – Imon Zoom Active

    Humidity range

    0 ÷ 80%

    Operating temperature

    0 ÷ 45°C

    Storage temperature

    -10 ÷ 70°C

    Vout / Temperature coefficient

    max. 50 ppm / °C

    Imon / Temperature coefficient

    max 100 ppm/C°; max 300 ppm/C° with Imon X10 zoom

    Long term stability Vout vs. Vset

    ± 0.02% (after one week @ constant temperature)
