DT5423
Quad Linear Desktop Power distributor for A1422 Preamplifiers and DT57xx Digitizers
Features
- Four DB9 connectors (±12 V) to supply A1422 Preamplifiers
- One plug connector to supply DT57xx family desktop digitizers
- Ripple: < 5 mVpp on preamplifier power supplies; < 10 mVpp on digitizer power supply
Overview

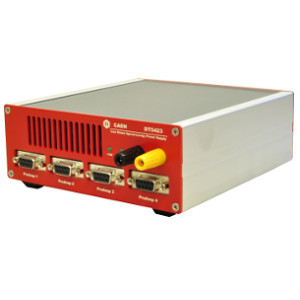

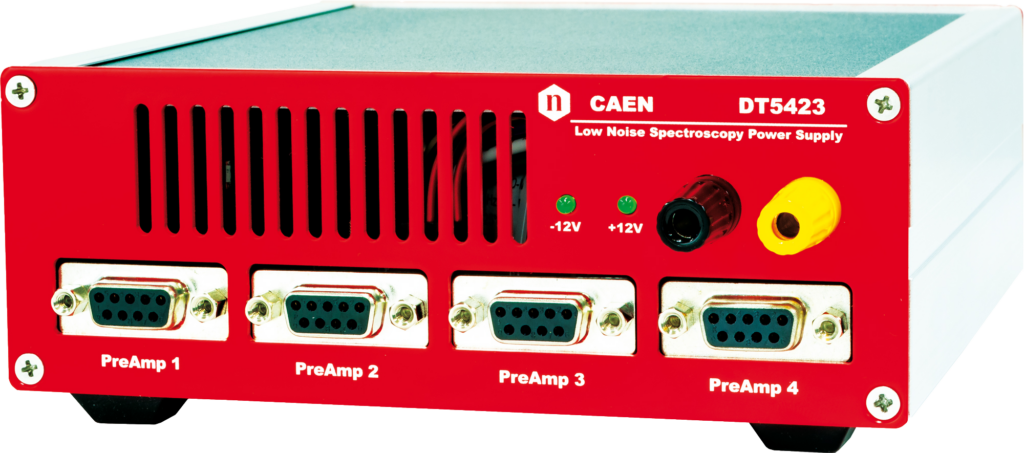

The CAEN Mod. DT5423 is a desktop power supply for A1422 and A1424 preamplifiers and DT57xx Digitizers family. It provides four standard 9-pin “D-type” female connectors to supply up to four A1422 or A1424 preamplifiers plus one plug connector to supply DT57xx desktop digitizers. Each output is filtered. The +12 V power supply for the digitizer is provided through a 6 pin Shielded Miniature Circular DIN Connector.
| D-Sub9 connector 9 pin female connector for DT5423 |
Consult our connectors reference page for technical information.

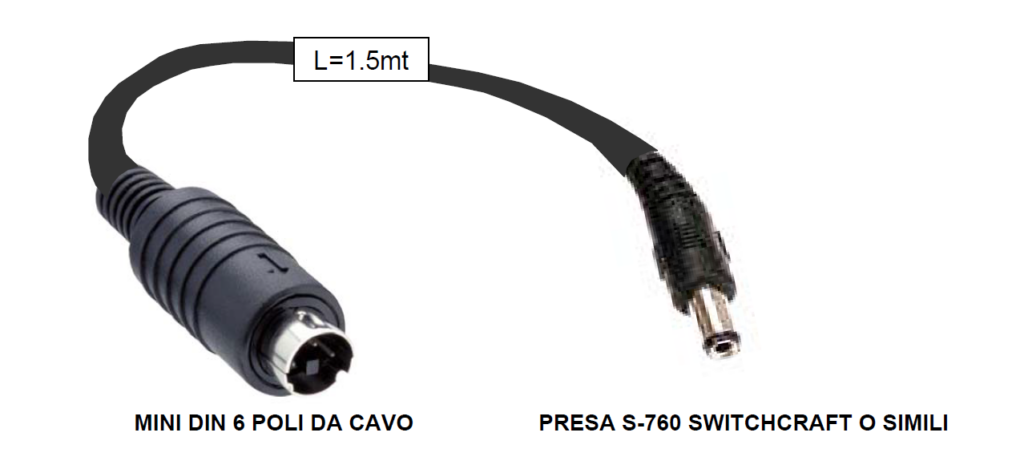

The kit includes the cable (1.5 m long) to connect Digitizer Supply output with DT57xx Desktop Digitizers (2.1mm DC Power Jack).
Technical Specifications
- Mechanical Packaging
Desktop module (154 x 50 x 164 mm3). Weight 1.65kg
- PreAmp 1,2,3,4
- +12 V / 400 mA (max total for 4 output)
- -12V / 200 mA (max total for 4 output)
- 4 Sub D9 female connectors
- Digitizer Supply
- +12V / 2.1 A
- TE Connectivity type 5750071-1 Shielded Mini Circular DIN Connector 6MINI-DIN
- Noise performance
- ±12V OUT on PreAmp 1÷4 connectors: ripple 5 mVpp
- +12V OUT on Digitizer Supply connector: ripple 10 mVpp
- Measurement conditions
20 MHz bandwidth limited oscilloscope, AC-coupled, capacitive load 10 nF on OUT in measurement, OUT at full load (400 mA total on + 12V OUT on PreAmp 1÷4 connectors; 200 mA total on – 12V OUT on Preamp 1÷4 connectors; 2.1 A on + 12V Digitizer Supply connector).

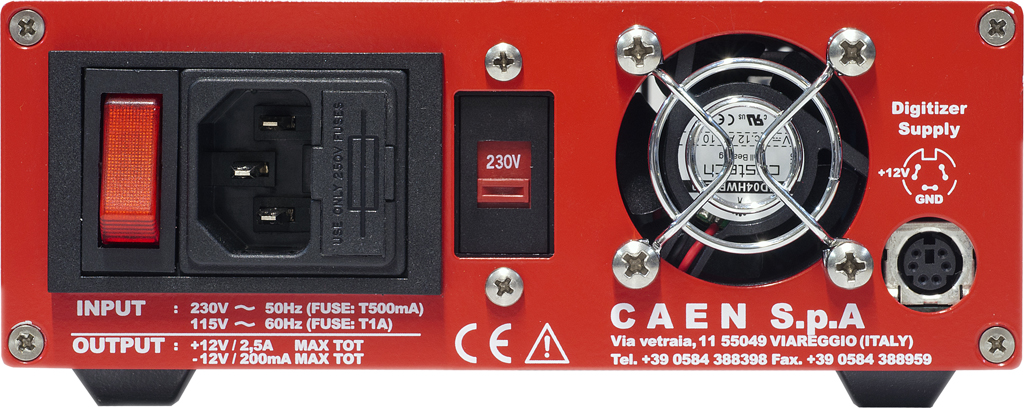

- Input
230V ~ 50Hz or 115V ~ 60Hz; C14 Type Inlet (Fused)
- Fuse
230 V: T500 mA; 110 V: T1A 5 x 20 mm
- GND
- ±12V power supply return
- Industrial Terminal for 4mm plug and wire
- connection up to 2mm Ø (black)
- EARTH
- Mains EARTH
- Industrial Terminal for 4mm plug and wire connection up to 2mm Ø (yellow)
Compare
Compare with Low Power Low Voltage Power Supplies.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WDT5423XAAAA | DT5423 - Desktop Linear Power Supply for A1422-A1424 Preamplifiers & DT57xx Digitizers RoHS |
