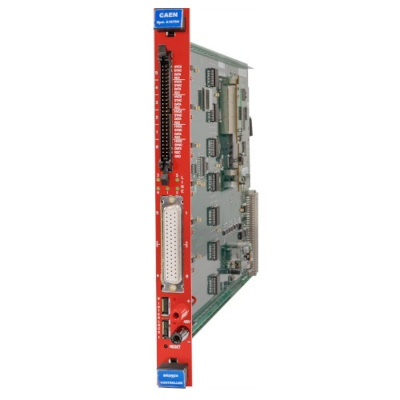

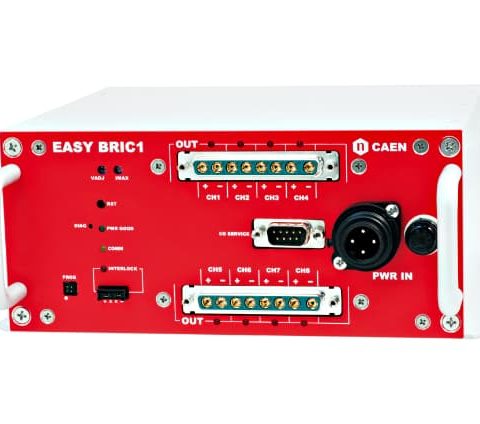

The A1660 Branch Controller is housed in a 1U SYx527 board. It allows to control 8 EASY BRIC modules (2 water-cooled remote crates), through two branches, Branch A and Branch B. Once plugged in, the Branch Controller must be linked to the EASY BRIC modules (which can work in the “hostile area”), via front panel D-SUB15 connectors. The A1660 configures the EASY BRIC channels as if they belong to the slot in which the branch controller is located: the EASY BRIC channels operate as channels of the A1660.

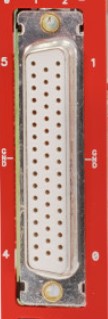

Amphenol FCI DD50S564TLF, 50-pin DSUB female for A1676A
Communication with E6001 remote modules (Branch A, B)
Consult our connectors reference page for technical information.
5 TE-wide, 6U-high
- No. of controlled crates
8 (2 water-cooled remote crates)
EASY BRIC Branch ControllerProduct page
|Name||File extension||File size||Revision||Last update|
|EASY 6000 System for Atlas NSW ICS||602.52 kB||2||February 26th, 2020|
|Safety Information and Product Support Service (ENG/ITA)||1.83 MB||-||July 24th, 2023|
Compare with Branch Controllers.
|WA1660XNSWAA||A1660 - EASY BRIC Branch Controller with RS-485NSW version RoHS|
