V972

Delay Unit

Request a quote
Downloads

Features

  • Completely passive delay via a set of calibrated coaxial cable stubs (50 Ω)
  • 0.5 to 31.5 ns delay with 2.6 ns offset
  • 0.5 ns resolution
  • ±100 ps accuracy on 0.5 to 8 ns delay steps; ±200 ps accuracy on 16 ns step
  • VSWR < 1.15
More info
3 Years Warranty
placeholder
placeholder

Overview

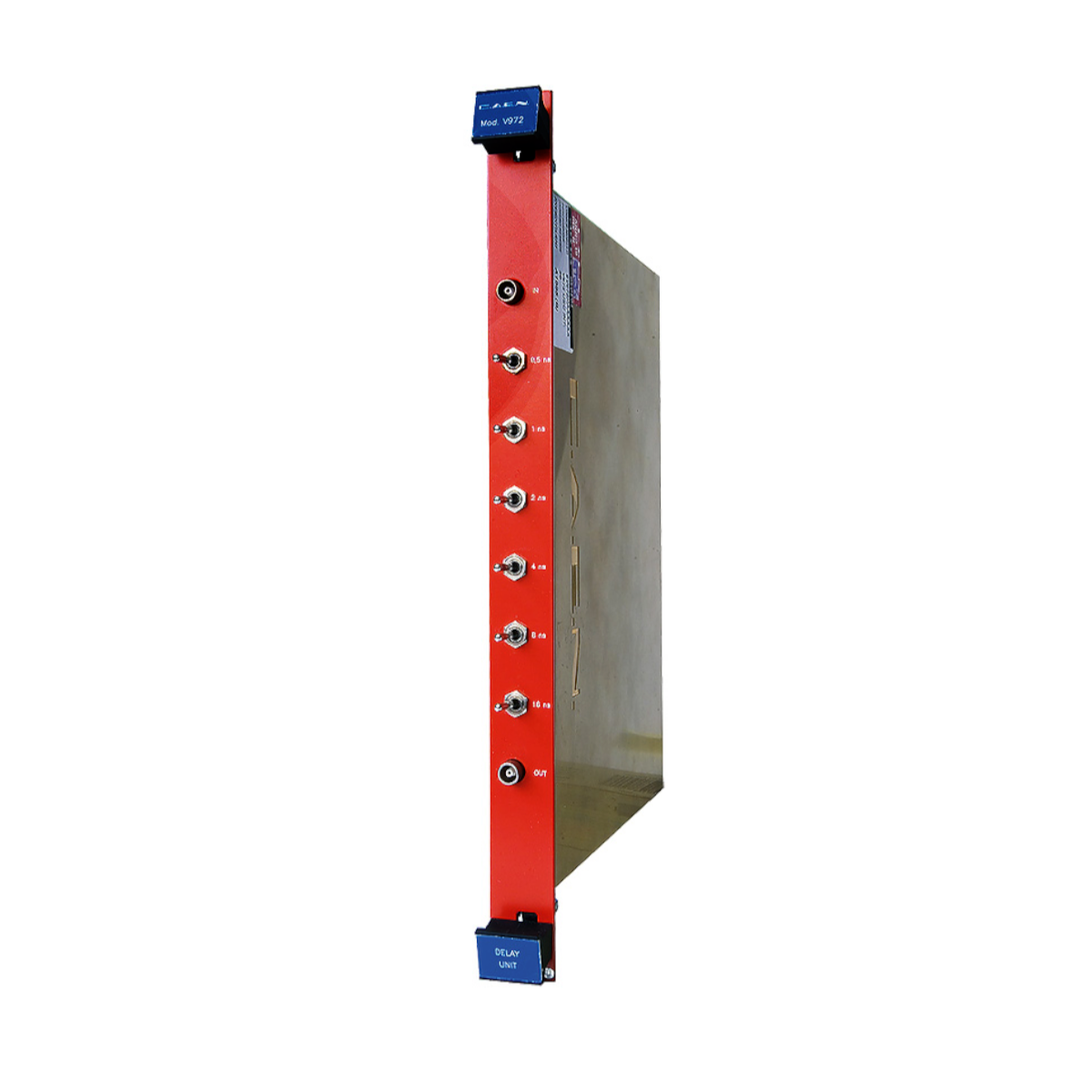

The CAEN Mod. V972 is a 1-unit wide VME 6U module that houses a delay unit with a range from 0 to 31.5 ns with a 2.6 ns offset. The delay can be set in 0.5 ns steps via front panel toggle switches. The unit is made up of calibrated coaxial cable stubs for high accuracy delay and does not require any power supply. The module features LEMO 00 I/O connectors.

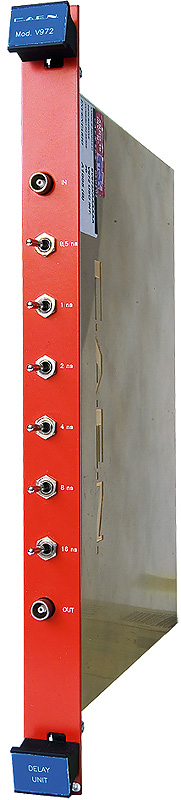

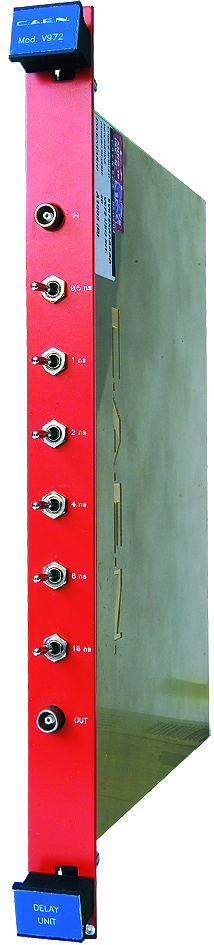

Connectors Layout 14 LEMO connector

1-unit wide VME 6U for Mod. V972

Consult our connectors reference page for technical information.

Technical Specifications

Packaging

1U VME

Delay

0 to 31.5 ns (+ 1.6 ns offset)

Resolution

0.5 ns

Input impedance

50 ± 2 Ω

Accuracy

±100 ps (for delay steps 0.5 ns through 8 ns)±200 ps (for 16 ns and 32 ns delay steps)

Max attenuation

< 2.5 dB

VSWR

< 1.15

Compare

Compare with Timing Units.

Loading...

Ordering Options

Code Description
WV972XAAAAAA V972 - Delay Unit (2.6 to 34.1 ns)   RoHS
