R1470ET
8/4 Ch Reversible 8 kV/3 mA (8 W) Desktop 19' Power Supply Module (USB/Ethernet/T.screen)
Features
- 4 or 8 independent channels in a 19″ rack unit (110/220V AC Powered)
- 8 kV / 3mA output range
- Max output power:
- 9 W (<3 kV output)
- 8 W (>3 kV output)
- Channels with individually selectable positive or negative polarity
- SHV coaxial output connectors
- Common floating return
- Low Ripple
- Under/over-voltage alert, overcurrent and max. voltage protection
- Interlock logic for board enable and Individual channel kill
- 50 nA Current monitor resolution (with x10 Imon-Zoom: 5 nA)
- 2.8″ color touch screen display

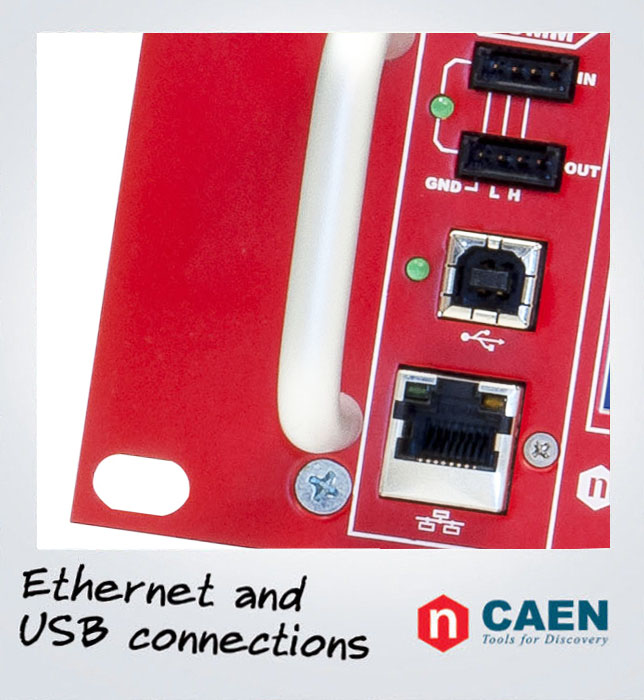

- Local and Remote control (USB2.0/Ethernet)
- Daisy-chain capability (4 channel only)
- Software Tools for easy channel management
Overview
The CAEN Mod. R1470ET provides 4 or 8 (depending on version) independent High Voltage channels in a 19″ rack unit (110/220V AC Powered). Each channel can provide a ±8 kV max voltage, a 3 mA max current and a 9 W max power (8 W max power when output voltage is larger than ±3 kV). The output polarity is independently selectable for each channel.
Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV connectors. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps. The module features 50 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 5nA.

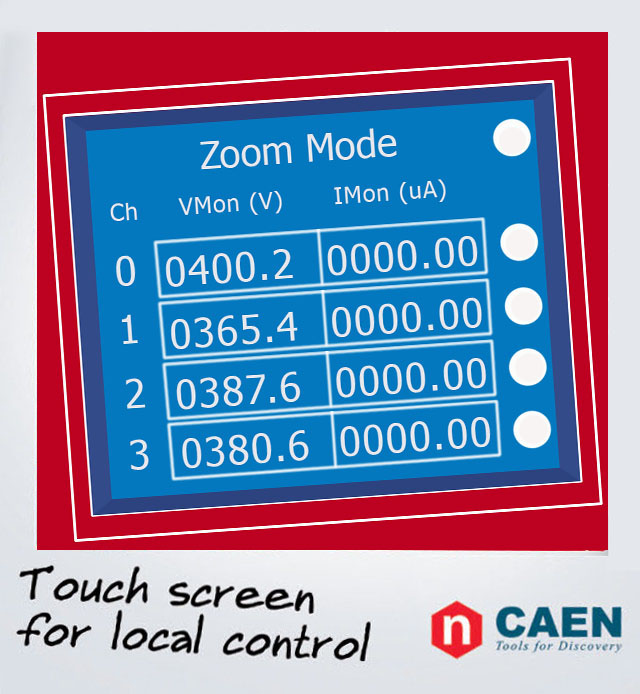

Module control can take place either locally thanks to a 2.8″ Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet.
|
SHV connector
19” 2U, 4/8 channels for Mod. R1470ET |
Consult our connectors reference page for technical information.
A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. EPICS and LabVIEW also supported.
Safety features allows the module to perform as a current generator and includes:
| Interlock | Common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function |
| Overvoltage and Undervoltage | warning when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V) |
| Overcurrent detection | if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off |
| VMAX | Programmable VMAX protection limit |
Technical Specifications
- Packaging
19” rack (h: 2U; d: 360mm). Weight: ~9kg (2-4 ch), 10.5kg (8 ch);
- Output channels
4-8 channels, Common Floating Return, SHV connector
Positive or Negative Polarity (requires internal setting)
- Output ranges
8 kV / 3 mA (IMonRange = High)
8 kV / 300 µA (IMonRange = Low) – Imon Zoom Active
- Max. Ch. Output Power
9 W (Vset < 3 kV)
8 W (Vset > 3 kV)
- Vset Resolution
200 mV
- Vmon Resolution
200 mV
- Iset Resolution
50 nA
- Imon Resolution
- 50 nA (IMonRange = High)
5 nA (IMonRange = Low) – Imon Zoom Active
- Vmax
0 ÷ 8100 V Absolute maximum HV level that the channel is allowed to reach, independently from the preset value Vset.
Output voltage cannot exceed the preset value Vmax. The accuracy is 1 % ± 5 V
- Vmax resolution
± 1 V
- Alarm output
Open collector, 100 mA maximum sink current
- Interlock input
LOW: < 1 V; current~5mA; HIGH: 4÷6 V
- Ramp Up/Down
1÷500 Volt/s, 1 Volt/s step
- Trip
- Max. time an “overcurrent” can last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies in order to keep the output current lower than the programmed value.
- “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”.
- Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the OFF state.
- Trip range: 0 ÷ 999.9 s; 1000 s = INFINITE. Step = 0.1 s (If trip= INFINITE, “overcurrent” lasts indefinitely)
- Voltage Ripple
20 ÷ 1000 Hz:
- 3 kV/200 µA: Typical: 20 mVpp; Maximum: 25 mVpp
- 3 kV/3 mA: Typical: 20 mVpp; Maximum: 30 mVpp
- 8 kV/800 µA: Typical: 25 mVpp; Maximum: 30 mVpp
1 ÷ 20000 kHz:
- 3 kV/200 µA: Typical: 5 mVpp; Maximum: 10 mVpp
- 3 kV/3 mA: Typical: 5 mVpp; Maximum: 10 mVpp
- 8 kV/800 µA: Typical: 10 mVpp; Maximum: 15 mVpp
- Vmon vs. Vout Accuracy
:±0.02% of read value ±2V
- Vset vs. Vout Accuracy
±0.02% of read value ±2V
- Imon vs. Iout Accuracy
±2% of read value ±2 µA (IMonRange = High)
±2% of read value ±200 nA (IMonRange = Low) – Imon Zoom Active
- Iset vs. Iout Accuracy
±2% of read value ±2 µA (IMonRange = High)
±2% of read value ±200 nA (IMonRange = Low) – Imon Zoom Active
- Ventilation Fan
60×60 24V; 62 dBA maximum noise level
- Humidity range
0 ÷ 80%
- Storage temperature
-10 ÷ 70°C
- Operating temperature
0 ÷ 45°C
- Vout / Temperature coefficient
max. 50 ppm/°C
- Imon / Temperature coefficient
max 100 ppm/C°; max 300 ppm/C° with Imon X10 zoom
- Long term stability Vout vs. Vset
± 0.02% (after one week @ constant temperature)
Compare
Compare with Rack-mount High Voltage Power Supplies.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WR1470ETDXAA | R1470ETD - 8 Channel 8kV/3mA(9W) 19" HV Power Supply Module with Ethernet & 2.8" Touchscreen RoHS |
| WR1470ETXAAA | R1470ET - 4 Channel 8kV/3mA(9W) 19" HV Power Supply Module with Ethernet & 2.8" Touchscreen RoHS |
