N858

Dual Attenuator

Request a Quote Add to WishlistView Wishlist

Home Modular Pulse Processing ElectronicsAnalogAttenuators N858

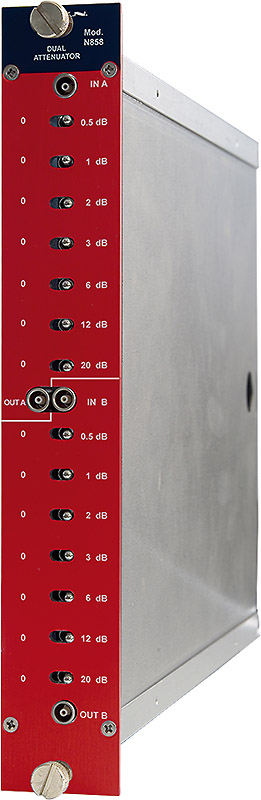

Photo of N858
DatasheetDownloadCompareTech. Spec.

Highlights

  • Packaging 1U-wide NIM unit

  • Number of sections: 2

  • Attenuation adjustable from 0 to 44.5 dB

  • Resolution 0.5 dB

  • Input impedance: 50 Ω

  • I/O delay < 5 ns

  • Accuracy: 1%

  • Input bandwidth max 300 MHz

  • Max dissipated power (per section): 100 mW

  • Insertion loss: 0.1 dB

Overview

The CAEN Mod. N858 is a passive dual attenuator housed in a 1-unit wide NIM module. Since it is made up of resistive cells, the module does not require any power supply. The attenuation of each section ranges from 0 to 44.5 dB in 0.5 dB steps.

Each section is equipped with two LEMO 00 connectors, one for the input (50 Ω impedance) and one for the output, and seven toggle switches for setting the attenuation. For further technical information on the connectors, consult our connectors reference page.


Ordering Options

Code Description
WN858XAAAAAA

N858 – Dual Attenuator (0 to 44.5 dB)

RoHS

You also may be interested in…

NIM8302

NIM8302

5U 10 slot 150 W Compact Crate
NIM8305

NIM8305

2 Slot Switching 450 W Mini Crate
NV8020A

NV8020A

7U CRATE VME/NIM 8 slot VME64 365W, 5 slot NIM 150W
NIM8302P

NIM8302P

5U 5 slot 150 W Portable Crate
NIM8303

NIM8303

5U 12 slot 300/600 W Crate
NIM8306

NIM8306

2 Slot Switching 750 W Mini Crate
NIM8304

NIM8304

7U 12 slot smart fan unit Switching 2000 W Crate
Download Compare Tech. Spec.

Add to Wishlist
This product is already in your Wishlist
Browse the Wishlist

Request a Quote

Request a Quote

    Submit

    Compare

    Close
    Name
    Package
    No. of Channels
    Range per Section (dB)
    Resolution (dB)
    Max Frequency (MHz)
    I/O Delay (ns)
    Insert Loss (dB)
    I/O Connectors
    N858

    N858

    NIM

    2

    0 ÷ 44.5

    0.5

    300

    < 5

    < 0.10

    LEMO

    V859

    V859

    VME

    2

    0 ÷ 44.5

    0.5

    300

    < 5

    < 0.10

    LEMO

    Technical Specifications

    Close

    Packaging

    1U-wide NIM unit

    Number of sections

    2

    Attenuation

    0÷44.5 dB

    Resolution

    0.5 dB

    Input impedance

    50 Ω

    I/O delay

    < 5 ns (all stages inserted)

    Accuracy

    0,01

    Max frequency

    > 300 MHz

    Max dissipated power (per section)

    100 mW

    Insertion loss

    0.1 dB
