N108A
Dual Delay
Features
- Delay from 0 to 63.5 ns (+ 1.6 ns offset) per section
- No power supply required
- 0.5 ns step
- ±100 ps accuracy on 0.5 to 8 ns delay lines, ±200 ps on higher lines
- VSWR < 1.15
Overview

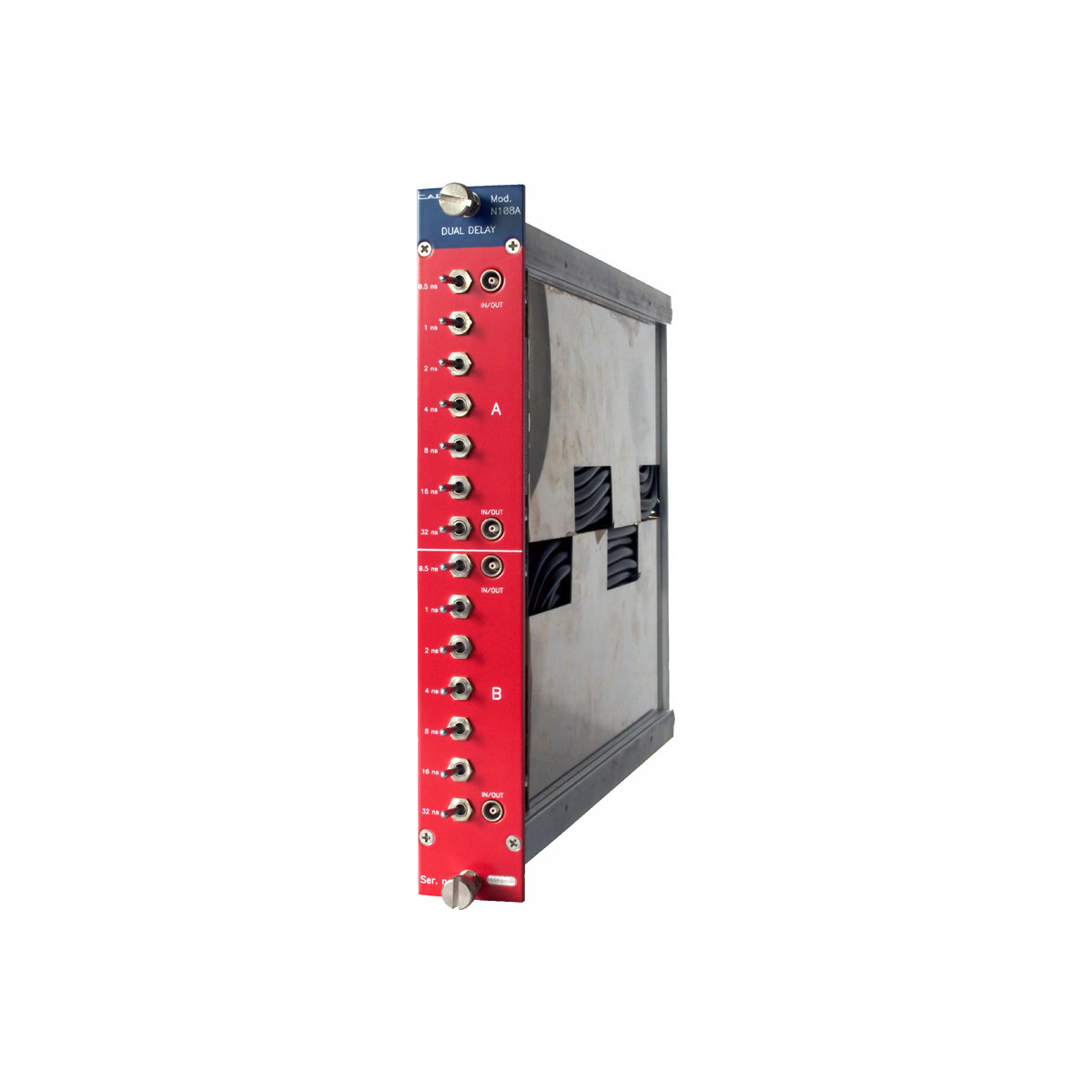

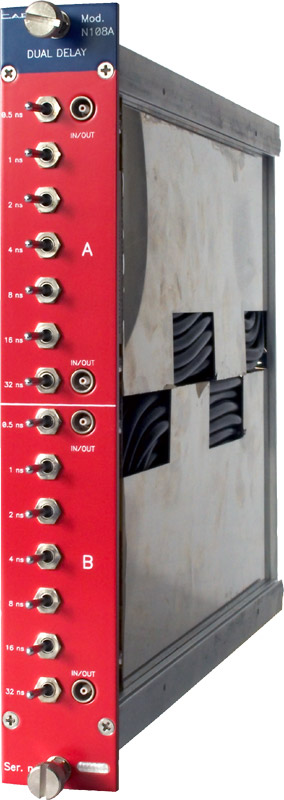

The CAEN Mod. N108A is a passive dual section delay unit housed in a single unit NIM module; the module does not require any power supply since it is made up of calibrated coaxial cable stubs for high accuracy delay. Delay ranges from 0 to 63.5 ns for each section (0.5 ns steps). Each section has a 1.6 ns offset, so the actual delay ranges from 1.6 ns to 65.1 ns. In order to add a delay, the relevant toggle switch must be pulled towards right.
The delay sections (called “A” and “B”) are provided with two LEMO 00 connectors each, which are bi-directional: each connector can be used either as input or as output. Input impedance is 50 Ohm. Seven toggle switches per section allow the delay setting.
| LEMO connector 1-unit wide NIM 6U for Mod. N108A |
Consult our connectors reference page for technical information.
Technical Specifications
- Packaging
1 unit wide NIM module
- Number of sections
2
- Delay
0 to 63.5 ns (+1.6 ns)
- Resolution
0.5 ns
- Input impedance
50 ± 2 Ohm
- Accuracy
- ± 100 ps (for delay steps 0.5 through 8 ns)
- ± 200 ps (for delay steps 16 and 32 ns)
- Max attenuation
< 2.5 dB
- VSWR
< 1.15
Compare
Compare with Timing Units.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WN108AXAAAAA | N108A - Dual Delay Unit (1.6 to 65.1 ns) RoHS |
