DT5471
1 Ch 3 kV/500 µA (1 W) USB-Powered Desktop HV Power Supply
Features
- Single Desktop HV channel powered and controlled by USB
- 3 kV / 500 µA output range (1 W max)
- Available with positive or negative polarity
- SHV output connector
- Low Ripple
- Under/over-voltage alert, overcurrent and max. voltage protection
- Interlock logic for board enable and Individual channel kill
- 10 nA Current monitor resolution (with x10 Imon Zoom: 1 nA)
- Software Tools for easy channel management
Overview

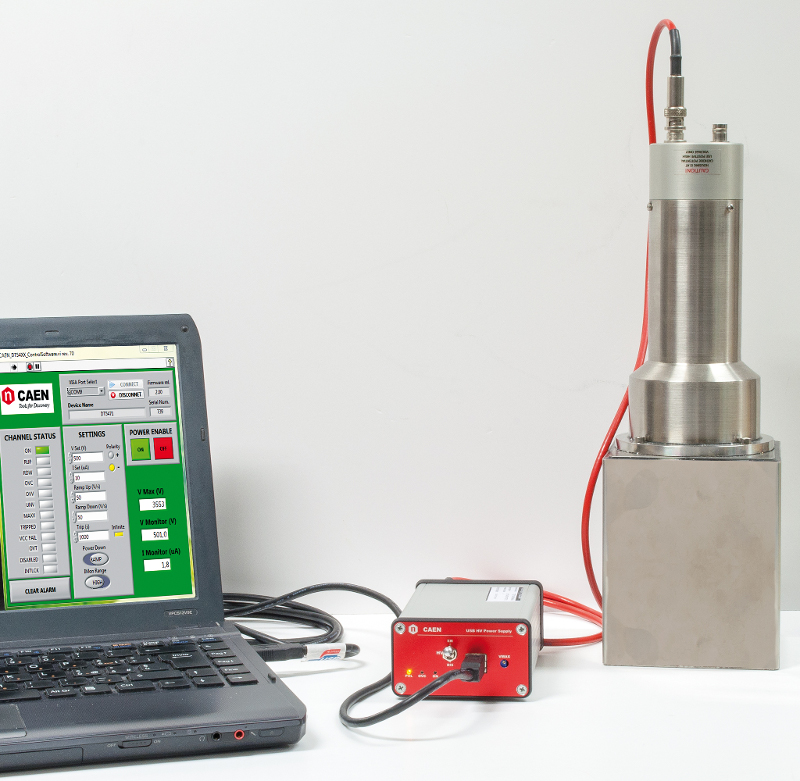

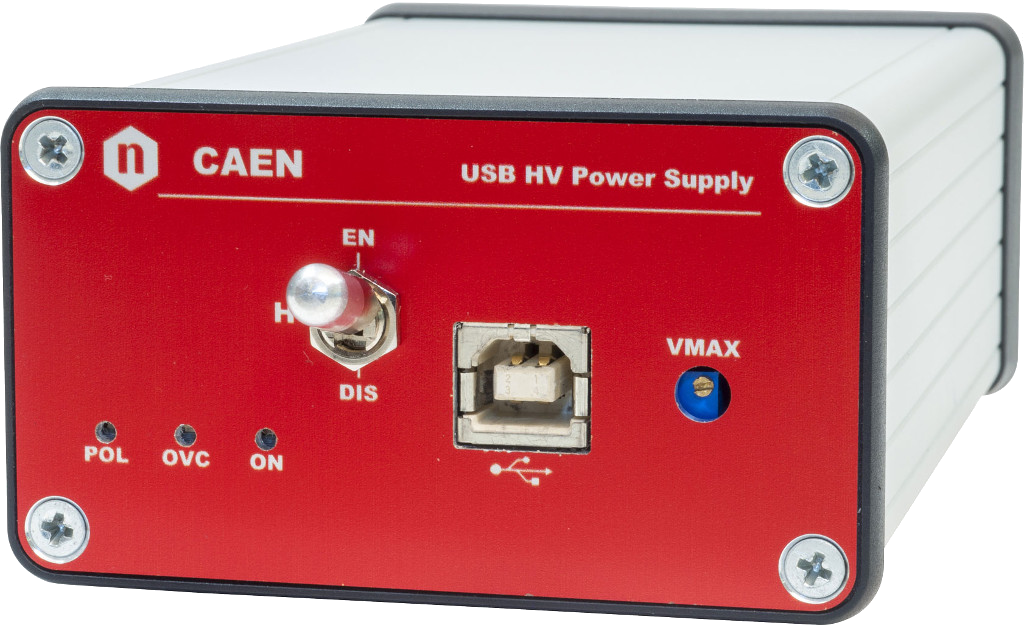

The CAEN Mod. DT5471 is a desktop module housing one High Voltage Power Supply Channels 3 kV / 50 0µA (1W max). The unit is available with either positive or negative output polarity; it is supplied via USB link. HV output is delivered through SHV connector. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 500 V/s range with 1 V/s steps. The module features 10 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 1nA. Functional parameters can be programmed and monitored via USB.
|
SHV connector
Radiall R317580 HV coaxial connector for Mod.DT5471 |
Consult our connectors reference page for technical information.
Safety features allows the module to perform as a current generator and includes:
| Channel | can be enabled or disabled through the front panel manual switch or via Interlock logic. |
| Overvoltage and Undervoltage warning | warning when the output voltage differs from the programmed value. |
| Overcurrent detection | when a channel attempts to exceed the programmed current limit, it signaled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
| Hardware VMAX | maximum output voltage can be set via front panel potentiometer. VMAX value can be read out via software. |
Software available (Windows):
- LabVIEW Instrument Driver
- DT547x Control software: LabVIEW Control software with Logging Capability. DT547x Control software allows to set and monitor, through a Graphical User Interface, all the unit’s functional parameters. When DT547x Control Software runs, it creates a data-log file that records the changes of the monitoring parameters.
Technical Specifications
- Package
- Alloy box: 81 W x 43 H x 127 L mm³ (without connectors) / 81 W x 43 H x 171 L mm³ (including connectors)
- Weight: 280g
- Output Voltage
0 ÷ 3 kV
- Polarity
Positive / Negative depending on purchased version
- Max. Output Current
500 µA
- Maximum output power
1W
- Voltage Set Resolution
500 mV
- Voltage Monitor Resolution
50 mV
- Current Set Resolution
100 nA
- Current Monitor Resolution
1nA (low range) / 10nA (high range)
- Current Set Maximun Value
510 µA
- VMAX hardware
3100 V
- VMAX hardware resolution
1 V
- VMAX hardware accuracy
± 0.3% of full scale ±5V
- Ramp Up/Down
1 ÷ 500 Volt/sec, 1 Volt/sec step
- Temperature Resolution
1°C
- TRIP
0-999s; 1000 = Infinite (current generator)
- Voltage Ripple
<20 mVpp Typical
- Interlock input
LOW: <1V; current~5mA; HIGH: 4÷6 V
- Vmon vs. Vout accuracy
± 0.05% of full scale ±1V
- Vset Vs. Vout accuracy
± 0.05% of full scale ±1V
- Imon vs. Iout accuracy
±1% of read ±200 nA
- Iset vs. Iout Accuracy
±1% of read ±200 nA
- Humidity range
0 ÷ 80%
- Operating temperature
0 ÷ 45°C
- Storage temperature
-10 ÷ +70°C
- Vout / Temperature coefficient
100 ppm
- Imon / Temperature coefficient
100 ppm
- Long term stability Vout vs. Vset
0,05% (after one week @ constant temperature)
Compare
Compare with Desktop High Voltage Power Supplies.
Loading...
Accessories
- HV Cables
- High Voltage Cable Assemblies
Ordering Options
| Code | Description |
|---|---|
| WDT5471XNAAA | DT5471N - USB High Voltage Power Supply -3kV/500uA (1W max) RoHS |
| WDT5471XPAAA | DT5471P - USB High Voltage Power Supply +3kV/500uA (1W max) RoHS |
