DT1471ET
4 Ch Reversible 5.5 kV/300 µA Desktop HV Power Supply Module (USB/Ethernet/T.screen)
Features
- 4 independent channels in a Desktop case (110/220V AC Powered)
- 5.5 kV / 300 µA output range
- Channels with individually selectable positive or negative polarity
- SHV coaxial output connectors
- Common floating return
- Low Ripple
- Under/over-voltage alert, overcurrent and max. voltage protection
- Interlock logic for board enable and Individual channel kill
- 5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)
- 2.8″ color touch screen display
- Local and Remote control (USB2.0/Ethernet)
- Daisy-chain capabilty
- Software Tools for easy channel management
Overview
The CAEN Mod. DT1471ET provides 4 independent High Voltage channels in a Desktop package (110/220V AC Powered). Each channel can provide a ±5.5 kV max voltage and a 300 µA max current. The output polarity is independently selectable for each channel. Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV connectors. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps. The module features 5nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 500 pA.
|
SHV connector
Radiall R317580 HV coaxial connector for DT1471ET |
Consult our connectors reference page for technical information.

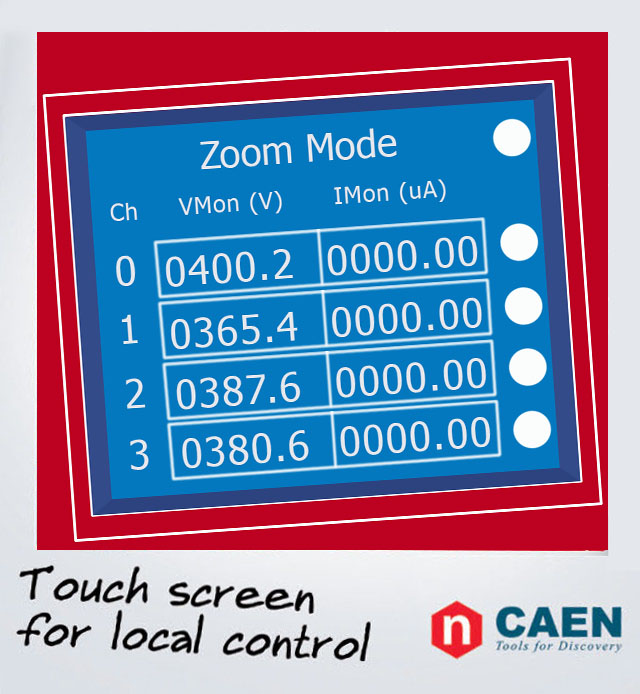

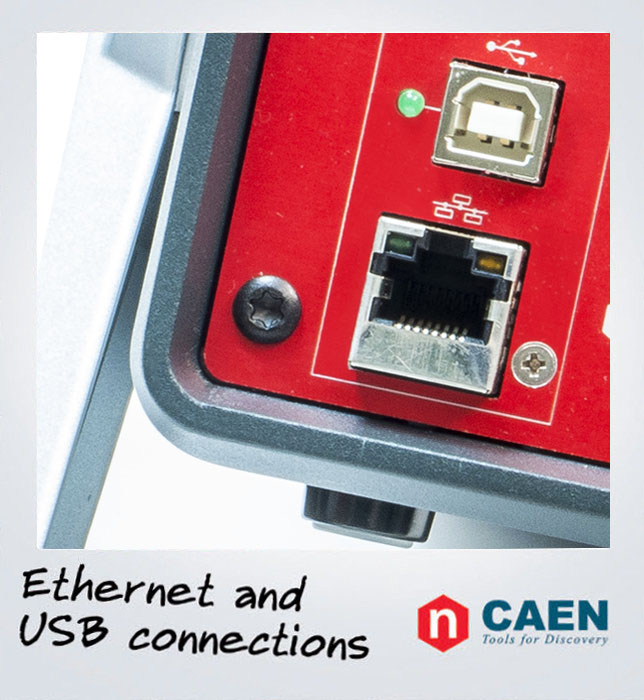

Module control can take place either locally thanks to a 2.8″ Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet. A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. EPICS and LabVIEW also supported.
Safety features allows the module to perform as a current generator and includes:
| Channels | can be enabled or disabled through the Global Interlock logic. |
| Overvoltage and Undervoltage warning | when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V). |
| Overcurrent detection | if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off. |
| Hardware VMAX | Programmable VMAX protection limit. |
| Safety Board Interlock | common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function. |
Technical Specifications
- Package
- Desktop module housed in a 239x84x184 mm3 (WxHxD) Aluminium case
- Weight: ~5.2 kg
- Output channels
- 4 channels, Common Floating Return, SHV connector
- Positive or Negative Polarity (requires internal setting)
- Output ranges
- 5.5 kV / 300 µA (IMonRange = High)
- 5.5 kV / 30 µA (IMonRange = Low) – Imon Zoom Active
- Max. Ch. Output Power
1.65 W
- Vset Resolution
100 mV
- Vmon Resolution
100 mV
- Iset Resolution
5 nA
- Imon Resolution
- 5 nA (IMonRange = High)
- 500 pA (IMonRange = Low) – Imon Zoom Active
- Vmax
- 0 ÷ 5600 V Absolute maximum HV level that the channel is allowed to reach, independently from the preset value Vset.
- Output voltage cannot exceed the preset value Vmax. The accuracy is 1 % ± 5 V
- Vmax resolution
± 1 V
- Alarm output
Open collector, 100 mA maximum sink current
- Interlock input
LOW: <1V; current~5mA; HIGH: 4÷6 V
- Ramp Up/Down
1÷500 Volt/s, 1 Volt/s step
- Trip
- Max. time an “overcurrent” can last (seconds). A channel in “overcurrent” works as a current generator; output voltage varies in order to keep the output current lower than the programmed value.
- “Overcurrent” lasting more than set value (1 to 9999) causes the channel to “trip”.
- Output voltage will drop to zero either at the Ramp-down rate or at the fastest available rate, depending on Power Down setting; in both cases the channel is put in the OFF state.
- Trip range: 0 ÷ 999.9 s; 1000 s = INFINITE. Step = 0.1 s (If trip= INFINITE, “overcurrent” lasts indefinitely)
- Voltage Ripple
- 20 ÷ 1000 Hz: Typical: 10 mVpp / Maximum: 15 mVpp
- 1 ÷ 20000 kHz: Typical: 3 mVpp / Maximum: 8 mVpp
- Vmon vs. Vout Accuracy
±0.02% of read value ±2V
- Vset vs. Vout Accuracy
±0.02% of read value ±2V
- Imon vs. Iout Accuracy
- ±2% of read value ±20 nA (IMonRange = High)
- ±2% of read value ±2 nA (IMonRange = Low) – Imon Zoom Active
- Iset vs. Iout Accuracy
- ±2% of read value ±30 nA (IMonRange = High)
- ±2% of read value ±3 nA (IMonRange = Low) – Imon Zoom Active
- Ventilation Fan
60 x 60 24 V; 62 dBA maximum noise level
- Humidity range
0 ÷ 80%
- Storage temperature
-10 ÷ 70°C
- Operating temperature
0 ÷ 45°C
- Vout / Temperature coefficient
max. 50 ppm / °C
- Imon / Temperature coefficient
max 100 ppm/C°; max 300 ppm/C° with Imon zoom
- Long term stability Vout vs. Vset
± 0.02% (after one week @ constant temperature)
Compare
Compare with Desktop High Voltage Power Supplies.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WDT1471ETXAA | DT1471ET - 4 Channel 5.5kV Desktop HV Power SupplyModule with Ethernet & 2.8" Touchscreen RoHS |
