AG7435

12/24 Channel 3.5 kV, 3.5/0,35 mA (9W) Common Ground Dual Range Boards

Features

  • 12/24 independently controllable High Voltage channels
  • 3.5 kV output voltage (9 W)
  • Dual range current:
    • High Power: 3.5 mA (10 nA Current monitor resolution)
    • High resolution: 350 µA (1 nA Current monitor resolution)
  • Available with either positive, negative or mixed polarity (only with SHV connectors)
  • Radiall 52 pin or SHV coaxial connectors
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

Overview

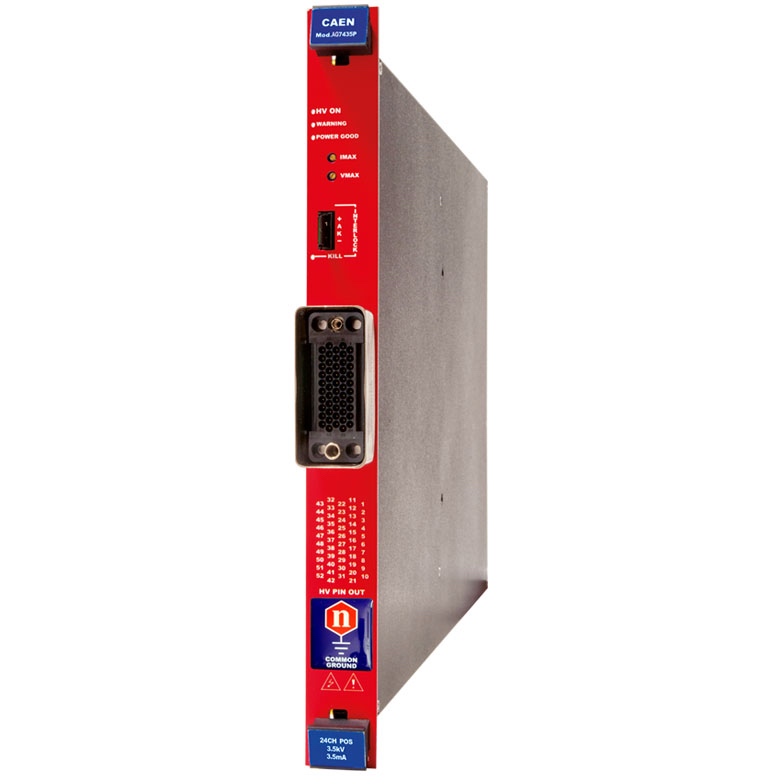

The power supplies of the AG7435 family house 24 or 12 independent high voltage channels. The AG7435 is available in different versions equipped with SHV or with Radiall Multipin connector.

blank Radiall multipin connector

Single width (5 TE wide), 24 channel for Mod.AG7435N, AG7435P

blank SHV connector

Single width (5 TE wide), 12 channels for Mod.AG7435DN, AG7435DP
Double width (10 TE wide), 24 channels for Mod.AG7435SN, AG7435SP

Consult our connectors reference page for technical information.

The board is available with either positive or negative output polarity. The channels share a Common Ground and the output voltage range is 0 ÷ 3.5 kV, with 5 mV of set and monitor resolution. The output channels offer dual current ranges (software selectable):

High Power: 0 ÷ 3.5 mV I set resolution: 10 nA I mon resolution: 10 nA
High Resolution: 0 ÷ 350 μA I set resolution: 10 nA I mon resolution: 1 nA

Independently programmable for each channel:

Output voltage 0 ÷ 3.5 kV step: 5 mV
Current limit (Iset) 0 ÷ 3.5 mA step: 10 nA
V Ramp up/down: 1 ÷ 500 V/sec step: 1 V/sec
TRIP parameter 0 ÷ 999.9 s; 1000 s = Infinite step: 0.1 s

Safety features allows the module to perform as a current generator and includes:

Channels  can be enabled or disabled through the Global Interlock logic.
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value.
Overcurrent detection when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator.
Hardware VMAX and IMAX
maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software.
Safety Board Interlock this protection disables the HV generation when the HV outputs are not connected to their loads (only for Multipin Connector versions).

For boards with Radiall 52 pin connector are available the following accessories:

Technical Specifications

No. of Channels

12 or 24 (Common Ground)

Output Voltage

0÷3.5 kV

Polarity

Positive / Negative depending on purchased version

Max. Output Current

Dual Range:

  • high power: 3.5 mA
  • high resolution: 350 µA
Voltage Set Resolution

5 mV

Voltage Monitor Resolution

5 mV

Current Set Resolution

10 nA

Current Monitor Resolution
  • High Power: 10 nA
  • High Resolution: 1 nA
VMAX hardware

0÷3.5 kV common for all the board channels

VMAX hardware accuracy

± 1% of FSR

VMAX software

0÷3.5 kV settable for each channel

VMAX software resolution

1 V

IMAX hardware

0÷3.5 mA common for all the board channels

IMAX hardware accuracy

± 1% of FSR

Ramp Up/Down

1÷500 Volt/sec, 1 Volt/sec step settable for each channel

Voltage Ripple
  • 20 ÷ 1000 Hz: < 7 mVpp (typ); < 15 mVpp (max)
  • 1 ÷ 20000 kHz: <7 mVpp (typ); < 10 mVpp (max)
Voltage Monitor vs. Output Voltage Accuracy

±0.01% of reading ± 0.03% of Max Output Voltage

Voltage Set vs. Output Voltage Accuracy

±0.01% of reading ± 0.03% of Max Output Voltage

Current Monitor vs. Output Current Accuracy
  • High Power:  ± 0.02% ± 5 µA
  • High Resolution:  ± 0.02% ± 1 µA
Current Set vs. Output Current Accuracy
  • High Power:  ± 0.02% ± 5 µA
  • High Resolution:  ± 0.02% ± 1 µA
Maximum output power

9W per channel (software safety limit)

Consumption @ full power
  • 24 channels (AG7435, AG7435S): 300 W
  • 12 channels (AG7435D): 155 W

Compare

Compare with High Voltage Power Supply.

Loading...

Accessories

A995
Insertion/extraction tool for A996
A996
52 pin cable connector
HV Cables
High Voltage Cable Assemblies
A647
24 Channel Multipin Radiall to SHV connector Adapter (Max: 8 kV - Desktop)
R647
24 Channel Multipin Radiall to SHV connector Adapter (Max: 8 kV - 19'' Rack)

Ordering Options

Code Description
WAG7435NXAA2 AG7435N - SYx527 H.V. channels -3.5kV 3.5mA (9W) - Multipin Conn. common ground (24 ch)   RoHS
WAG7435PXAA2 AG7435P - SYx527 H.V. channels +3.5kV 3.5mA (9W) - Multipin Conn. common ground (24 ch)   RoHS
WAG7435DNXA1 AG7435DN - SYx527 H.V. channels -3.5kV 3.5mA (9W) - SHV Conn. common ground (12 ch)   RoHS
WAG7435DPXA1 AG7435DP - SYx527 H.V. channels +3.5kV 3.5mA (9W) - SHV Conn. common ground (12 ch)   RoHS
WAG7435SNXA2 AG7435SN - SYx527 H.V. channels -3.5kV 3.5mA (9W) - SHV Conn. common ground (24 ch, 10TE)   RoHS
WAG7435SPXA2 AG7435SP - SYx527 H.V. channels +3.5kV 3.5mA (9W) - SHV Conn. common ground (24 ch, 10TE)   RoHS
