A1542H
12/24/32 Channel 500 V, 1 mA/100 µA Common Floating Return Dual Range Boards
Features
- 12/24/32 independently controllable High Voltage channels
- 500 V output voltage
- Dual range current:
- High Power: 1 mA (1 nA Current monitor resolution)
- High resolution: 100 µA (100 pA Current monitor resolution)
- Available with either positive, negative or mixed polarity (only with SHV connectors)
- DB25 Multipin or SHV coaxial connectors
- Common floating return shared by all channels
- Low ripple
- Under/over-voltage alert, overcurrent and max. voltage protection
- Interlock logic for unit enable
- Software Tool for easy channel management
Overview
The power supplies of the A1542H family house 32, 24 or 12 independent high voltage channels. The A1542H is available in different versions equipped with SHV or with DB25 connector:

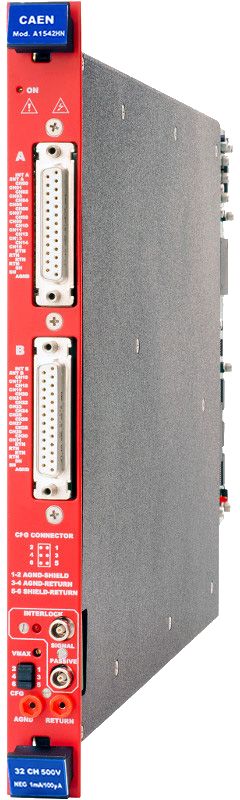

DB25 connector

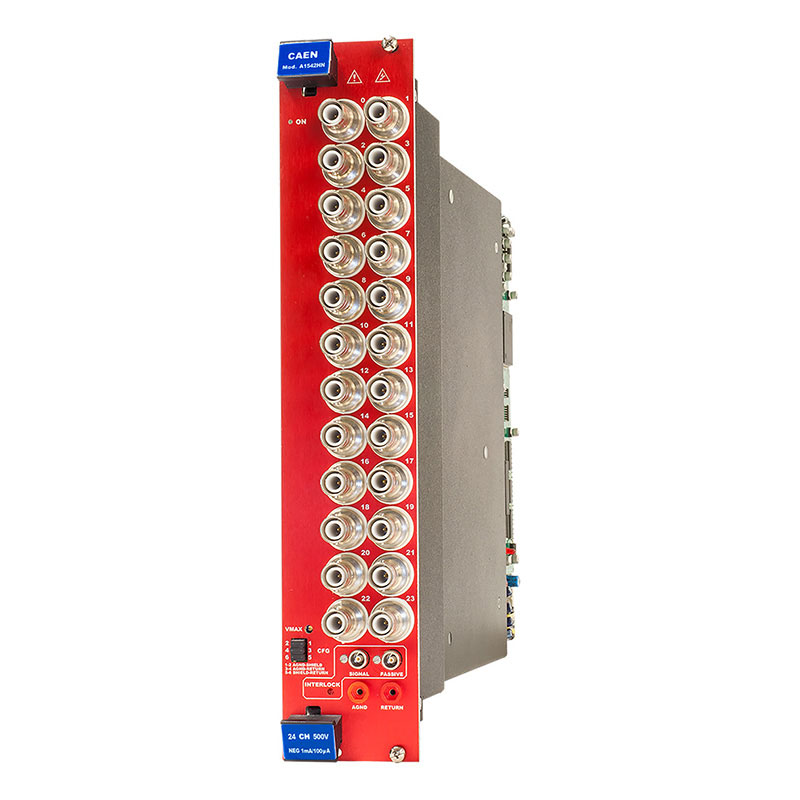

Single width (5 TE wide), 24 channels for Mod.A1542HLP, A1542HLN |
SHV connector

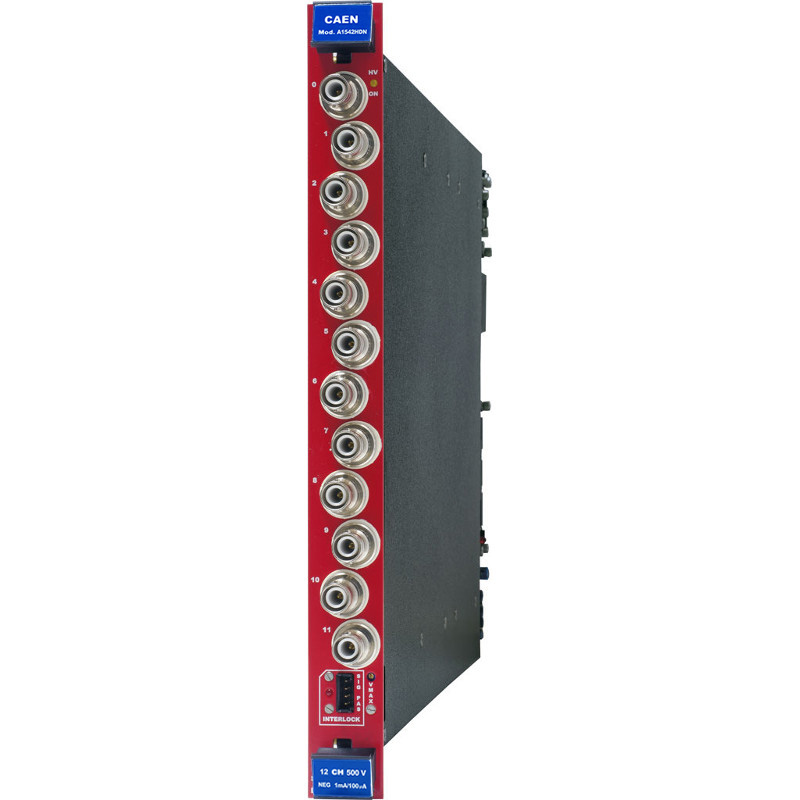

Single width (5 TE wide), 12 channels for Mod. A1542HSM, A1542HDP, A1542HDN |
Consult our connectors reference page for technical information.
The channels share a Common Floating Return, which allows on-detector grounding, reducing the noise level. The output voltage range is 0 ÷ 500 V, (10 mV step) with 1 mV monitor resolution. The output channels offer dual current ranges (software selectable).
High Power: | 0 ÷ 1 mA | I set resolution: 20 nA | I mon resolution: 1 nA |
High Resolution: | 0 ÷ 100 μA | I set resolution: 20 nA | I mon resolution: 100 pA |
The board is available with either positive or negative output polarity. Mixed version with 6/12 positive and 6/12 negative channels are also available (only with SHV connectors). The boards are provided with both current and voltage protections. The HV RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 100 V/s range (1 V/s step).
Safety features allows the module to perform as a current generator and includes:
Channels | can be enabled or disabled through the Global Interlock logic. |
Remote Enable/Disable | front panel independent contacts available for all channels. |
Overvoltage and Undervoltage warning | when the output voltage differs from the programmed value. |
Overcurrent detection | when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
Hardware VMAX | maximum output voltage can be set via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software. |
Technical Specifications
- No. of Channels
12 / 24 / 32 (Common Floating Return)
- Output Voltage
0÷500 V
- Polarity
Positive / Negative / Mixed depending on purchased version
(Mixed boards have half of the channels with positive polarity and half with negative)
- Max. Output Current
- High Power: 1 mA
- High Resolution: 100 µA
- Voltage Set Resolution
10 mV
- Voltage Monitor Resolution
1 mV
- Current Set Resolution
20 nA
- Current Monitor Resolution
- High Power: 1 nA
- High Resolution: 100 pA
- VMAX hardware
0÷500 V common for all the board channels
- VMAX hardware accuracy
1 V
- VMAX software
0÷500 V settable for each channel
- VMAX software resolution
1 V
- Ramp Up/Down
1÷100 Volt/sec, 1 Volt/sec step
- Voltage Ripple
- < 5 mVpp (Max)
- < 3 mVpp (Typ)
- Vmon vs. Vout accuracy
±0.02 % ±50 mV
- Vset Vs. Vout Accuracy
±0.02 % ±50 mV
- Imon vs. Iout accuracy
- High Power: ±2% ±1 μA
- High Resolution: ±2% ±0.1 μA
- Iset vs. Iout accuracy
- High Power: ±2% ±1 μA
- High Resolution: ±2% ±0.1 μA
- Maximum output power
0.5 W per channel
- Power consumption @ full power
- 32 channels (A1542H): 32 W
- 24 channels (A1542HL, A1542HS): 24 W
- 12 channels (A1541HD): 12 W
