SP5600AN
Educational Kit - Premium Version
Features
- Gamma Spectroscopy: from system linearity to radiation absorption, Photonuclear and Compton Scattering cross sections
- Beta Spectroscopy: from energy spectrum to thickness measurements
- Cosmic rays: from cosmic rays detection to cosmic vertical flux measurement
- Photon detection: light distribution and single photon detection
- Radiation-Matter Interaction: from scintillating materials to absorber materials comparison
- Advanced Statistics
- A complete LabVIEW based software suite for remote control of the system and for data analysis
Overview

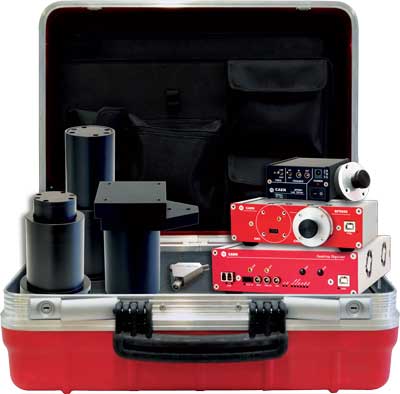

CAEN realized different modular Educational Kits. The set-up are all based on Silicon Photomultipliers (SiPM) state of-the-art sensor of light with single photon sensitivity and unprecedented photon number capability. The goal is to inspire students and guide them towards the analysis and comprehension of different physics phenomena with a series of experiments based on state-of-the art technologies, instruments and methods.
What’s inside
The SP5600 is a General purpose Power Supply and Amplification Unit, integrating up to two SiPMs in a mother & daughter architecture allowing for easy mounting and replacement of the sensors. The basic configuration features two channels with independent gain control up to 50 dB and provides the bias voltage (up to 100 V) to the sensors with gain stabilization. Each channel can provide a digital output generated by the fast leading edge discriminators. A timing coincidence of the two channels is also available.
The DT5720A is a CAEN Desktop Waveform digitizer housing 2 channels 12 bit 250 MS/s ADC with a dedicated charge integrating firmware for real time pulse processing.

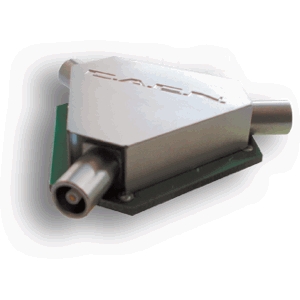

The Mod. A315 splits one input on two output signals. All the connectors are LEMO female type. The splitter is adapted for 50 Ohm lines. The device is completely passive (no power supply is required); the amplitude on each output is one half of that on the input.

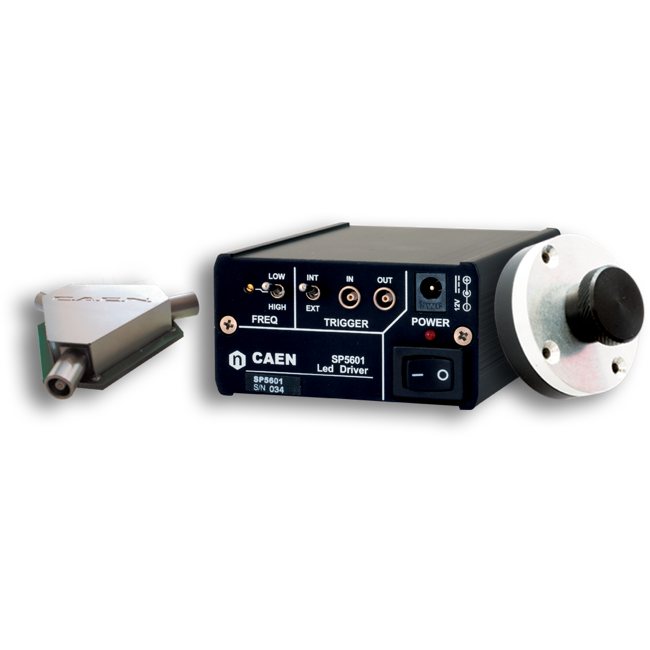

The SP5601 is an ultra-fast LED Driver with pulse width at ns level, tunable intensity and frequency, that provides a low-cost tool for the detector characterization. The LED pulse generation can be triggered by an internal oscillator or by an external pulser.
The SP5650C is a sensor holder provided in the Educational Photon kit. The holder hosts a 1.3×1.3 mm2 Silicon Photo- Multipliers; moreover, a probe inside the holders senses temperature variations, thus allowing the user to compensate for possible gain instability. The SP5650C is made of a mechanical structure providing a FC fiber connector and a PCB where the SiPM is soldered.
The SP5608 is a support with a embedded plastic scintillating tile, directly coupled to a SiPM . The tile, with a sensitive volume of 47 x 47 x 10 mm3, is the ideal tool for tests with beta emitting isotopes and cosmic rays. The support structure allows to use the SP5608 stand-alone or to use two tile modules to build a cosmic telescope.

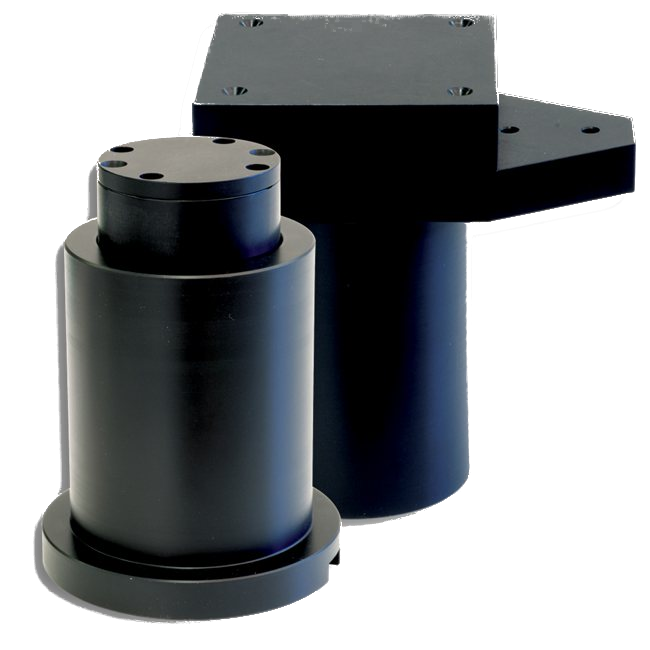

SP5606 is mini-spectrometer for gamma ray detection. The spectrometer is composed of a mechanical structure that houses a scintillating crystal, coupled to a dedicated SiPM. Three different crystals are available: CsI, LYSO and BGO. The spectrometer is equipped with a bottom support to allows an easy connection to the SP5600 via the splitter A315, to avoid saturation effects.

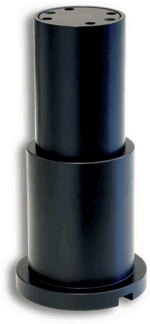

The Gamma absorption tool allows to perform gamma attenuation measurements. It is a modular tool and its design allows an easy connection to the SP5606 bottom support.
HERA – Software Suite for CAEN Educational Kit
HERA (Handy Educational Radiation Application) is a modern and flexible platform for teaching the fundamentals of Statistics, Particles Detection, and Nuclear Imaging thanks to the simple graphical interfaces and the embedded documentation.
Technical Specifications
- SP5600 General Purpose Power Supply and Amplification Unit
- Packaging:
– 154 x 71 x 43 mm3
– 2 SIPM Heads
Power Supply:
– Vbias: 0 ÷ 120 V
– Max Current: 100 µA
– Temp. Feedback Res.: 0.1 °CWideband amplifier:
– Gain: 0 ÷ 50 dB (step: 1 dB)
– Bandwidth (-3dB): 100 kHz ÷ 500 MHz
– Output dynamic range: ±2V
– Discriminator threshold: ±800mV (step: 25µV)
- DT5720A Desktop Digitizer
- Packaging:
– 1154x50x164 mm3 (WxHxD)
Analog Input:
– 2 channels (MCX 50 Ohm)
– Single-ended
– Input range: 2 Vpp
– Bandwidth: 125 MHz
– DAC Offset: ± FSR/2
Digital conversion:
– Resolution: 12 bit
– Sampling rate: 250 MS/sInterfaces:
– USB
– Optical Link
Digital Pulse Processing
– Digital Pulse Processing for charge Integration
- A315 Splitter
- Connectors: LEMO
- Adapted for 50 Ohm lines
- Completely passive
- SP5606 Mini Spectrometer
- Directly coupled to a SiPM 6 x 6 mm2
- Crystals (3x3x15 mm^3): LYSO, BGO, CsI
- Temperature feedback sensor embedded

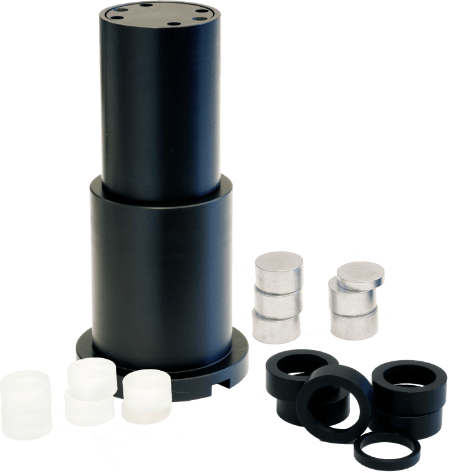

- SP5607 Absorption tool
- Spacers:
– 4 mm thick (nr.1)
– 10 mm thick (nr. 5)
Aluminium Absorbers:
– 4 mm thick (nr.1)
– 10 mm thick (nr. 5)IPMMA Absorbers:
– 4 mm thick (nr.1)
– 10 mm thick (nr. 5)
- SP5601 LED Driver
- Packaging:
– 79 x 42 x 102 mm3 (WxHxD)
LED specification:
– Wavelength: 405 nm (Violet)
– Pulse Width: 8 ns (Typ.)Operating Modes:
– Tunable intensity and repetition rate
– Output frequency: From 500 Hz to 5 MHz
– Triggered via internal pulse generator, or via external source
Terminated optical fiber included
- SP5650C
Embedded SiPM: Hamamatsu MPPC S13360-1350CS 1.3×1.3 mm2 Active Area, Temperature feedback sensor embedded
- SP5608 Scintillating Tile
- Scintillating Material: Polystyrene
- Sensitive Volume: 47x47x10 mm3
- Directly coupled to a SiPM 6 x 6 mm2
- 20 Paper and Aluminium sheets are included
- Temperature feedback sensor embedded
