GAMON Platform

Global Measurement Platform for Nuclear Safety and Security

The GAMON Platform may be tailored to the customer’s specific needs, offering critical advantages and capabilities such as rapid deployment, the development of a multi-station network, and improved personnel safety and security in compliance with international standards. These advantages are realized thanks to easy, fast, secure, and reliable access to all real time measurements.

Overview

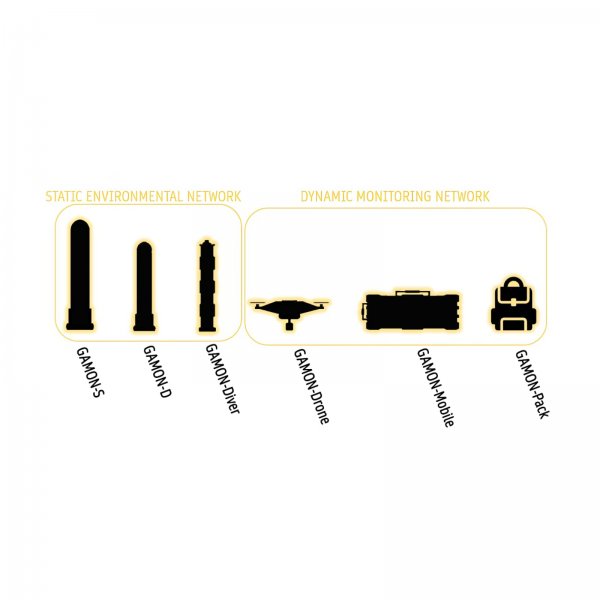

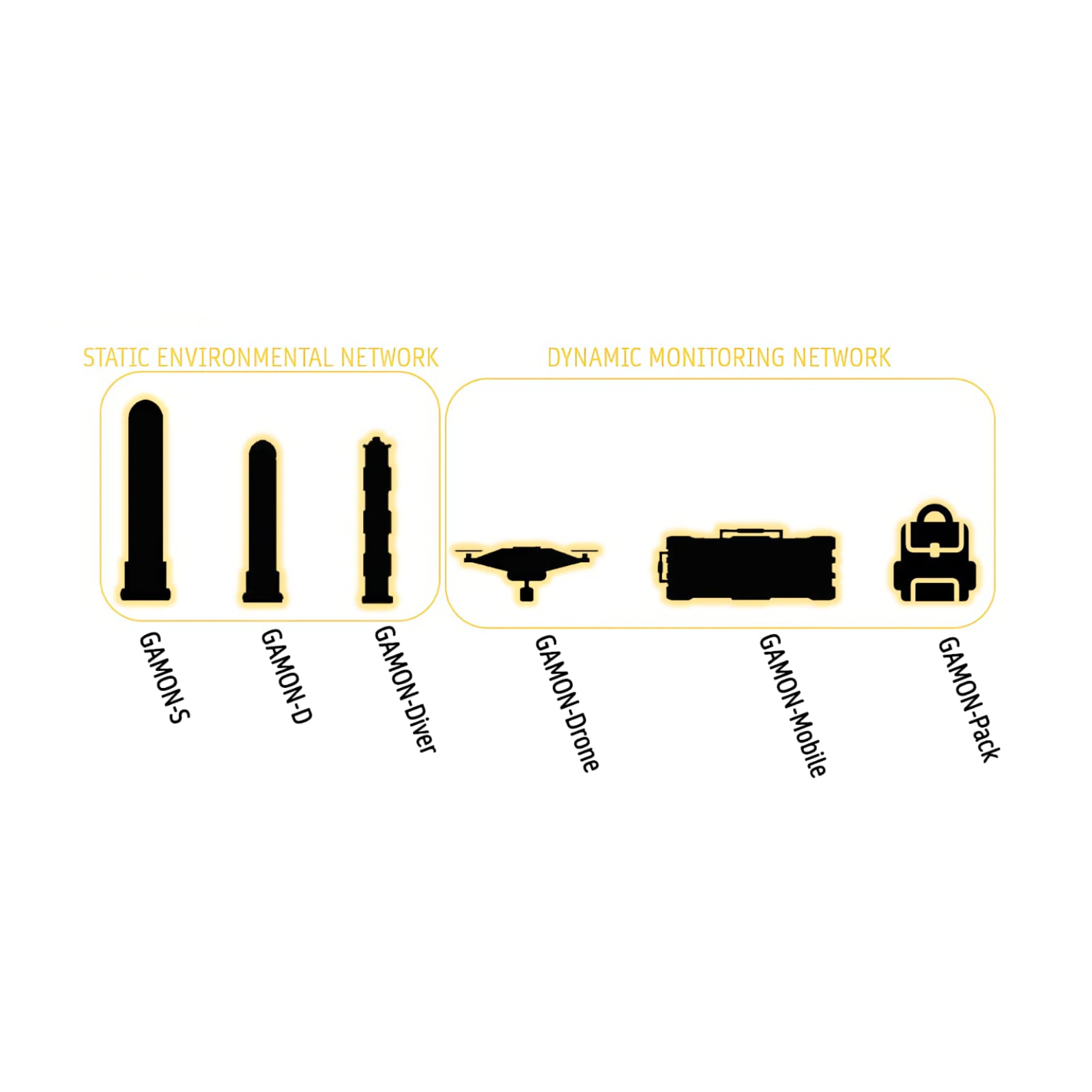

The GAMON Platform is a uniquely innovative system, capable of empowering authorities and institutions with the ability to respond to a wide range of operational activities and complex radiological situations in a single, simple, reliable solution. The GAMON Platform is built upon a foundation of smart systems that are designed to be interconnected into a network of sensors.

The GAMON Platform combines a cloud database application for visualization and analysis of data from all GAMON systems, as well as multi-functional electronics for autonomous and real-time measurements.
The integrated nature of the GAMON Platform can dramatically reduce response time for a real prompt intervention. The GAMON Geo- Referenced web application allows operators and administrators to easily visualize network status and dataflow in real time. Additionally, by taking advantage of integrated data-fusion algorithms, operators can easily manage ongoing in-field procedures and reduce prompt intervention time.

GAMON Platform Benefits

The GAMON Platform relies upon intelligent, cutting-edge, digital MCA electronics to perform data analysis and execute source identification algorithms. System network and integration options include GPS, WiFi, Bluetooth, and Long-Range (LoRa) wireless communication protocols as well as wired communication via USB and Ethernet. All data are automatically stored to a secure database via web (TCP/IP) protocol. Data be read from this database via the GAMON web application included with the system.

The GAMON Platform may be tailored to the customer’s specific needs, offering critical advantages and capabilities such as rapid deployment, the development of a multi-station network, and improved personnel safety and security in compliance with international standards. These advantages are realized thanks to easy, fast, secure, and reliable access to all real time measurements.



Immagine esplicativa
Immagine esplicativa

Stress Test Results

All the GAMON systems are enclosed in a rugged case tailored for their use case scenario. The rugged case IP level range from IP 66 to IP69k and

it is designed for outdoor operation
in extreme weather condition. Each GAMON system has been extensively tested in environmental chamber.

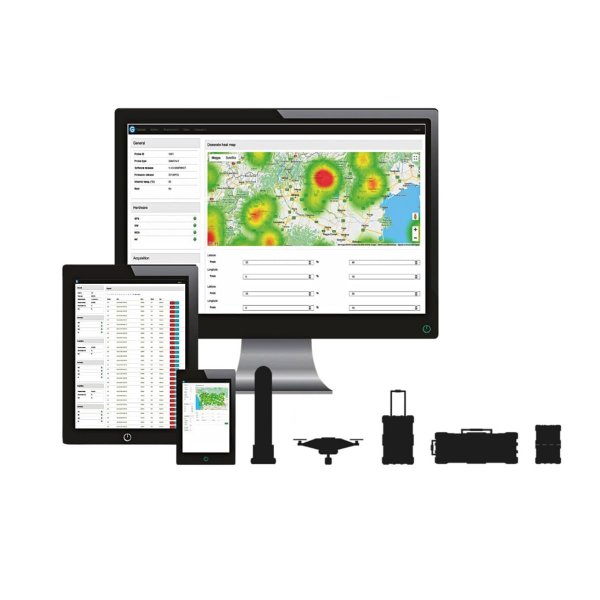

GAMON Platform Software

The GAMON Platform Software is an intuitive and easy handling tool for the operator to supervise all GAMON systems deployed in the field by a user-friendly web interface. The intuitive graphical interface allows the user to fully control the situation guaranteeing fast and reliable decision making for prompt emergency response.

The GAMON Platform Software visualizes all GAMON network of systems on a map showing the status of all deployed systems and the radiological situation, alerting the operator in case of alarm. The dosimetric heat map is obtained using data fusion algorithms using real time measurements for all georeferenced systems.

The GAMON Platform software is the perfect tool for wide area coverage applications or the monitoring of sensitive locations or events to have a safer and clearer monitoring overview.

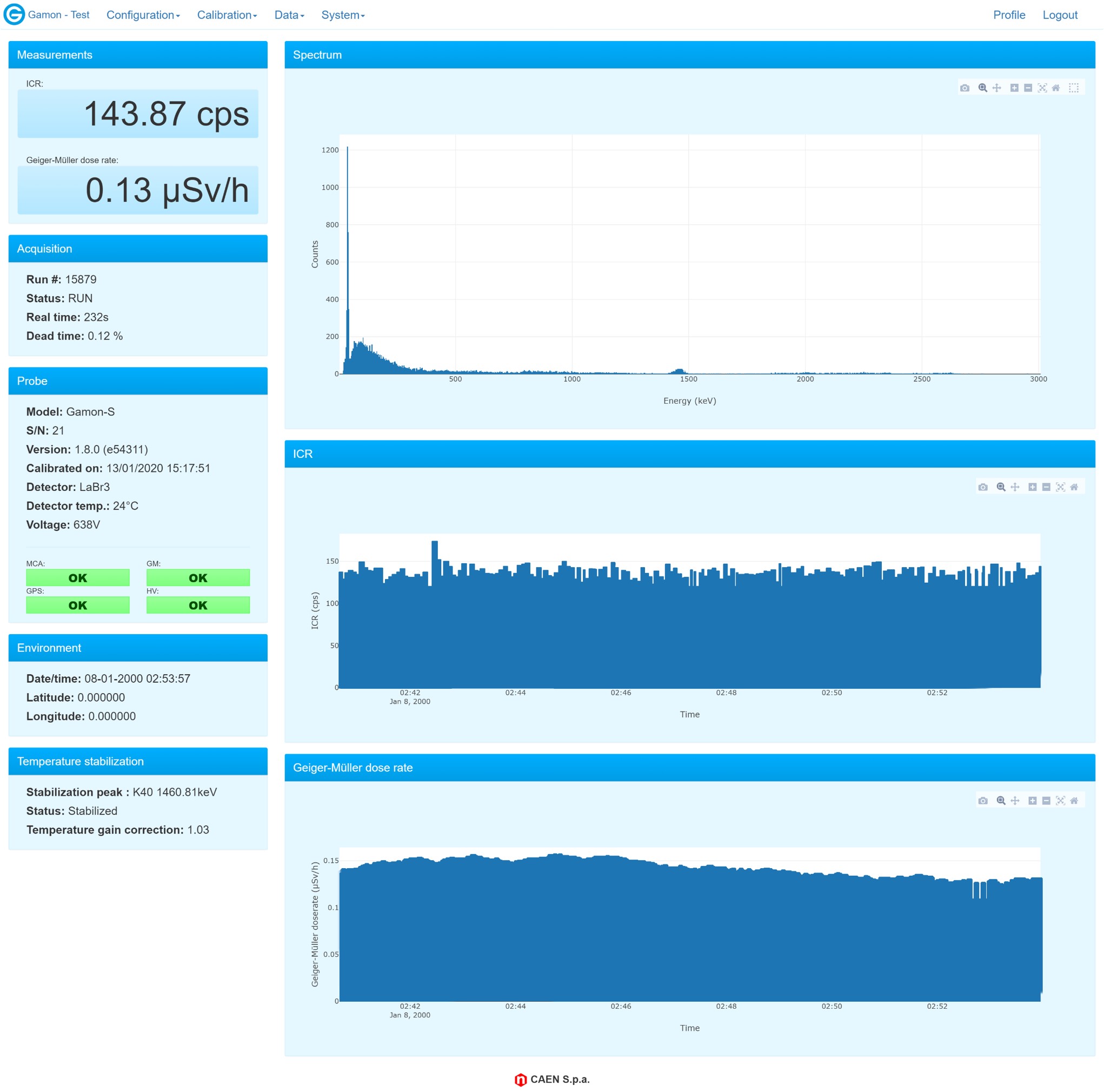

Web Interface Based Software Integrated in the GAMON System

The systems of the GAMON platform are provided with a web server application running in the internal central unit processor therefore, no central data server is required. The radiological information is stored in an internal database and in the wide non-volatile memory, allowing autonomous data taking even in case of sudden connection lost. Spectra, acquisition reports, data history can be displayed and downloaded through a common web browser. Users can monitor the data or modify the acquisition settings depending on the level of access credentials: user, technician or administrator.

Spectral analysis and statistical data treatment is performed according to ISO-11929 and extended isotope library is used for identification routines to address the robust spectrum stabilization algorithms are implemented.

AUTOMATIC STATISTIC ANALYSIS TOOL
Allows the user to make queries on the reports stored in the internal database by selecting: starting and ending date, status, type. It shows the trend of:

  •  H*(10) dose for each identified isotope • Average scintillator count rate (ICR)
  • Average GM dose rate
  • Rain (optional)

Over the period selected by the user’s queries. A pie chart shows the percentage of normal, warning, alert and critical reports over the selected period.

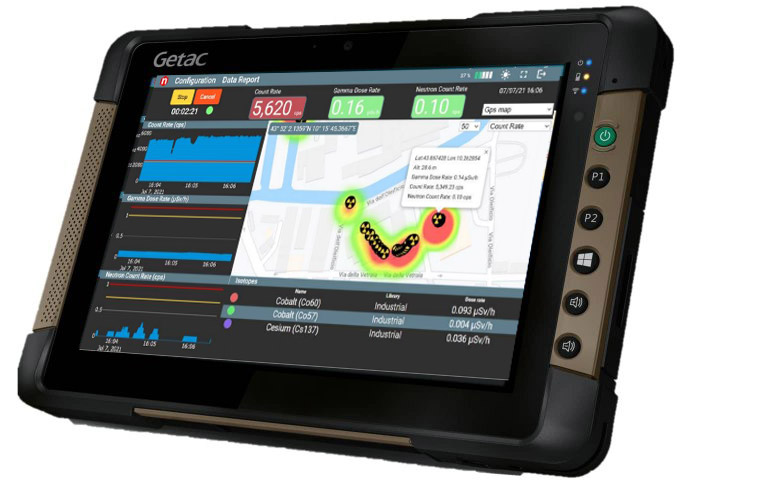

MAPPING FUNCTIONALITY
Is enabled thanks to the included gps antenna. It allows to:

  • track the mobile system during the operation
  • immediately understand the distribution of the contamination by viewing the heat map

The total H*(10) dose heat map is obtained from the data fusion of every GAMON System in the network deployed in field. Every report include the GPS coordinates for offline data analysis.



Immagine esplicativa
Immagine esplicativa

GAMON S

Gamma Radiation Spectroscopy System For Real-Time Radiation Monitor

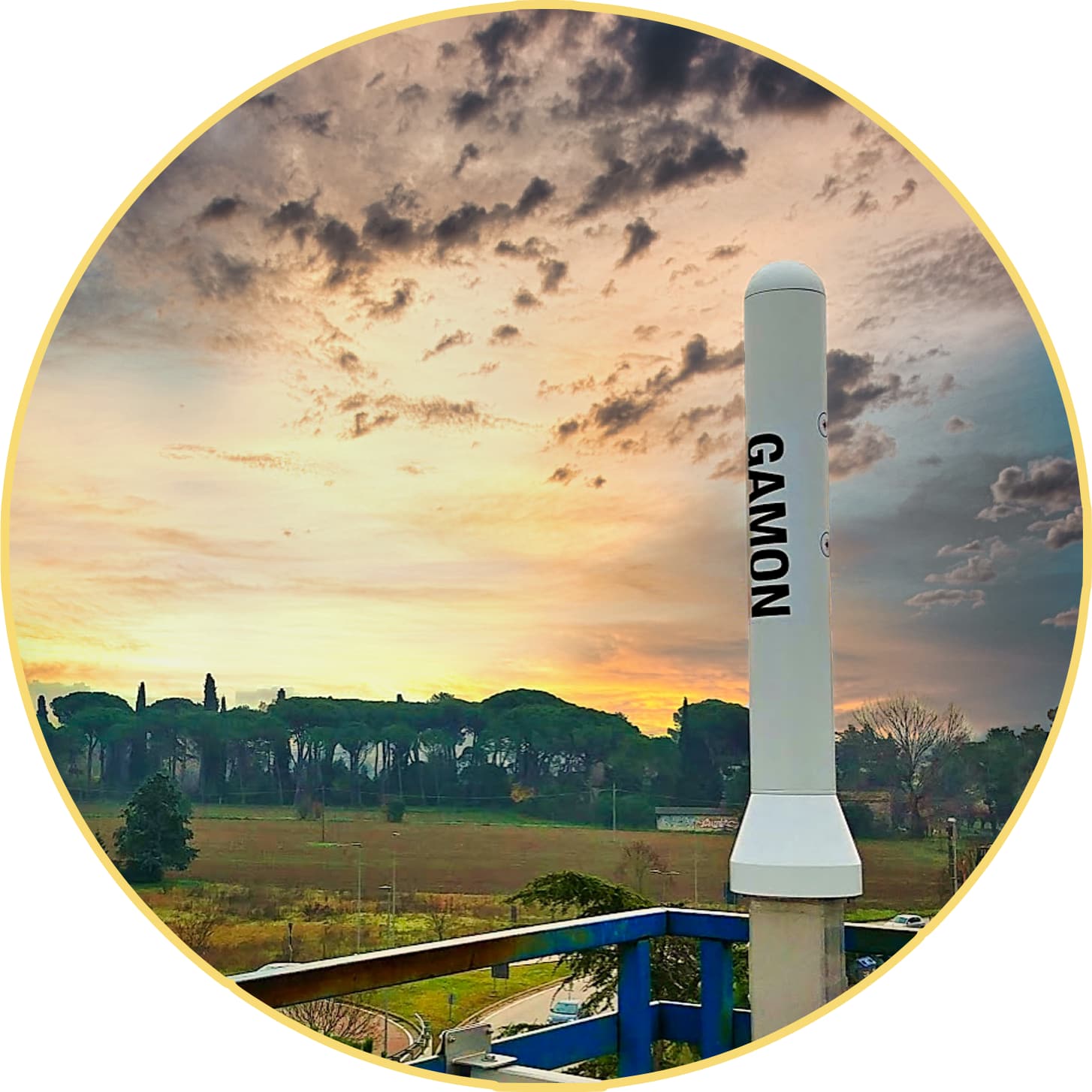

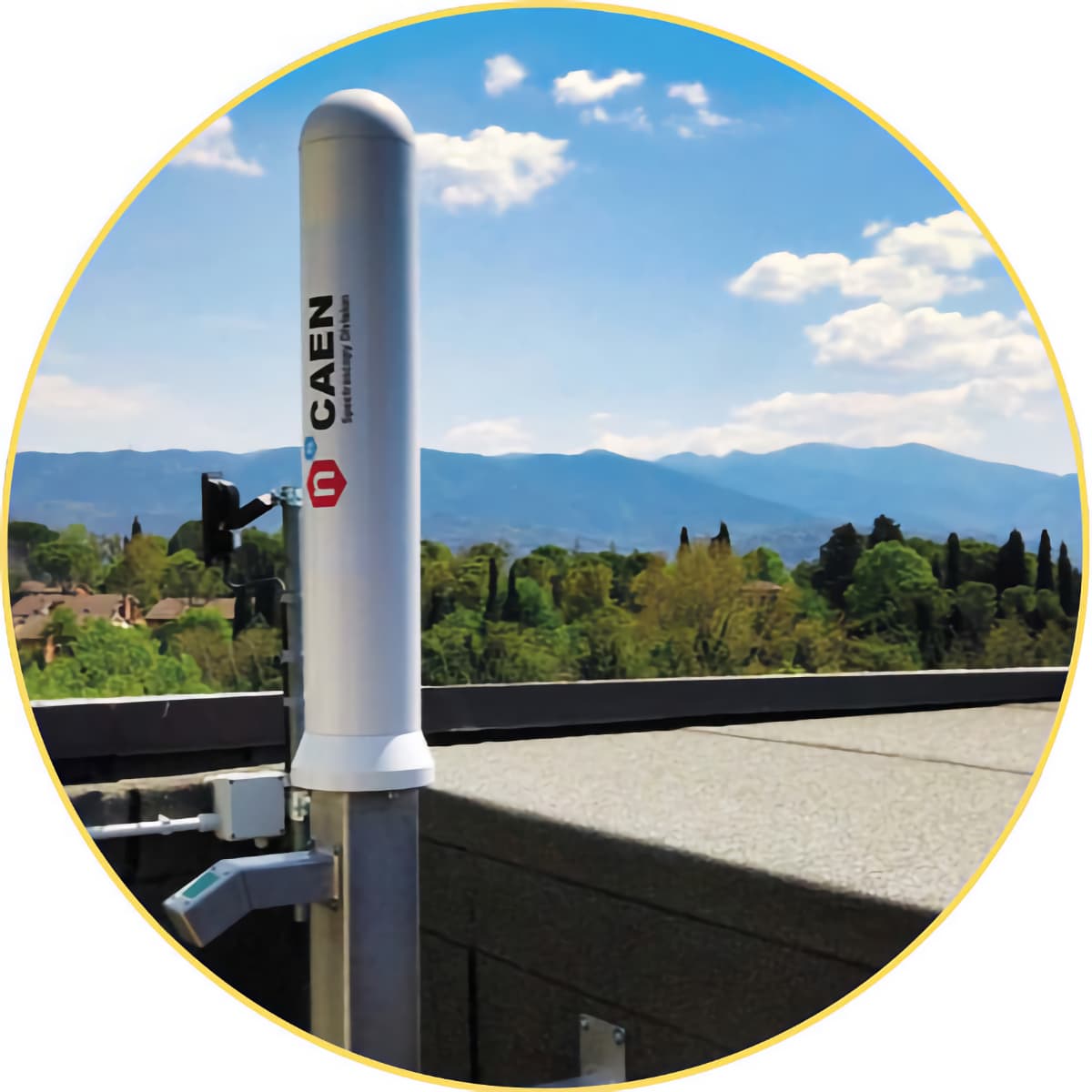

The GAMON S gamma radiation spectroscopy system is designed for early environmental warning and emergency response. It runs automatic real-time analysis of surrounding gamma emitting isotopes for detecting radiological threats.
On-field installation allows GAMON S to easily monitor wide surrounding area, detect small deviation from natural background thanks to the high detector efficiency, to provide detailed reports on the radioisotopes found.

The GAMON S has redundant alarm types, extended radiation dose rate range and configurable isotope-based alarm levels allowing the security personnel to adapt the system for the specific needs.

More info

GAMON D

The GAMON D is a versatile gamma dose rate monitoring system designed for early environmental warning and emergency response.

GAMON D integrates a low power consumption CPU, to guarantee autonomous operations, including the activation of backup communication interfaces for data transfer in any environmental condition.

The GAMON D is intended for a wide range of applications thanks to its high detection efficiency and its extended measurement range.

More info

Gamon Mobile

Vehicle Mountable Gamma Spectrometric Mapping System
GAMON Mobile is a modular and vehicle mountable spectroscopy system with radionuclide identification and mapping features. GAMON Mobile system is supplied in a rugged and IP66 container designed to resist to external stresses (e.g. shocks and vibrations) and easy to mount and fix on the vehicle chosen for the inspection (boat, helicopter or car).

It is designed to make radiometric measurement and identification of gamma emitters on wide areas providing a map of the radioactivity detected. The real time identification algorithm can recognize artificial gamma emitters beyond the natural background and mark the hot spot over the trajectory traveled by the moving vehicle. This feature allows the user to make a map of the radioactivity of the scanned area.

More info

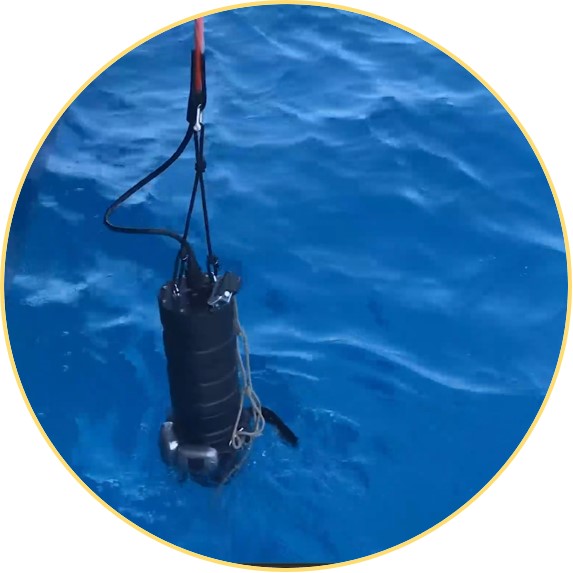

GAMON Diver

Compact Underwater System for Radionuclides Identification
The GAMON Diver system is specifically designed for submerged radiometric measurement and radiological alerts. The system can be used as a quick response measurement device, or it can be installed as a permanent monitoring device for sensitive underwater locations or for oil&gas applications.
The submersible hermetic case and its weight allow an easy gamma spectroscopic measurement in real time from small boat or watercraft.
The GAMON Diver system was designed to offer the best combination of portability, low power consumption and performance.

More info

Gamon Security

Spectroscopic Mobile and Networkable Station
GAMON Security is a fast and easy deployable gamma and neutron detection system with the capability to be networked wirelessly with other systems.

GAMON Security allows response personnel to quickly and safely address radiation threats. It can be positioned in sensitive locations to monitor the situation.
It provides remote monitoring and turnkey data reach back telemetry capabilities, thereby greatly reducing exposure risk to personnel in compromised environments.

More info

Gamon Pack

Portable And Discrete Radionuclide Identifier

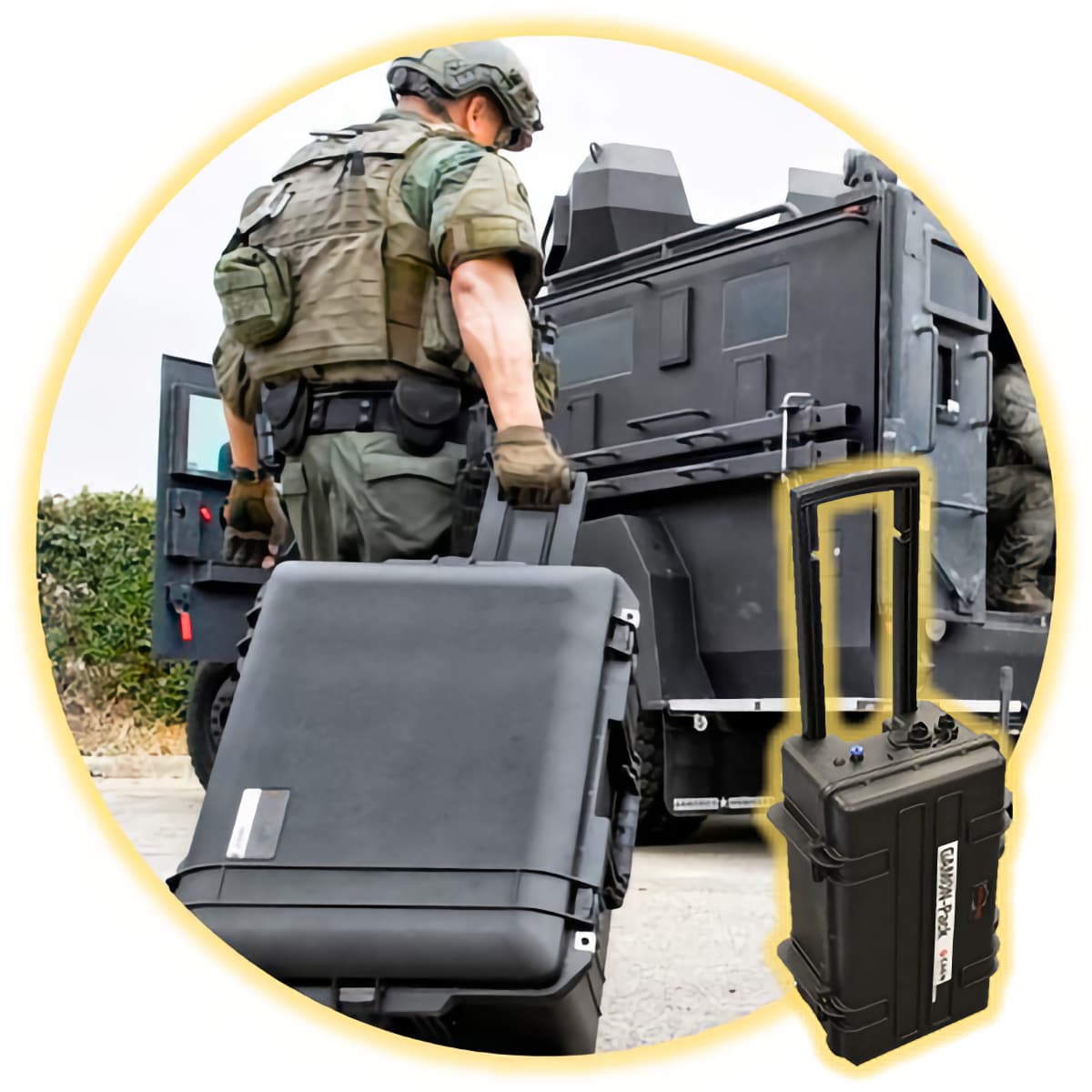

GAMON Pack is a portable detection unit which allows the detection and identification of radiation sources in crowded or sensitive areas or locations forbidden to vehicles.

It is designed to perform undercover measurements in strategic areas like airports or railway stations where the probability for a terroristic attack is higher.
The data are displayed on a visualization device (smartphone or tablet) that allows to remain anonymous in the crowd.

More info

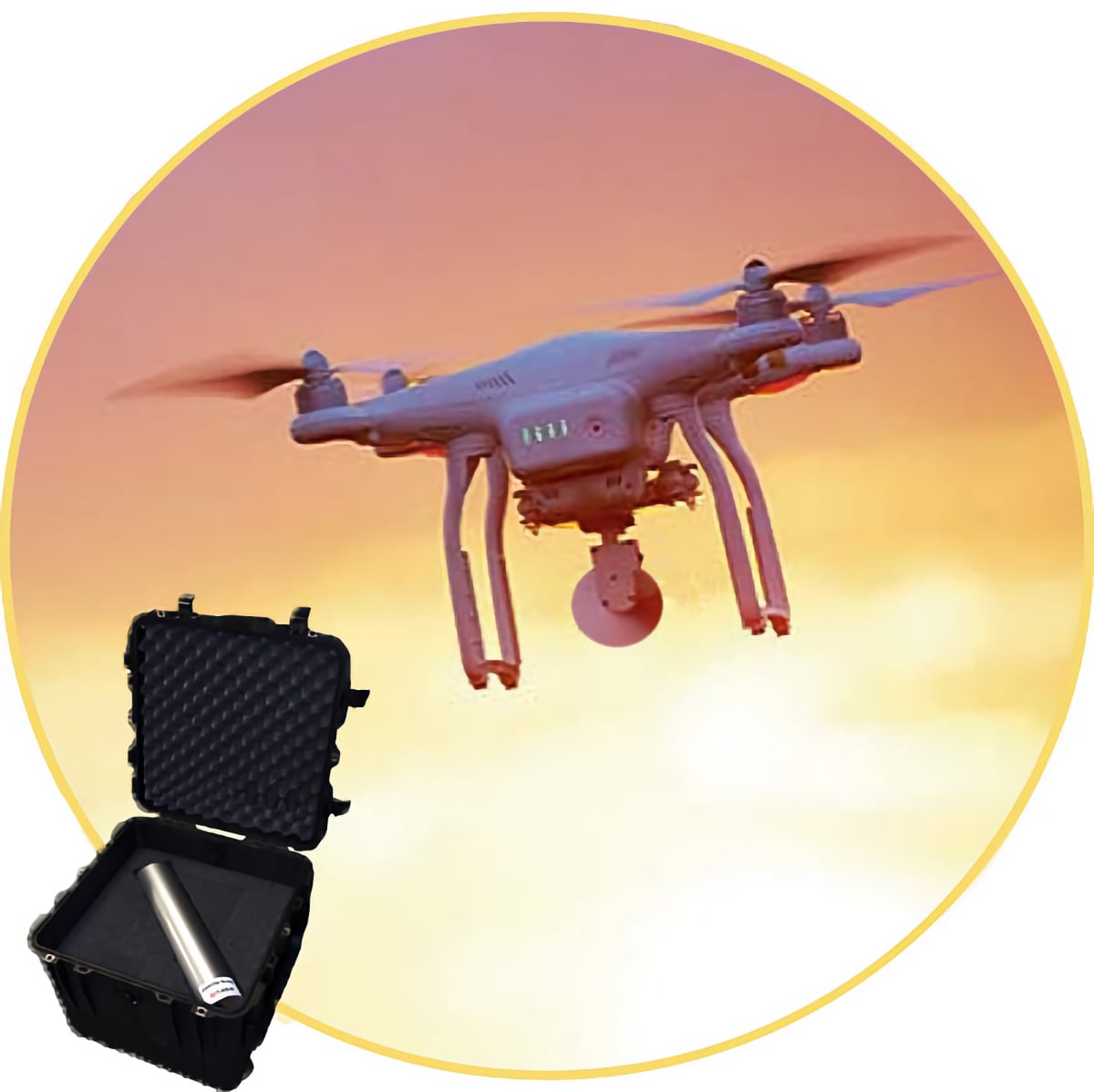

GAMON Drone

Compact Radionuclides Identification Mobile Unit
GAMON-Drone is a compact and independent system designed for radiological threat search. Weight and dimensions allow an easy installation on an UAV to conduct measurements over large areas to improve the operator safety or for access difficulties.

The GAMON-Drone is a two units system with independent spectrometric and dosimetry probes for gamma detection integrated in a rugged housing for outdoor environments. It communicates wireless directly to the ground control station where a GIS map visualizes trajectory and measurements without affecting the UGV connections and performances.

More info

GAMON Portal

Portal Monitor Family
The GAMON Airport family has been designed for infield real time radiation control of elements passing through the portal for security controls in sensitive access points. The family is made by two main types of portals: the Pedestrian Portal Monitors (PPM) and the Radiation Portal Monitors (RPM) for the monitoring of vehicles in transit.

The GAMON Airport systems detect both gamma and neutron emitters and can also identify the detected gamma radionuclides included in pre-selected libraries.

More info
