725 Digitizer family

16/8 Ch. 14-bit 250 MS/s Digitizer

Features

  • Resolution: 14-bit
  • Sampling Rate: 250 MS/s
  • Analog input on MCX coax. connectors
  • VME64/VME64X (16/8 ch.), NIM (8 ch.) and Desktop (8 ch.) modules
  • 0.5 or 2 Vpp input dynamic range with programmable DC offset adj.
  • Algorithms for Digital Pulse Processing
  • VME64/VME64X, USB and Optical Link communication interfaces
  • Multi-board synchronization features
  • 16 programmable LVDS I/Os
  • Daisy chain capability
  • Demo software tools, DPP Control Software, C and LabVIEW libraries

Applications

  • Nuclear and Particle Physics
  • Dark Matter and Astroparticle Physics
  • Fast Neutron Spectroscopy
  • Fusion Plasma Diagnostic
  • Environmental Monitoring
  • Homeland Security

Overview

The 725 is a family of CAEN Waveform Digitizer able to perform basic waveform recording and run online advanced algorithms (DPP) for digital pulse processing: charge integration and pulse shape discrimination with constant fraction timing, pulse height analysis, zero-length encoding, and dynamic acquisition window. The wide selection of DPP algorithms supported by this family makes the 725 a “must-have” for any kind of nuclear physics application. Data is read by a Flash ADC, 14-bit resolution and 250 MS/s sampling rate, which is well suited for mid-fast signals as the ones coming from liquid or inorganic scintillators coupled to PMTs or Silicon Photomultipliers, but also for high precision detectors as Silicon or HPGe coupled with charged sensitive preamplifiers. The acquisition can be channel independent and it is possible to make coincidence/ anti-coincidence logic among different channels and external veto/gating. Multiple boards can be synchronized to build up complex systems.

In case of DPP mode, data can be saved in time-stamped list mode to support higher input rates and improving the throughput performances. Piled-up events can be rejected or saved for oine analysis. The acquisition in DPP mode is fully controlled by the CoMPASS and MC2Analyzer software, which manage the algorithm parameters, build the plots and saves the relevant energy, time, and PSD spectra. In case of waveform recording mode, the user can take advantage of the CAENScope and WaveDump software to access and save the waveforms.

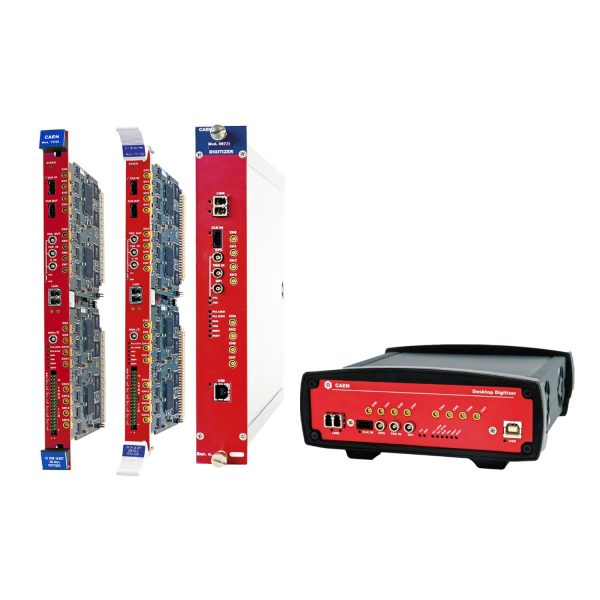

Libraries and demo software in C and LabView are available for integration and customization of specific acquisition systems. 725 family comes in three form factors: VME (16 or 8 input channels), NIM (8 input channels) and Desktop (8 input channels). The communication to and from the board is provided through the following interfaces: USB (Desktop and NIM form factors), VMEbus (VME form factor), and Optical Link (all form factors).

Loading...

Loading…

Interfaces & I/O

USB
An USB 2.0 link is provided in NIM and Desktop form factors for an easy data readout
VME Digitizer can be controlled via USB using the CAEN V1718 VME-USB2.0 Bridge

Optical Link
An Optical link is provided in any form factor for high performance data readout through CAEN proprietary daisy-chainable CONET communication protocol.
it is possible to connect up to 8/32 ADC modules to a single Optical Link Controller (Mod. A2818/A3818)

Digital I/O
Digital I/Os are provided in VME boards that can be used for individual trigger propagation to external trigger logic. This feature makes VME form factor ideal to scale up the acquisition channels where a global trigger generation is mandatory.

Immagine esplicativa

Models

Model Image Package No. of Channels Max Sampling Rate (MS/s) Bandwidth (MHz) Full Scale Range (V) Resolution (bits) LSB (µV) Board Memory (Samples/ch) Actions

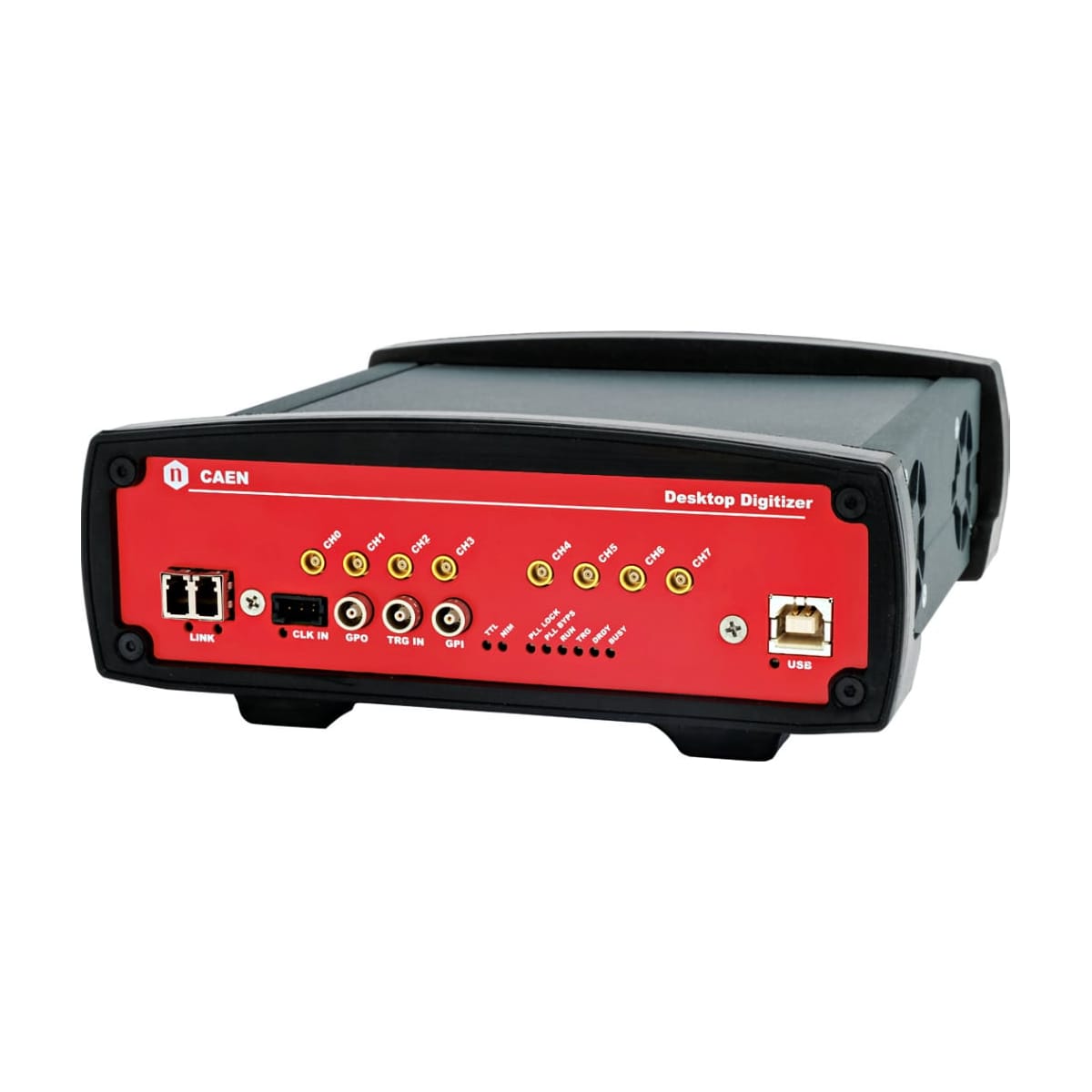

DT5725 DT5725 Desktop 8 250 125 0.5 - 2 14 30 - 120 640 k / 5.12 M QUOTE

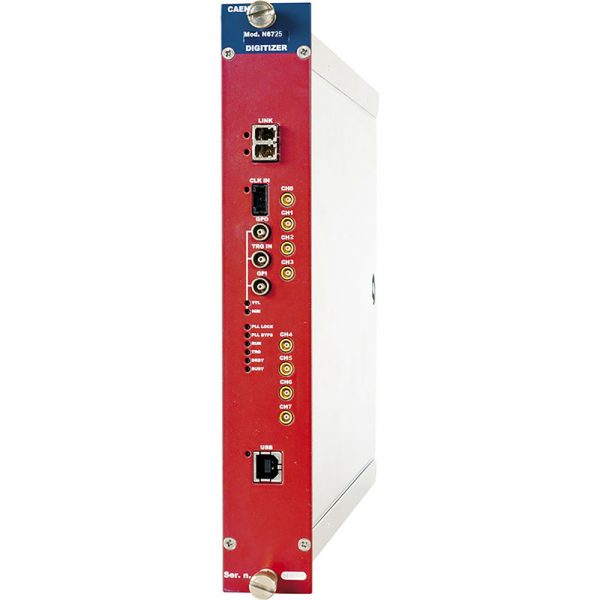

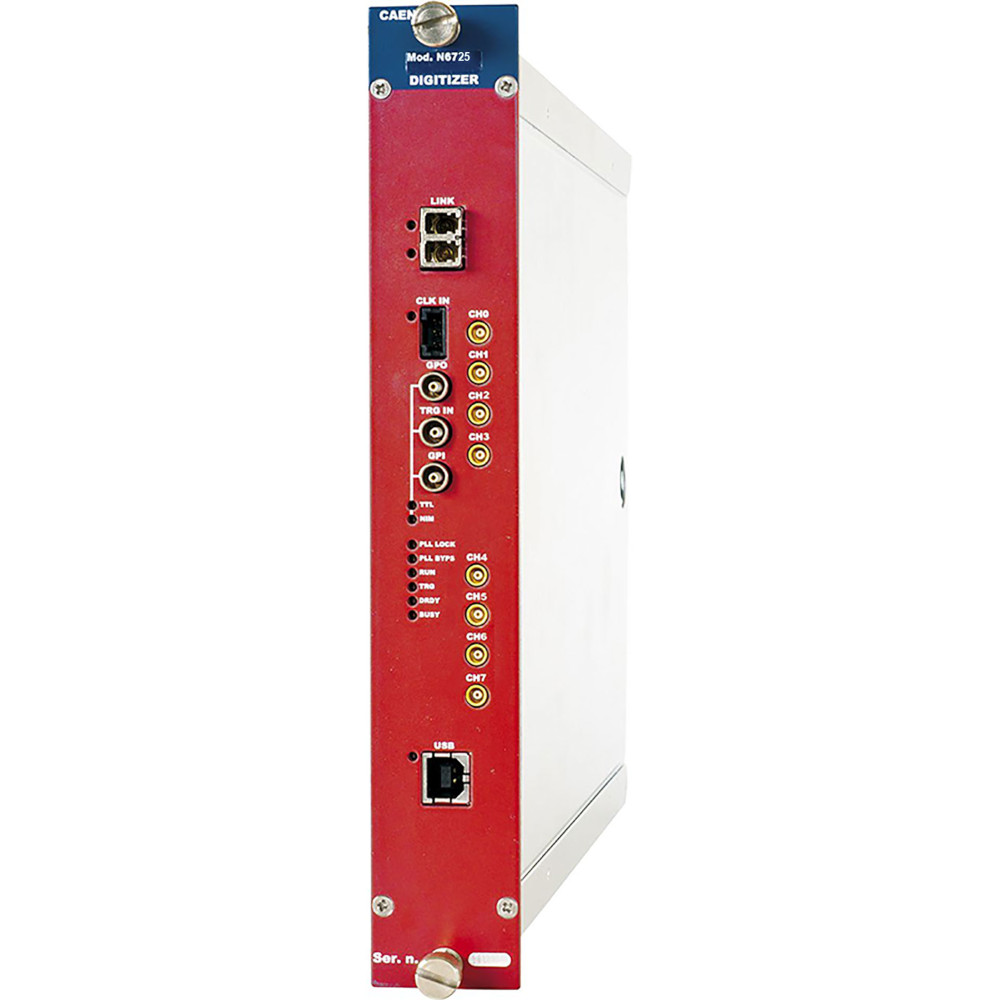

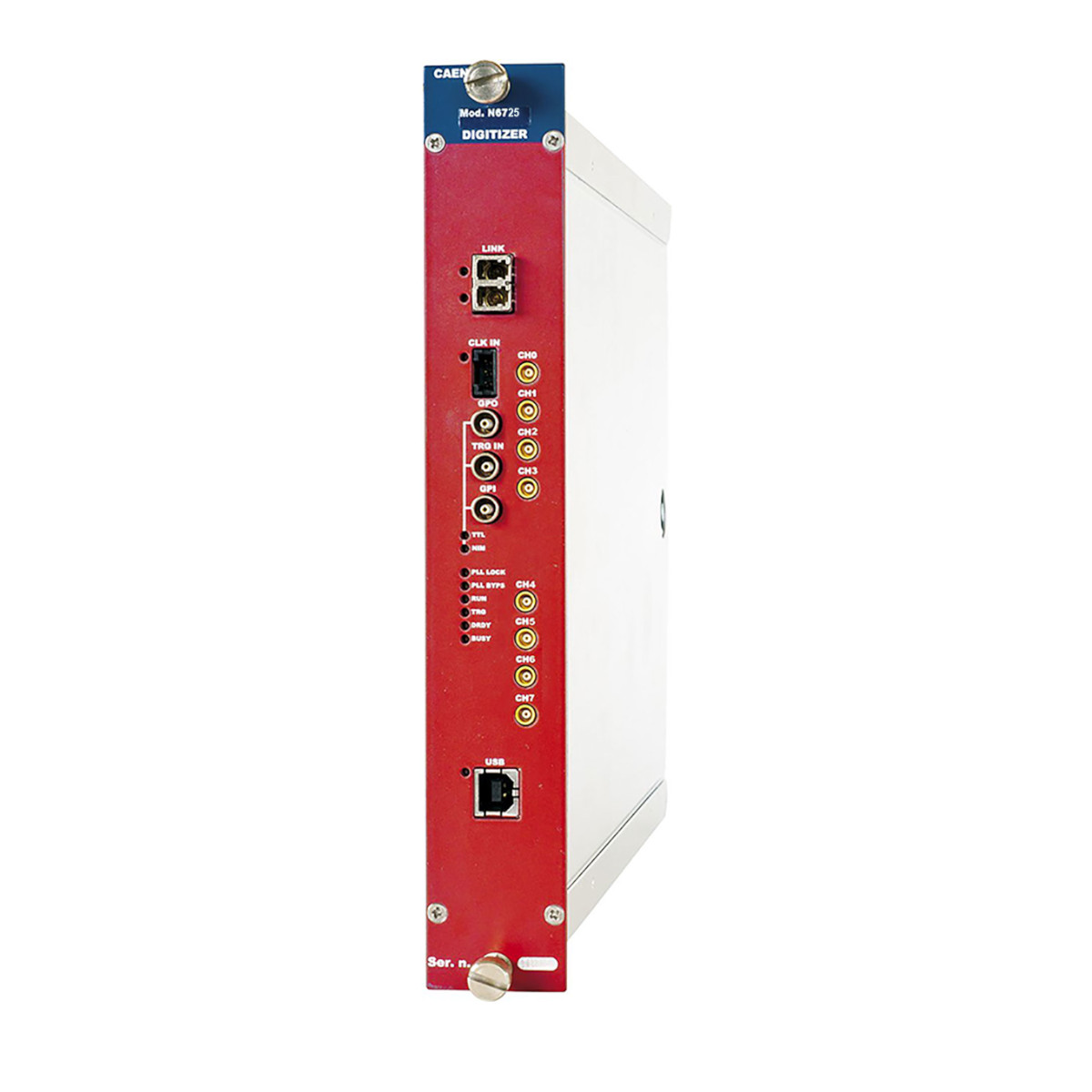

N6725 N6725 NIM 8 250 125 0.5 - 2 14 30 - 120 640 k / 5.12 M QUOTE

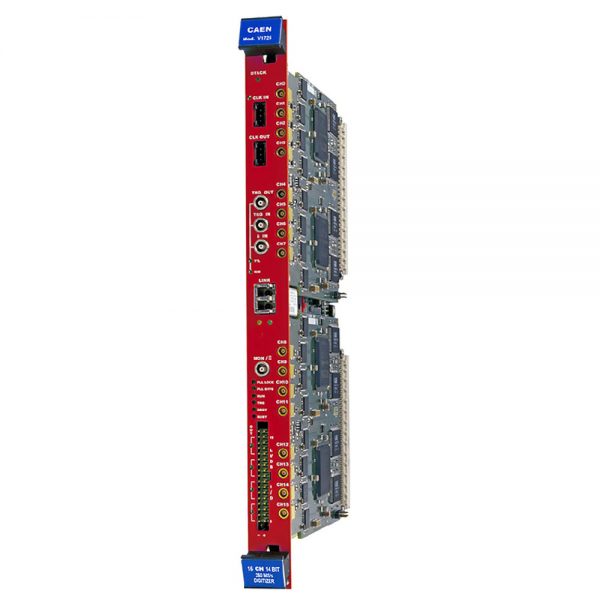

V1725 V1725 VME 8 / 16 250 125 0.5 - 2 14 30 - 120 640 k / 5.12 M QUOTE
VX1725 VX1725 VME64X 8 / 16 250 125 0.5 - 2 14 30 - 120 640 k / 5.12 M QUOTE
