EPICS IOC (PSM Power Supply Modules)

zaki — Wed, 04 Oct 2017 16:19:32 +0000

EPICS (Experimental Physics and Industrial Control System) is a set of Open Source software tools, libraries and applications developed collaboratively and used worldwide to create distributed soft real-time control systems for scientific instruments such as a particle accelerators, telescopes and other large scientific experiments.
Client software (EPICS Channel Access Client), which requests access to a Process Variable, runs on the Host PC and is connected to the system via TCP/IP.

Supported Products:	NDT14xx, R14xxET, DT14xxET, N14xxET, N14xx Power Supply Families
Supported Comm. Interface:	Ethernet, USB

For more information about EPICS visit the Argonne National Laboratory EPICS website: http://www.aps.anl.gov/epics/

L'articolo EPICS IOC (PSM Power Supply Modules) proviene da CAEN - Tools for Discovery.

LabVIEW Driver (PSM – Power Supply Modules)

zaki — Wed, 04 Oct 2017 16:19:33 +0000

LabVIEW Driver (PSM – Power Supply Modules) is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules. Functions are divided in five primary groups: Initialize/Close, Configuration, Action/Status, Data and Utility to help the user to develop a control SW in the easiest possible way. All the VIs belonging to each of these primary groups are described in detail in the User Manual. A Demo control SW developed using this tool can be downloaded from the website, in a package containing an executable and the source code, as an example showing the capabilities of this set of VIs. This Driver is also available in the relative section of the National Instruments website.

Supported Operating Systems	Windows (32-64 bit)
Supported Products	NIM & NIM/Desktop & Desktop & Rack Mount Power Supply Modules: SMART HV, DT55xxE, N14xx, N14xxET , NDT14xx, R14xxET and DT14xxET Families, DT55xxE family
Supported Comm. Interface:	USB (N14xx / NDT14xx / N14xxET / DT14xxET / R14xxET / DT55xxE/ SMART HV), Ethernet (NDT14xx / N14xxET / DT14xxET / R14xxET/ DT55xxE/ SMART HV)

L'articolo LabVIEW Driver (PSM – Power Supply Modules) proviene da CAEN - Tools for Discovery.

R1419ET

zaki — Wed, 04 Oct 2017 16:19:43 +0000

The CAEN Mod. R1419ET provides 8 or 4 (depending on version) independent High Voltage channels in a 19" rack unit (110/220V AC Powered). Each channel can provide a ±500V max voltage and a 200 µA max current. The output polarity is independently selectable for each channel. Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV connectors. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the range 1÷50 V/s in 1 V/s steps. The module features 5 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 500 pA. Module control can take place either locally thanks to a 2.8" Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet.

SHV connector 19'' 2U, 4/8 channels for Mod. R1419ET

Consult our connectors reference page for technical information. A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. EPICS and LabVIEW also supported. Safety features allows the module to perform as a current generator and includes:

Interlock	Common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function.
Overvoltage and Undervoltage	warning when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V).
Overcurrent detection	if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off.
VMAX	Programmable VMAX protection limit.

L'articolo R1419ET proviene da CAEN - Tools for Discovery.

R1470ET

zaki — Wed, 04 Oct 2017 16:19:43 +0000

The CAEN Mod. R1470ET provides 4 or 8 (depending on version) independent High Voltage channels in a 19" rack unit (110/220V AC Powered). Each channel can provide a ±8 kV max voltage, a 3 mA max current and a 9 W max power (8 W max power when output voltage is larger than ±3 kV). The output polarity is independently selectable for each channel. Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV connectors. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps. The module features 50 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 5nA. Module control can take place either locally thanks to a 2.8" Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet.

SHV connector 19'' 2U, 4/8 channels for Mod. R1470ET

Interlock	Common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function
Overvoltage and Undervoltage	warning when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V)
Overcurrent detection	if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off
VMAX	Programmable VMAX protection limit

L'articolo R1470ET proviene da CAEN - Tools for Discovery.

R1471ET

zaki — Wed, 04 Oct 2017 16:19:43 +0000

The CAEN Mod. R1471ET provides 4 or 8 (depending on version) independent High Voltage channels in a 19" rack unit (110/220V AC Powered). Each channel can provide a ±5.5 kV max voltage and a 300 µA max current. The output polarity is independently selectable for each channel. Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV connectors. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps. The module features 5nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 500 pA. Module control can take place either locally thanks to a 2.8" Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet.

SHV connector 19'' 2U, 4/8 channels for Mod. R1471ET

Interlock	Common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function
Overvoltage and Undervoltage	warning when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V)
Overcurrent detection	if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off
VMAX	Programmable VMAX protection limit

L'articolo R1471ET proviene da CAEN - Tools for Discovery.

R1471HET

zaki — Wed, 04 Oct 2017 16:19:43 +0000

The CAEN Mod. R1471HET provides 4 or 8 (depending on version) independent High Voltage channels in a 19" rack unit (110/220V AC Powered). Each channel can provide a ±5.5 kV max voltage and a 20 µA max current. The output polarity is independently selectable for each channel. Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV connectors. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps. The module features 1 nA Iset/Imon resolution. Zoom for Imon increases resolution to 50 pA. Module control can take place either locally thanks to a 2.8" Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet.

SHV connector 19'' 2U, 4/8 channels for Mod. R1471HET

Interlock	Common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function
Overvoltage and Undervoltage	warning when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V)
Overcurrent detection	if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off
VMAX	Programmable VMAX protection limit

L'articolo R1471HET proviene da CAEN - Tools for Discovery.

Connectors

t.masini@caen.it — Fri, 16 Nov 2018 14:06:05 +0000

L'articolo Connectors proviene da CAEN - Tools for Discovery.

R1443

Francesca Capochiani — Tue, 26 Jan 2021 11:35:47 +0000

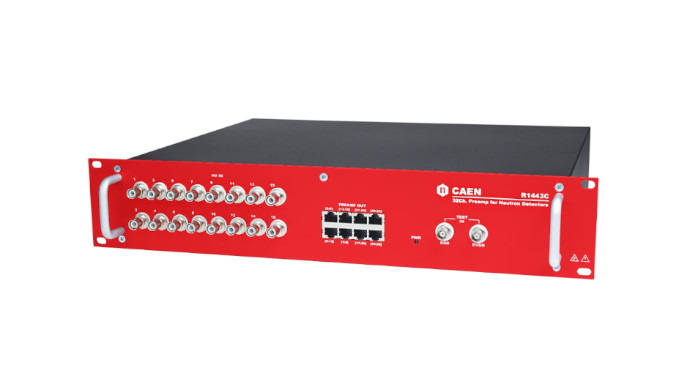

The CAEN Mod.R1443 is a 32/64 channels Charge Sensitive Preamplifier in a 19ʺ rack unit. It has been developed in collaboration with Institut Laue-Langevin in Grenoble, France, and it is specifically designed for operating with neutron detectors as 3He or BF3 tubes. Given the number of input channels, it can handle up to 16/32 position-sensitive tubes, each tube having two outputs, one for each end. The pre-amplifier has an exponential time constant of 1 µs. This guarantees excellent performances even at high rates exceeding 100 kcps. The output of this preamplifier is typically readout by ADC and Digital Pulse Processing electronics in order to perform specific filtering to achieve the best charge, timing and axial position measurements. The R1443 is 120/230 V 50/60 Hz AC Powered.

Here you can find the link at the "MIRACLES detector prototypes and front-end electronics: integration, tests and some lessons learned" presented in DENIM (Design and Engineering of Neutron Instruments Meeting) on September 2023 at Forschungszentrum Jülich in Germany.

L'articolo R1443 proviene da CAEN - Tools for Discovery.

R1472ETS

t.masini@caen.it — Wed, 17 Nov 2021 13:18:49 +0000

The CAEN Mod. R1472ETS provides 1 High Voltage positive channel in a 19" rack unit (110/220V AC Powered). The channel can provide a +3 kV max voltage, a 2 mA max current and a 6 W max power. HV output is delivered through SHV connector. The HV output RAMP-UP and RAMP-DOWN rates may be selected in the range 1÷500 V/s in 1 V/s steps. The module features 50 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 5 nA. Module control can take place either locally thanks to a 2.8" Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet.

SHV connector 19” 2U, 1 channel for Mod. R1570ETS

Channel	inhibit.
Overvoltage and Undervoltage	warning when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V).
Overcurrent detection	if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off.
VMAX	Programmable VMAX protection limit.

L'articolo R1472ETS proviene da CAEN - Tools for Discovery.

R1443

Francesca Capochiani — Wed, 14 Dec 2022 09:29:36 +0000

L'articolo R1443 proviene da CAEN - Tools for Discovery.
