Weeroc Testboards

Control Systems for Weeroc ASICs

Features

  • Specific design for each Weeroc ASIC
  • Hosting a small ASIC for easy DAQ management
  • Easy characterization and debug of the ASIC
  • Access to all ASIC’s digital and analog I/Os
  • ASIC internal signals monitor
  • Data acquisition with real detectors
  • Connections for an external High Voltage power supply
  • Mini-USB for data transfer and board power supply
  • Control and acquisition software for Windows OS (LabVIEW interface for TRIROC 1A board)

Overview

Weeroc Testboards are compact platforms designed to test and characterize Weeroc ASICs. This tool is suited to easily evaluate the performances of the ASIC and, thanks to its features, allows a versatile use with real detectors. The testboard provides easy access to all ASIC’s digital and analog I/Os and implements a DAQ system consisting of an Altera Cyclone III FPGA and 12-bit ADCs. The board hosts connections for detectors and the relative High Voltage distribution lines. Moreover, it provides the possibility to inject signals in the ASIC analog inputs using a generator. A dedicated software for each different ASIC is available. It provides a simple GUI to set all the programmable parameters of the ASIC and allows the user to perform calibration and DAQ in an intuitive way. Some firmware options can also be set in order to manage DAQ within an experiment.

Ordering Options

Code Description

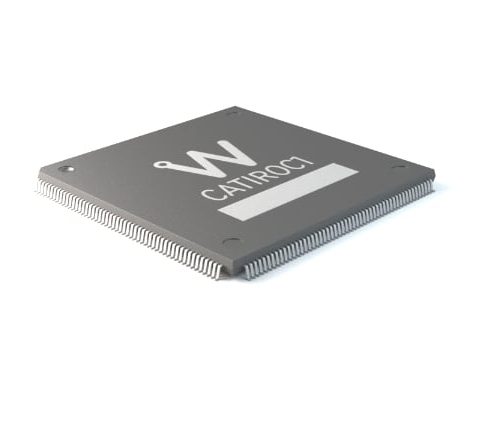

WWTBCATIROC1 Testboard for CATIROC 1 QFP chip
WWTBCITIROC1 Testboard for CITIROC 1A BGA chip

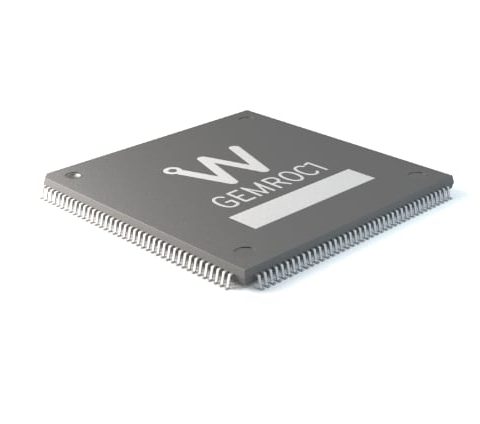

WWTBGEMROC1A Testboard for GEMROC 1 QFP chip

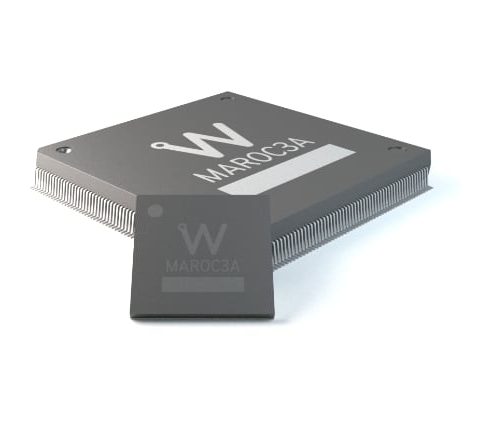

WWTBMAROC3AA Testboard for MAROC 3A BGA chip

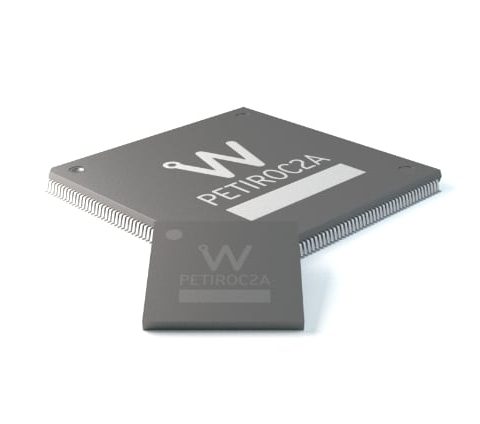

WWTBPETIROC2 Testboard for PETIROC 2A BGA chip
WWTBPHOTORC1 Testboard for PHOTOROC 1A chip

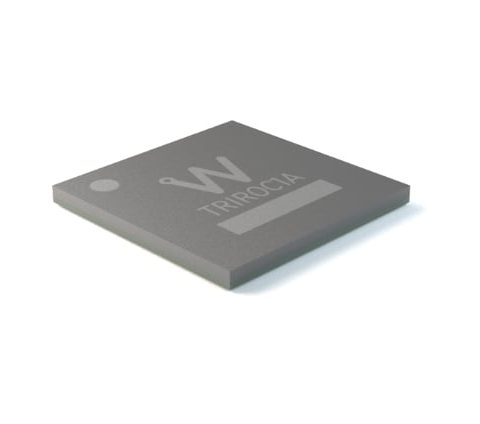

WWTBTRIROC1A Testboard for TRIROC 1A BGA chip

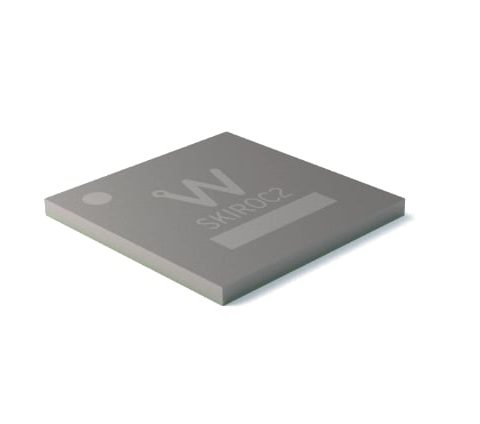

WWTBSKIROC2A Testboard for SKIROC 2A BGA chip
WWTBPSIROC1B Testboard for PSIROC 1 BGA chip   RoHS
WWTBLIROC1BA Testboard for LIROC 1 BGA chip   RoHS
WWTBRADIO2BA Testboard for RADIOROC 2 BGA chip   RoHS
WWTBLIROC2BA Testboard for LIROC 2 BGA chip   RoHS
WWTBTEMPOR2A Testboard for TEMPOROC 2 BGA chip
