VME8200

9U 21Slot VME64X Enhanced Crate series

Request a quote
Downloads

Features

  • 19″x 9U (6+3) enclosure
  • 21 slot for 6Ux160mm VME modules
  • VME64X compliant monolithic backplane
  • Pluggable Power Supplies with different configurations up to 2500 W
  • Pluggable 2U Fan Unit
  • Pluggable 1U Air Filter
  • Completely free rear side access of VME backplane with optional rear side transition card cage 3U/6U x 80mm
  • Short circuit protection
  • Over / Under voltage protection
  • Over temperature protection
  • CAN bus, Ethernet, USB, RS232 interface for remote monitoring and control
  • SBC controlled with graphic OLED display
  • Automatic daisy chain, CBLT compliant
  • Easy firmware upgrading
More info
3 Years Warranty
placeholder
3 Years Warranty
placeholder
3 Years Warranty
placeholder
3 Years Warranty
placeholder
placeholder
placeholder
placeholder
placeholder

Overview

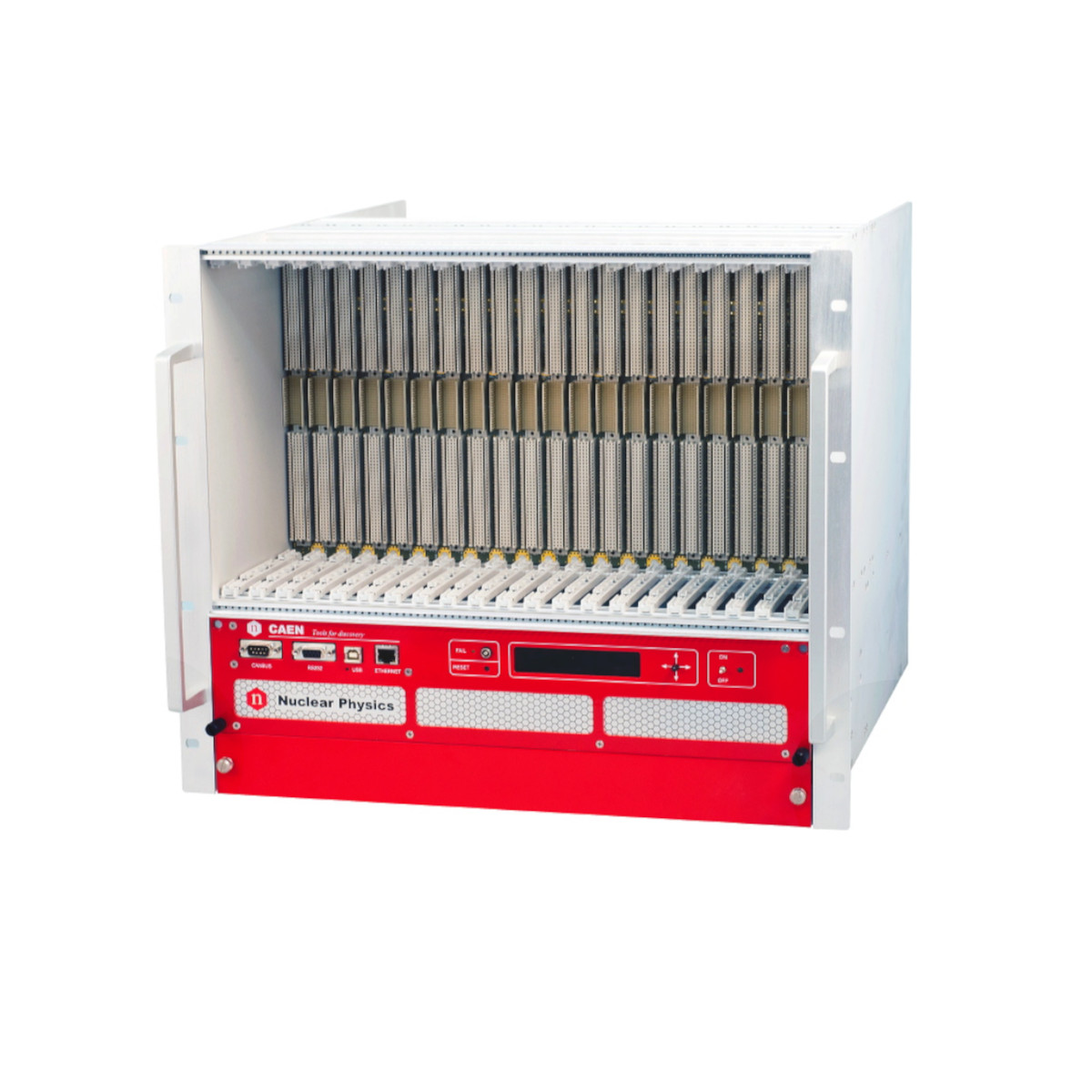

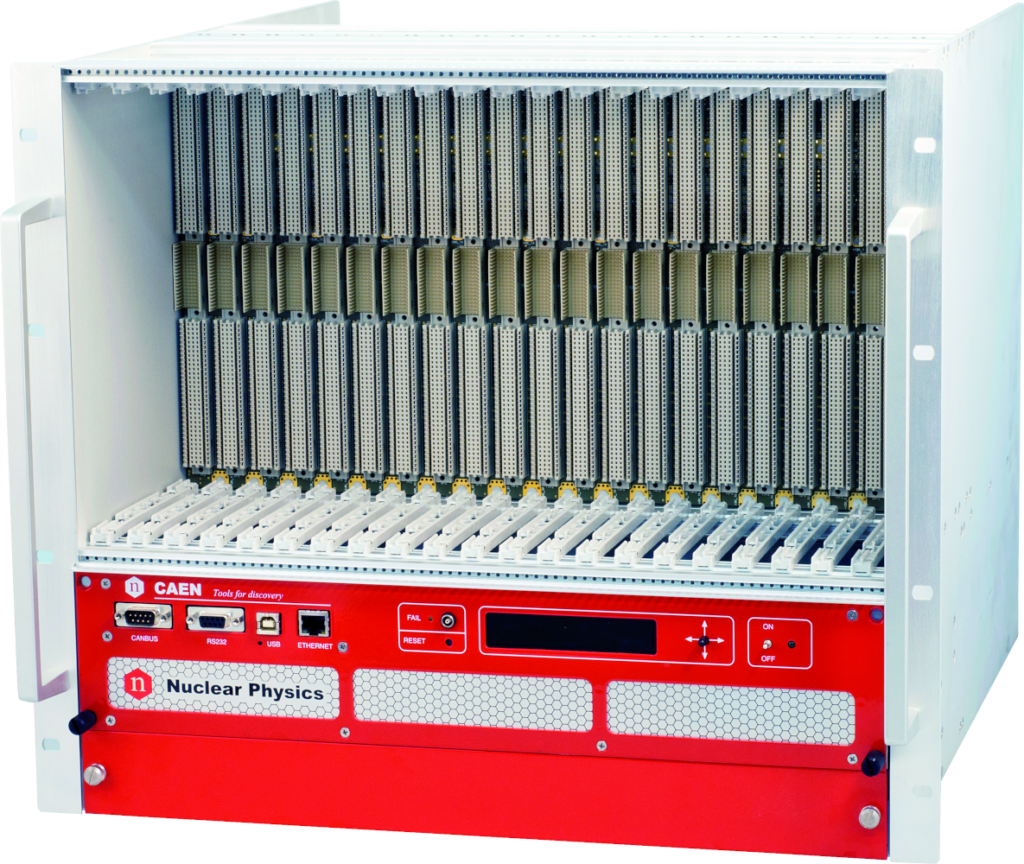

The VME8200 crates are based on a modularity concept and consist of four detachable parts:

  • The Subrack (Bin + Backplane): Mod V8200/XX 9U Bin 1with 21 slot monolithic backplane (VME64X J1/J0/J2). The rear J2/ J0 area of the VME backplane is available for 21 6Ux80mm (or 3Ux80mm) rear transition modules (RTM).
  • The Pluggable VME Power Supply with different configurations, allows up to 2500 W output.

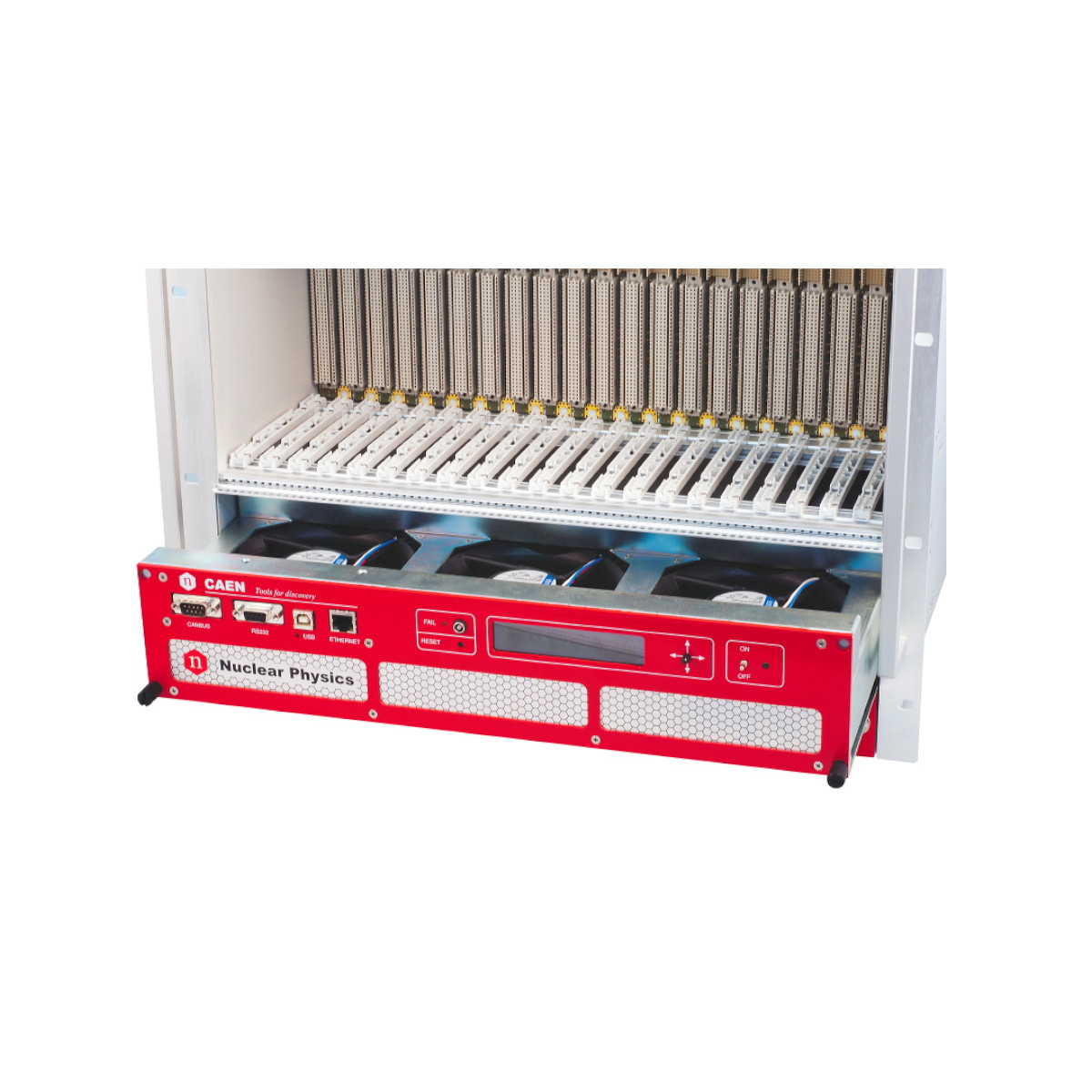

  • The Pluggable ventilation and control unit (2U Fan Tray): Mod A8160 Smart VME Fan Unit, with OLED display and various interfaces.
  • The Pluggable air filter (1U).

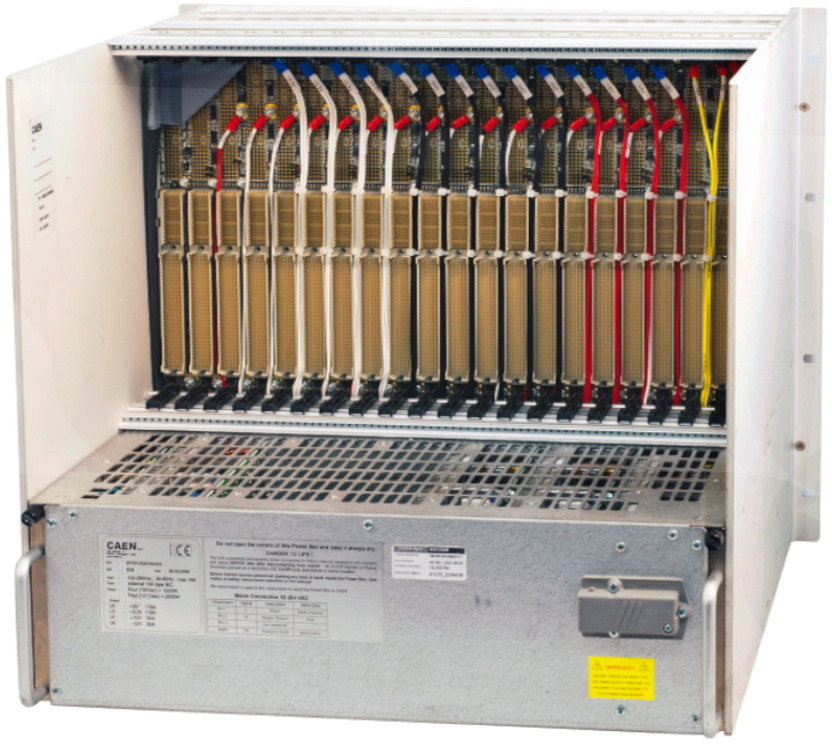

The power supply is placed in the bottom, behind the fan tray unit, in order to keep the rear of the VME backplane completely accessible.
Safety features include: short circuit protection, Over / Under voltage protection, Over temperature protection. Remote monitoring and control take place through CAN bus, Ethernet, USB and RS232 interfaces. The crates are also SBC controlled via graphic OLED Display, provide Automatic Daisy Chain and support Chained Block Transfer (CBLT). User-friendly control software completes the VME8200 features. The Unit is powered by 92 ÷264 Vac, 50 ÷ 60 Hz, power factor 0.98% (230 Vac).

Technical Specifications

Mechanics
  • 9U bin for 6U x 160 mm VME cards, 21 slots, 2U space for fan tray,
  • 1U Air Filter Overall dimensions: height 399.2mm, width 482.4mm (19”), depth 544.4mm
  • Rear J2/J0 area of the VME backplane available for 21 6Ux80mm (or 3Ux80mm) rear transition modules (RTM)
Backplane

VME64X J1/J0/J2 Automatic daisy chain, CBLT compliant

Mains input

Auto range: 92 ÷264 Vac, 50÷60 Hz, inrush current: <16 A @ 230 Vac power. fact. > 0.98 @ Output Power > 1 kW

Maximum Total Output Power

1200 W @ 100 Vac, 2530 W @ 211 Vac

Interface

RS 232, USB (2.0), CAN bus, Ethernet

Fuse

External 16 A, type B/C

Output power

110/220 A @ +5 V, 20/40A @ +/-12 V, 110/220 A @ +3.3 V

Power requirements

1760W @ 100Vac at full load; 3600W @ 211Vac at full load

Isolation

CE acc. to EN 60950

Load Regulation

< 10 mV for 0-100% load change @ +5 V, < 10 mV for 0-100% load change @ +3.3 V, < 15 mV for 0-100% load change @ +/-12 V

Efficiency

75% ÷ 85% @ 230 Vac configuration dependent

Noise and ripple

< 10 mVpp

Temperature sensors

Power Supply Control: nr. 1 FAN Unit: nr. 1 Backplane: nr. 8 (optional)

Over Voltage Protection

Trip Off when the output voltage > 103% ÷ 120% (programmable) of set voltage

Under Voltage Protection

Trip Off when the output voltage < 80% ÷ 97% (programmable) of set voltage

Over Current Protection

Trip Off when the current > programmable Iset value

Over Temperature Protection

Trip Off when temperature of a single Power Supply block > 90° C Signaled: temperature FAN Unit > 50°C , temperature Power Supply Control > 65° C

Cooling Airflow

540 m³/h (at maximum fan speed)

Operation 0÷50°C

0÷50°C without derating

Firmware

VME8200 firmware can be upgraded via Ethernet

Compare

Compare with Powered Crates.

Loading...

Ordering Options

Code Description
WV8200VME011 VME8200/11 - VME64X 9U crate, 21 Slot J1/J0/J2, smart fan unit, RTM, (5V 110A,+/-12V 20A, 3.3V 110A)   RoHS
WV8200VME012 VME8200/12 - VME64X 9U crate, 21 Slot J1/J0/J2, smart fan unit, RTM, (5V 220A,+/-12V 20A, 3.3V 110A)   RoHS
WV8200VME013 VME8200/13 - VME64X 9U crate, 21 Slot J1/J0/J2, smart fan unit, RTM, (5V 110A,+/-12V 20A, 3.3V 220A)   RoHS
WV8200VME014 VME8200/14 - VME64X 9U crate, 21 Slot J1/J0/J2, smart fan unit, RTM, (5V 220A,+/-12V 20A, 3.3V 220A)   RoHS
WV8200VME015 VME8200/15 - VME64X 9U crate, 21 Slot J1/J0/J2, smart fan unit, RTM, (5V 110A,+/-12V 40A, 3.3V 110A)   RoHS
WV8200VME016 VME8200/16 - VME64X 9U crate, 21 Slot J1/J0/J2, smart fan unit, RTM, (5V 220A,+/-12V 40A, 3.3V 110A)   RoHS
WV8200VME017 VME8200/17 - VME64X 9U crate, 21 Slot J1/J0/J2, smart fan unit, RTM, (5V 110A,+/-12V 40A, 3.3V 220A)   RoHS
