3 Years Warranty

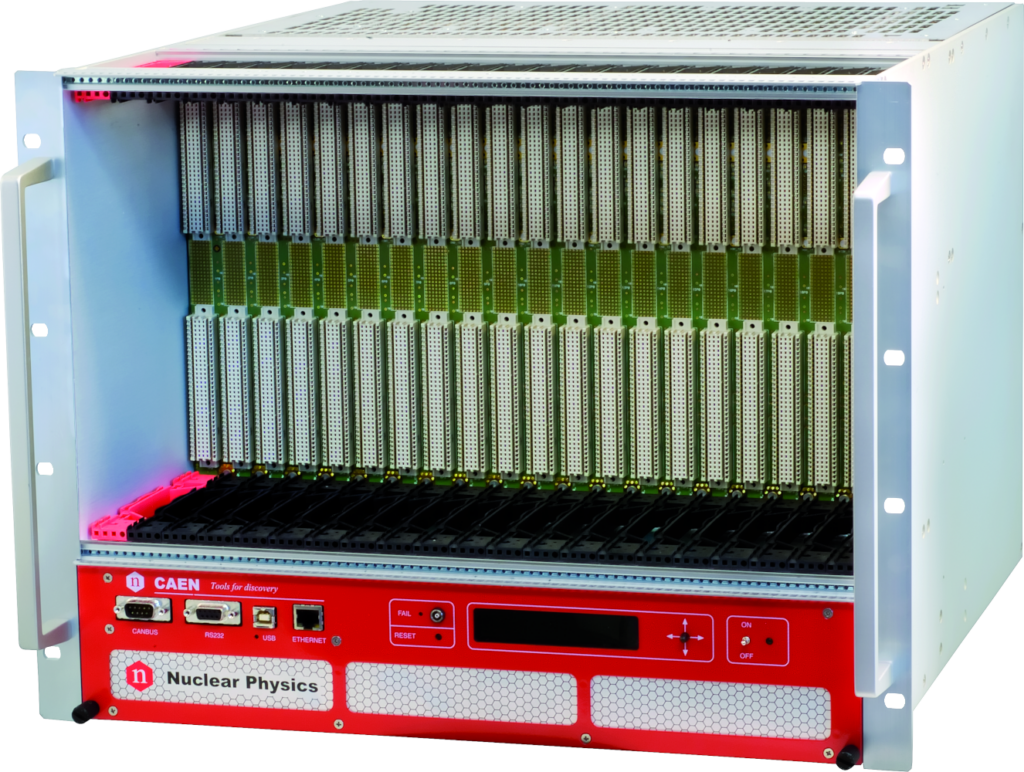

VME8100
8U 21 Slot VME64/64X Enhanced Crate Series
Features
- 19″ x 8U (6+2) enclosure
- 21 slot for 6U x 160mm VME modules
- Pluggable Power Supplies with different configurations up to 2500 W
- Available with VME64, VME64X compliant monolithic backplane
- Pluggable 2U Fan Unit
- Short circuit protection
- Over / Undervoltage protection
- Over temperature protection
- CAN bus, Ethernet, USB, RS232 interface for remote monitoring and control
- SBC controlled with graphic OLED Display
- Automatic Daisy Chain, CBLT compliant
- Easy firmware upgrading
- Libraries, Demos (C and LabView) and Software tools for Windows and Linux
Overview
The Mod. VME8100 crates are based on a modularity concept and consist of three detachable parts easily to exchange:
- The Subrack (Bin + Backplane): Mod V8100XX 8U Bin, with 21 slot monolithic backplane, (VME64/ VME64X).
- The Pluggable Power Supply: Models V81XX, VME Power supply with different configurations, allows up to 2500 W output.
- The Pluggable ventilation and control unit (2U Fan Tray): Mod A8160 Smart VME Fan Unit, with OLED display and various interfaces.
Safety features include: short circuit protection, Over / Undervoltage protection, Over temperature protection. Remote monitoring and control take place through CAN bus, Ethernet, USB and RS232 interfaces. The crates are also SBC controlled via graphic OLED Display, provides Automatic Daisy Chain and supports Chained Block Transfers (CBLT). User-friendly control software completes the VME 8100 features. The Unit is powered by 92 ÷264 Vac, 50 ÷ 60 Hz, power factor 0.98% (230VAC).
Technical Specifications
- Mechanics
8U bin for 6U x 160 mm VME cards, 21 slots, 2U space for fan tray
- Backplane
VME64 J1/J2, VME64X J1/J2 – J1/J0/J2
Automatic daisy chain, CBLT compliant
- Mains input
Auto range: 92 ÷264 Vac, 50÷60 Hz,
inrush current: <16 A @ 230 Vac power. fact. > 0.98 @ Output Power > 1 kW
- Maximum Total Output Power
- 1200 W @ 100 Vac
- 2530 W @ 211 Vac
- Fuse
External 16 A, type B/C
- Output power
- 110/220 A @ +5 V
- 20/40A @ +/-12 V
- 110/220 A @ +3.3 V
- Isolation
CE acc. to EN 61010
- Power requirements
1760W @ 100Vac at full load; 3600W @ 211Vac at full load
- Load Regulation
- < 10 mV for 0-100% load change @ +5 V
- < 10 mV for 0-100% load change @ +3.3 V
- < 15 mV for 0-100% load change @ +/-12 V
- Efficiency
75% ÷ 85% @ 230 Vac configuration dependent
- Noise and ripple (backplane connector)
- +5 V < 10 mVpp, <1 mVrms Typ: 4.0 mVpp, 0.5 mVrms
- +3.3 V < 10 mVpp, <1 mVrms Typ: 6.0 mVpp, 1.0 mVrms
- +/-12 V < 10 mVpp, <2 mVrms Typ: 8.0 mVpp, 1.5 mVrms
- Interface
RS 232, USB (2.0), CAN bus, Ethernet
- Temperature sensors
Power Supply Control: nr. 1
FAN Unit: nr. 1
Backplane: nr. 8 (optional)
- Over Voltage Protection
Trip Off when the output voltage > 103% ÷ 120% (programmable) of set voltage
- Under Voltage Protection
Trip Off when the output voltage < 80% ÷ 97% (programmable) of set voltage
- Over Current Protection
Trip Off when the current > programmable Iset value
- Over Temperature Protection
Trip Off when temperature of a single Power Supply block > 90° C
Signaled:- temperature FAN Unit > 50°C
- temperature Power Supply Control > 65° C
- Operation
0÷50°C without derating
- Cooling Airflow
540 m³/h (at maximum fan speed)
- Firmware
VME8100 firmware can be upgraded via Ethernet
Compare
Compare with Powered Crates.
Loading...
Ordering Options
| Code | Description |
|---|---|
| WV8100VME000 | VME8100/00 - VME64 8U crate, 21 slot J1/J2, smartfan unit, (5V 110A, ±12V 20A) RoHS |
| WV8100VME001 | VME8100/01 - VME64 8U crate, 21 slot J1/J2, smartfan unit, (5V 220A, ±12V 20A) RoHS |
| WV8100VME002 | VME8100/02 - VME64 8U crate, 21 slot J1/J2, smartfan unit, (5V 110A, ±12V 40A) RoHS |
| WV8100VME003 | VME8100/03 - VME64 8U crate, 21 slot J1/J2, smartfan unit, (5V 220A, ±12V 40A) RoHS |
| WV8100VME004 | VME8100/04 - VME64X 8U crate, 21 slot J1/J2, smartfan unit, (5V 110A, ±12V 20A, 3.3V 110A) RoHS |
| WV8100VME005 | VME8100/05 - VME64X 8U crate, 21 slot J1/J2, smartfan unit, (5V 220A, ±12V 20A, 3.3V 110A) RoHS |
| WV8100VME006 | VME8100/06 - VME64X 8U crate, 21 slot J1/J2, smartfan unit, (5V 110A, ±12V 20A, 3.3V 220A) RoHS |
| WV8100VME007 | VME8100/07 - VME64X 8U crate, 21 slot J1/J2, smartfan unit, (5V 220A, ±12V 20A, 3.3V 220A) RoHS |
| WV8100VME008 | VME8100/08 - VME64X 8U crate, 21 slot J1/J2, smartfan unit, (5V 110A, ±12V 40A, 3.3V 110A) RoHS |
| WV8100VME009 | VME8100/09 - VME64X 8U crate, 21 slot J1/J2, smartfan unit, (5V 220A, ±12V 40A, 3.3V 110A) RoHS |
| WV8100VME010 | VME8100/10 - VME64X 8U crate, 21 slot J1/J2, smartfan unit, (5V 110A, ±12V 40A, 3.3V 220A) RoHS |
| WV8100VME011 | VME8100/11 - VME64X 8U crate, 21 slot J1/J0/J2, smart fan unit, (5V 110A, ±12V 20A, 3.3V 110A) RoHS |
| WV8100VME012 | VME8100/12 - VME64X 8U crate, 21 slot J1/J0/J2, smart fan unit, (5V 220A, ±12V 20A, 3.3V 110A) RoHS |
| WV8100VME013 | VME8100/13 - VME64X 8U crate, 21 slot J1/J0/J2, smart fan unit, (5V 110A, ±12V 20A, 3.3V 220A) RoHS |
| WV8100VME014 | VME8100/14 - VME64X 8U crate, 21 slot J1/J0/J2, smart fan unit, (5V 220A, ±12V 20A, 3.3V 220A) RoHS |
| WV8100VME015 | VME8100/15 - VME64X 8U crate, 21 slot J1/J0/J2, smart fan unit, (5V 110A, ±12V 40A, 3.3V 110A) RoHS |
| WV8100VME016 | VME8100/16 - VME64X 8U crate, 21 slot J1/J0/J2, smart fan unit, (5V 220A, ±12V 40A, 3.3V 110A) RoHS |
| WV8100VME017 | VME8100/17 - VME64X 8U crate, 21 slot J1/J0/J2, smart fan unit, (5V 110A, ±12V 40A, 3.3V 220A) RoHS |
