V974

4 Channel Variable Gain Fast Amplifier

Features

  • Input bandwidth up to 170 MHz
  • x10 adjustable gain with x1 steps
  • 50 Ω Input Impedance
  • ±2 V output dynamics
  • Drives 50 Ω Loads
  • Cascadable Channels
  • Rise/fall time <3 ns with a 25 mV unipolar input amplitude
  • I/O delay <3 ns

Overview

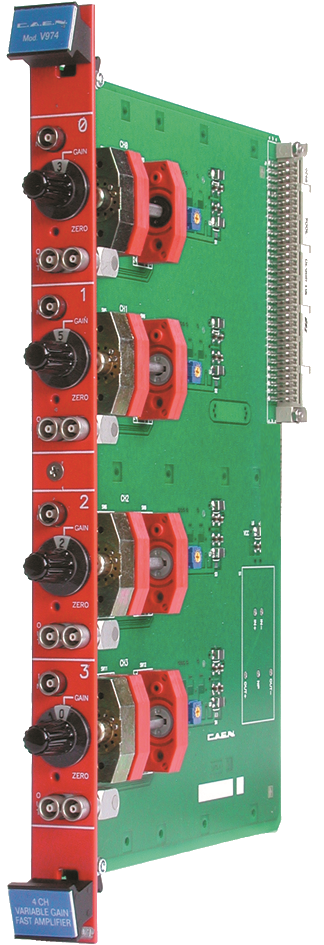

The Mod. V974 is a 4 channel fast rise time amplifier housed in a 1-unit VME module; each channel features a voltage gain adjustable from 1 to 10 in x1 steps. Channels are non-inverting and bipolar: they amplify both positive and negative signals. Input bandwidth is 170 MHz for signals up to 50 mVpp and decreases for larger ones (up to 100 MHz @ 400 mVpp). Gain setting is performed independently for each channel via four rotary handles. Channels can be cascaded in order to obtain larger gain values. Each channel is provided with three LEMO 00 connectors, one for the input and two bridged for the output. The board features a ±2 V output dynamics. 4 screw-trimmers (one per channel) allow the offset calibration which operates over a ±25 mV range. The features include an output short circuit protection.

Technical Specifications

Packaging

1U-wide VME unit

Voltage gain

0 ÷ 10

Rise time

< 3 ns (unipolar input, ±25 mV max. amplitude)

Bandwidth
  • DC to 170 MHz with ±25 mV input signal
  • DC to 100 MHz with ±200 mV input signal
Output dynamic range

±2 V

Max input amplitude

200 mV

Offset nulling range

±25 mV (measured with 0 Ω termination on input)

Inputs channels

4, DC coupled, 50 Ω ± 2% impedance

Output channels

4 with Fan-Out of two, drive 50 Ω load

Noise

< 70 µV RMS (referred to the input)

Interchannel insulation

40 dB

Input reflection

< 10%

I/O Delay

< 3 ns

Offset uniformity

±4 mV (typical)
±12 mV (maximum)

NOTE

Specifications measured with gain = 10

Compare

Compare with Amplifiers (Fast).

Loading...

Ordering Options

Code Description
WV974XBAAAAA V974B - 4 Channel Variable Gain Fast Amplifier (noJAUX)   RoHS
