Sniper-GN

New

Special Nuclear material Portable identifier

Features

  • Detection and localization of radioactive materials such as Special Nuclear Material (SNM) and Radiological Dispersal Devices (RDD) even when moderated (polyethylene), shielded or masked.
  • High-resolution spectroscopy detector for identification of gamma emitters.
  • High efficiency gamma/neutron detector for neutron source identification.
  • Discrimination between fissile material, alpha-n source, Plutonium and Uranium (enrichment estimation level in 1 min).

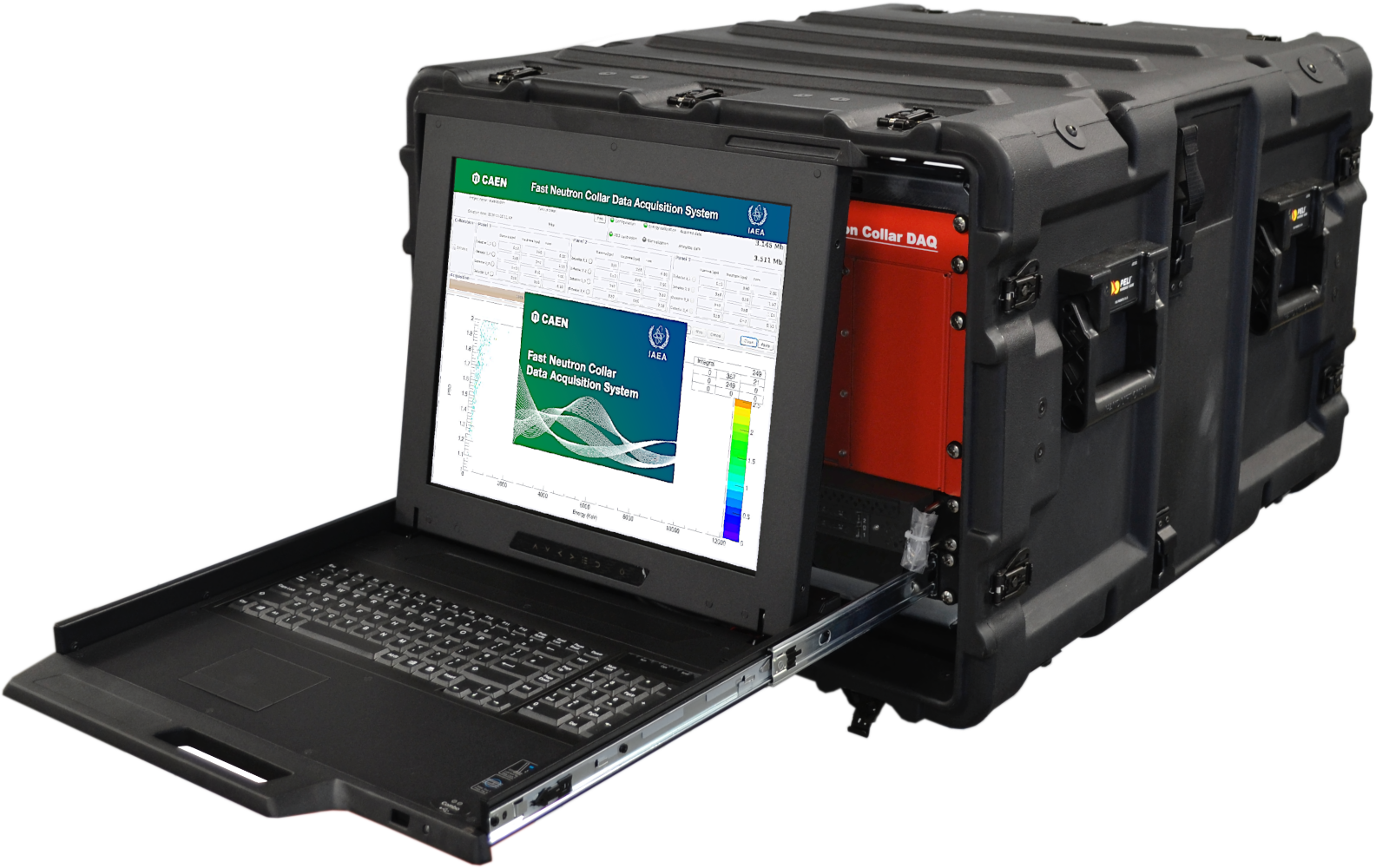

  • Real-time gamma/neutron discrimination using algorithms implemented by CAEN for the IAEA Safeguards Fast Neutron Collar Monitor.
  • Software functionalities including Search, Mapping and Identification.
  • Highly portable (i.e., backpack or trolley) and adaptable system (<7.8kg).
  • Powered by Rechargable Batteries – runtime 8+ hours.

Overview

The SNIPER-GN is a radiation detection system designed to be quickly deployed by the nuclear security community for homeland security and/or for emergency response purposes. The SNIPER-GN can “detect and identify” Plutonium, SNM, and spent fuel in just a few seconds and at distances ten times greater than current detection standards (ISO and ANSI) enabling security personnel to immediately recognize and resolve hidden threats without the need to introduce costly secondary detection measures or highly specialized personnel. A patented algorithm allows to identify the SNM through neutron measurements, very difficult to shield and detectable at high distance (this feature is not yet included in any ISO and ANSI standard).
This new compact and portable instrument can be easily hidden in a backpack or a trolley to be used in multiple scenarios ranging from rapid implementation in public events to perimeter monitoring of critical infrastructure. SNIPER-GN can also be employed for radiation monitoring of harbors or airports cargo areas, for customed borders inspection and for first responder.
The SNIPER-GN is equipped with CAEN patented, cutting-edge PSD technology that combines a highly sophisticated blend of spectroscopy, counting, and neutron multiplicity algorithms to create a truly innovative detection system. This PSD technology has been tested, qualified, and implemented at the most respected nuclear research laboratories and has been adopted by the IAEA Safeguards Division for nuclear fuel verification.

SNIPER-GN exceeds International Standard

  • International Reference (IEC62327) 500 nSv/h
  • SNIPER-GN 50 nSv/h

252 Cf Distance to detect the neutron source

  • International Reference (IEC62327) ☢️ → 25 cm
  • SNIPER-GN 50 nSv/h ☢️ → 125 cm Standard X5

252 Cf Distance shielding to detect the neutron source

  • International Reference (IEC62327) ☢️ → 5 cm
  • SNIPER-GN 50 nSv/h ☢️ → Standard + 5 cm polyethylene + 5 cm Lead

239 Pu Distance to detect the neutron source

  • International Reference (IEC62327) ☢️ → 25 cm
  • SNIPER-GN 50 nSv/h ☢️ → 500 cm Standard X20

239 Pu Minimum Distance shielding to detect the neutron source

  • International Reference (IEC62327) ☢️ → 5 cm polyethylene
  • SNIPER-GN 50 nSv/h ☢️ → Standard + 5 cm polyethylene + 5 cm Lead
blank
blank

Software functionalities

  • DASHBOARD: start, pause and shutdown buttons. Real-time counting rate of gamma and neutrons.

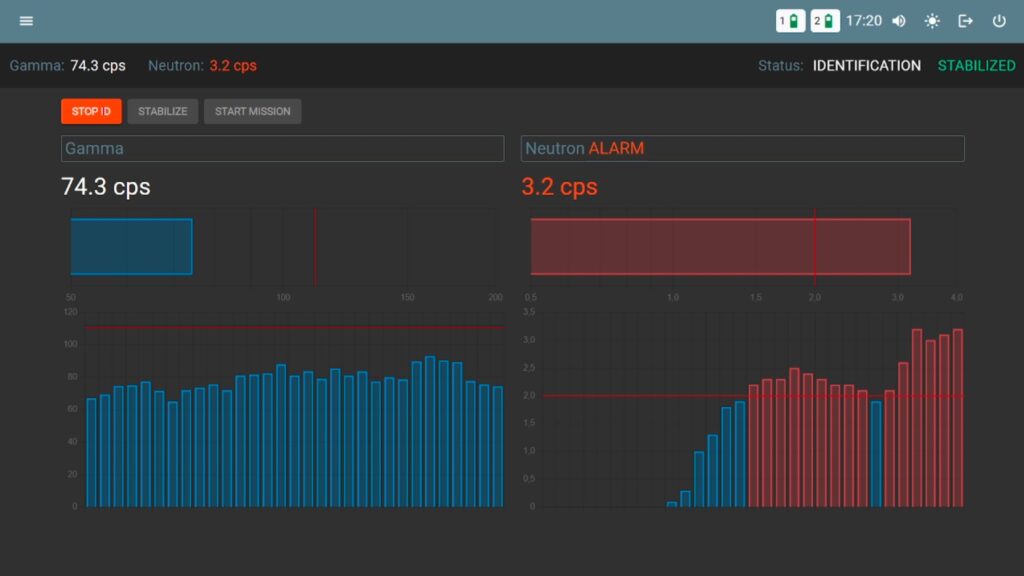

  • SEARCH: Counting rate trend of gamma and neutrons in the last minute. Alarm thresholds of gamma and neutrons are plotted.
  • MAPPING: real-time position plot and route of the device on the map. The position where an alarm is triggered is also highlighted on the map.
  • REPORT: the report of the last identification measurement is reported: spectra, list of identified isotopes and their category and the confidence level.

Technical Specifications

Standard procedures
  • 3 minutes background measurement
  • 3 minutes for warm up of the system (stabilization)
Detection and identification

Typical scanning times:

  • 1 s for a gamma alarm
  • 2 s for a neutron alarm
  • 1 minute for identification of gamma or neutron emitter
Functionalities

• Gamma radiation counting and source identification
• Neutron radiation counting and source identification
• Continuous background measurement with moving average
• Automatic alarm thresholds setting for gamma and neutron independently
• GPS included for mapping function
• Automatic report generation with spectra visualization

Neutron/Gamma PSD detector

• Dimension: 2” x 2”
• Neutron source identification allows discriminating U, Pu, Cf or Am/Be sources

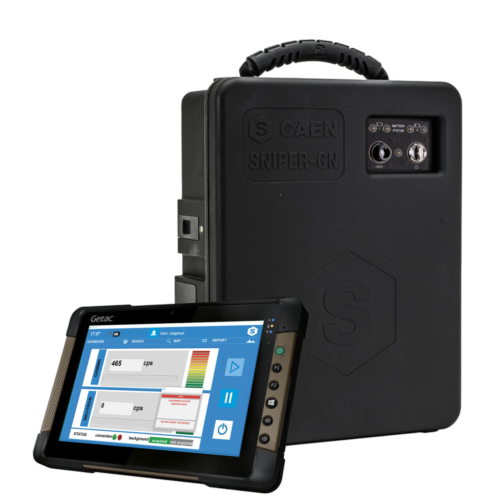

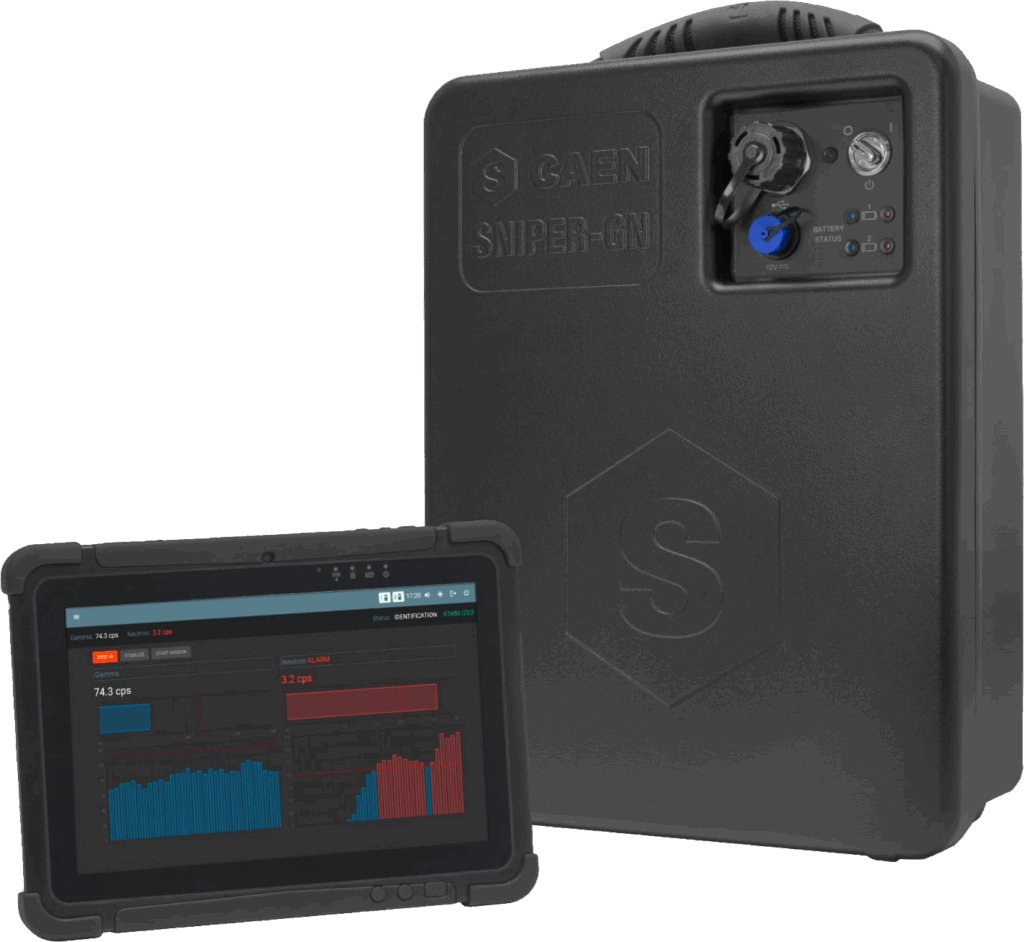

Tablet

• Windows 10 OS
• 10.1” display
• Wi-Fi connection with the SNIPER-GN for data visualization
• Report and data logging saved locally on the tablet SSD
• *Optional: rugged tablet compliant with military standard

Gamma middle-resolution detector

• Allows peak search for isotope identification
• Nuclide library compliant with the ANSI N42.34
• Energy Resolution FWHM at 662 keV < 4.2%

Power supply

• 2 rechargeable Li-Ion batteries
• Extended temperature range for operation: -30 ÷ 60 °C
• Hot swap capability, dedicated compartment
• Charging temperature: 0 ÷ 45 °C
• 8 hours continuous operation

Environmental

• Temperature range -20 ÷ 45 °C

Mechanical

• Compact sizes: (L x W x D) = 390 x 295 x 145 mm3
• Easily transportable: weight < 7.8 kg
• Rugged containing case
• IP67 protection class

Optional

• Customizable backpack for undercover measurement
• Rugged trolley for application in harsh environment

Ordering Options

Code Description
WSSNIPAAAAAB SNIPER GN PLUS   RoHS
