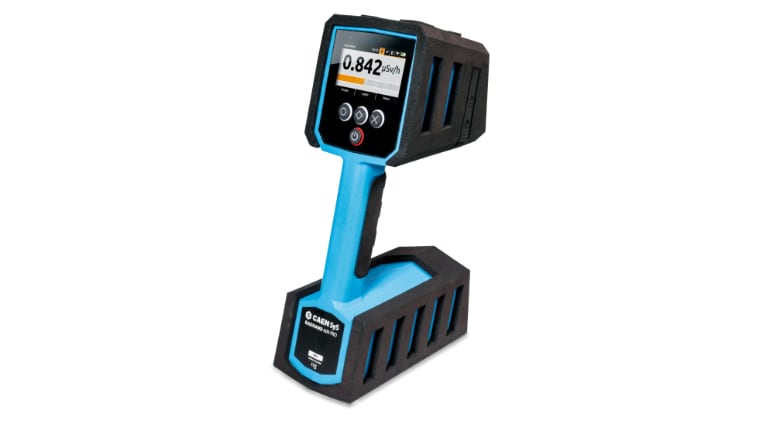

RADHAND 600 PRO
New
Spectroscopic Radiation Measurement and UHF RFID Tagging Handheld
Features
- State-of-the-art algorithms allow top performance on nuclide identification and dose-rate measurements
- Fully wireless connectivity for hands-free operation
- 8 hr operation on battery
- Multiple Units may be linked to develop a network of sensors
- Integrated GPS for geo-localization and timing information (customizable in-door applications)
- Locally encrypted data may be saved on-board or transmitted to a secure remote database
- Supports integration of external application-specific probes such as alpha/beta contaminameters, neutron detectors, and high-resolution CdZnTe gamma spectrometers
Overview
RadHAND 600 PRO is the world’s first hand-held instrument designed to perform both spectroscopic radiation measurements and UHF RFID tagging of nuclear waste material and objects.
RadHAND is a novel handheld instrument able to combine, for the first time, state-of-the-art spectroscopic radiation measurements with scintillation detectors and UHF RFID technology for easy tracking of the measured items. RadHAND 600 PRO helps the operator to fully characterize and track objects, surfaces, radioactive waste and any type of item that could be produced and measured in Decommissioning & Dismantling activities or in a Nuclear Power Plant environment.
Being part of the CAENSYS DigiWaste platform, the device inserts measured data and sample information into a central database and, simultaneously, writes the main information in the memory of selected rad-tolerant RFID tags that are part of the CAENSYS RadRFID family. Operators can access the central management database both locally with CAENSYS RadREAD devices and remotely via dedicated web service at any time.
A suite of additional external probes able to be controlled by RadHAND 600 PRO via USB will also be available.
Technical Specifications
- Detectors
- Gamma: 51 x 51 mm (2“x2“) NaI(Tl)
- Gamma and neutron: 51 x 51 mm (2“x2“) NaIL (NaI:Tl, Li)
- Radiation Measurement Performance
- Energy range (Gamma): 10 keV – 10 MeV (2”x2” NaI(Tl))
- Linearization: Real-time linearization of gamma energy
- Dose rate range (Cs-137): 10 nSv/h – 5 mSv/h (1 μrem/h – 0.5 rem/h) ± 30%
- Dose rate range ID Mode (Cs-137): 10 nSv/h – 180 μSv/h (1 μrem/h – 18 mrem/h) (1)
- Dose rate overload range (Cs-137): 5 mSv/h – 50 mSv/h (0.5 – 5 rem/h)
- Maximum exposure rate: 50 mSv/h (5 rem/h)
- Stabilization: Sourceless gain stabilization (patent pending)
- Nuclide library: per customer requirements
- Library categories: SNM, IND, MED, NORM
- Typical resolution: 6.5 % FWHM at 662 keV with 2”x2” NaI(Tl) detector at 20 °C
- Maximum input count rate in identification mode (Cs-137): 300 kcps
- Gamma sensitivity (Cs-137): 1,850 cps/μSv/h
(1) For higher dose rates, CAEN recommends the use of the Collimation kit to keep the dose rate in the ID mode range.
- Physical
- Dimensions (W x L x H):
310 x 168 x 108 mm³ (2”x2” NaI(Tl))
335 x 175 x 117 mm³ (2”x2” NaIL(Tl)) - Weight: <2 kg (2”x2” NaI(Tl))
- Housing material: plastic
- Dimensions (W x L x H):
- UHF RFID Reader
- Multi-Regional Support
- ETSI or FCC compliant versions
- EPC C1 G2, ISO 18000-6C Compliant
- Output power up to 500mW (27dBm)
- Read Range 1.5m (typical)
- Barcode Scanner
1D-2D imager
- Color Camera Environmental
- Operating temperature: -10 °C to 45 °C (14°F to 113°F)
- Relative humidity 85% at 20°C and non-condensing conditions
- Protection rating: at least IP65
- Tests according IEC 62706: Drop, vibration, mechanical shock, electrostatic discharge, radio frequency immunity, RFID ETSI EN 302 208 v. 1.4.1. (EU) FCC part 15.247 (US)
- Battery
- Type: Secure Li-Ion battery pack
- Operation time: 8h in dose rate mode with dimmed back light and GPS switched off at 20°C
- Display
- Type: Blanview TFT-LCD
- Size: 69 mm x 41 mm (2.72“ x 1.61“)
- Resolution: 800 pixels x 480 pixels
- Input/Output
- USB 2.0; micro-AB socket
- Bluetooth Class 4.0
- WLAN WiFi 802.11 g/n
- Software
- Functions: dose rate, identification, RFID read/write, barcode read, record audio description, take color pictures
- Remote operation via web-interface
- File Formats: ANSI N42.42 compatible with thirdparty analysis software applications such as GADRAS, Cambio, or PeakEasy
- Internal Data Storage: 32 GB
- Data sharing: Synchronization with external database
- Position
GPS for outdoor positioning
- RFID Tags
CAENSYS RadRFID: Up 100 Gy rad tolerant UHF RFID tag family
- Accessories
- Rugged carrying case
- Lanyard carrying strap
- USB charger
- Micro-B socket USB cable
- Battery adapter
- Tripod for fixed measurements
- External Probes
USB connectable external probes: CZT for high resolution gamma spectroscopy, Neutron detectors, ZnS for alpha/beta
Videos
DigiWaste Platform - Overview
Accessories

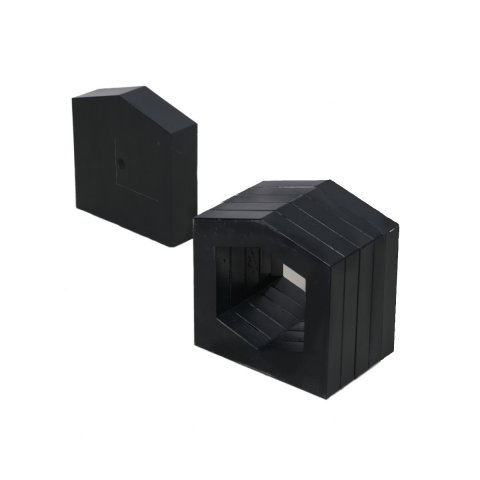

- Collimation kit for RadHAND
- Gamma dose rate monitoring system for real-time radiation monitor
- Tripod Stand
- Single indoor tripod valid for RadHand-600, Gamon S and Gamon D
Ordering Options
| Code | Description |
|---|---|
| WSRAD600PROA | RadHand 600 PRO ETSI VERSION RoHS |
| WSRAD600PROB | RadHand 600 PRO FCC VERSION RoHS |
| WSRADSHPBAAA | SHIELDING KIT - LEAD - RADHAND 600 PRO |
| WSRADSHWAAAA | SHIELDING KIT - TUNGSTEN - RADHAND 600 PRO RoHS |
